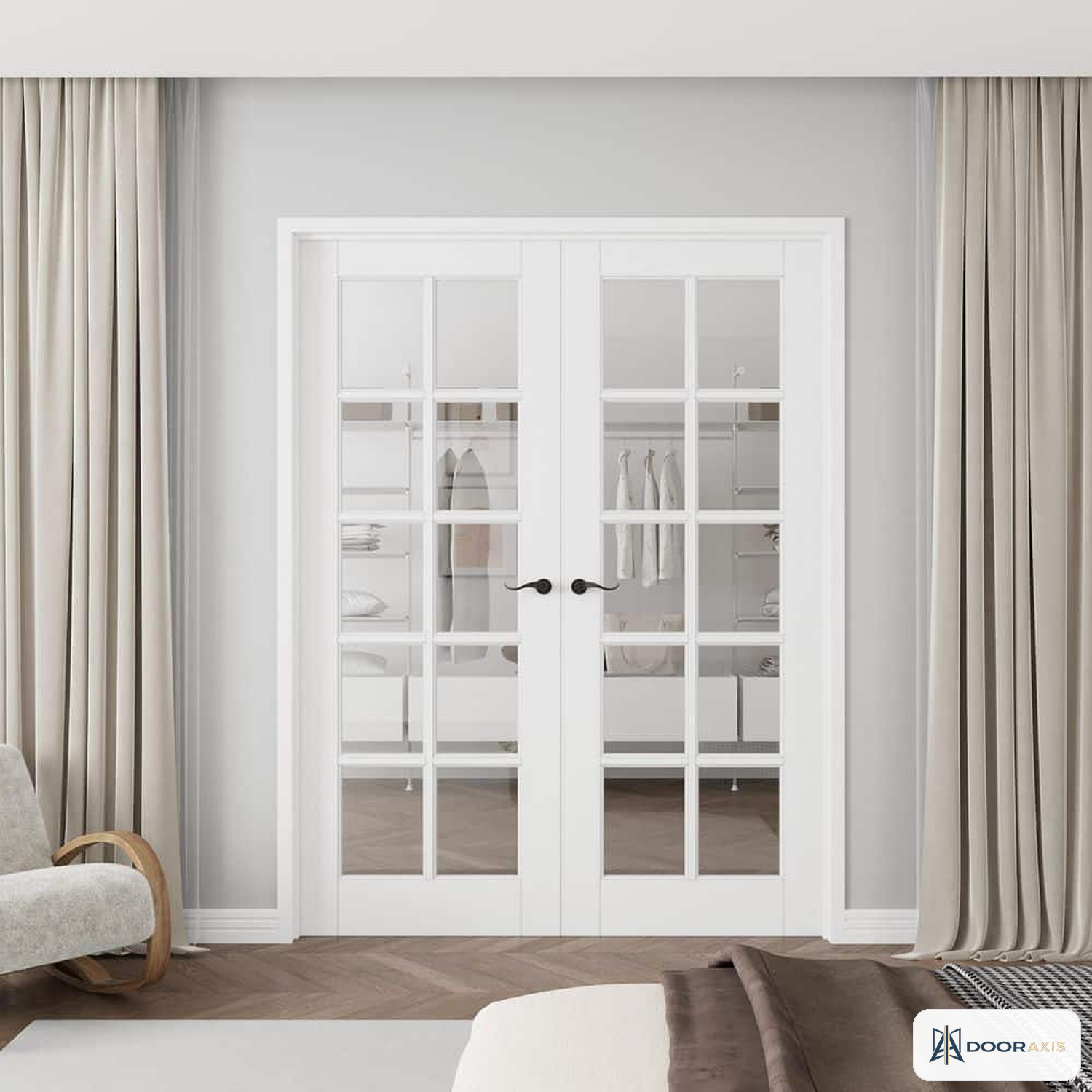

Door Axis 60 in x 80 in 10-Lite Clear Tempered Glass Solid MDF Core Double Prehung Interior French Door - front view

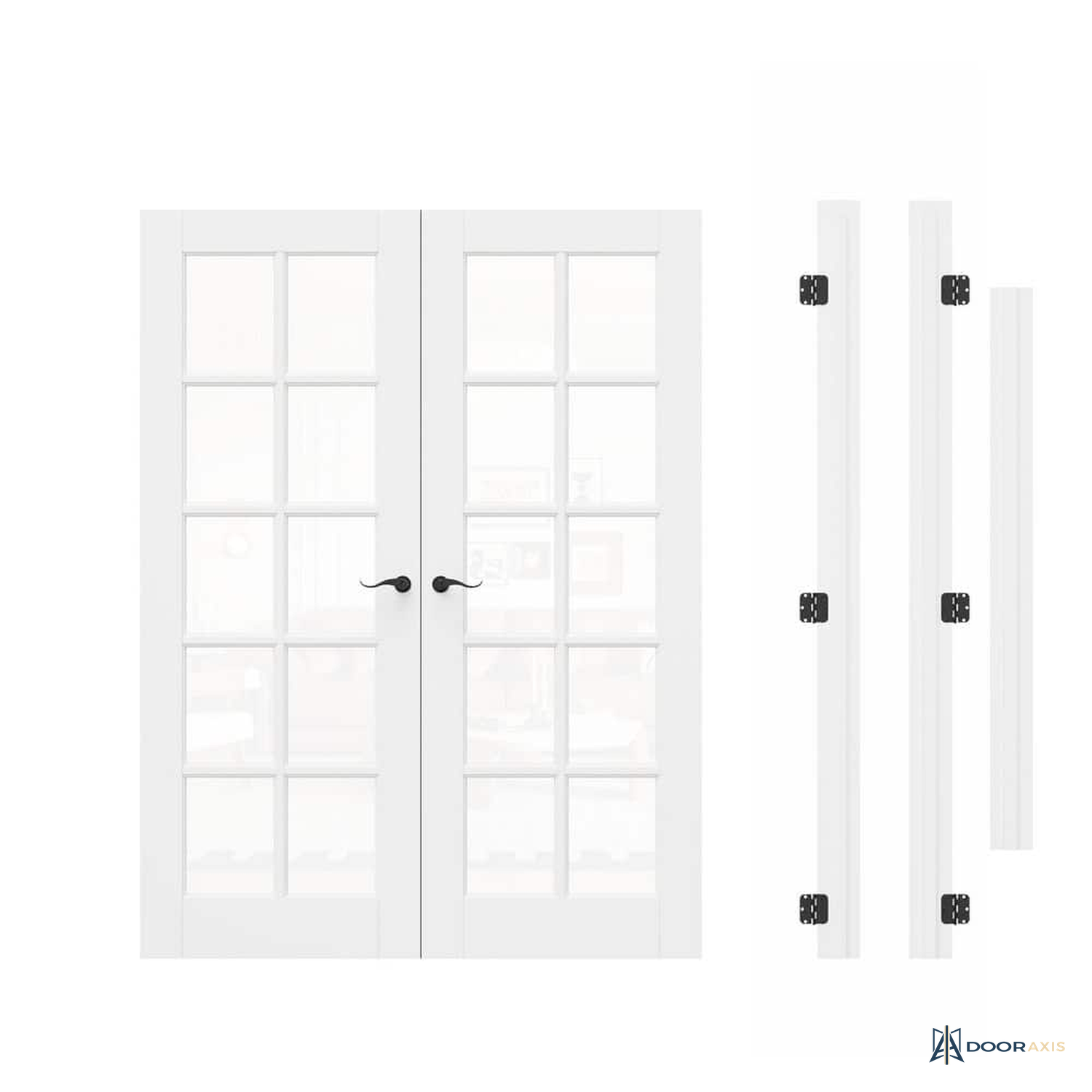

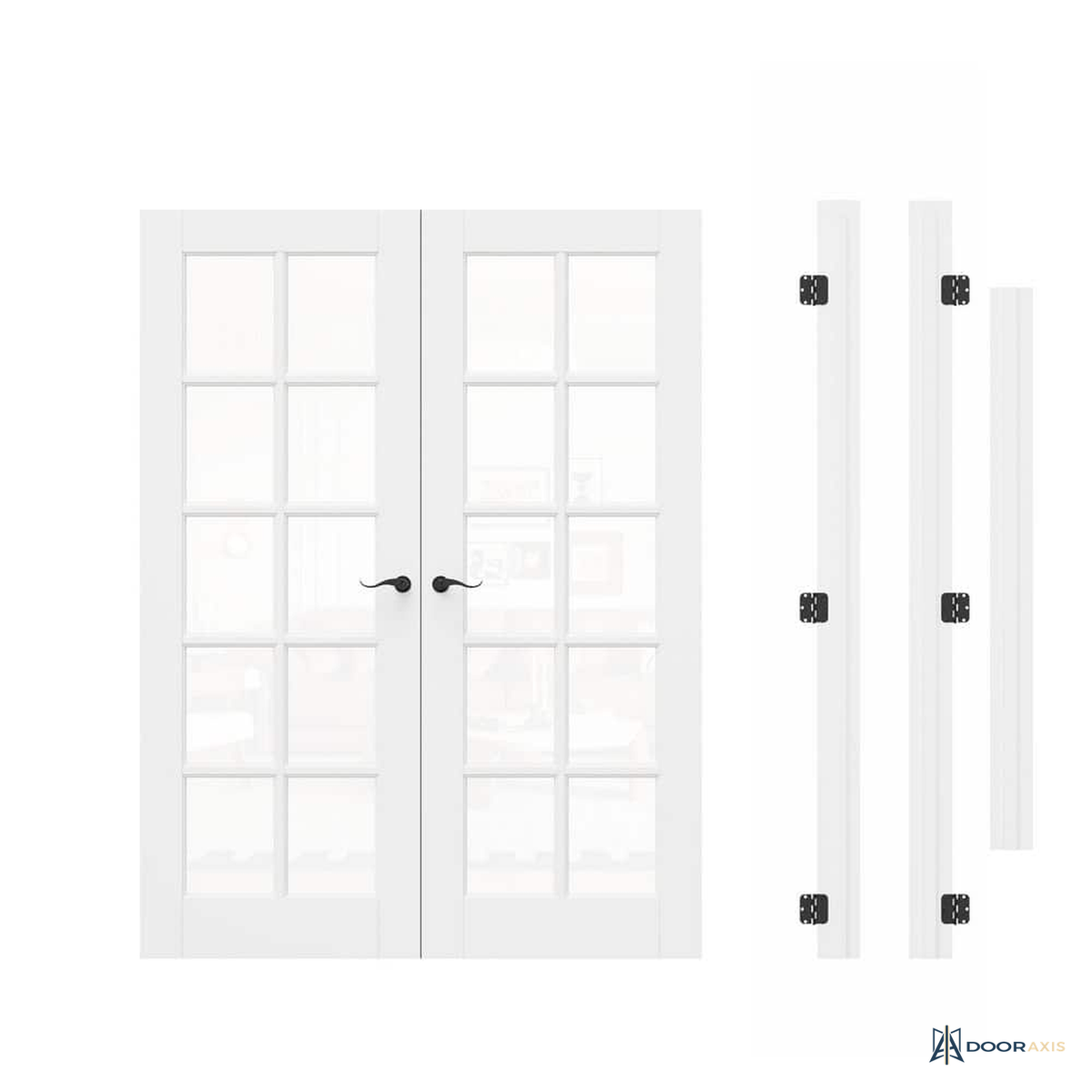

Door Axis 60 in x 80 in 10-Lite Clear Tempered Glass Solid MDF Core Double Prehung Interior French Door - angle view

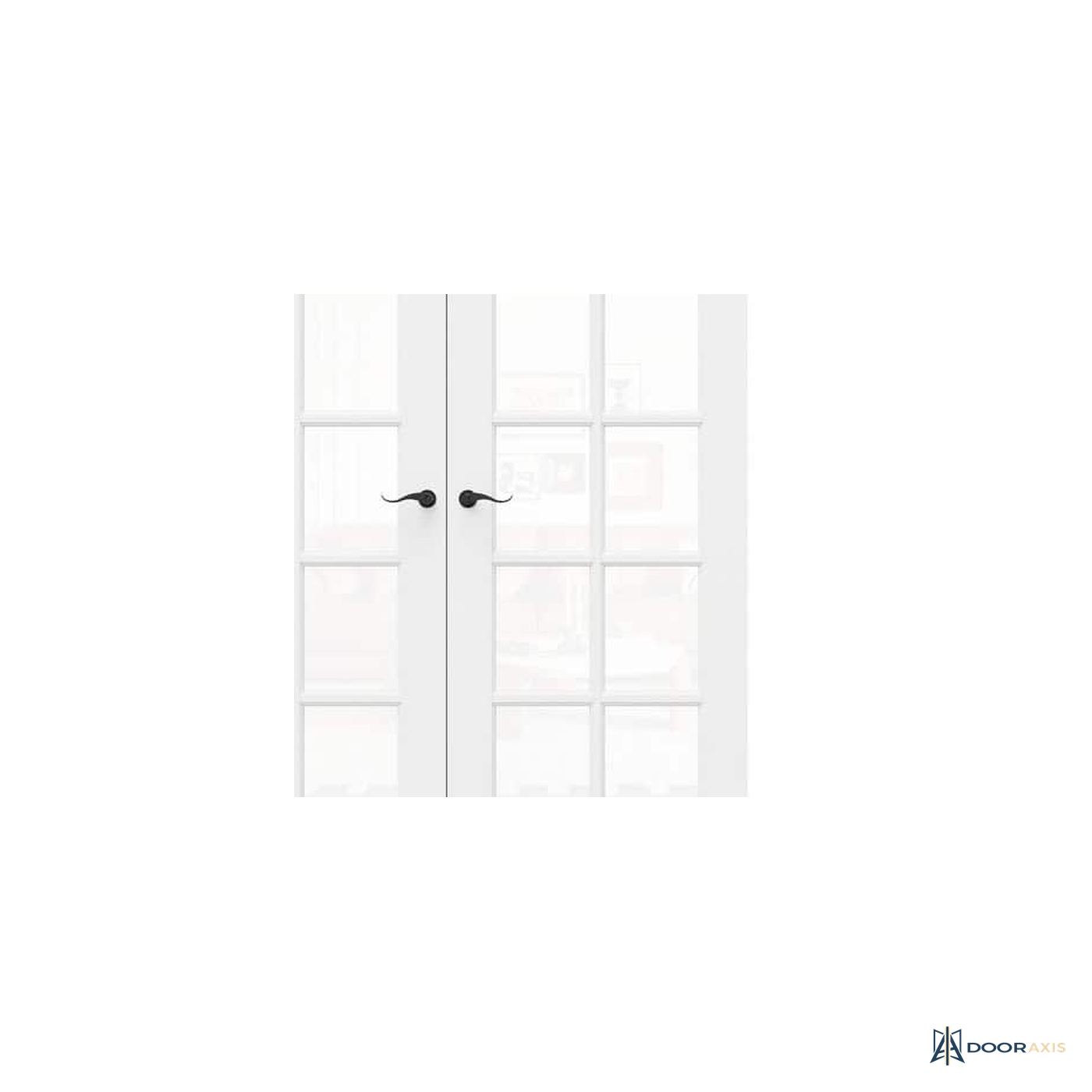

Door Axis 60 in x 80 in 10-Lite Clear Tempered Glass Solid MDF Core Double Prehung Interior French Door - panel and glazing detail

Product image note: Images are representative of the product platform and the configuration shown. Final configuration, finish, and dimensions are confirmed during quote review.

Door Axis

Door Axis 60 in x 80 in 10-Lite Clear Tempered Glass Solid MDF Core Double Prehung Interior French Door

Name: Door Axis 60 in x 80 in 10-Lite Clear Tempered Glass Solid MDF Core Double Prehung Interior French Door
Brand: Door Axis
SKU: DA-DR-INT-FR10L-6080-10L-CL

SKU: DA-DR-INT-FR10L-6080-10L-CL

Size

60 in x 80 in 48 in x 80 in 56 in x 80 in 64 in x 80 in 72 in x 80 in

Configuration

10-Lite 3-Lite

Glass

Clear Frosted

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

The Door Axis 10-Lite Tempered Glass Double Prehung Interior French Door brings daylight through a hallway, study, or laundry wall with a pair of glazed solid core slabs on one frame. It serves homeowners and remodelers who want a classic divided lite french opening with safety glass and a complete, ready-to-hang kit.

Each slab is built with a solid CARB P2 compliant MDF core that damps sound far better than hollow construction, wrapped in a smooth paint-grade white surface that is harder than a standard prime coat and ready to use as shipped, or paintable when a color is wanted. Glazing is 4 mm SGCC certified tempered safety glass in a ten lite grid across the pair, offered clear for connected rooms or frosted where privacy matters, with a three lite layout available for a more modern horizontal look. The kit includes both slabs non-bored, a 4-9/16 in flat jamb set with six steel hinges, two surface handle sets, a top latch to hold the stationary leaf, and perimeter weatherstrip; the jamb assembles quickly with a finish nailer, and universal handing lets the pair swing in or out of the room.

Highlights

Pair of glazed slabs on one frame for 48 to 72 in openings
4 mm SGCC certified tempered safety glass, clear or frosted
Ten lite grid across the pair; three lite layout available
Solid CARB P2 compliant MDF core, about 70 percent better sound damping than hollow core
Complete kit: jamb set, 6 steel hinges, 2 handle sets, top latch, weatherstrip
Smooth paint-grade white surface, usable as shipped and paintable
Universal reversible handing for inswing or outswing installation
4-9/16 in flat jamb fits standard 2x4 interior walls

Specification Table

Configuration	Double french pair, two slabs on one frame, stationary leaf top latch
Unit size	60 x 80 in flagship; 48, 56, 60, 64, 72 in wide pairs, all 80 in tall
Slab size	Two 30 x 80 x 1.375 in slabs on the 60 in unit
Rough opening	Unit width plus 2 in, height 82 in (62 x 82 in for the 60 in pair)
Core and material	Solid MDF core, CARB P2 compliant; MDF stiles and rails
Glazing	4 mm tempered safety glass, SGCC certified; Clear or Frosted
Lite pattern	10-Lite grid across the pair; 3-Lite layout at 60 in
Handing	Universal Reversible, inswing or outswing
Jamb	4-9/16 in wood flat jamb, quick assemble kit with hinges factory set
Hardware prep	Non-bored slabs; two handle sets and top latch included
Weatherstripping	Perimeter weatherstrip included
Sound reduction	Yes, solid core construction
Weight	About 170 lb (60 in pair); about 100 lb (48 in pair)
Additional configurations	Additional sizes and 3-Lite combinations are quoted on request
Warranty	Manufacturer-backed warranty, confirmed during quote review

Included Components

Two glazed solid core slabs, non-bored
Quick assemble 4-9/16 in flat jamb kit with six steel hinges factory set
Two surface handle sets
Top latch for the stationary leaf
Perimeter weatherstrip
Assembly and installation instructions

Installation Notes

Verify the rough opening before ordering: unit width plus 2 in and 82 in of height; the 60 in pair fits a 62 in x 82 in opening.
Assemble the jamb kit square on a flat surface with a finish nailer before lifting it into the opening.
Set the frame plumb and level and shim behind each hinge location so both leaves meet evenly at the center gap.
Hang the stationary leaf first, engage the top latch, then fit the active leaf and check the reveal along head and center.
Hold slabs about 1/2 in above the finished floor, allow more over carpet, and paint or seal all six edges of each slab to keep the cores dry.

Warranty and Support

Manufacturer-backed warranty, confirmed during quote review.
Support includes rough opening review and lite pattern confirmation before release.

Frequently Asked Questions

Is the glass safe for a home with kids?
Yes. Every lite is 4 mm tempered safety glass with SGCC certification, the same safety class used in shower enclosures, so impacts crumble rather than shard.

Should I pick clear or frosted?
Clear connects two living spaces and passes the most light. Frosted passes light but blocks visibility, which suits laundries, pantries, home offices on bedrooms halls, and bathrooms.

How does a double french pair latch?
One leaf is held stationary by the included top latch while the active leaf closes against it with the included handle sets. Both leaves open fully when you want the whole opening clear.

What rough opening do I need?
Plan the unit width plus 2 in and 82 in of height, so a 60 in x 80 in pair needs about 62 in x 82 in. Confirm on site before ordering; exact unit dimensions are confirmed during quote review.
