Door Axis 60 in x 80 in 15-Lite True Divided Clear Glass Unfinished Pine Double Prehung Interior French Door
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis True Divided Unfinished Pine Double Prehung Interior French Door is the stain-grade classic: stile and rail wood leaves with individually set tempered glass panes, prehung on a pine veneer jamb. It serves studies, dens, dining rooms, and formal entries to shared spaces where real divided lites and a natural wood finish matter.

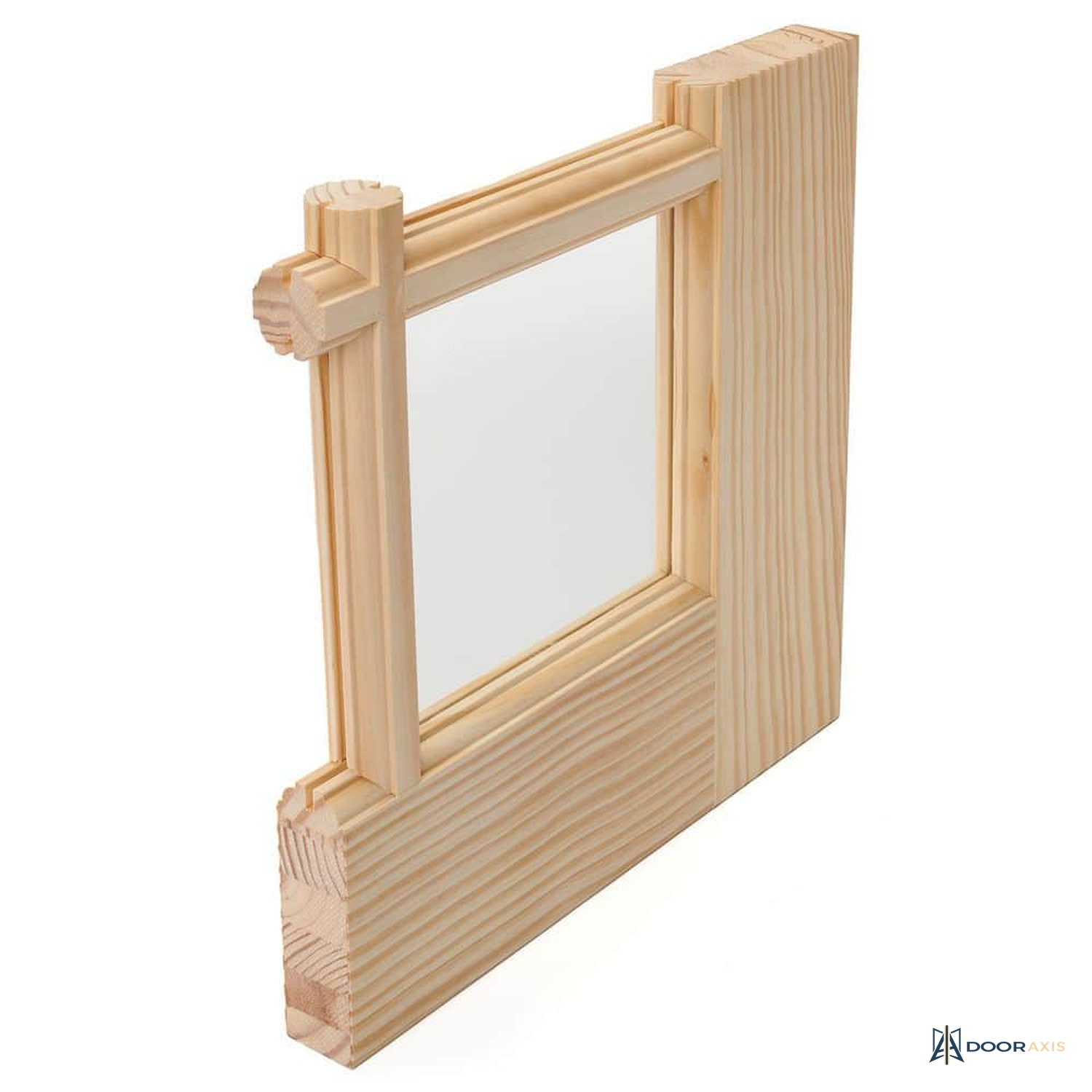

Each leaf is stile and rail constructed pine with true divided lites: every pane is a separate piece of clear tempered glass set in Ovolo sticking, not a grille laid over one sheet, so the muntins carry real shadow lines from both sides. The 60 in unit pairs two 30 x 80 in leaves in a fifteen lite pattern per leaf and operates as a right-hand active door with a single 2-1/8 in bore, its passive leaf held by a flush bolt in the astragal; the 48 in unit pairs two 24 x 80 in ten lite leaves that both swing freely on satin nickel ball catches with no bore, taking dummy knobs. Six satin nickel hinges carry the pair, and the unfinished pine veneer takes stain or paint with proper preparation, letting the door match existing millwork instead of forcing paint over it.
Highlights
- True divided lites: each pane individually set in Ovolo sticking
- Clear tempered safety glass in every lite
- Stile and rail solid wood construction in stain-grade pine
- Unfinished veneer takes stain or paint to match existing millwork
- 60 in unit: right-hand active with passive leaf flush bolt, bored for a knob
- 48 in unit: both leaves active on satin nickel ball catches, dummy knob prep
- Prehung on a 4-9/16 in pine veneer flat jamb with six satin nickel hinges
- Published rough openings: 62.5 x 82.25 in and 50 x 82.25 in
Specification Table
| Configuration | Double french pair, stile and rail leaves on one frame |
| Unit size | 60 x 80 in flagship (overall 62 x 81.75 in); 48 x 80 in (overall 49.5 x 81.75 in) |
| Slab size | Two 30 x 80 x 1.375 in leaves (60 in unit); two 24 x 80 x 1.375 in leaves (48 in unit) |
| Rough opening | 62.5 x 82.25 in (60 in unit); 50 x 82.25 in (48 in unit) |
| Construction | Stile and rail solid wood, pine veneer, sound reducing |
| Glazing | True divided clear tempered glass, Ovolo sticking |
| Lite pattern | 15 lites per leaf on the 60 in unit; 10 lites per leaf on the 48 in unit |
| Operation | Right-Hand Active with flush bolt (60 in); Both Active with ball catches (48 in) |
| Jamb | 4-9/16 in pine veneer flat jamb |
| Hinges | 6 satin nickel hinges, factory hung |
| Hardware prep | 2-1/8 in single bore, 2-3/8 in backset on the 60 in active leaf; 48 in unit non-bored for dummy knobs; knobs sold separately |
| Finish | Unfinished pine, stain or paint with proper preparation |
| Weight | About 111 lb (60 in); about 94 lb (48 in) |
| Additional configurations | Left-hand active and other widths are quoted on request |
| Warranty | 5-year limited manufacturer-backed warranty, confirmed during quote review |
Included Components
- Two stile and rail pine leaves with true divided tempered glass, factory hung
- 4-9/16 in pine veneer flat jamb (assembled frame)
- Six satin nickel hinges, mortised and installed
- Flush bolt in the astragal on the Right-Hand Active configuration
- Satin nickel ball catches on the Both Active configuration
- Knobs and dummy knobs sold separately
Installation Notes
- Verify the rough opening before ordering: 62.5 x 82.25 in for the 60 in unit and 50 x 82.25 in for the 48 in unit, per the published unit dimensions.
- Set the frame plumb and level and shim behind each hinge location so both leaves meet with an even reveal at the astragal or center gap.
- On the Right-Hand Active unit, hang and bolt the passive leaf first, then fit the active leaf and strike; on the Both Active unit, adjust the ball catches so each leaf closes with a positive click.
- Hold the leaves about 1/2 in above the finished floor and allow more clearance over carpet or thick flooring.
- Finish promptly: stain or paint with proper preparation and seal all six edges of each leaf, including top and bottom, before the room sees humidity swings.
Warranty and Support
- 5-year limited manufacturer-backed warranty, confirmed during quote review.
- Support includes rough opening review and active-leaf handing confirmation before release.
Frequently Asked Questions
What does true divided mean?
Each lite is a separate pane of tempered glass set into the wood muntins with Ovolo sticking. There is no single sheet with a snap-on grille, so the divisions read as real depth from both sides and each pane can be reglazed individually.
How do I know which handing I need?
Stand on the hinge side of the opening: if the knob of the active leaf should sit on the left leaf, that is a right-hand interior pair. The Both Active configuration skips the choice entirely since both leaves open.
Can I stain it to match my trim?
Yes. The pine veneer ships unfinished and takes stain or paint with proper preparation: sand lightly, condition the pine, then stain and topcoat, sealing all six edges of each leaf.
What hardware do I need to add?
The Right-Hand Active unit takes a standard knob or lever in its 2-1/8 in bore; the passive leaf is already held by the astragal flush bolt. The Both Active unit closes on included ball catches and takes surface mounted dummy knobs, sold separately.
Documents
- Type Wood Interior French Door
- SKU DA-DR-INT-FR15L-TD-6080-RHA
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
