Door Axis 60 in x 80 in 6-Panel Steel Prehung Front Door with Two 10 in 5-Lite Sidelites
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

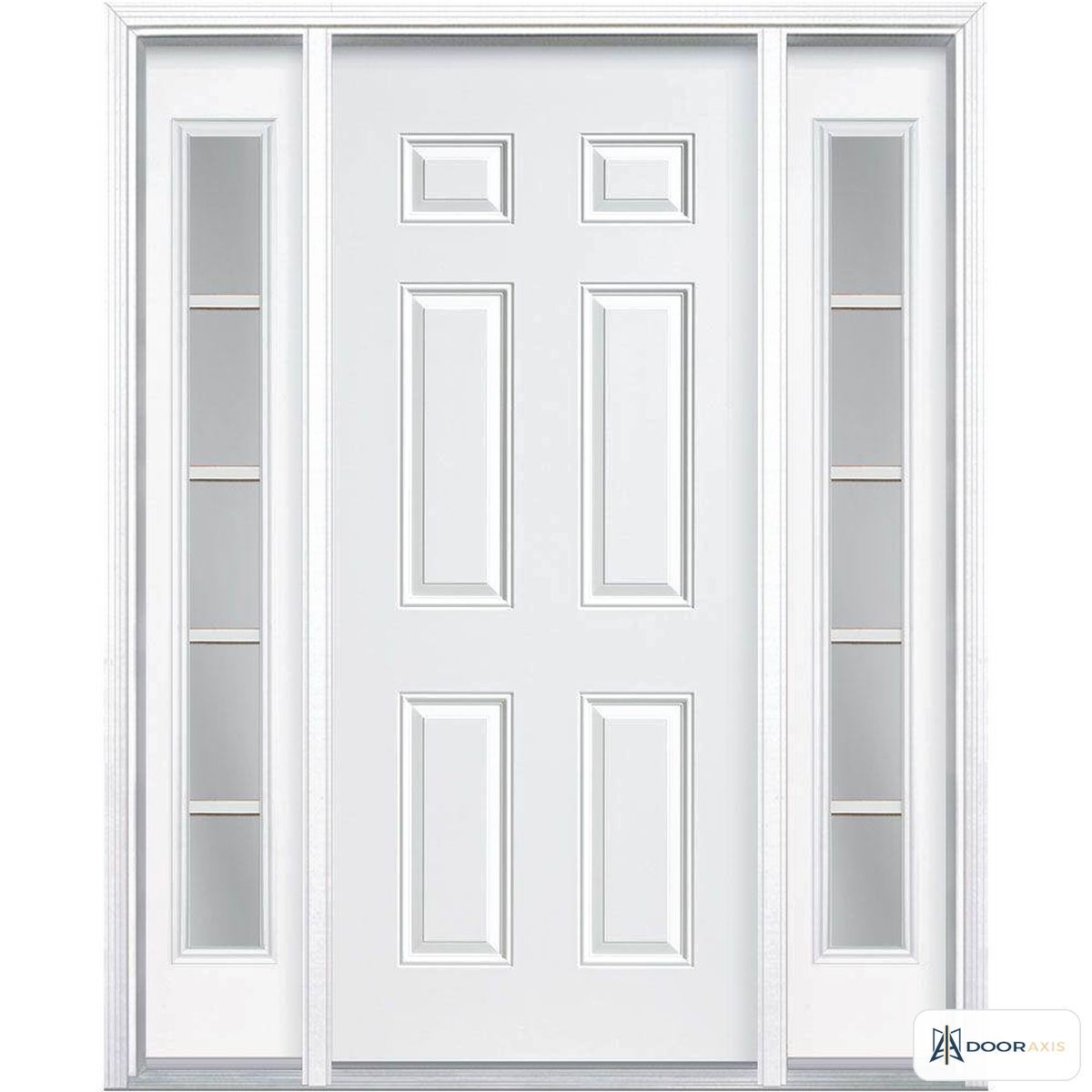

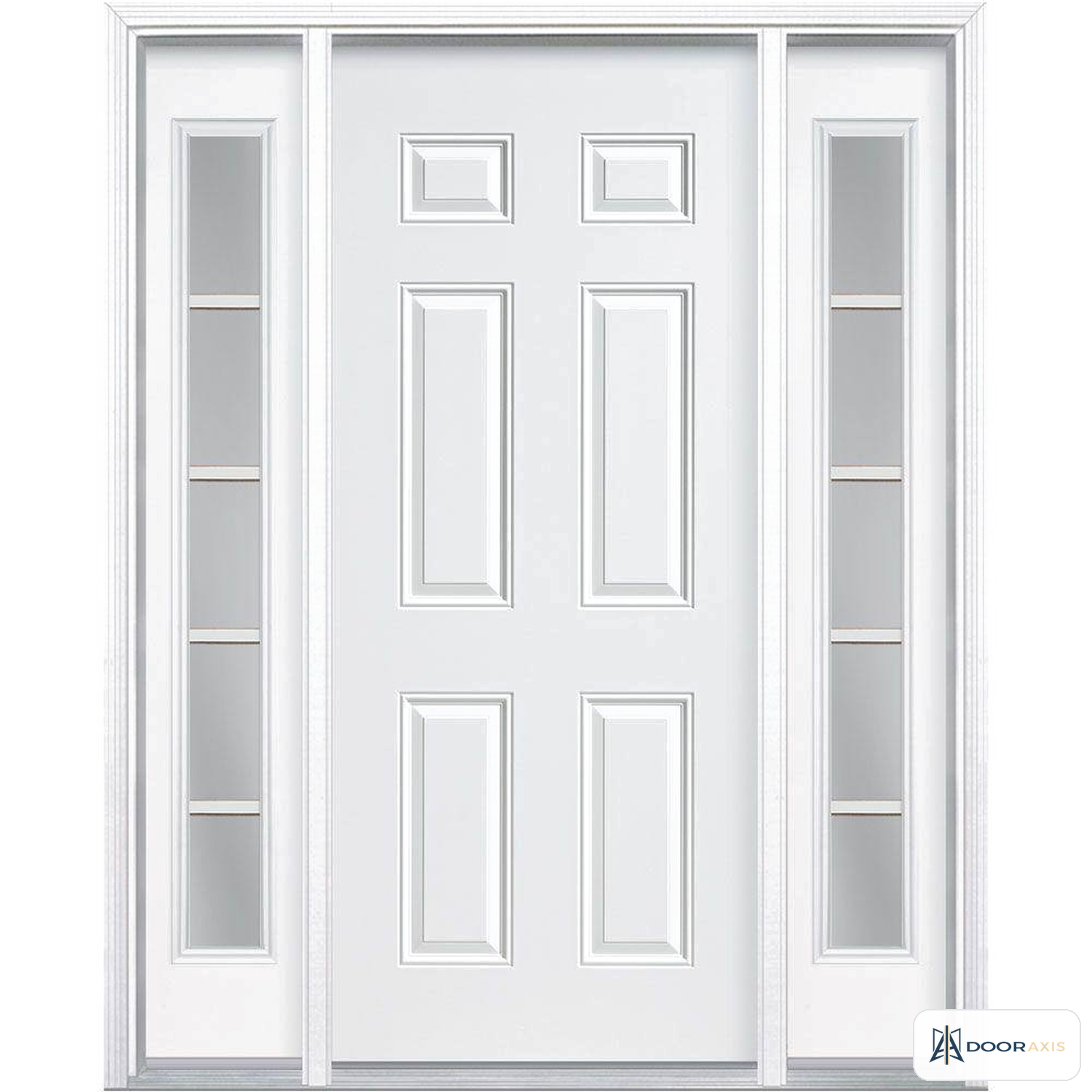

The Door Axis 60 in x 80 in 6-Panel Steel Prehung Front Door with Two 10 in 5-Lite Sidelites packages an embossed 6-panel steel door and a pair of glazed sidelites in a single factory-assembled frame. It serves homeowners and remodelers who want a wider, brighter entry statement in one prehung unit sized for a nominal 60 in opening.
The center slab is formed from steel over a wood-edge engineered interlocking core with grooved stiles, with a reinforced lock area double bored for a lockset and deadbolt. Flanking the door, two 10 in wide sidelites each carry a stack of five lites that bring daylight into the entry hall while the door itself stays private. The complete assembly ships hung right-hand inswing on a weatherstripped frame over an aluminum sill, primed white and ready for field paint, so the door, sidelites, and trim finish as one coordinated elevation.
Highlights
- Complete 60 in x 80 in nominal entry unit: 36 in 6-panel steel door plus two 10 in sidelites

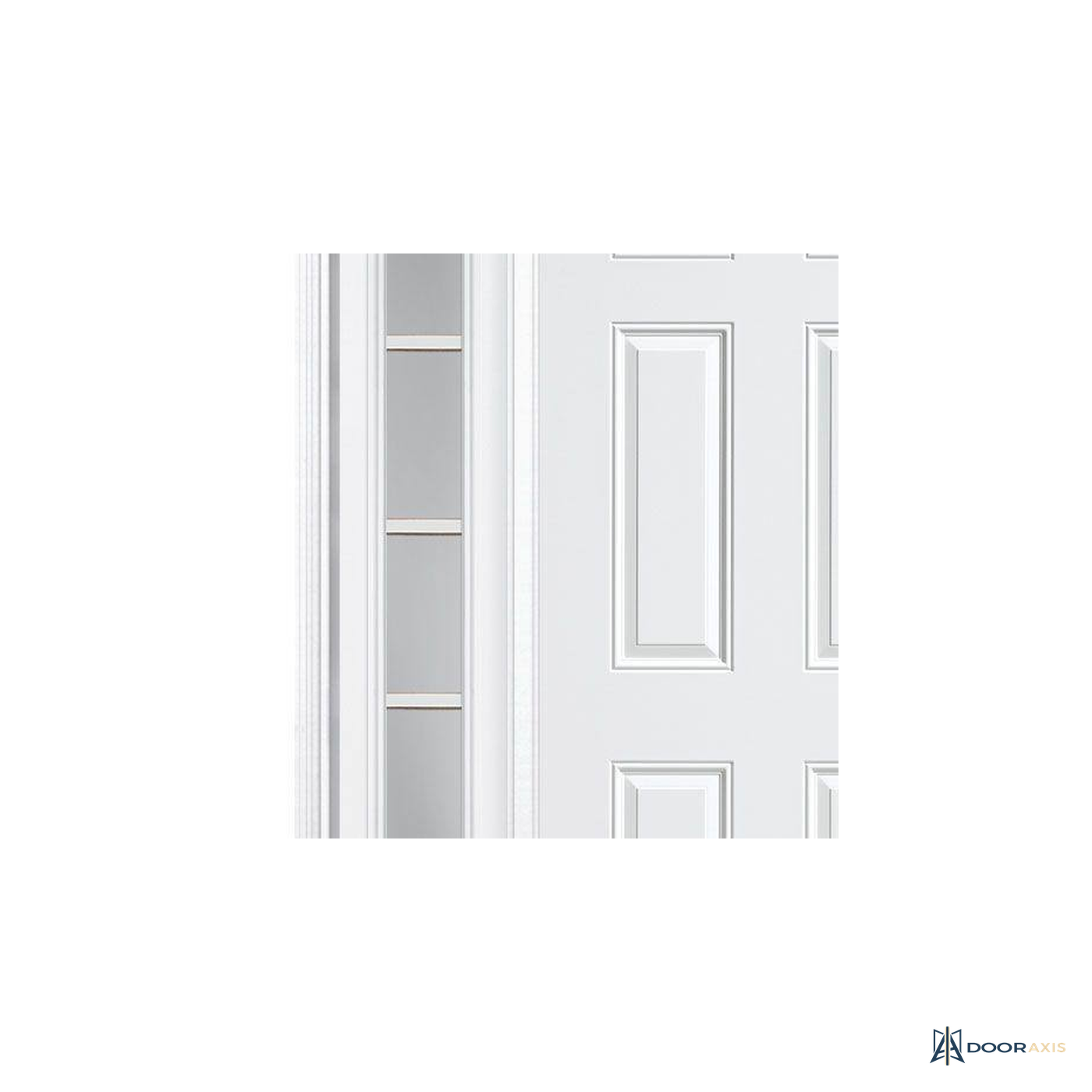

- Each sidelite carries five stacked lites for daylight at the entry
- Embossed 6-panel steel slab, 1.75 in thick, over an engineered interlocking core
- Reinforced lock area, double bored for lockset and deadbolt, hardware sold separately
- Factory-assembled frame with compression weatherstripping and aluminum sill
- Hung right-hand inswing; primed white, paint-ready on all faces
Specification Table
| Configuration | Single door with two sidelites, one prehung frame |
| Nominal unit size | 60 in x 80 in |
| Door slab | 36 in x 80 in x 1.75 in, 6-panel embossed steel |
| Sidelites | Two, 10 in wide, 5-lite glazed |
| Rough opening | 62.5 x 82.5 in (typical); verify against the assembled unit before framing |
| Jamb | 4-9/16 in primed wood jamb (platform standard, confirmed during quote review) |
| Core | Wood-edge engineered interlocking core with grooved stiles |
| Handing | Right-Hand Inswing |
| Hardware prep | Double bore for lockset and deadbolt; hinges factory installed |
| Weatherstripping | Perimeter compression weatherstripping with aluminum sill |
| Finish | Primed white, paint ready |
| Weight | About 170 lb complete unit (engineering estimate) |
| Warranty | Limited lifetime manufacturer-backed warranty, confirmed during quote review |
Included Components
- 6-panel steel slab, factory hung in a combined door and sidelite frame
- Two 10 in 5-lite glazed sidelite panels, factory set
- Factory-installed hinges
- Aluminum sill spanning door and sidelites
- Perimeter compression weatherstripping
- Double bore lockset and deadbolt prep; lockset and deadbolt sold separately
Installation Notes
- Verify the rough opening against the assembled unit before framing; allow roughly 62.5 x 82.5 in and confirm final dimensions during quote review.
- Sidelite units are heavier and less forgiving than single doors: set the sill dead level on a sill pan and shim at hinge, strike, and mull points.
- Fasten through the hinge jamb and both mull posts into framing, checking plumb in both planes so the sidelites stay square to the slab.
- Integrate exterior trim with housewrap and flashing tape and seal the full perimeter, keeping the sill weep path clear.
- Two installers are recommended for handling and setting the assembled unit.
Warranty and Support
- Limited lifetime manufacturer-backed warranty, confirmed during quote review.
- Sidelite glazing details and final unit dimensions are confirmed with the quote package.
Frequently Asked Questions
Is this one assembled unit or three pieces?
One factory-assembled prehung unit: the door and both sidelites arrive set in a single frame with the sill and weatherstripping already in place.
What rough opening do I need?
Plan on roughly 62.5 x 82.5 in for the nominal 60 in x 80 in unit, and confirm the exact opening against the quote package before framing.
Can the sidelites open or hold screens?
No. The sidelites are fixed glazed panels; only the center 36 in door operates.
Is a lockset included?
No. The slab is double bored for a standard lockset and deadbolt, ordered separately to match your hardware finish.
Documents
- Type Steel Entry Door with Sidelites
- SKU DA-DR-EXT-STL6P-SL2-60RH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
