Name: Door Axis 68 Series Aluminum Bi-Fold Patio Door System, Insulated Glass
Brand: Door Axis
SKU: DA-DR-PAT-FOLD68-22-SB

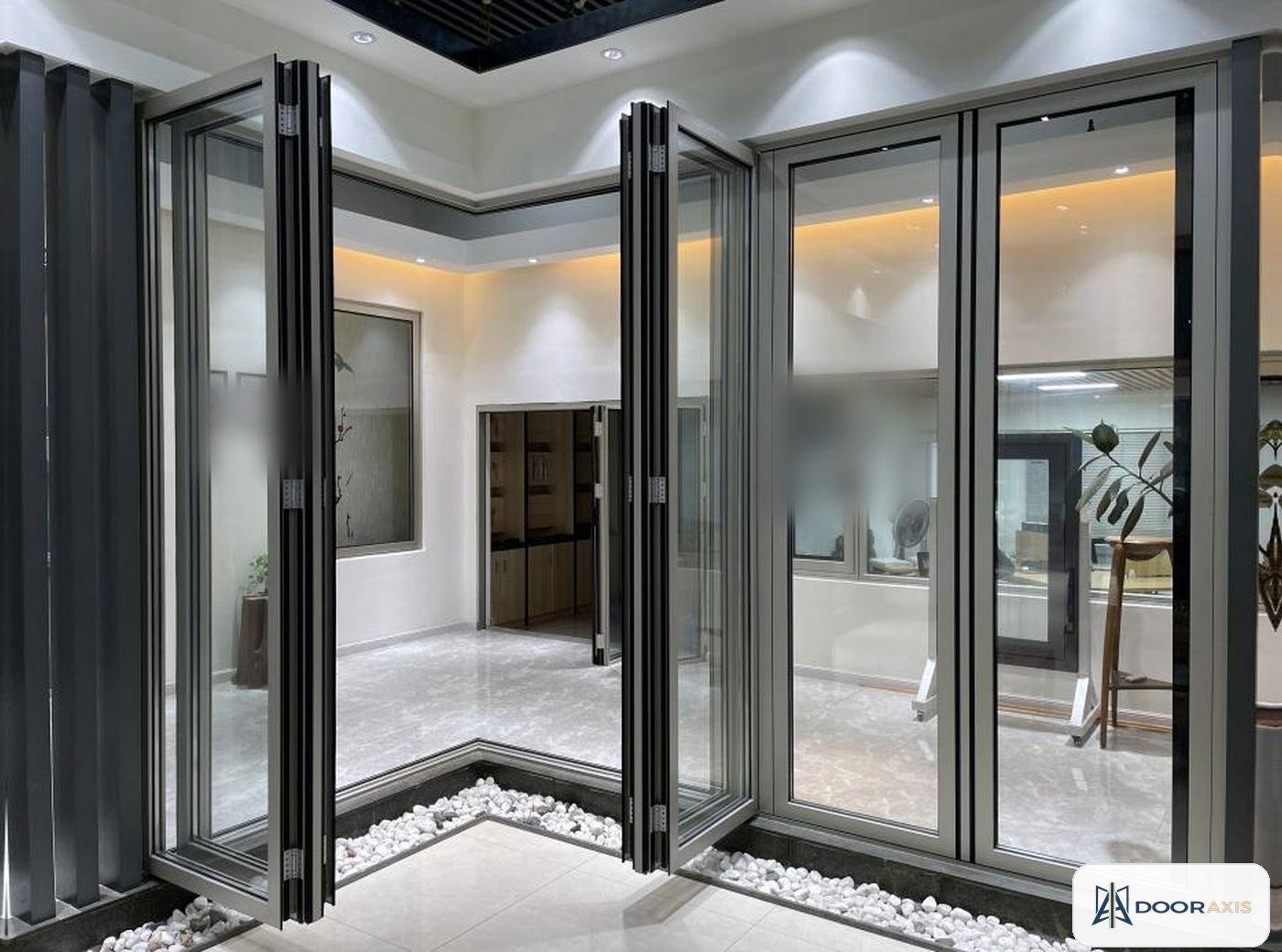

The Door Axis 68 Series Aluminum Bi-Fold Patio Door System is a folding glass wall that opens a full patio span with insulated glass panels folding and stacking to the side. It serves homeowners, remodelers, and light commercial projects that want a wide, clean opening backed by contractor grade hardware and a quote reviewed fit.

The system is built on a 2.68 in (68 mm) aluminum frame with insulated double glazing and stainless folding hardware, including top and bottom pivots, intermediate carriers, and drop bolts. Panel runs of 2+2, 4+4, and 6+6 scale from single patio spans to full folding glass walls, and the two center leaves can swing independently as a daily pass door so the wall handles everyday traffic without folding the full run. Each system is fabricated to the opening size, finished in one of eight standard PVDF fluorocarbon or woodgrain film colors, and delivered as a complete frame, panel, and hardware kit ready for professional installation.

Highlights

2.68 in (68 mm) aluminum frame section with insulated double glazing
2+2, 4+4, and 6+6 panel runs from patio spans to full glass walls
Center leaves open independently as a daily pass door
Stainless folding hardware with pivots, intermediate carriers, and drop bolts
Panel widths 27.5 to 37.4 in (700 to 950 mm), system heights to 118.1 in (3000 mm)
Eight standard finishes in PVDF fluorocarbon and woodgrain film
Fabricated to opening size; final dimensions confirmed during quote review

Specification Table

Configuration	2+2, 4+4, or 6+6 panel folding runs (selected at order)
System sizing	Panel widths 27.5 to 37.4 in (700 to 950 mm); system heights to 118.1 in (3000 mm); fabricated to opening size
Typical opening spans	2+2 runs about 110 to 150 in; 4+4 about 220 to 299 in; 6+6 about 331 to 449 in
Frame section	2.68 in (68 mm)
Profile wall thickness	0.055 in (1.4 mm) standard; heavier wall options quoted on request
Material	Extruded aluminum profiles
Glazing	Insulated double glazing; Low-E options quoted on request
Operation	Panels fold and stack to one or both sides; independent center pass door
Hardware	Stainless folding hardware: pivots, intermediate carriers, drop bolts, flush pulls
Bottom track	Aluminum bottom track; recessed or surface set confirmed at quote
Weatherstripping	Perimeter gaskets and interlock seals
Finish system	PVDF fluorocarbon and woodgrain film finishes in eight standard colors
Representative weight	About 948 lb (430 kg) as a 2+2 run at 33.5 x 94.5 in panels (engineering estimate)
Warranty	Confirmed during quote review

Included Components

Aluminum frame set: head, jambs, and bottom track
Folding panel set with insulated glazing, prehung and factory fitted
Stainless folding hardware set: pivots, intermediate carriers, and drop bolts
Locking handle set for the pass door and flush pulls for folding leaves
Perimeter gaskets, interlock seals, and weatherstripping
Installation fasteners and shim guidance

Installation Notes

Verify the structural header, opening squareness, and sill support before release; folding walls need a straight, level opening within fabrication tolerance.
Install a sill pan and integrate flashing and waterproofing with the wall assembly on exterior openings.
Set the frame plumb, level, and square, then hang and adjust panels so carriers and drop bolts engage smoothly.
Installation should be completed by a licensed contractor experienced with folding glass wall systems.
Final opening dimensions, stacking direction, and threshold condition are confirmed during quote review.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

How is the system sized to my opening?
Each system is fabricated to the opening. Share rough opening width and height during quote review and the panel run is engineered within the published panel width and height ranges.

Can I add an insect screen?
Folding runs do not carry an integrated screen. Exterior screening is quoted case by case, and the 126 Series sliding system is the integrated screen alternative in the same finish family.

Which finishes are available?
Eight standard finishes: Sand Black, Sand Gray, Snow Gray, Pure White, Fluorocarbon Champagne, Red Cherry, Golden Oak, and Black Walnut, applied as PVDF fluorocarbon or woodgrain film over extruded aluminum.

How does it perform in hot or cold weather?
Panels carry insulated double glazing with perimeter gaskets and interlock seals, and Low-E glass options are quoted on request. Project specific performance expectations are reviewed during quote review.
