Door Axis 7 in Commercial Barrel Spring Hinge, Single Acting, Set of 2
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

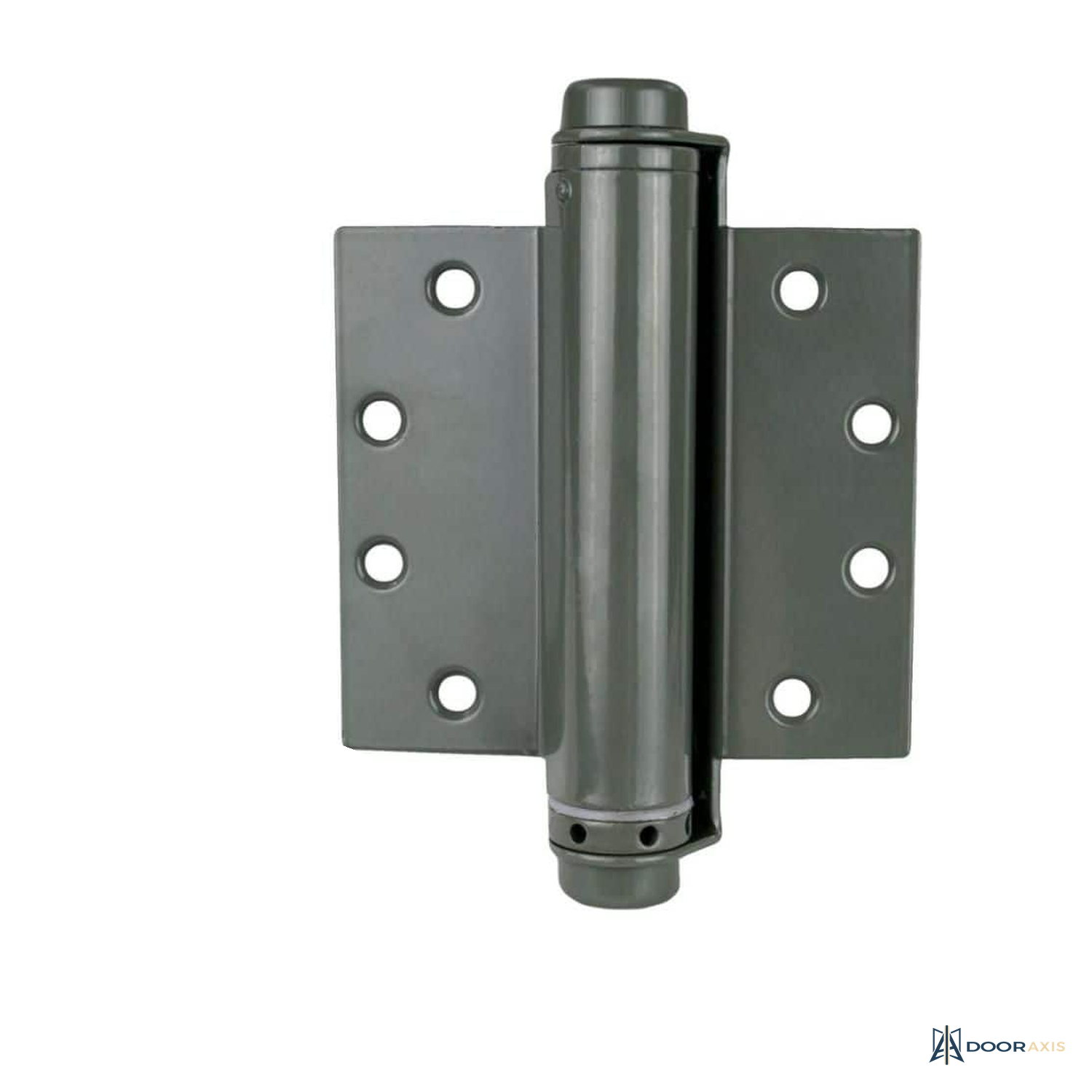

The Door Axis 7 in Barrel Spring Hinge set self-closes standard-weight commercial doors through a big-barrel coil spring, one-way swing. Prime coat finish arrives paint-ready for field color matching.
Big-barrel spring hinges carry cafe, corridor, and service doors where a surface closer is unwanted. The single-acting spring returns the leaf from a push-through swing, the non-removable pin keeps the joint captive, and full mortise leaves seat flush for a clean reveal. Supplied as a set of two with both wood and machine screws for timber or hollow-metal frames.
Highlights
- 7 x 7 in big-barrel spring hinge, single acting
- Self-closing for standard-weight commercial doors
- Non-removable pin, plain bearing design

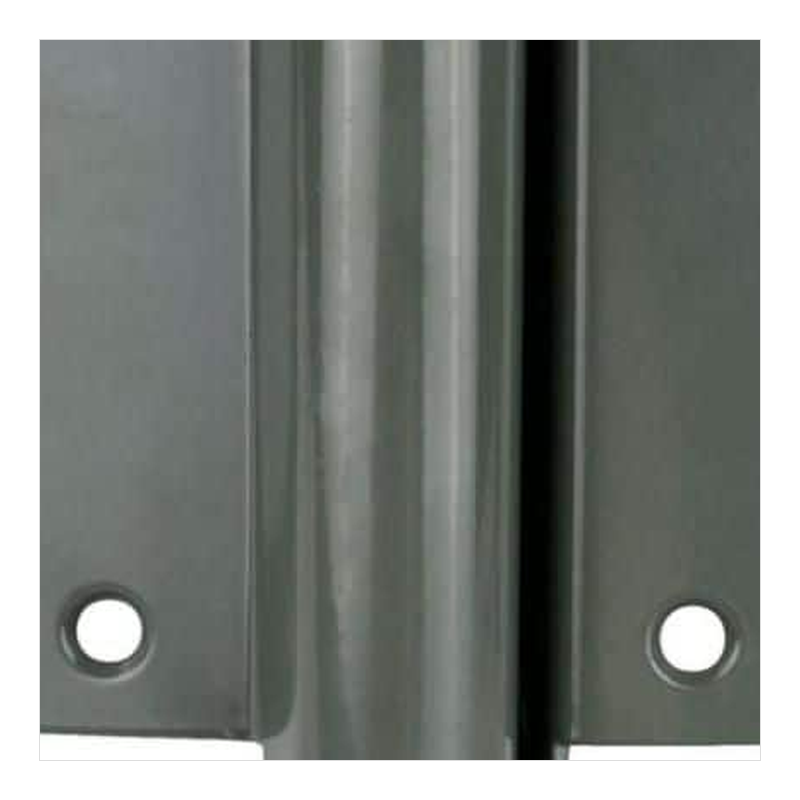

- Prime coat paint-ready finish
- Wood and machine screws included, set of 2
- Published to the ANSI self-closing hinge standard
Specification Table
| Function | Single acting barrel spring hinge |
| Leaf size | 7 x 7 in, square corner |
| Pin | Non-removable |
| Material | Steel, prime coat |
| Mounting | Full mortise |
| Fasteners | Wood and machine screws included |
| Standard | ANSI A81071F self-closing hinges (published) |
| Set | 2 hinges |
| Warranty | 1 year mechanical and finish |
Included Components
- Two barrel spring hinges
- Wood and machine screws
Installation Notes
- Confirm swing direction before mortising; single-acting hinges close from one side only.
- Prime coat is an undercoat: field paint after installation for finished work.
- Use on standard-weight commercial doors; heavy or high-frequency doors are reviewed at quote.
Warranty and Support
- 1 year mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
Is this double acting?
No. This set is single acting: it swings one way and self-closes. Double-acting barrel hinges are quoted on request.
Can I get it in a finished color?
Prime coat is intended for field painting to your schedule color. Factory finishes are quoted on request.
