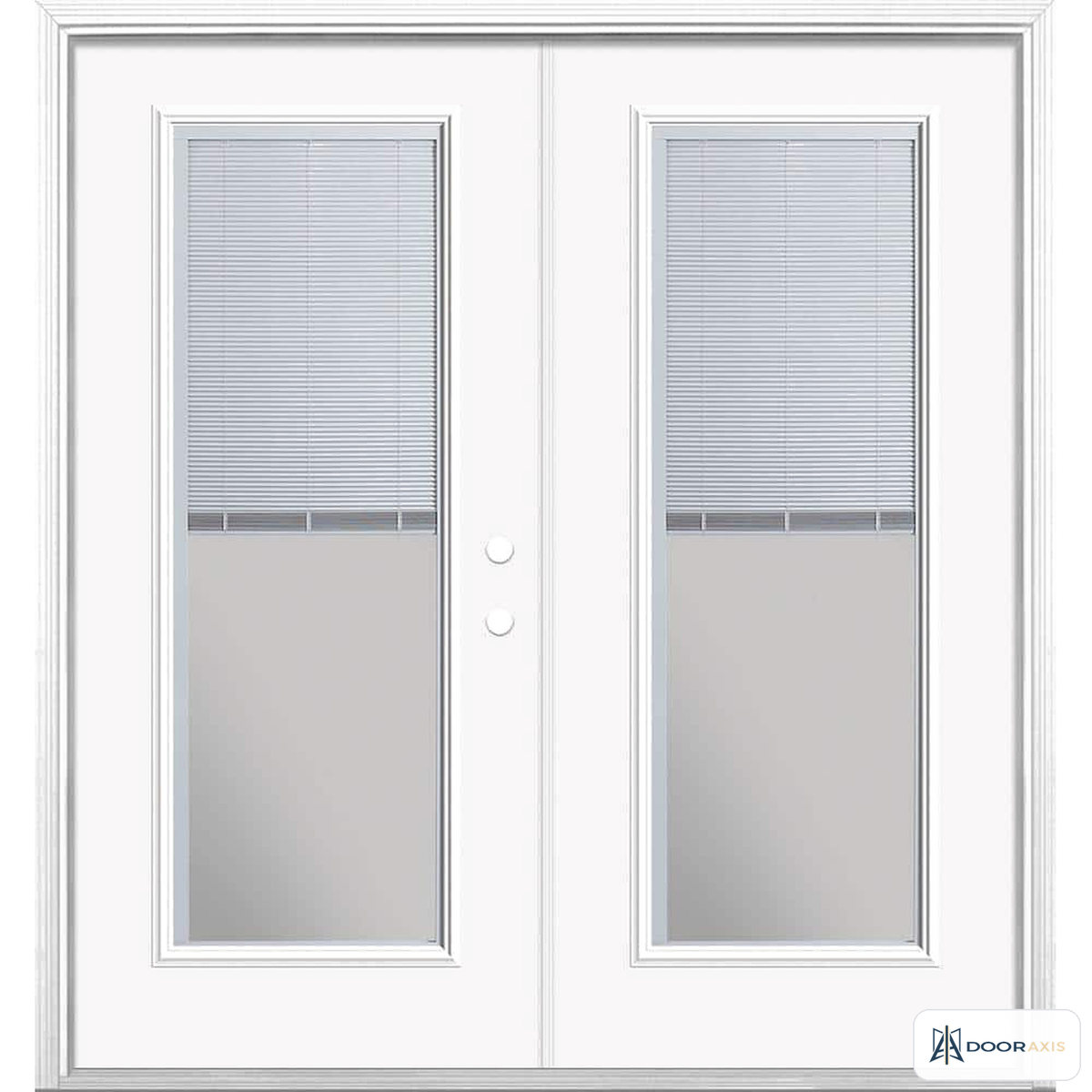

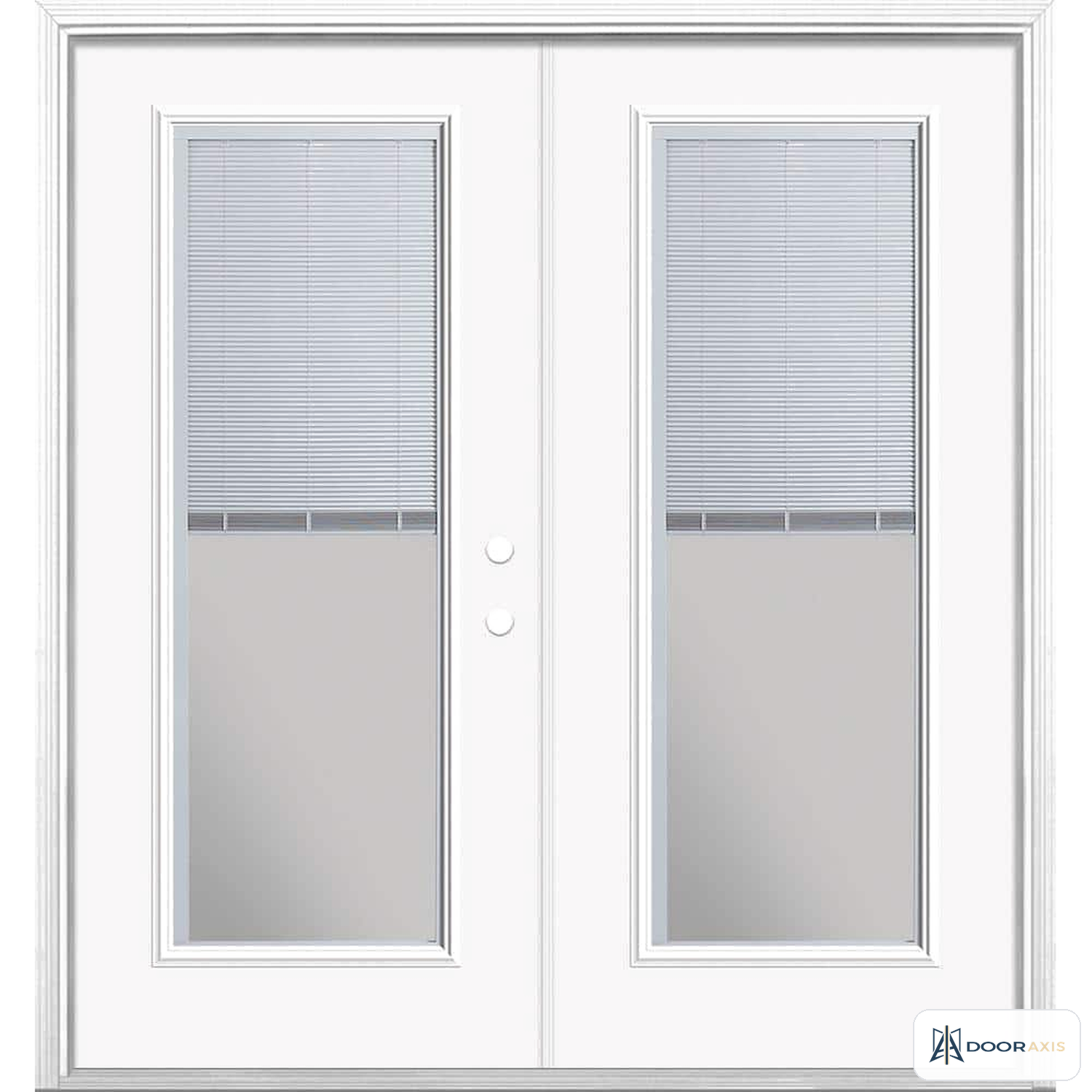

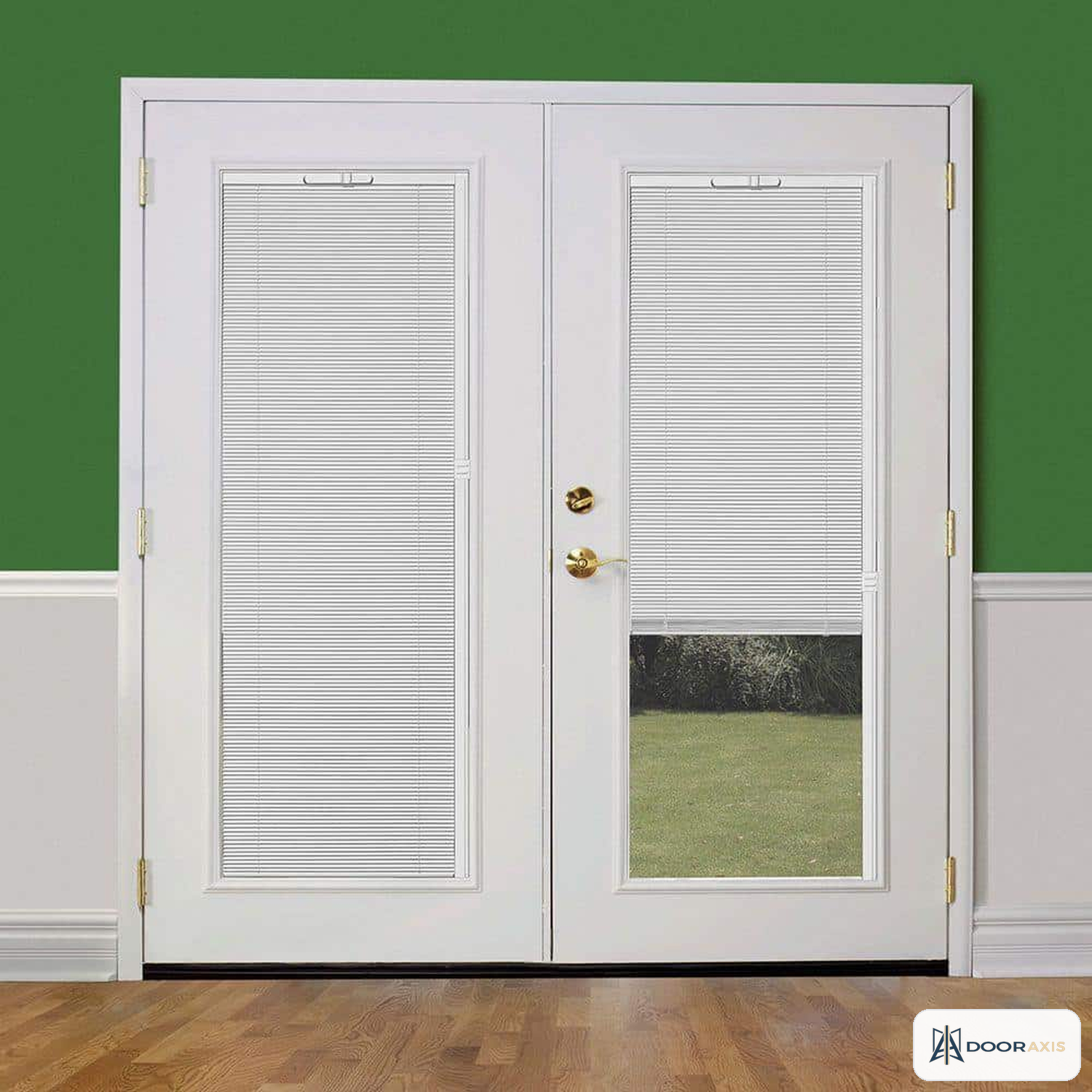

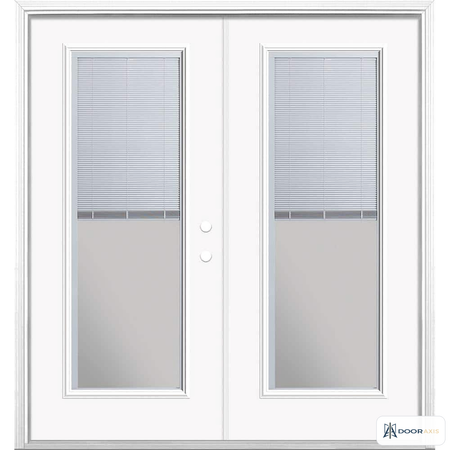

Door Axis 72 in x 80 in Steel Prehung French Patio Door, Blinds Between Glass, Primed White
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis 72 in x 80 in Steel Prehung French Patio Door builds aluminum mini blinds directly into the sealed glass of both full lite steel slabs, so privacy and light control come with the door instead of bolting on afterward. It serves homeowners who want a hinged patio door onto a deck, patio, or sunroom without curtains, blind cords, or dusting.

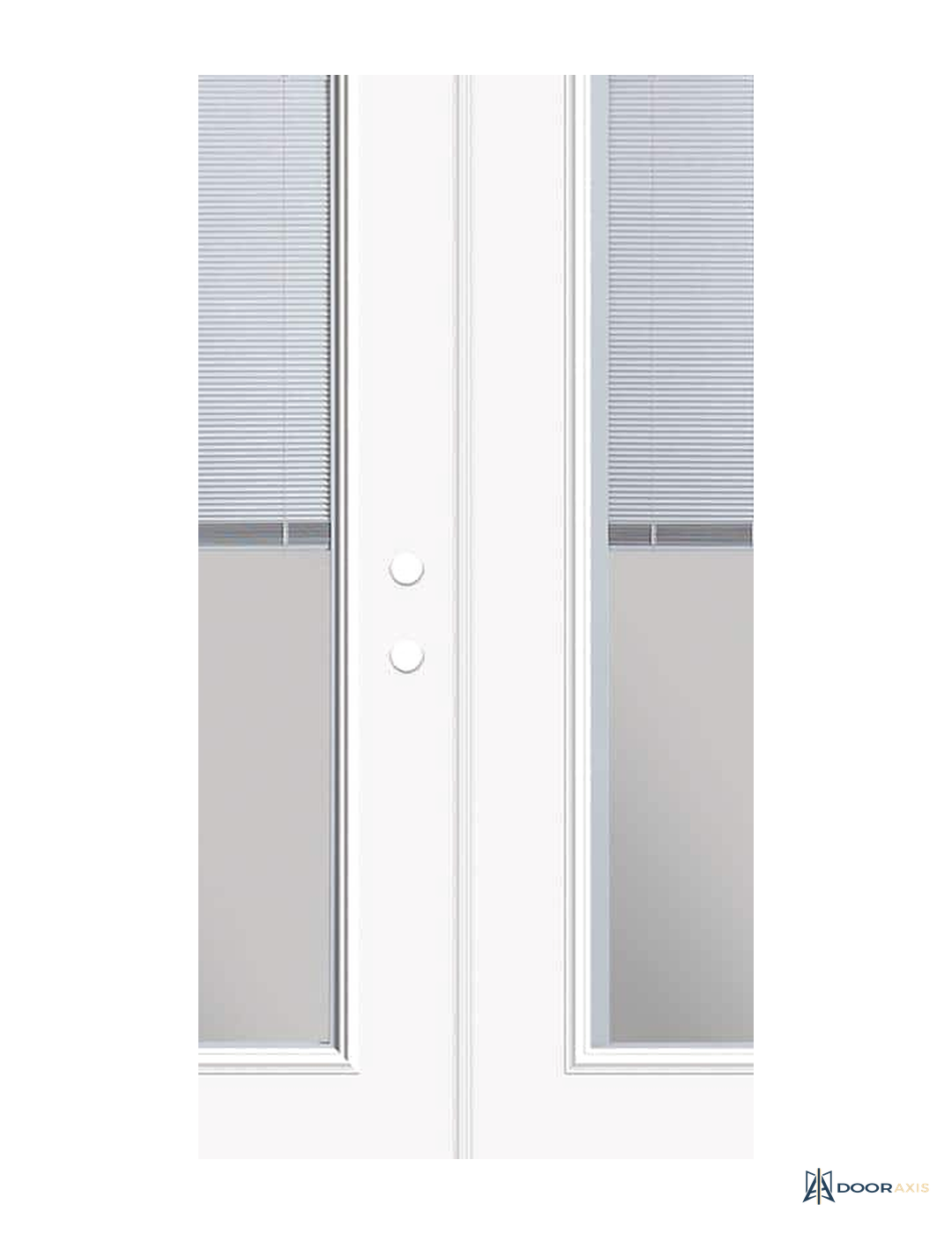

The unit pairs two full lite slabs on one frame, with the active panel swinging into the room on the ordered side and the companion panel fixed. Each slab is steel skinned over a solid foam core, and the blinds live in the airspace between the dual panes of tempered glass, where they adjust for privacy and light without cords and never collect dust. The prehung package arrives with the slabs factory hung in a wood jamb with exterior casing, an aluminum sill, and compression weatherstripping already applied, and the active slab is double bored at a 2-3/8 in backset for a standard lockset and deadbolt. The primed white finish is ready for paint inside and out. Choose the handing from outside the opening: the panel that should swing into the room carries the hinges on the ordered side.
Highlights
- Aluminum mini blinds sealed between dual tempered glass panes in both slabs
- Cordless privacy and light control that never needs dusting
- Complete prehung unit: slabs, wood jamb, exterior casing, aluminum sill
- Steel skins over a solid foam core for security and insulation
- Left-Hand or Right-Hand Inswing active panel, ordered to your layout
- Compression weatherstripping seals all four slab edges
- Double bored active slab accepts a standard lockset and deadbolt
- Primed white steel, ready for finish paint
Specification Table
| Configuration | Double door prehung French unit, one active and one fixed panel |
| Unit size | 72 in wide x 80 in tall nominal (two 36 in slabs) |
| Rough opening | 74.5 in x 82.5 in (typical; confirmed during quote review) |
| Slab thickness | 1-3/4 in typical for the platform |
| Core and material | Solid foam core, steel skins, engineered wood frame |
| Glazing | Insulated tempered dual pane glass with internal aluminum mini blinds |
| Blind operation | Sealed between the panes; cordless adjustment for privacy and light |
| Handing | Left-Hand Inswing or Right-Hand Inswing, viewed from outside |
| Jamb | Wood jamb, 4-9/16 in typical depth, exterior casing applied |
| Hardware prep | Double bore on active slab, 2-3/8 in backset; hardware sold separately |
| Weatherstripping | Compression weatherstripping, factory applied |
| Finish | Primed white, paint-ready |
| Weight | About 260 lb (engineering estimate) |
| Additional sizes | Additional sizes are quoted on request |
| Warranty | Limited lifetime manufacturer-backed warranty, confirmed during quote review |
Included Components
- Two full lite steel slabs with sealed internal mini blinds, factory hung
- Wood jamb with exterior casing applied
- Aluminum sill
- Factory applied compression weatherstripping
- Double bore hardware prep on the active slab (lockset and deadbolt sold separately)
- Installation instructions
Installation Notes
- Verify the rough opening at about 74.5 in x 82.5 in, measured at three points each way; final dimensions are confirmed during quote review.
- Install a sill pan and integrate flashing with the water resistive barrier; the sill must bear continuously on a level subfloor.
- Set the unit plumb, level, and square, shimming behind each hinge and at the strike and head, then fasten through the jamb into the framing.
- Confirm interior floor clearance for the inswing panel before final positioning, and test the blind control through the full range after the unit is set.
- Paint all primed surfaces, including top and bottom slab edges, promptly after installation to seal the steel skins.
Warranty and Support
- Limited lifetime manufacturer-backed warranty, confirmed during quote review.
- Quote review includes rough opening verification and handing confirmation from your exterior-view photos or sketch.
Frequently Asked Questions
How do the built-in blinds work?
The aluminum mini blinds sit in the sealed airspace between the dual glass panes and adjust with a cordless control. Because they are sealed inside the unit they never collect dust and there are no cords, which also makes them a safer choice around children and pets.
How do I choose Left-Hand or Right-Hand Inswing?
Stand outside facing the closed door. If the operating panel should carry its hinges on the left and swing into the room, order Left-Hand Inswing; hinges on the right, order Right-Hand Inswing.
What rough opening do I need?
Plan about 74.5 in wide by 82.5 in tall for the 72 in x 80 in unit and confirm on site at three measuring points each way. Final opening dimensions are verified during quote review.
Is hardware included?
No. The active slab is double bored at a 2-3/8 in backset, so any standard residential lockset and deadbolt install directly.
Documents
- Type Steel French Patio Door
- SKU DA-DR-PAT-STL-MB-PH-7280-LHI
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
