Name: Door Axis 75 Series Heavy Duty Aluminum Bi-Fold Patio Door System, Insulated Glass
Brand: Door Axis
SKU: DA-DR-PAT-FOLD75-3P-WS-SB

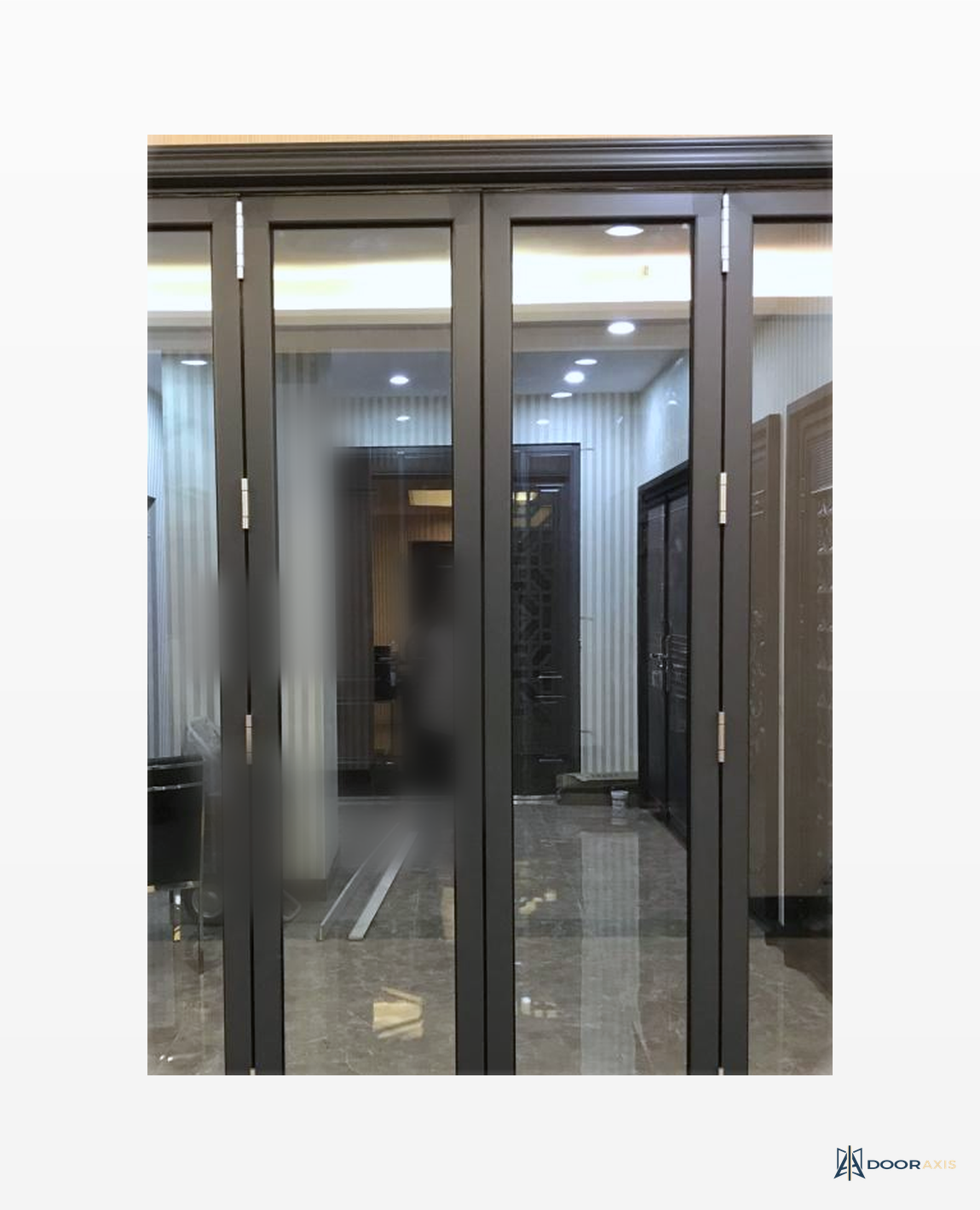

The Door Axis 75 Series Heavy Duty Aluminum Bi-Fold Patio Door System is a flagship folding glass wall built on a 2.95 in (75 mm) frame with a 0.079 in (2.0 mm) profile wall for large, hard working openings. It serves builders and homeowners who want tall folding runs, a choice of weather sill or low profile sill, and heavy duty folding hardware.

Panels run 27.5 to 37.4 in wide (700 to 950 mm) at system heights from 78.7 to 118.1 in (2000 to 3000 mm), with runs of 3, 1+3, 5, 3+3, and 7 panels that stack inside or outside the opening. A 2.20 in (56 mm) raised weather sill handles exposed, rain driven elevations, while the 0.63 in (16 mm) low profile sill gives a nearly flush indoor outdoor transition for covered openings. Stainless folding hardware with top and bottom pivots, intermediate carriers, and drop bolts moves the heavy leaves smoothly, and every system is fabricated to the opening size in one of eight standard finishes.

Highlights

2.95 in (75 mm) frame with 0.079 in (2.0 mm) heavy duty profile wall
Runs of 3, 1+3, 5, 3+3, and 7 panels stacking inside or outside
Choice of 56 mm weather sill or 16 mm low profile sill
System heights from 78.7 to 118.1 in (2000 to 3000 mm)
Stainless folding hardware with pivots, carriers, and drop bolts
Insulated double glazing with Low-E options quoted on request
Eight standard PVDF fluorocarbon and woodgrain film finishes
Fabricated to opening size; final dimensions confirmed during quote review

Specification Table

Configuration	3, 1+3, 5, 3+3, or 7 panel folding runs; mirrored stacking directions quoted at review
System sizing	Panel widths 27.5 to 37.4 in (700 to 950 mm); system heights 78.7 to 118.1 in (2000 to 3000 mm); fabricated to opening size
Typical system widths	About 100 to 234 in across the five standard runs

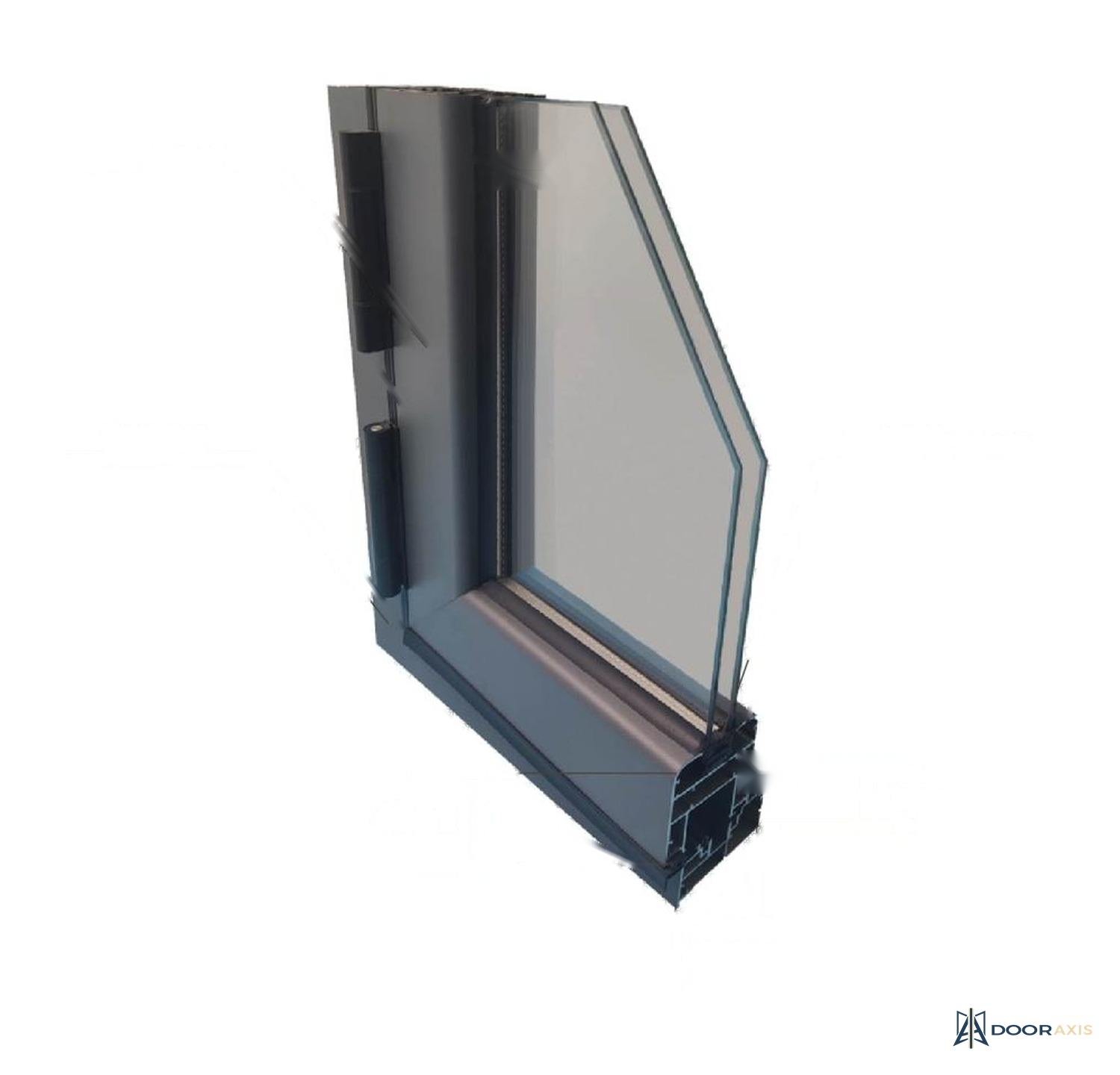

Frame section	2.95 in (75 mm); section callouts 69, 41, and 75 mm
Profile wall thickness	0.079 in (2.0 mm)
Material	Extruded aluminum profiles
Glazing	Insulated double glazing; Low-E options quoted on request
Sill options	2.20 in (56 mm) weather sill or 0.63 in (16 mm) low profile sill
Operation	Panels stack to the inside or outside of the opening
Hardware	Stainless folding hardware: pivots, intermediate carriers, drop bolts, flush pulls
Weatherstripping	Perimeter gaskets and interlock seals
Finish system	PVDF fluorocarbon and woodgrain film finishes in eight standard colors
Representative weight	About 917 lb (416 kg) as a 3 Panel run at 33.5 x 98.4 in panels (engineering estimate)
Warranty	Confirmed during quote review

Included Components

Aluminum frame set: head, jambs, and selected sill (56 mm weather or 16 mm low profile)
Heavy duty folding panel set with insulated glazing
Stainless folding hardware set: pivots, intermediate carriers, and drop bolts
Locking handle set for the lead leaf and flush pulls for folding leaves
Perimeter gaskets, interlock seals, and weatherstripping
Installation fasteners and shim guidance

Installation Notes

Verify the structural header and opening squareness before release; heavy folding runs require a level, load checked head.
Install a sill pan and integrate flashing and waterproofing with the wall assembly; the 56 mm weather sill is recommended on exposed elevations.
Set the frame plumb, level, and square, then adjust carriers and drop bolts for smooth engagement across the full run.
Installation should be completed by a licensed contractor experienced with folding glass wall systems.
Confirm stacking direction, sill choice, and threshold transition during quote review.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

Which sill should I choose?
The 56 mm weather sill is the rainproof choice for exposed exterior elevations. The 16 mm low profile sill suits covered openings where a nearly flush transition matters. Both are confirmed during quote review.

Can the panels stack outside instead of inside?
Yes. Each run can stack to the inside or outside of the opening, and left or right stacking variants of every run are quoted during review.

Which finishes are available?
Eight standard finishes: Sand Black, Sand Gray, Snow Gray, Pure White, Fluorocarbon Champagne, Red Cherry, Golden Oak, and Black Walnut, applied as PVDF fluorocarbon or woodgrain film over extruded aluminum.

How tall can the system go?
Printed system heights run 78.7 to 118.1 in (2000 to 3000 mm). Taller custom work is reviewed case by case during quote review.
