Name: Door Axis 80 Series Aluminum Sliding Patio Door, Two Track, Insulated Glass
Brand: Door Axis
SKU: DA-DR-PAT-SLIDE80-2T-XO-14-GO

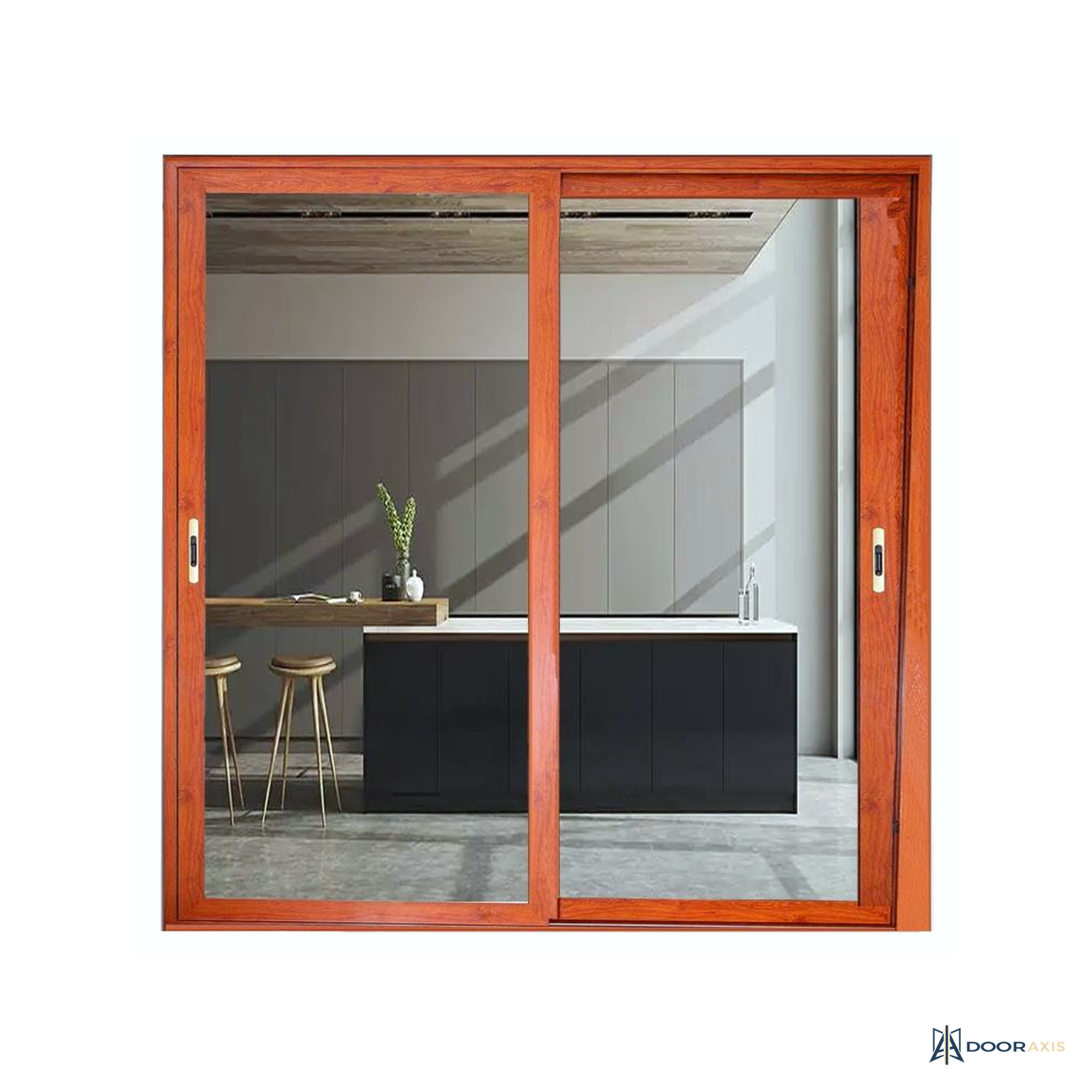

The Door Axis 80 Series Aluminum Sliding Patio Door is a two track slider on a 3.15 in (80 mm) frame with insulated double glazing and a choice of 1.4 mm or 1.6 mm profile wall. It serves patios, balconies, and room dividers that want a classic gliding door with wide panel options and eight standard finishes.

Panels run 31.5 to 59.1 in wide (800 to 1500 mm) at heights from 70.9 to 94.5 in (1800 to 2400 mm) on a 2.83 in (72 mm) panel section. Choose a 2-panel XO or OX layout, where O is the fixed panel and X the slider viewed from outside, or a 4-panel OXXO layout with two center sliders meeting in the middle. Stainless tandem rollers carry each leaf, flush locks and pulls come fitted, and a colonial grille option is quoted on request. Every system is fabricated to the opening size and finished in one of eight standard colors.

Highlights

3.15 in (80 mm) frame and 2.83 in (72 mm) panel sections
2-panel XO or OX and 4-panel OXXO middle slide layouts
Profile wall choice of 0.055 in (1.4 mm) or 0.063 in (1.6 mm)
Panel widths 31.5 to 59.1 in (800 to 1500 mm)
Insulated double glazing with optional colonial grille
Stainless tandem rollers with flush locks and pulls
Eight standard PVDF fluorocarbon and woodgrain film finishes

Specification Table

Configuration	2-panel XO or OX, or 4-panel OXXO middle slide (viewed from exterior)
System sizing	Panel widths 31.5 to 59.1 in (800 to 1500 mm); system heights 70.9 to 94.5 in (1800 to 2400 mm); fabricated to opening size
Typical system widths	About 94 in as a 2-panel and 189 in as a 4-panel system
Frame section	3.15 in (80 mm), two track
Panel section	2.83 in (72 mm)
Profile wall thickness	0.055 in (1.4 mm) or 0.063 in (1.6 mm), selected at order
Material	Extruded aluminum profiles
Glazing	Insulated double glazing; Low-E and colonial grille options quoted on request
Rollers	Stainless tandem rollers, adjustable
Hardware	Flush sliding locks and pull handles, finished to match
Weatherstripping	Brush seals and interlock gaskets
Finish system	PVDF fluorocarbon and woodgrain film finishes in eight standard colors
Representative weight	About 553 lb (251 kg) as a 2-panel 1.4 mm system at 47.2 x 86.6 in panels (engineering estimate)
Warranty	Confirmed during quote review

Included Components

Two track aluminum frame set with sill and head
Sliding and fixed panel set with insulated glazing
Stainless tandem rollers, factory fitted and adjustable
Flush sliding lock and pull hardware
Interlock gaskets, brush seals, and weatherstripping
Installation fasteners and shim guidance

Installation Notes

Verify the rough opening, header condition, and sill support before release; the track must bear on a continuous, level sill.
Install a sill pan and integrate flashing and waterproofing with the wall assembly on exterior openings.
Set the frame plumb, level, and square, then adjust rollers so panels glide and lock without lift.
Installation should be completed by a licensed contractor.
Confirm layout handing (XO, OX, OXXO) from the exterior view during quote review.

Warranty and Support

Warranty coverage is confirmed during quote review before release.
Quote packages include hardware adjustment guidance and finish care notes.

Frequently Asked Questions

What do XO, OX, and OXXO mean?
Viewed from outside, O is a fixed panel and X is a sliding panel. XO slides on the left, OX on the right, and OXXO is a 4-panel layout with two center sliders meeting in the middle.

Which profile wall should I pick?
1.4 mm suits standard residential spans. Step up to 1.6 mm for wider or taller panels and heavier daily use. Both are reviewed against your sizes during quote review.

Which finishes are available?
Eight standard finishes: Sand Black, Sand Gray, Snow Gray, Pure White, Fluorocarbon Champagne, Red Cherry, Golden Oak, and Black Walnut, applied as PVDF fluorocarbon or woodgrain film over extruded aluminum.

Is a grille pattern available?

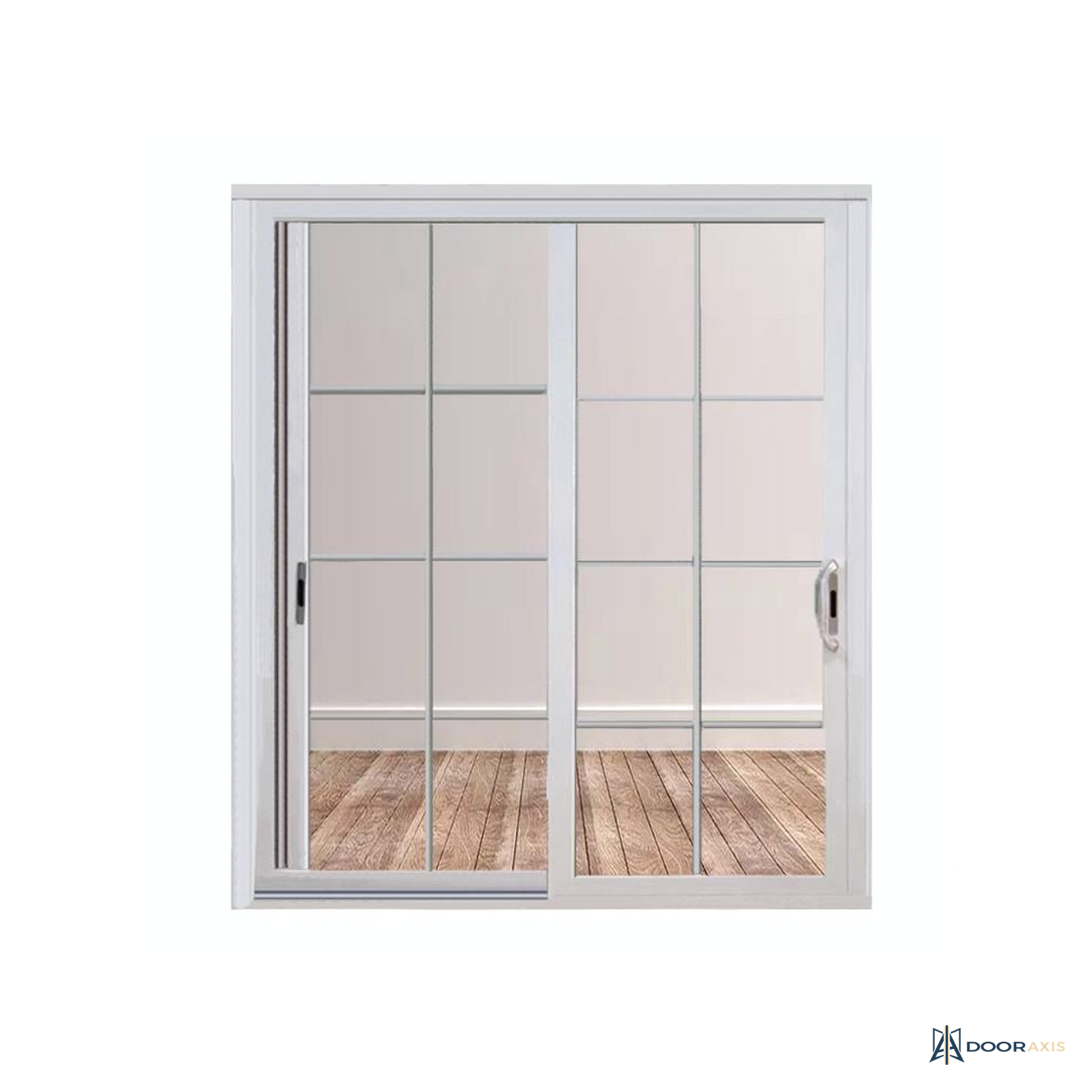

Yes. A colonial grille option is shown by the factory for this series and is quoted on request per opening.
