Door Axis Aged Bronze Ball Door Knob
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

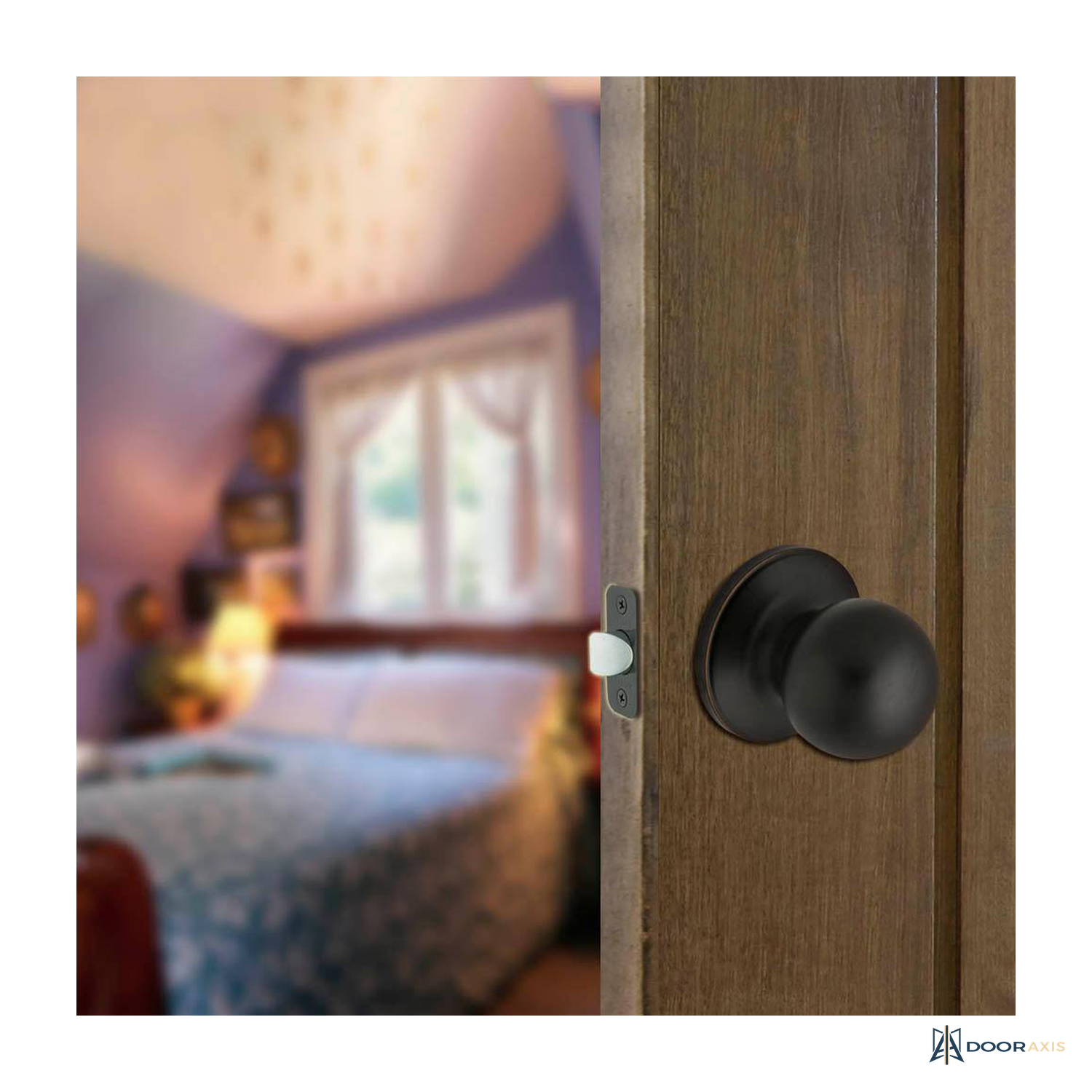

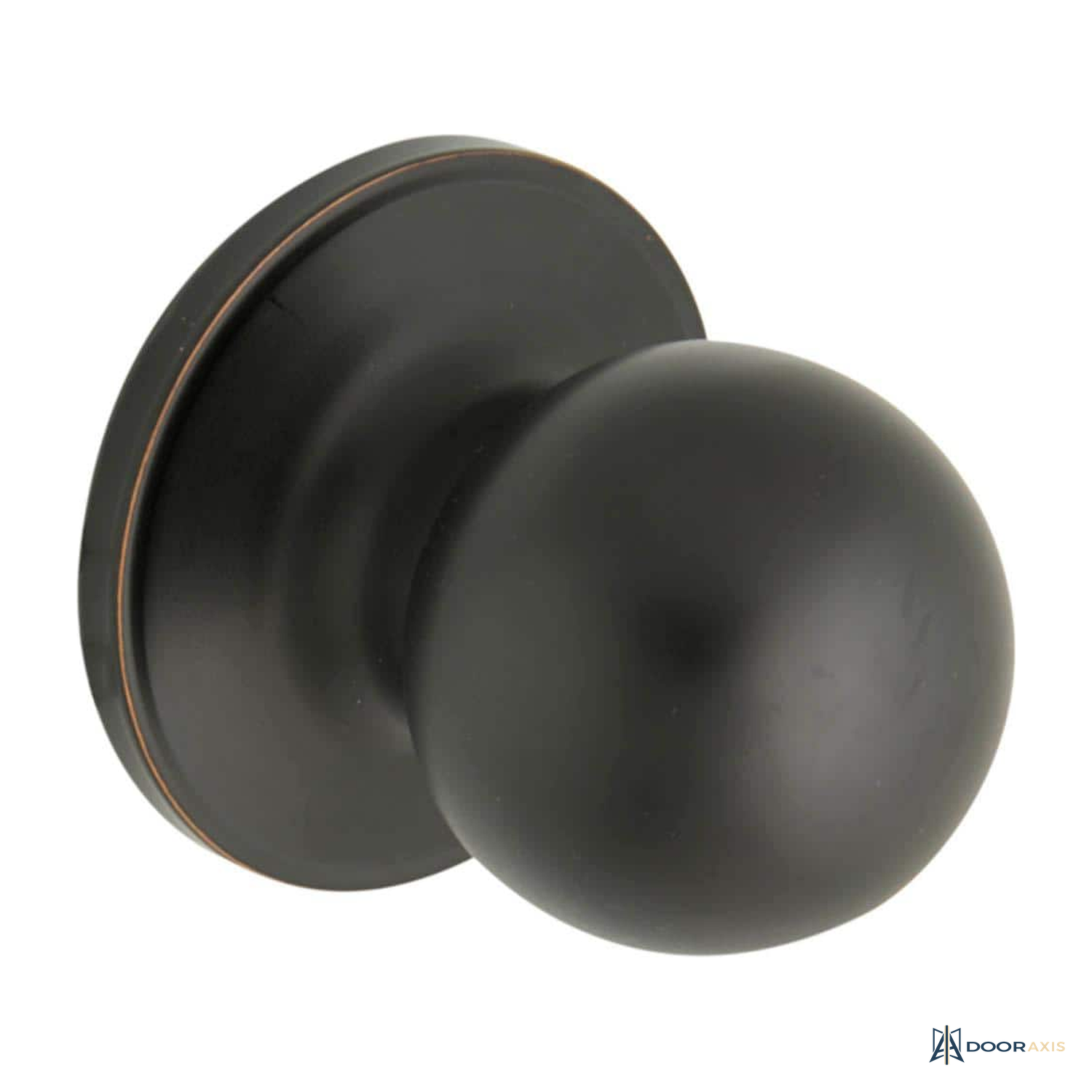

The Door Axis Ball Door Knob is a classic round-profile knob in aged bronze, offered in hall and closet, bed and bath, and keyed entry functions. It serves remodels standardizing one knob profile across every door in the house.

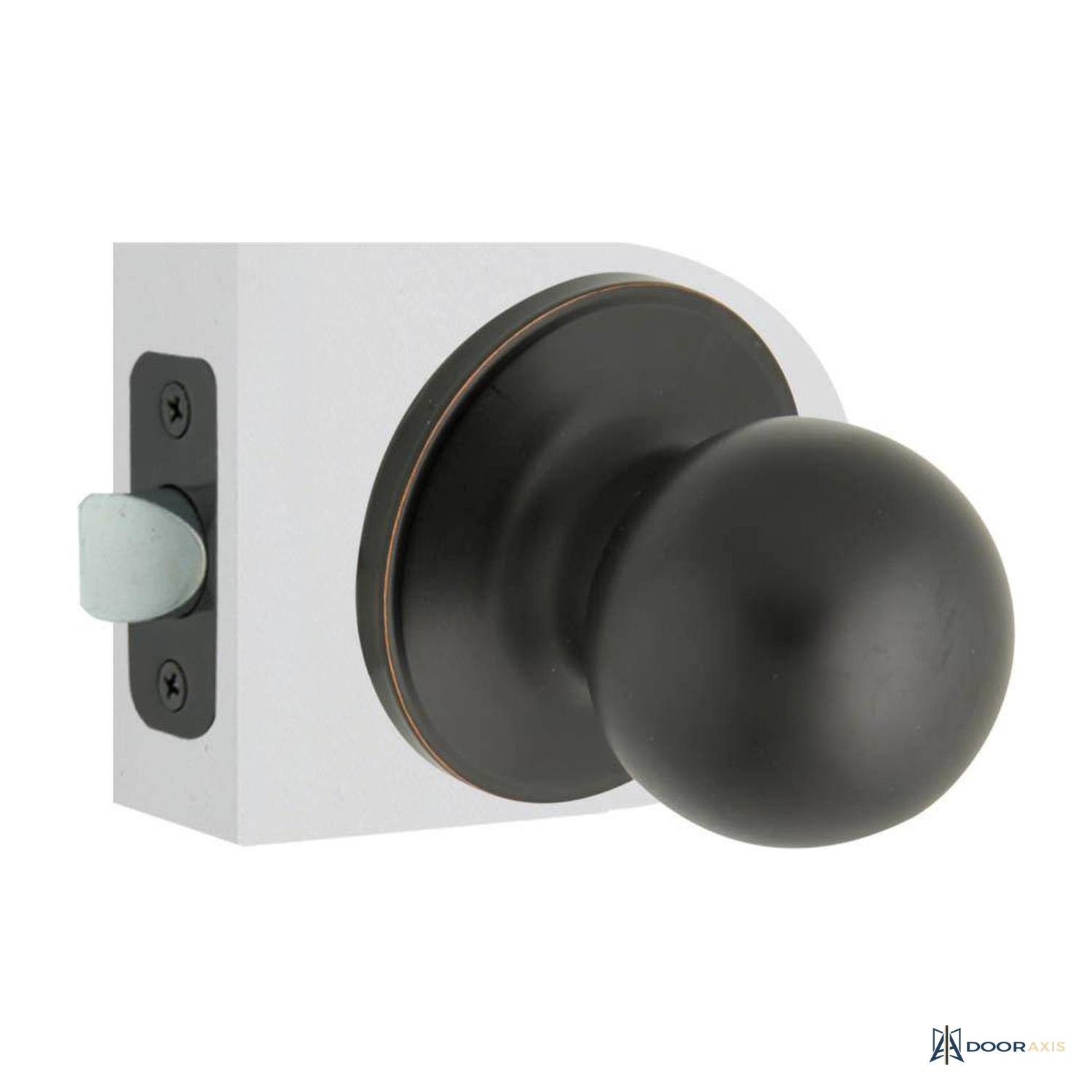

The zinc alloy set carries an ANSI Grade 3 (Good) rating and a latch that seats 2-3/8 in and 2-3/4 in backsets. Hall and Closet turns freely with no lock for passage doors. Bed and Bath adds an interior privacy button for bedrooms and bathrooms. Keyed Entry ships keyed for doors that need lock-and-key control. All three functions share the 1.89 in ball profile and aged bronze finish, install with a screwdriver, and include a drilling template and mounting hardware.
Highlights
- One ball profile in three functions: passage, privacy, keyed entry
- ANSI Grade 3 (Good) rated
- Aged bronze finish across the set
- Latch fits 2-3/8 in and 2-3/4 in backsets
- Fits 1-3/8 to 1-3/4 in doors
- Drilling template and mounting hardware included
Specification Table
| Function options | Hall and Closet, Bed and Bath, Keyed Entry |
| Security rating | ANSI Grade 3 (Good) |
| Knob diameter | 1.89 in |
| Backset | Adjustable 2-3/8 or 2-3/4 in |
| Door thickness | 1-3/8 to 1-3/4 in |
| Material | Zinc alloy |
| Finish | Aged Bronze |
| Application | Interior residential doors |
Included Components
- One knob set in the selected function
- Latch, strike, and mounting hardware
- Drilling template and installation instructions
Installation Notes
- Match the function to the room: passage for halls and closets, privacy for bedrooms and baths, keyed entry where a lock is required.
- The latch adjusts between both standard backsets; set it before mounting the roses.
- Replacement installs need only a screwdriver on standard 2-1/8 in bores.
Warranty and Support
- One-year mechanical coverage, confirmed during quote review.
Frequently Asked Questions
Can I mix functions across one order?
Yes. Function is selected per line item and project quantities are consolidated during quote review.
Does the privacy version need a key?
No. Bed and Bath locks from an interior button and releases from outside with a flat emergency tool, so no key is needed.
Are other finishes available?
The product line also runs satin nickel and stainless steel; these are quoted on request while aged bronze ships as standard.
Documents
- Type Door Knob
- SKU DA-DR-HW-KNB-BALL-HC
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
