Door Axis Digital Door Viewer Kit with LCD Screen
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

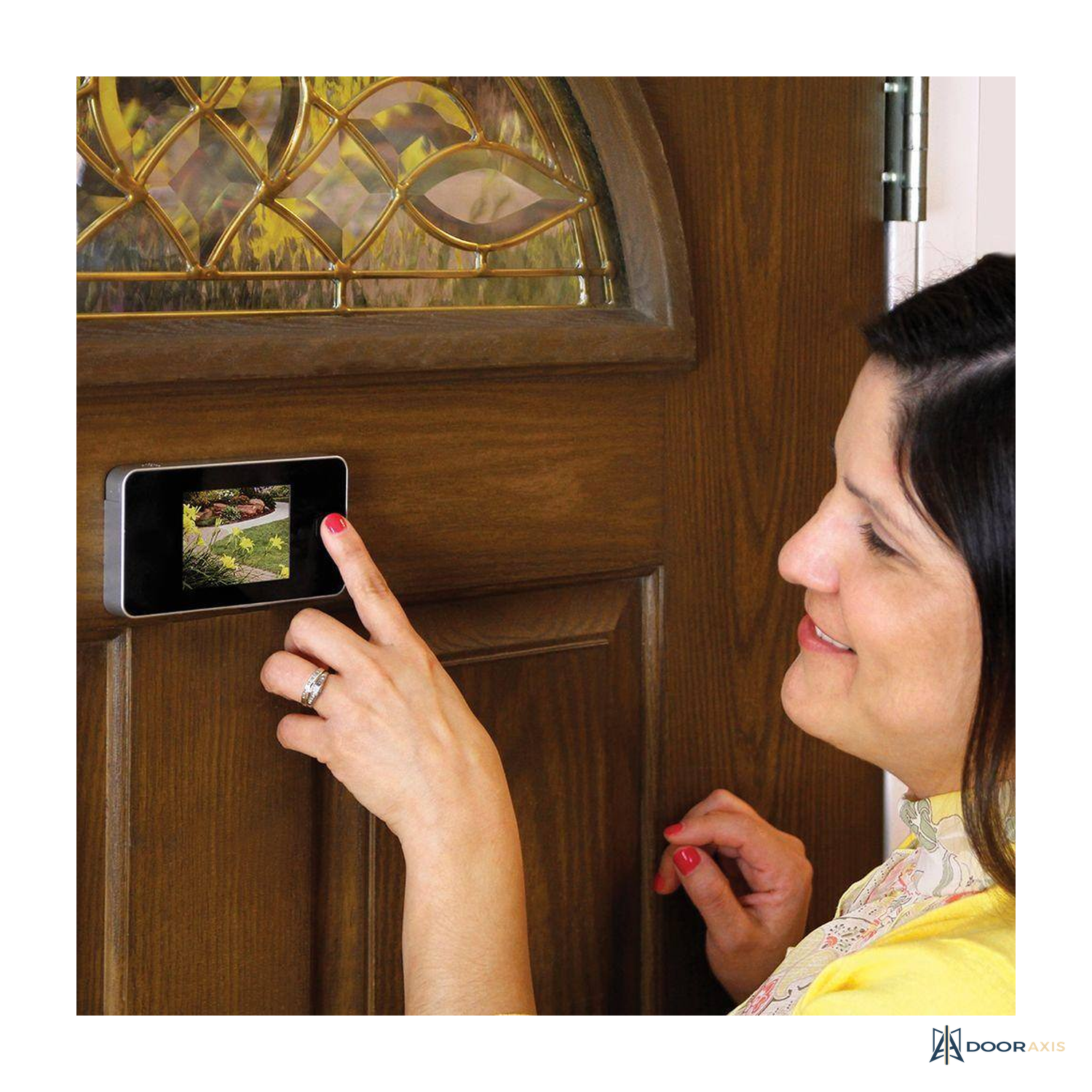

The Door Axis Digital Door Viewer Kit is a digital door viewer with an interior LCD screen, so anyone in the household can check the landing without pressing an eye to a lens. It serves entries where kids, seated users, or low-vision residents need a big, clear look at who is outside.
A push of the interior button wakes the 2.75 in LCD and shows a 105 degree camera view through a 0.3 megapixel CMOS sensor at 320 x 240 resolution. The barrel fits a 9/16 in bore through doors from 1-3/8 in up to 3-1/2 in thick, covering standard slabs and thick commercial or custom doors. Two AAA batteries are included and run 700 or more views per set. The interior case reads black with a silver bezel.
Highlights
- 2.75 in interior LCD screen
- 105 degree camera field
- Push-button activation
- Fits doors 1-3/8 to 3-1/2 in thick
- 9/16 in bore installation
- Two AAA batteries included, 700 or more views per set
Specification Table
| Function | Digital door viewer kit |
| Screen | 2.75 in LCD |
| Sensor | 0.3 megapixel CMOS, 320 x 240 |
| Viewing angle | 105 degrees |
| Bore | 0.5625 in |
| Door thickness | 1.375 to 3.5 in |
| Power | 2 AAA batteries, included |
| Housing | Black with silver bezel |
| Application | Residential and commercial entries |

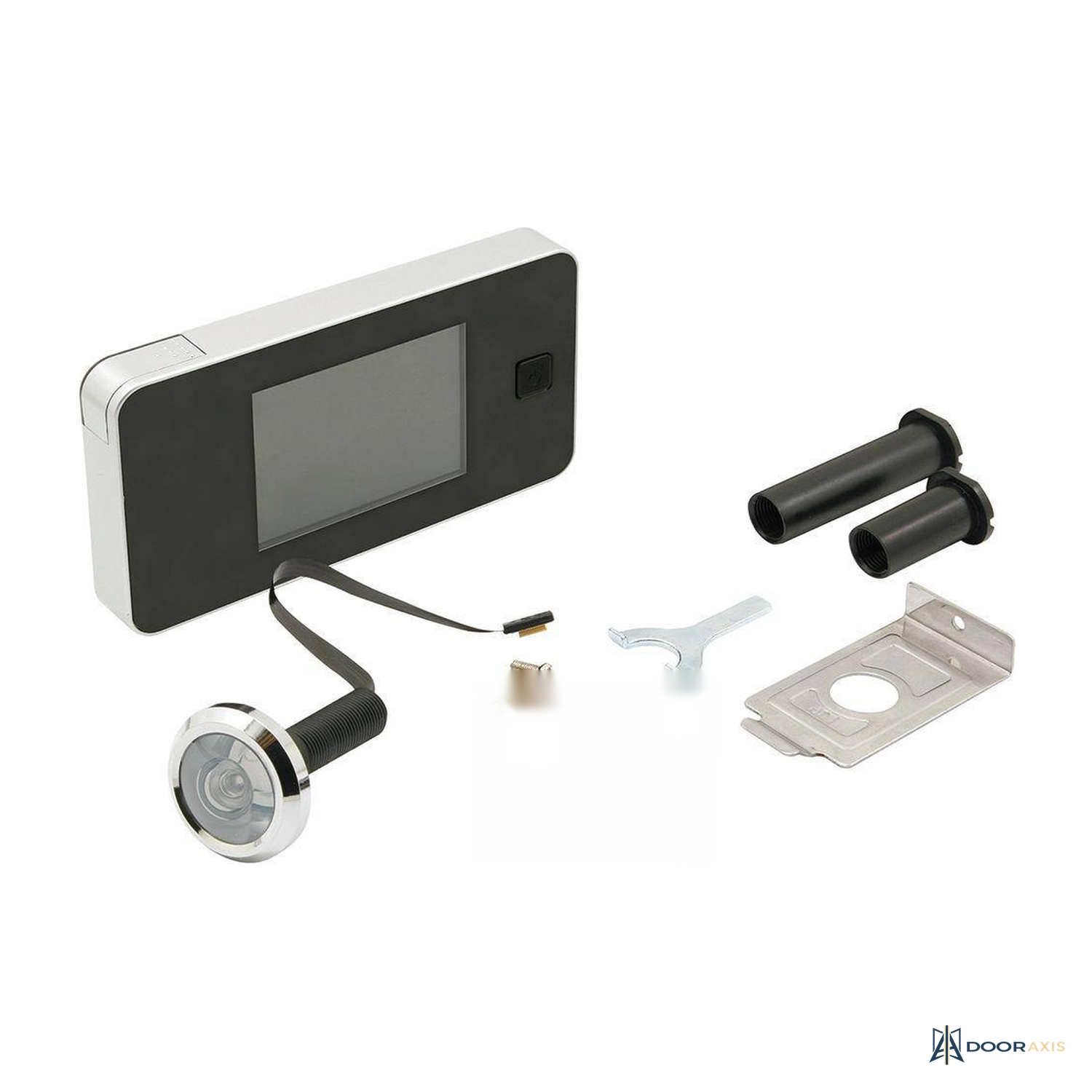

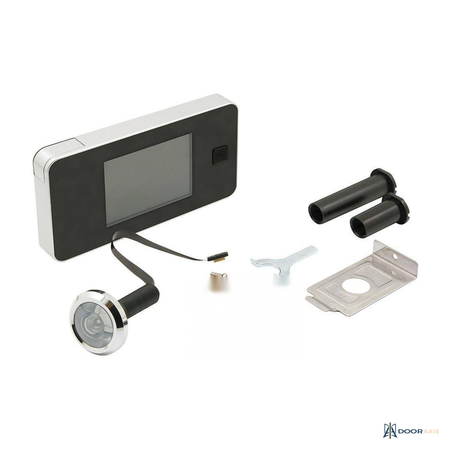

Included Components
- Digital viewer barrel and camera
- Interior LCD screen unit
- Two AAA batteries
Installation Notes
- Drill the 9/16 in bore straight and square at eye height.
- Seat the exterior barrel and interior screen unit flush before final tightening.
- Power draws only while the screen is active; replace the AAA set when the image dims.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Does it record or connect to an app?
No. It is a self-contained digital viewer: press the button, view the screen. Nothing to network or configure.
Will it fit a thick commercial door?
Yes. The barrel adjusts for doors from 1-3/8 in to 3-1/2 in thick.
Documents
- Type Door Viewer
- SKU DA-DR-HW-VWR-DIG
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
