Door Axis Entry Door Hardware Set, Mortise Lock with Handle Options
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Entry Door Hardware Set is a complete lockside package for aluminum swing entries: mortise lock body, euro profile cylinder with keys, handles, escutcheons, and hinges. It serves installers finishing a Door Axis entry and anyone refreshing worn entry hardware in a matching finish.
The stainless mortise lock body mortises into the stile with a latch and deadbolt function driven by a euro profile cylinder, supplied with keys and a thumb turn option at order. Choose the lever handle kit for a classic entry grip or the cremone handle kit for a full height architectural pull with surface bolts. Escutcheons, adjustable hinges, strike plate, and fasteners complete the set, finished in stainless, gold anodized, or Sand Black.
Highlights
- Stainless mortise lock body with latch and deadbolt function
- Euro profile cylinder with keys; thumb turn option at order

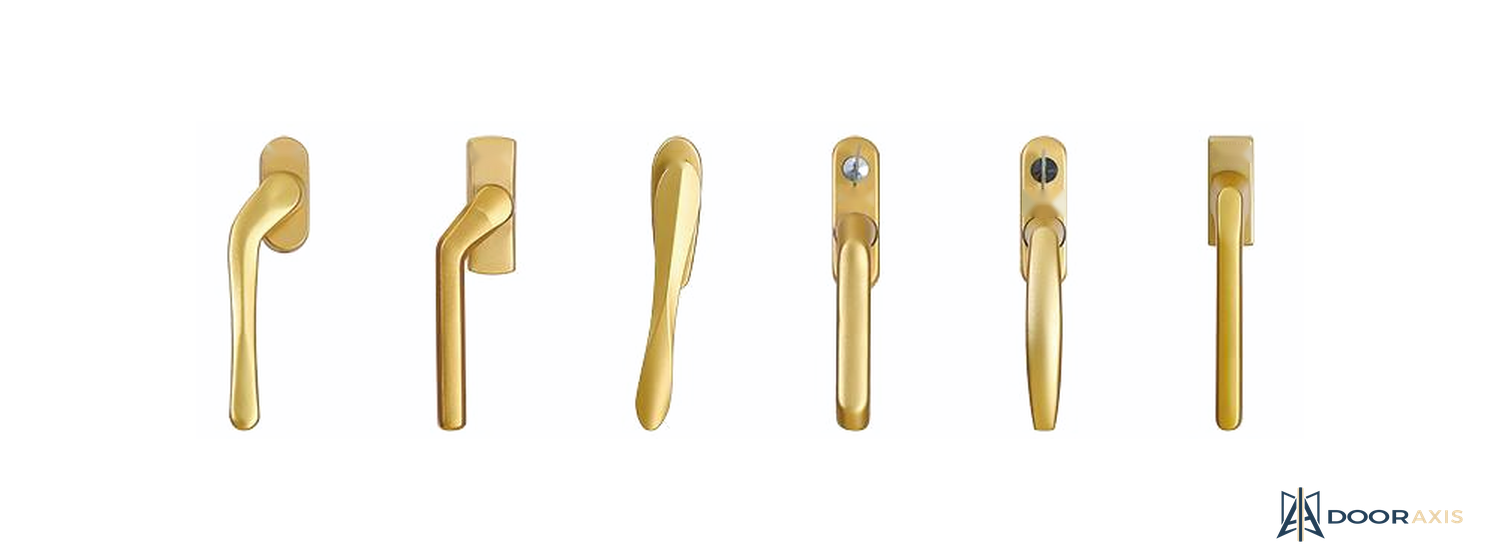

- Lever handle kit or cremone handle kit
- Escutcheons, adjustable hinges, and strike plate included
- Stainless, Gold Anodized, and Sand Black finishes
- Matches Door Axis aluminum entry systems
Specification Table
| Kit scope | Complete lockside hardware for one entry leaf |

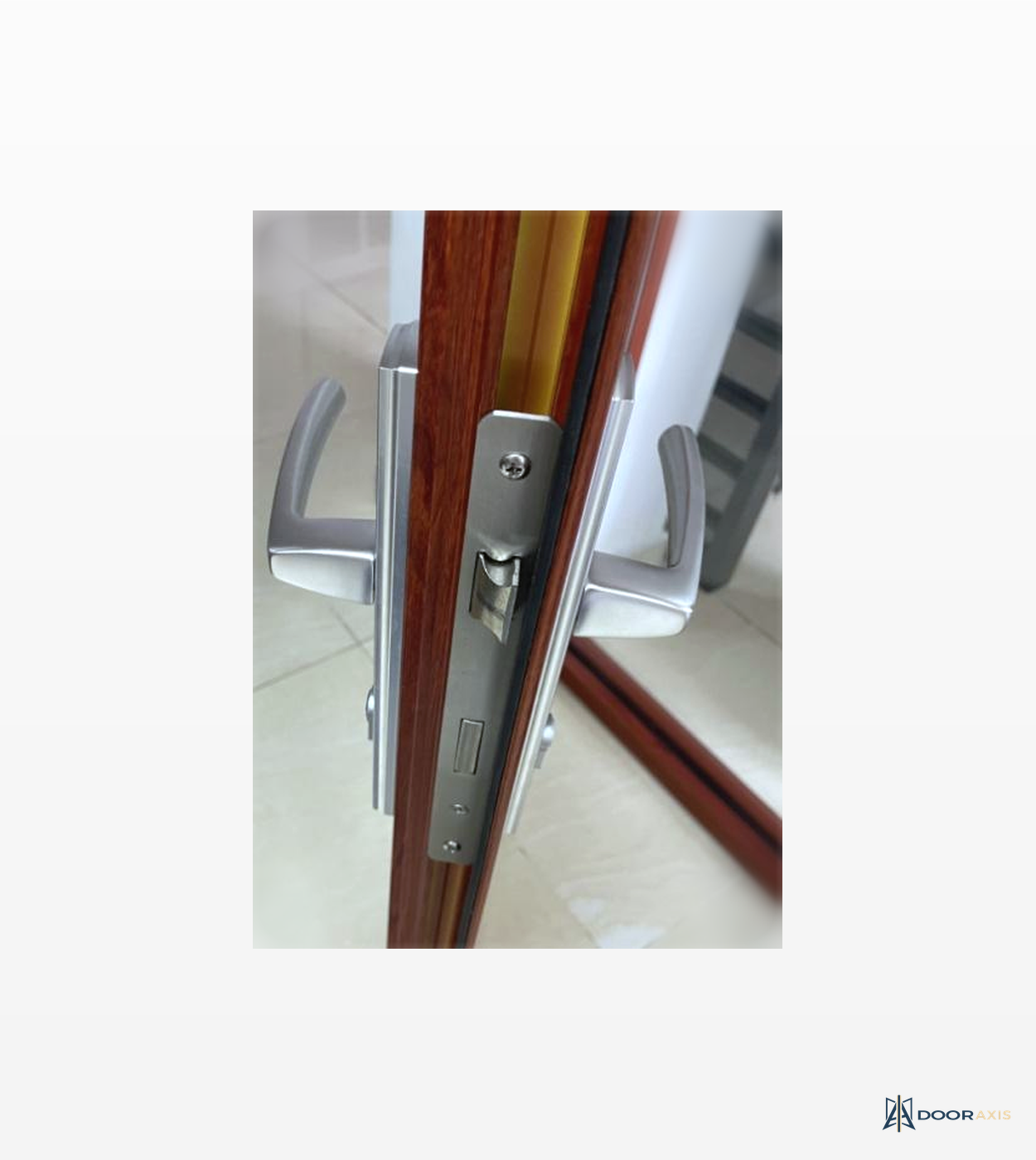

| Lock body | Stainless mortise lock, latch and deadbolt function |

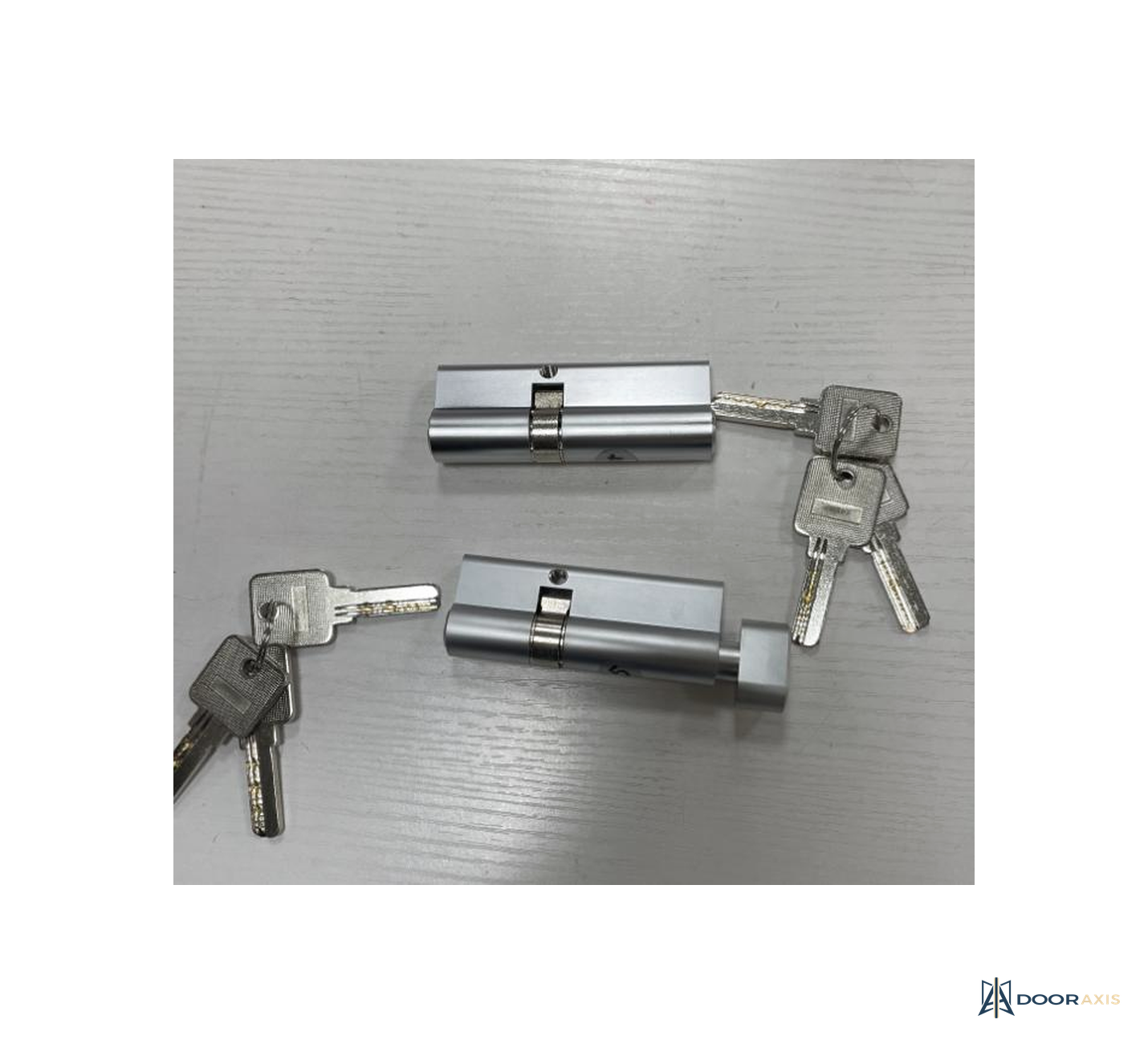

| Cylinder | Euro profile cylinder with keys; thumb turn option at order |
| Handle options | Lever handle kit or cremone handle kit with surface bolts |
| Escutcheons | Matching escutcheon plates, keyed face |
| Hinges | Adjustable hinges with fasteners |
| Strike | Strike plate and keeper hardware |
| Material | Stainless steel lock body and hinges, alloy handles |
| Finish options | Stainless, Gold Anodized, or Sand Black |
| Compatibility | Door Axis swing and entry systems; other doors confirmed during quote review |
| Kit weight | About 7.7 lb (3.5 kg) lever kit, 8.8 lb (4 kg) cremone kit |
| Warranty | Confirmed during quote review |

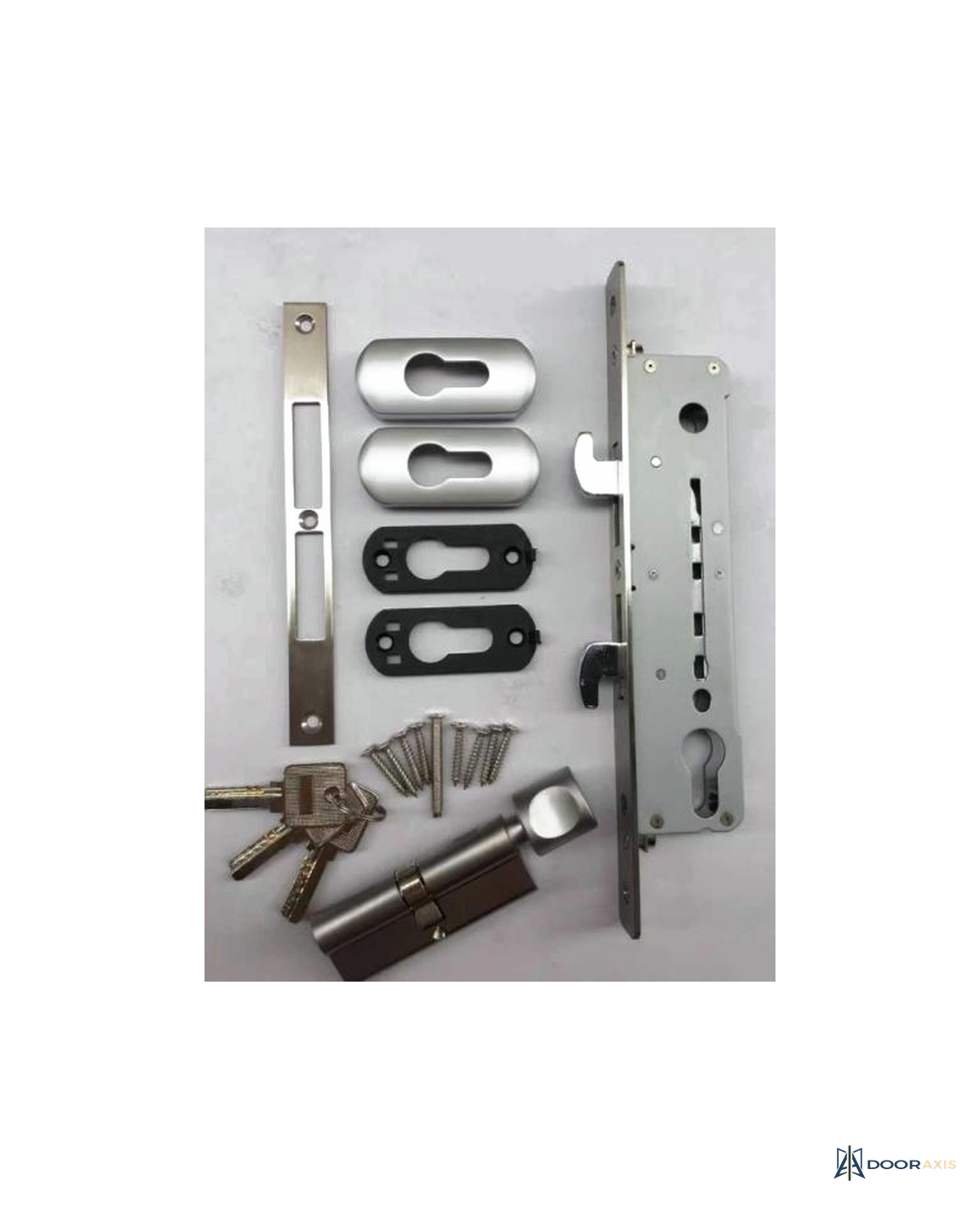

Included Components
- Mortise lock body
- Euro profile cylinder with three keys
- Lever pair or cremone handle set per order
- Escutcheon plates
- Adjustable hinge set
- Strike plate, keepers, and mounting fasteners
Installation Notes
- Confirm stile width, door thickness, and backset before ordering so the mortise body and cylinder length match the leaf.
- Mortise the lock body to template and drill the cylinder and spindle bores square to the stile face.
- Align the strike so the latch and deadbolt throw without lift, then fit escutcheons and handles.
- Professional fitting is recommended on aluminum stiles; templates ship with the kit.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
What is a cremone handle kit?
A full height handle with surface bolts that throw into the head and sill, giving an architectural pull and additional engagement points on tall entry leaves.
Will the cylinder match my existing keys?
Kits ship with a euro profile cylinder and keys. Keyed alike sets across several doors are available on request during quote review.
Does it fit doors from other suppliers?
The set is templated for Door Axis aluminum entries. For other doors, share stile width, thickness, and backset during quote review and fit is confirmed before release.
Documents
- Type Door Hardware
- SKU DA-DR-HW-ENTRYSET-LV-SS
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
