Door Axis Entry Grip Handleset with Interior Lever or Knob
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Entry Grip Handleset dresses the latch bore of an entry door with an exterior grip and a matching interior lever or knob. It serves entries that pair the grip with a keyed or electronic deadbolt, which is quoted separately.

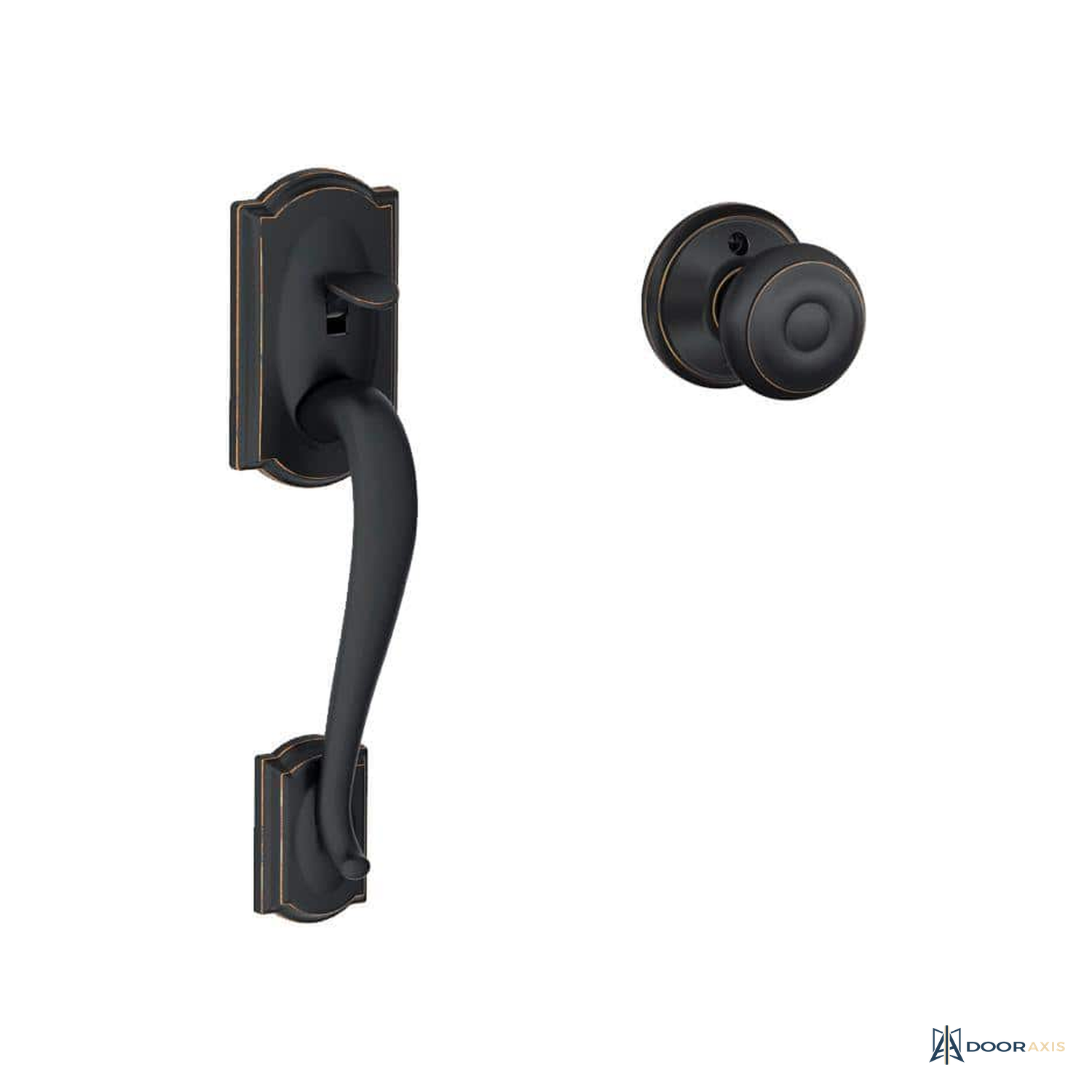

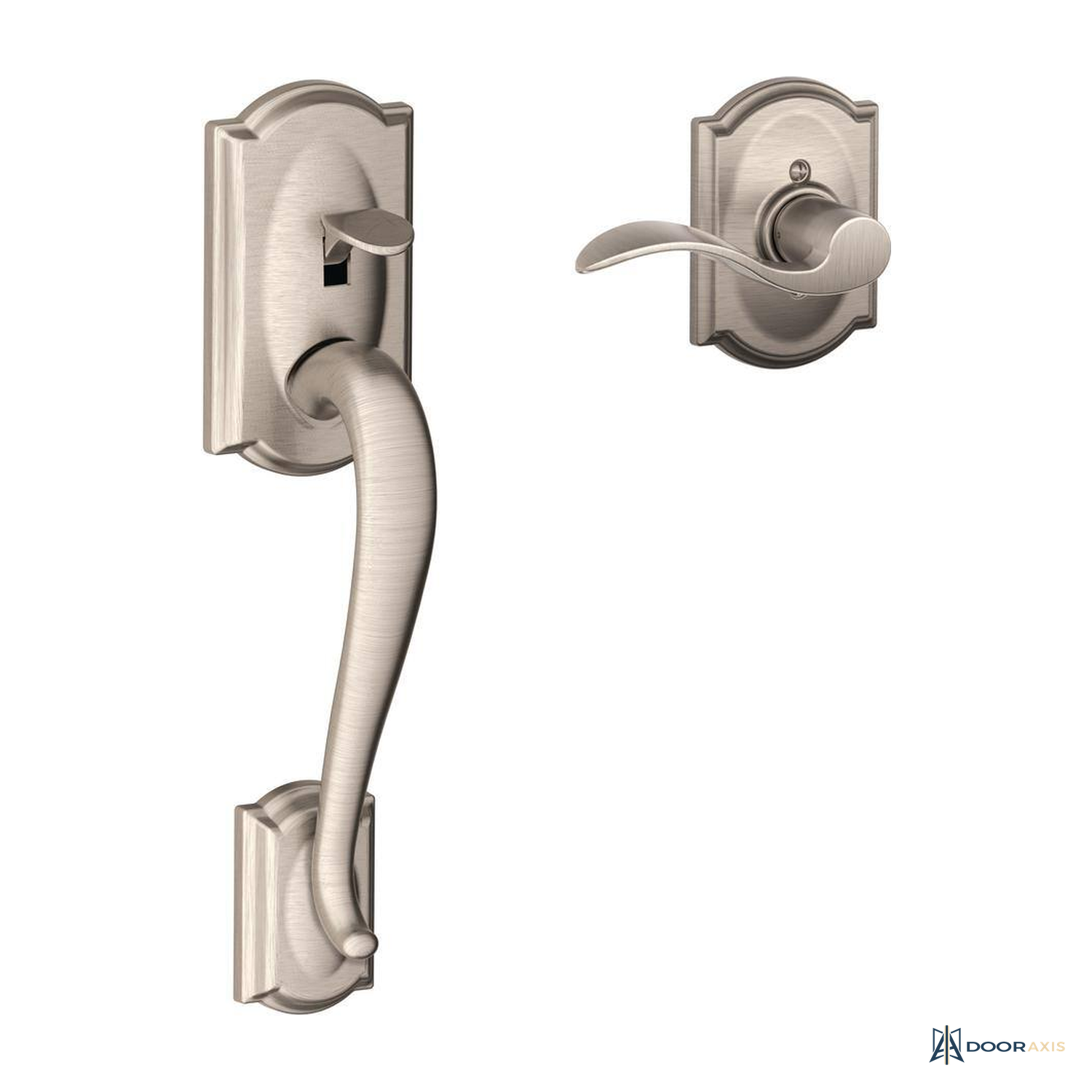

Both configurations run the classic arched grip with a thumbpiece latch outside. Interior Lever in satin nickel carries a wave lever and an ANSI Grade 2 (Better) rating on a metal chassis; Interior Knob in aged bronze carries a traditional knob on solid brass trim rated ANSI Grade 1 (Best). Universal latches seat 2-3/8 in and 2-3/4 in backsets, the adjustable through-bolt lands on existing holes without new drilling, and universal handing covers either swing. Neither configuration includes a lock cylinder; security comes from the deadbolt above.
Highlights
- Exterior grip with thumbpiece latch operation
- Interior Lever, Satin Nickel: ANSI Grade 2 (Better)
- Interior Knob, Aged Bronze: ANSI Grade 1 (Best), solid brass
- Adjustable 2-3/8 or 2-3/4 in backset, tool-free
- Adjustable through-bolt for retrofit holes
- Universal handing
- Pairs with any deadbolt in this catalog, quoted together
Specification Table
| Function | Entry grip handleset, latch trim |
| Configurations | Interior Lever (Satin Nickel) or Interior Knob (Aged Bronze) |
| Rating | Grade 2 lever set; Grade 1 knob set |
| Backset | Adjustable 2-3/8 or 2-3/4 in |
| Door thickness | 1-3/8 to 1-7/8 in, lever set |
| Through-bolt | Adjustable, retrofit friendly |
| Handing | Universal |
| Deadbolt | Not included, quoted separately |
| Construction | Solid brass knob set; metal lever set |
Included Components
- Exterior grip with thumbpiece
- Interior lever or knob per selected configuration
- Latch, strike, and self-guiding screws
- Drilling template and installation instructions
Installation Notes
- This set trims the latch bore only; order the deadbolt on the same quote for a complete entry.
- The universal latch slides to either standard backset without tools.
- Use the adjustable through-bolt to pick up existing holes on retrofit doors.
- Confirm door thickness for the lever set: 1-3/8 in to 1-7/8 in.
Warranty and Support
- Limited lifetime mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
Does this handleset lock?
No. It operates the latch only; locking comes from a deadbolt mounted above, which we quote together with the set.
Why do the two configurations carry different grades?
The ratings follow the product line's published certification per trim: Grade 2 (Better) on the lever set and Grade 1 (Best) on the knob set.
Which finishes pair well with common deadbolts?
Satin nickel matches most chrome and nickel cylinders; aged bronze pairs with bronze family deadbolts. Matched combinations are confirmed during quote review.
Documents
- Type Handleset
- SKU DA-DR-HW-HSET-GRIP-LV-SN
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
