Door Axis Folding Door Hardware Set, Pivots, Carriers, and Drop Bolts
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Folding Door Hardware Set is the complete running and locking gear for one folding door run: pivots, intermediate carriers, drop bolts, and flush pulls. It serves installers replacing worn gear and fabricators building out folding walls on Door Axis systems.
The kit pairs stainless steel wear parts with aluminum hanger bodies: a top and bottom pivot set for the jamb leaf, intermediate carriers with adjustable hangers and guides for the folding leaves, locking and non locking drop bolts, matching flush pulls, and leaf hinge sets with fasteners. Components are finished in stainless or Sand Black to match the door run. Kits are configured per run length during quote review so hanger and hinge counts match the panel count.
Highlights
- Complete running gear for one folding door run
- Top and bottom pivot set with adjustable intermediate carriers
- Locking and non locking drop bolts for panel pairs
- Flush pulls and leaf hinge sets included
- Stainless steel wear parts with aluminum hanger bodies
- Stainless or Sand Black finish to match the door run
Specification Table
| Kit scope | Running and locking hardware for one folding door run |
| Pivot set | Top and bottom pivots for the jamb leaf |
| Carriers | Intermediate carriers with adjustable hangers and guides |
| Drop bolts | Locking and non locking drop bolts for panel pairs |
| Pulls | Flush pulls for folding leaves |
| Hinges | Leaf hinge sets with fasteners |
| Material | Stainless steel wear parts, aluminum hanger bodies |
| Finish options | Stainless or Sand Black |
| Compatibility | Door Axis folding systems; other systems confirmed during quote review |
| Configuration | Hanger and hinge counts matched to the panel run at order |
| Kit weight | About 14.3 lb (6.5 kg) |
| Warranty | Confirmed during quote review |

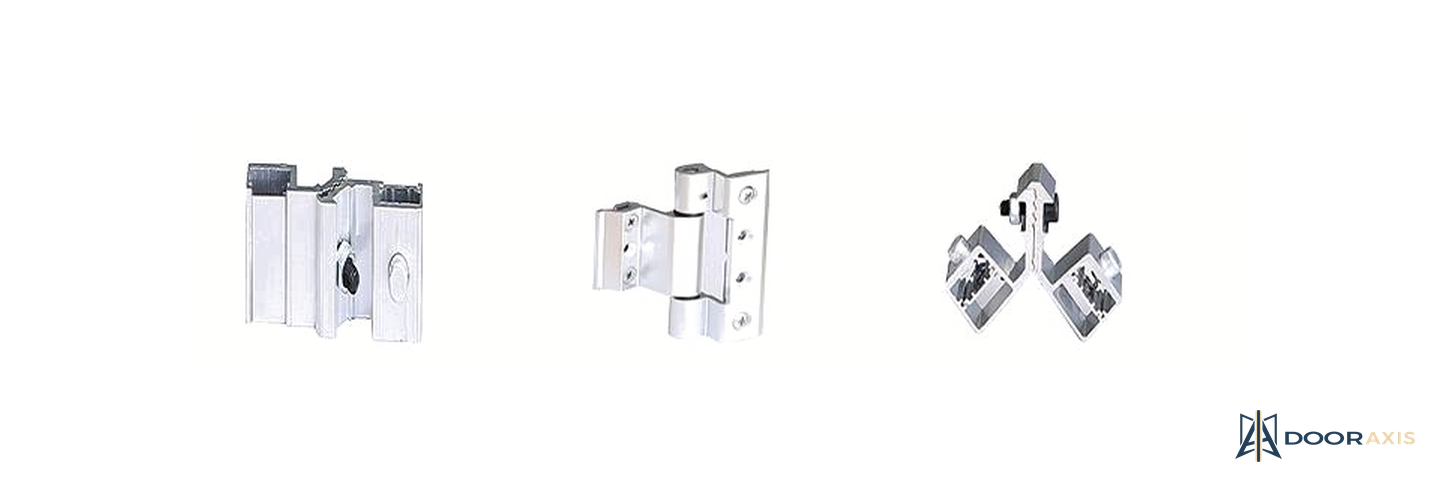

Included Components

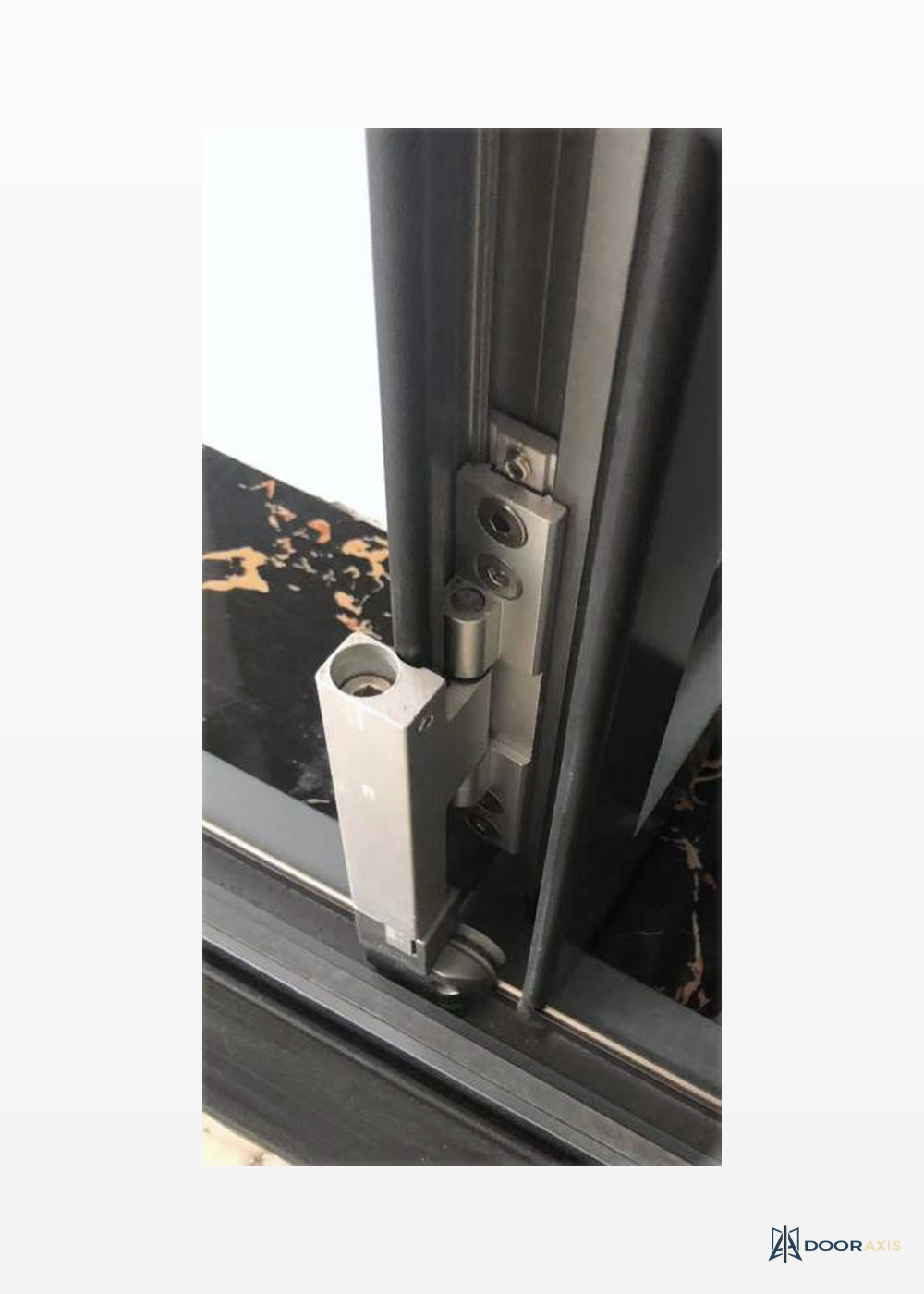

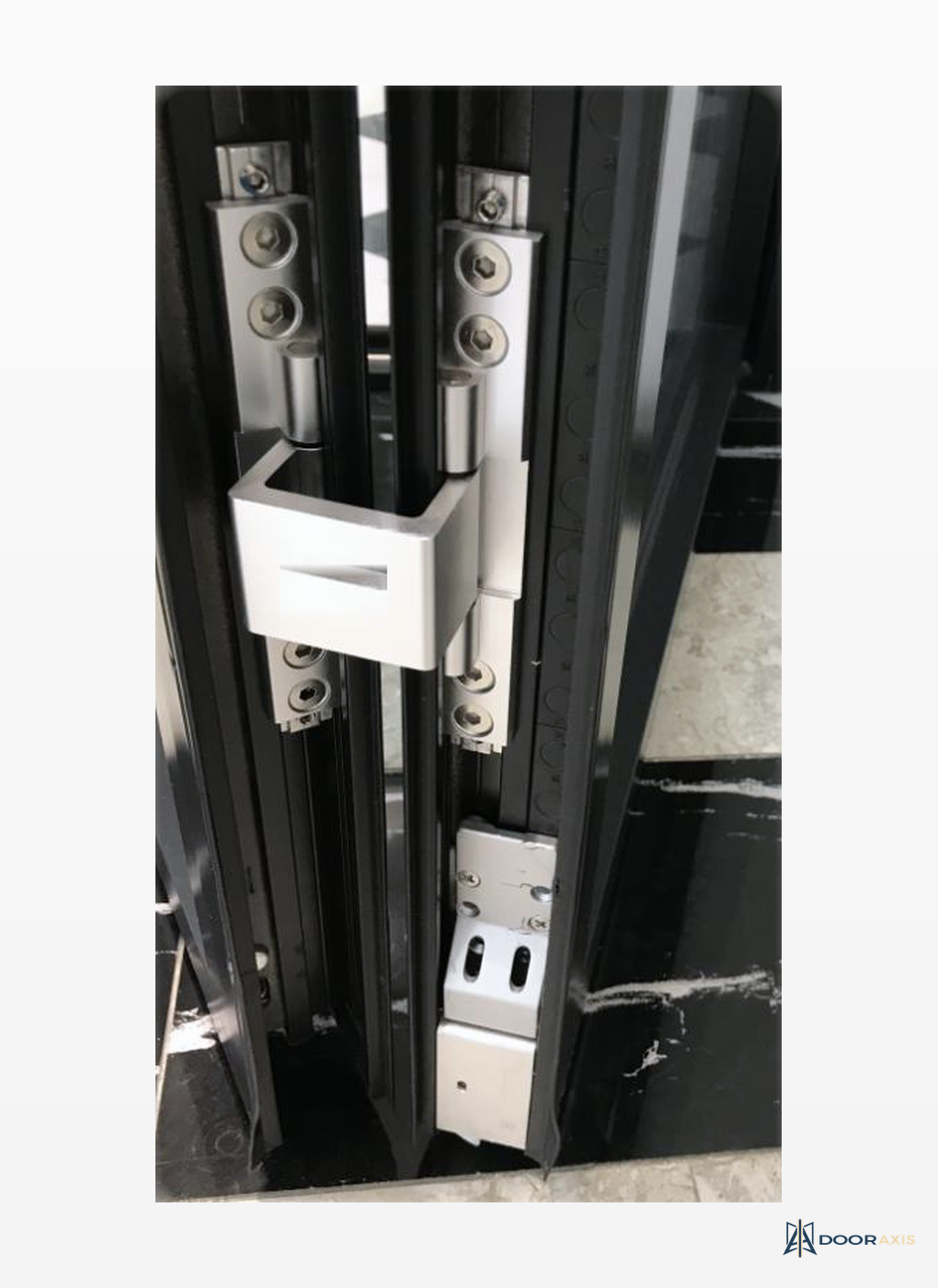

- Top and bottom pivot set
- Intermediate hanger and guide sets
- Locking and non locking drop bolts
- Flush pulls
- Leaf hinge sets
- Mounting fasteners and adjustment key
Installation Notes
- Confirm panel count, panel weight, and track profile before ordering so the kit is configured to the run.
- Mount pivots and carriers to manufacturer templates and check vertical alignment before hanging leaves.
- Adjust hangers and guides so leaves fold without binding, then set drop bolt keeps.
- Professional installation is recommended for folding runs above two panels.
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
Does the kit fit my existing folding door?
The kit is configured for Door Axis folding systems. For other systems, share panel weight, thickness, and track details during quote review and compatibility is confirmed before release.
How many carriers do I need?
Hanger count follows the panel run. Kits are configured to your run length at order so every folding pair gets a hanger set and every leaf gets its hinge set.
Which finishes are offered?
Stainless and Sand Black. Both use stainless wear parts; the finish applies to visible bodies and pulls.
Documents
- Type Door Hardware
- SKU DA-DR-HW-FOLDSET-SS
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
