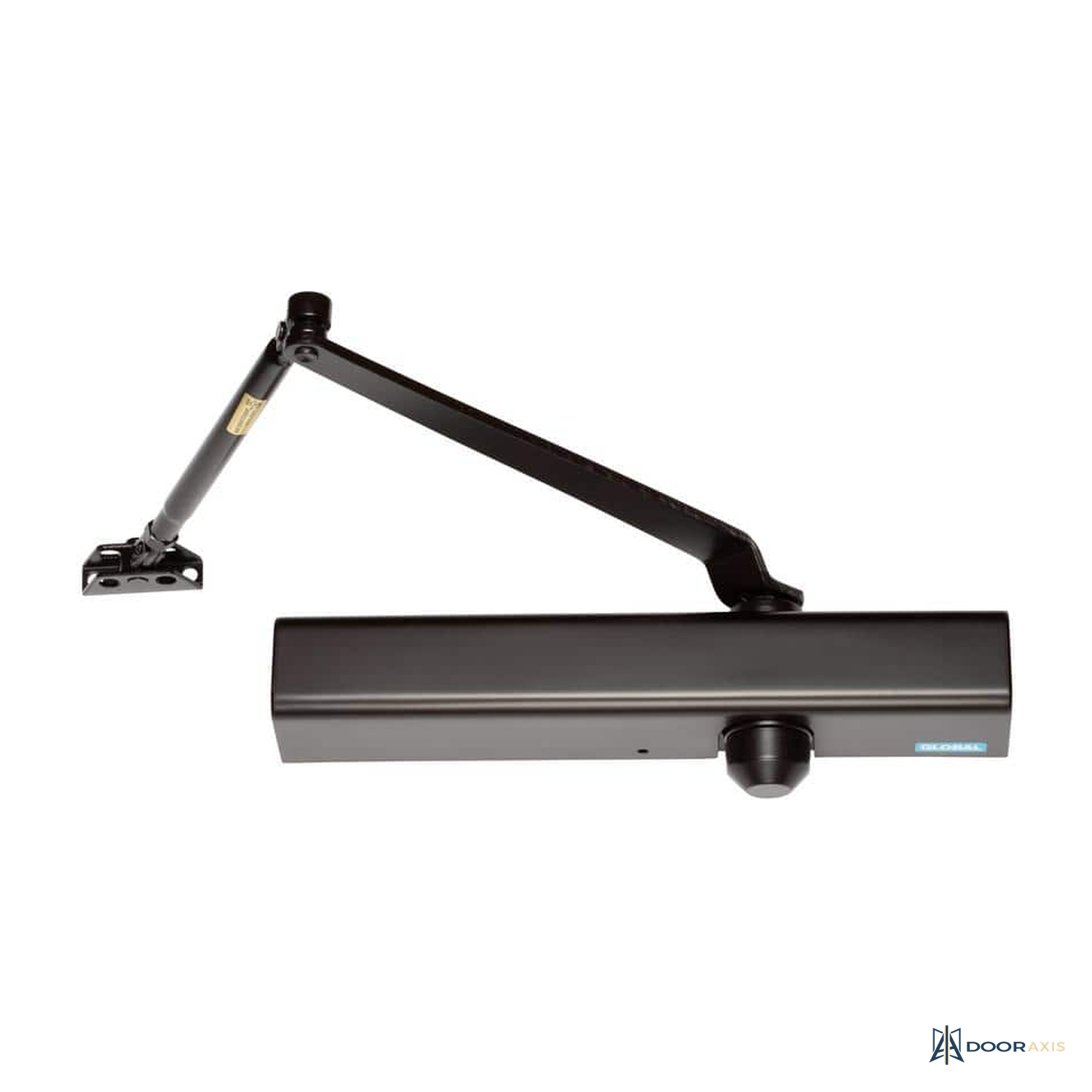

Door Axis Grade 1 Heavy Duty Commercial Door Closer, Sizes 1-4, Dark Bronze
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Grade 1 Heavy Duty Closer controls commercial, architectural, and institutional doors with adjustable power sizes 1 through 4. One non-handed body covers left- and right-hand openings in any of three mounts.
The aluminum alloy body runs a rack and pinion drive with three independent regulating valves, so sweep speed, latch speed, and backcheck each tune separately. Tri-packed hardware installs regular, top jamb, or parallel arm without extra kits, and the slimline cover keeps a narrow profile on the frame. Rated for doors to 243 lb with published ADA, ANSI, BHMA, and UL listings.
Highlights
- Grade 1 heavy duty rating, doors to 243 lb
- Adjustable power sizes 1-4
- Independent sweep, latch, and backcheck valves

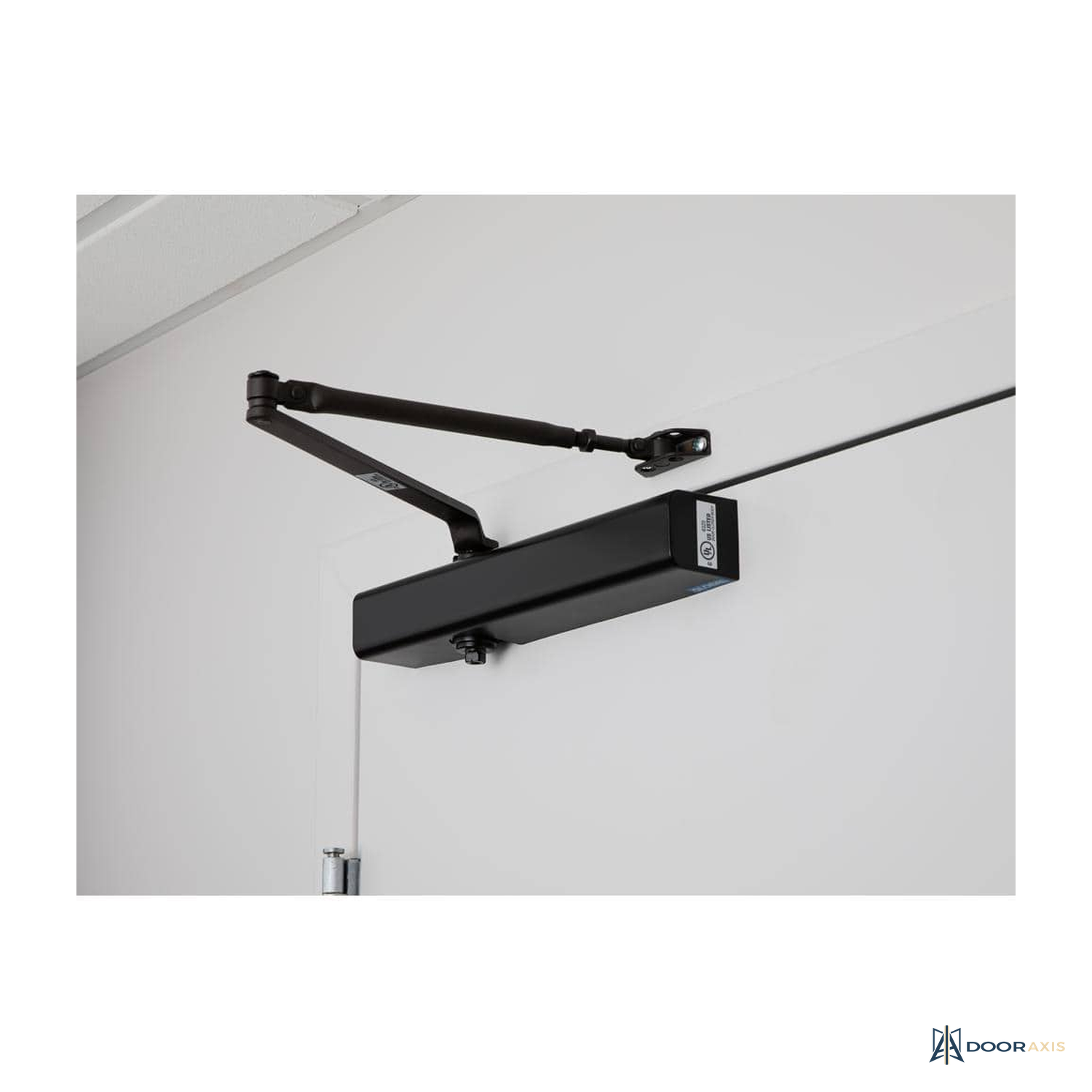

- Non-handed; regular, top jamb, or parallel arm mount
- ADA compliant; ANSI, BHMA, UL published listings

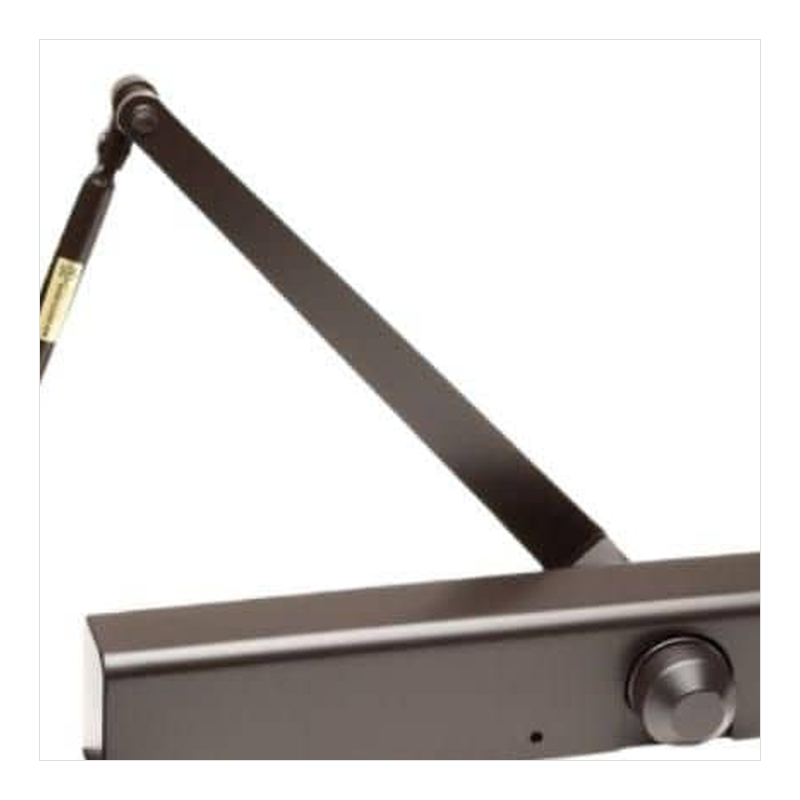

- Slimline narrow cover, dark bronze anodized finish
Specification Table
| Function | Grade 1 heavy duty surface closer |
| Power | Adjustable sizes 1-4 |
| Drive | Rack and pinion with backcheck |
| Valves | Sweep, latch, backcheck |
| Mounts | Regular, top jamb, parallel arm |
| Handing | Non-handed, reversible |
| Max door weight | 243 lb |
| Body | Aluminum alloy, 12-3/4 in |
| Listings | ADA, ANSI, BHMA, UL (published) |
| Warranty | 5 year mechanical |
Included Components
- Closer body with cover
- Tri-pack arm hardware for three mounts

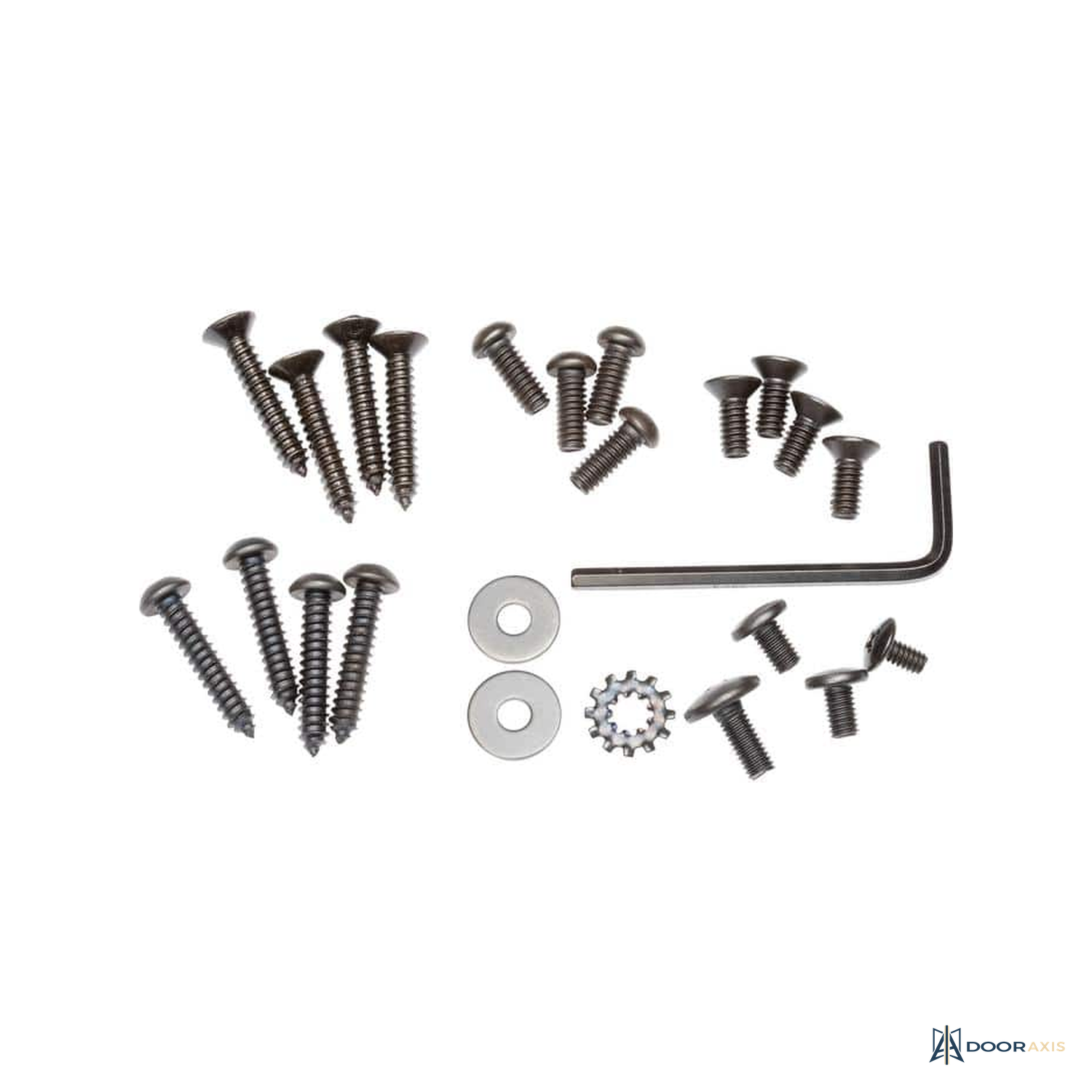

- Wood and machine screws
Installation Notes
- Pick the mount by clearance: regular pull-side, top jamb push-side, parallel arm where projection matters.
- Set power size to door width and weight first, then tune sweep and latch speeds.
- Use backcheck to protect walls on wind-exposed exterior openings.
- Pair with ball bearing hinges on high-frequency doors.
Warranty and Support
- 5 year mechanical coverage, confirmed during quote review.
Frequently Asked Questions
Which power size do I set?
Size to the door: light interior leaves run 1-2, standard 3-ft commercial doors 3, exterior or wide doors 4. The valve card in the quote package covers it.
Is a silver finish available?
Yes, the same closer runs in an aluminum finish on the companion Door Axis standard-duty listing; both are quoted together for mixed jobs.
Documents
- Type Door Closer
- SKU DA-DR-HW-CLS-GR1HD
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
