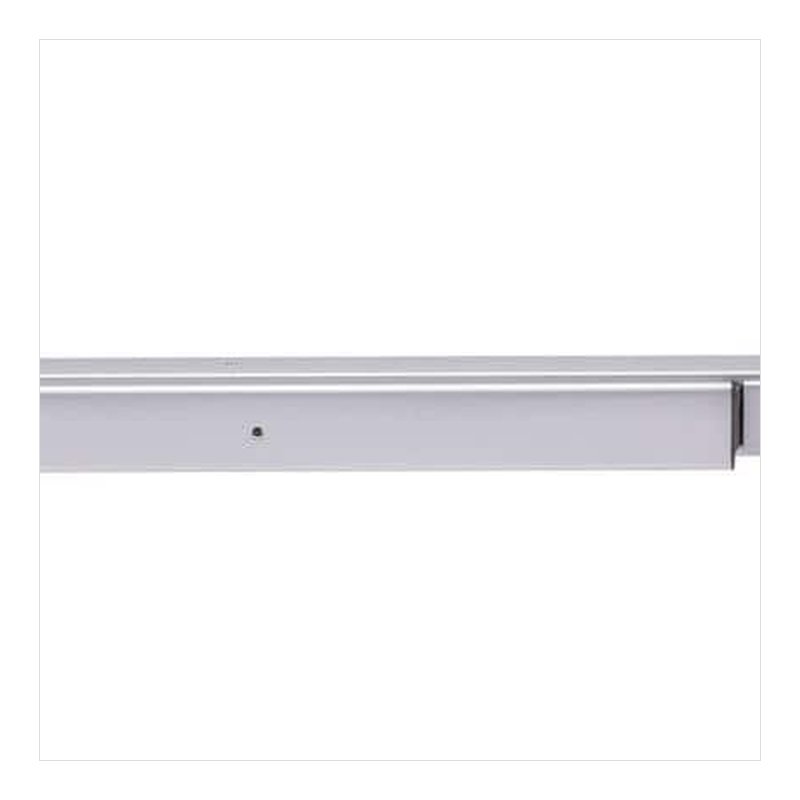

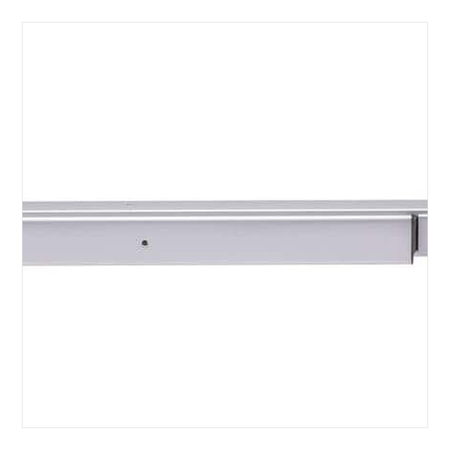

Door Axis Grade 1 Rim Surface Exit Device, 36 in, Aluminum - finish swatch

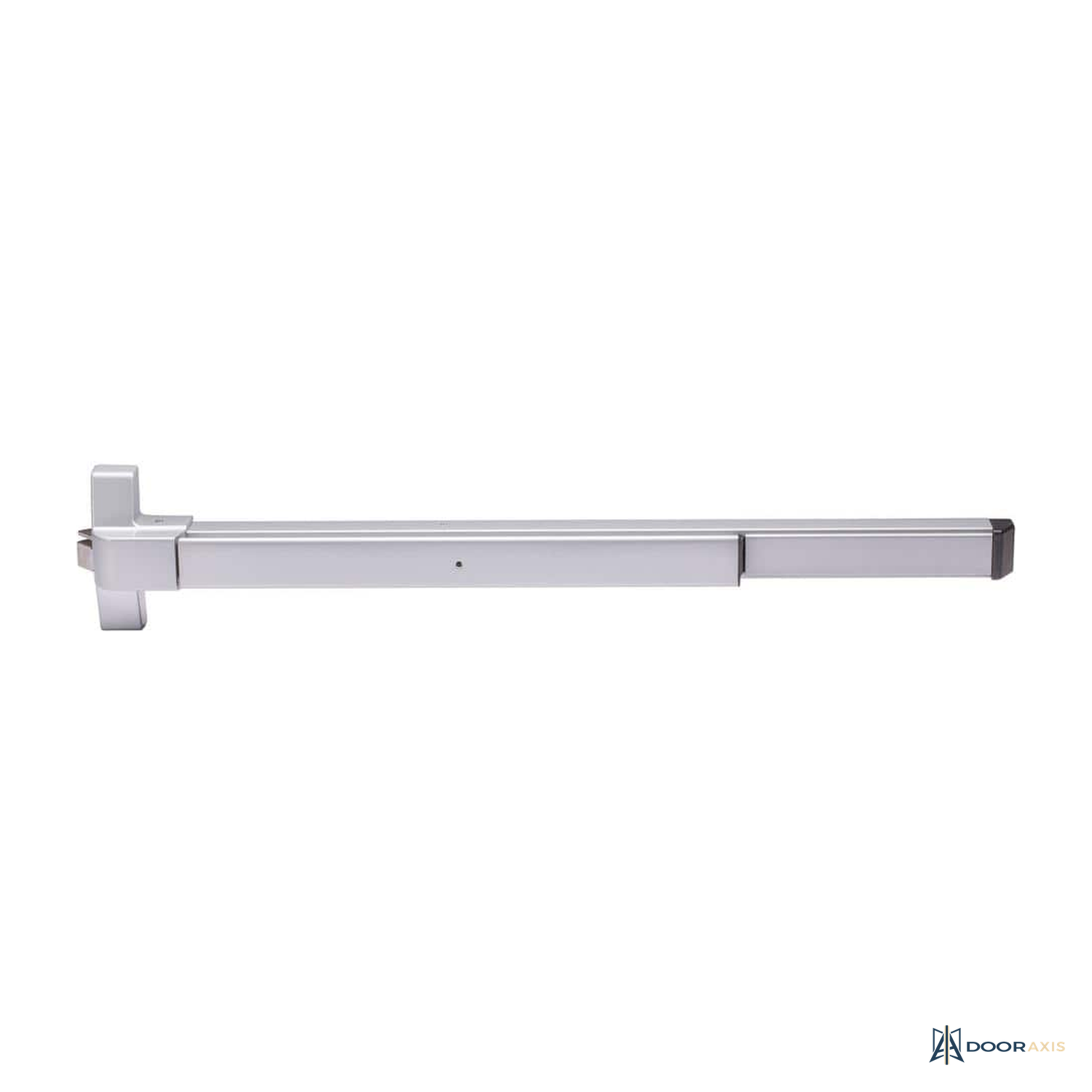

Door Axis Grade 1 Rim Surface Exit Device, 36 in, Aluminum - front view

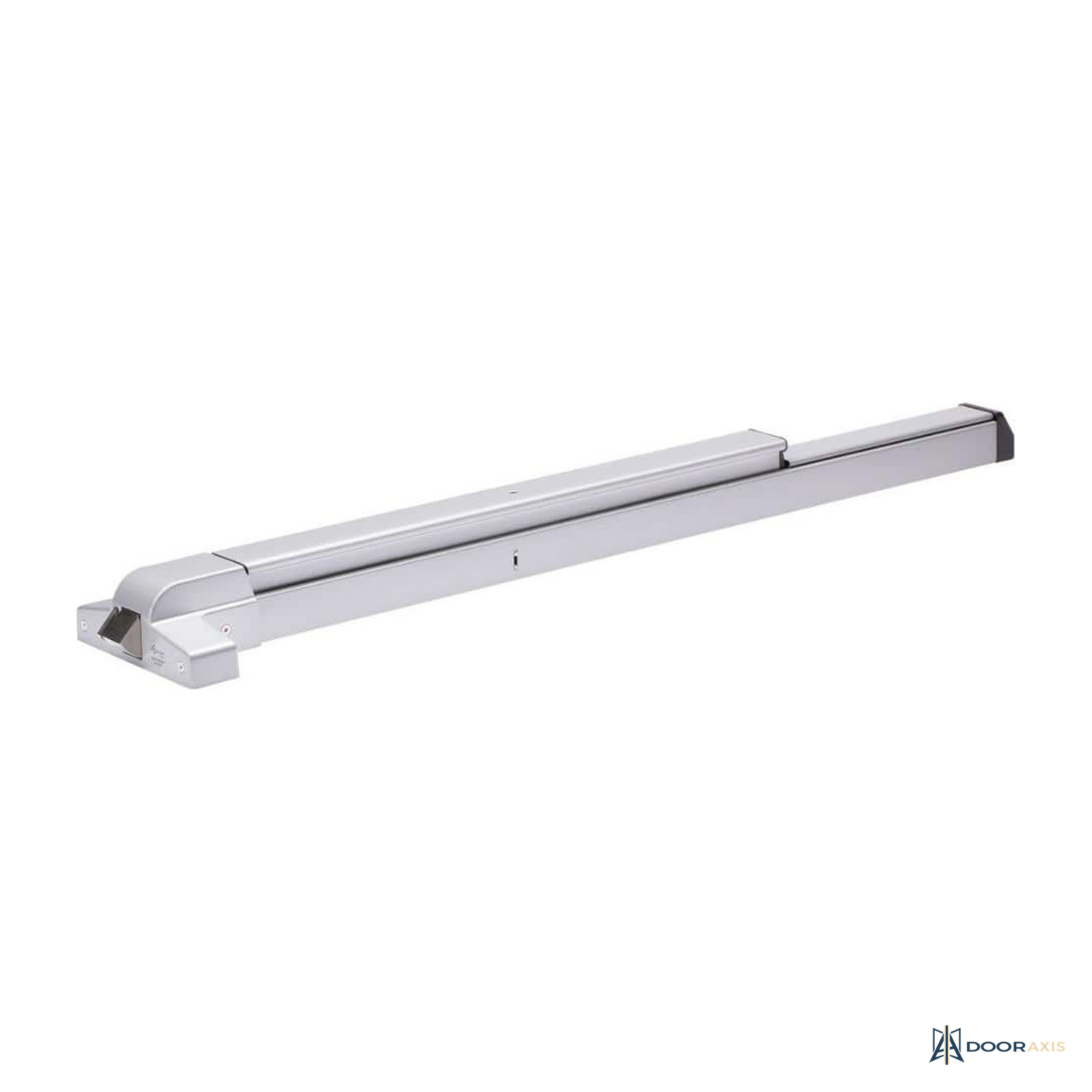

Door Axis Grade 1 Rim Surface Exit Device, 36 in, Aluminum - angle view
Door Axis Grade 1 Rim Surface Exit Device, 36 in, Aluminum - panel and glazing detail
Door Axis Grade 1 Rim Surface Exit Device, 36 in, Aluminum - finish swatch
Door Axis Grade 1 Rim Surface Exit Device, 36 in, Aluminum - front view
Door Axis Grade 1 Rim Surface Exit Device, 36 in, Aluminum - angle view
Door Axis Grade 1 Rim Surface Exit Device, 36 in, Aluminum - panel and glazing detail

Product image note: Images are representative of the product and finish shown. Final finish and included components are confirmed during quote review.

Door Axis

Door Axis Grade 1 Rim Surface Exit Device, 36 in, Aluminum

SKU: DA-DR-HW-EXIT-RIM

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

The Door Axis Rim Exit Device is the standard single-door panic answer: one surface strike, one rim latch, immediate egress on push. Heavy duty Grade 1 series hardware for 36 in commercial doors.

Rim devices mount entirely on the door face with the latch engaging a surface strike on the frame, making them the fastest exit hardware to retrofit. The Grade 1 series body takes high-frequency service, and the aluminum finish matches storefront framing. Combine with an outside lever or pull trim, quoted with the device, where keyed exterior entry is needed.

Highlights

  • Grade 1 heavy duty series
  • Rim latch with surface strike, fast retrofit
  • 36 in door width, non-handed
  • Aluminum finish for storefront framing
  • Exterior trim options quoted with the device

Specification Table

Function Rim surface exit device
Grade Heavy duty Grade 1 series
Door width 36 in
Latching Rim latch, surface strike
Handing Non-handed
Material Aluminum
Warranty 1 year mechanical and finish

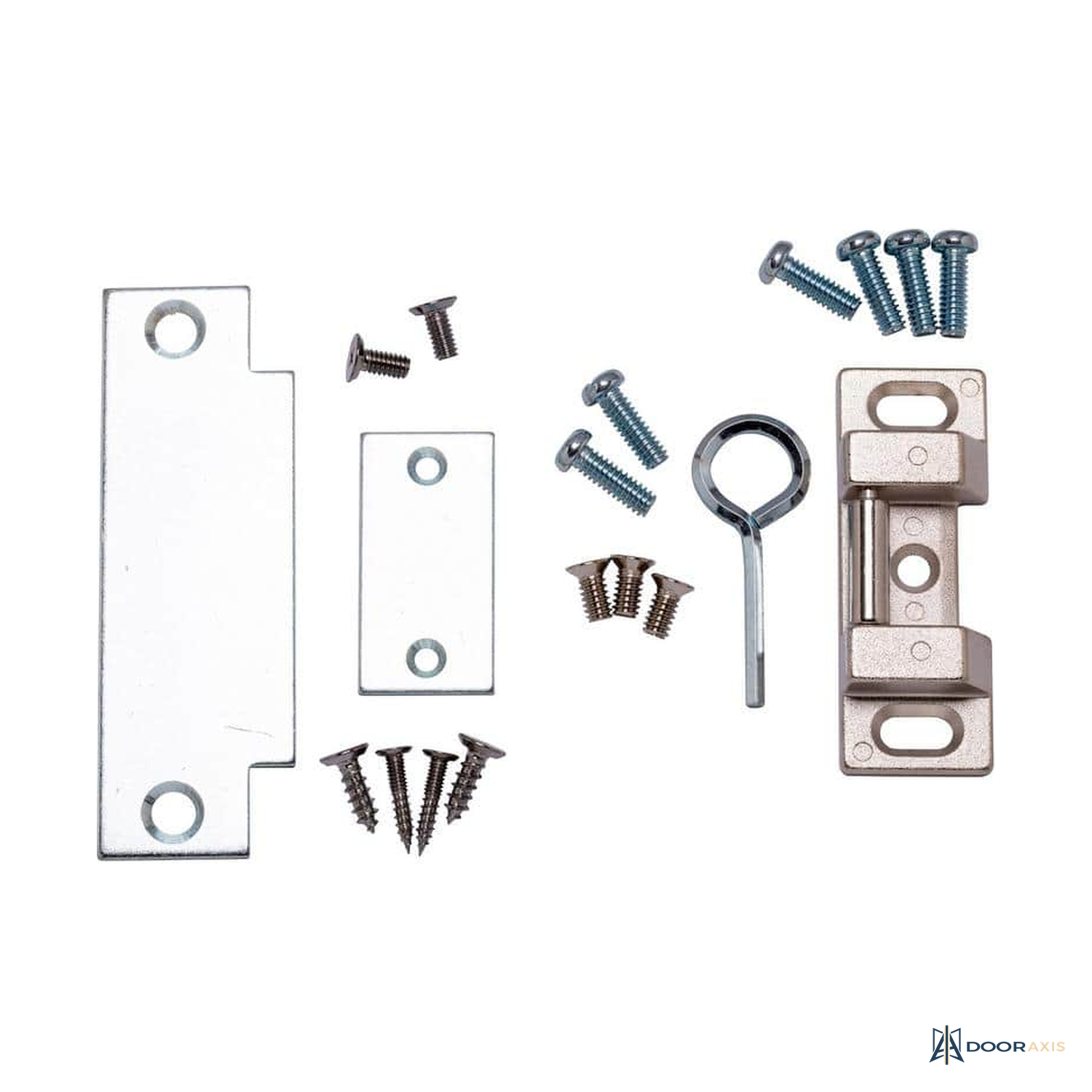

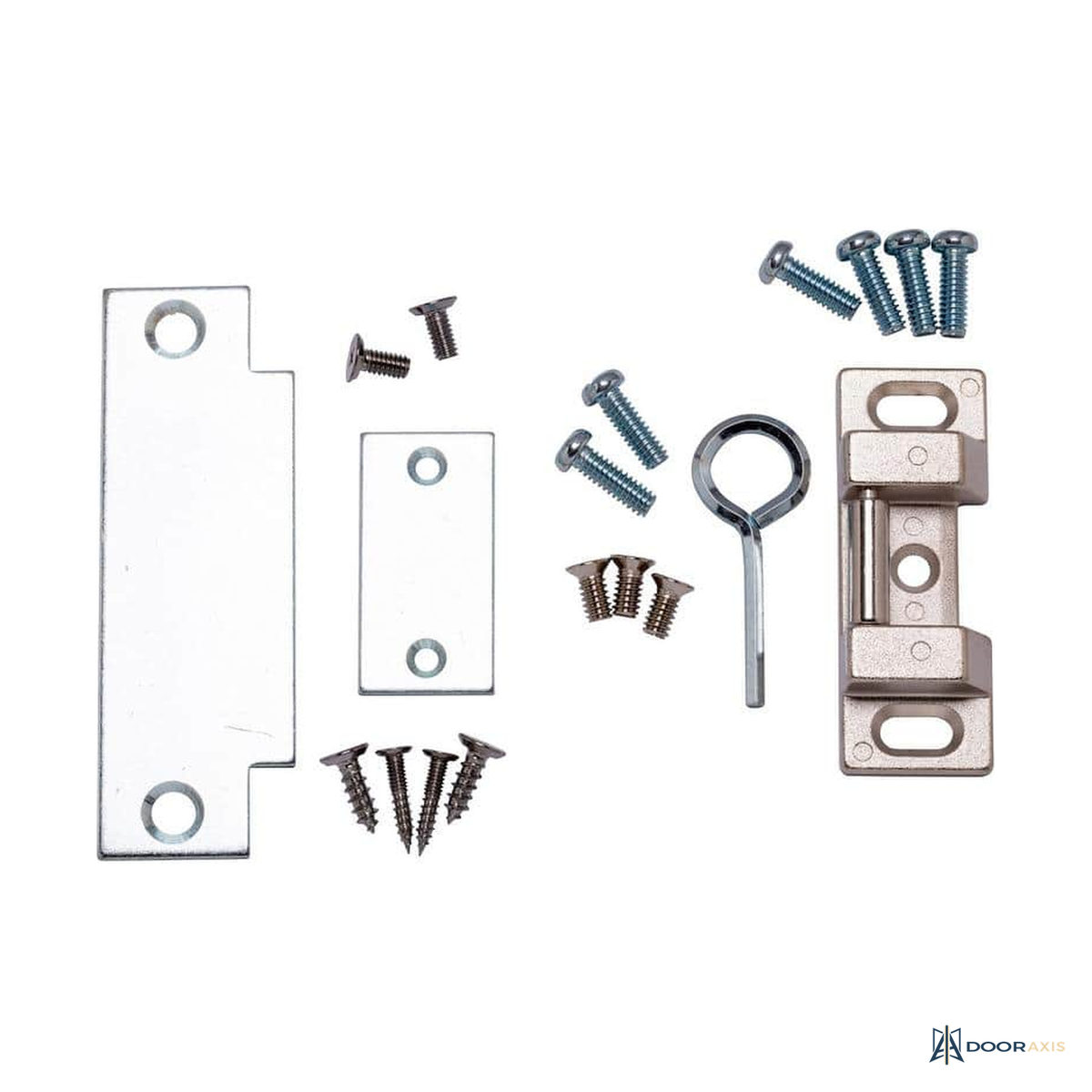

Included Components

  • Rim exit device
  • Surface strike
  • Mounting fasteners

Installation Notes

  • Mount the rail level at the scheduled height and align the strike last.
  • Pair with a Grade 1 closer on exterior egress doors.
  • Exterior entry trim (lever or pull with cylinder) is specified at quote.

Warranty and Support

  • 1 year mechanical and finish coverage, confirmed during quote review.

Frequently Asked Questions

Does it fit a 32 in door?
The rail cuts down for narrower leaves per the released instructions; confirm door width at quote.

Documents
  • Type Exit Device
  • SKU DA-DR-HW-EXIT-RIM

Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
