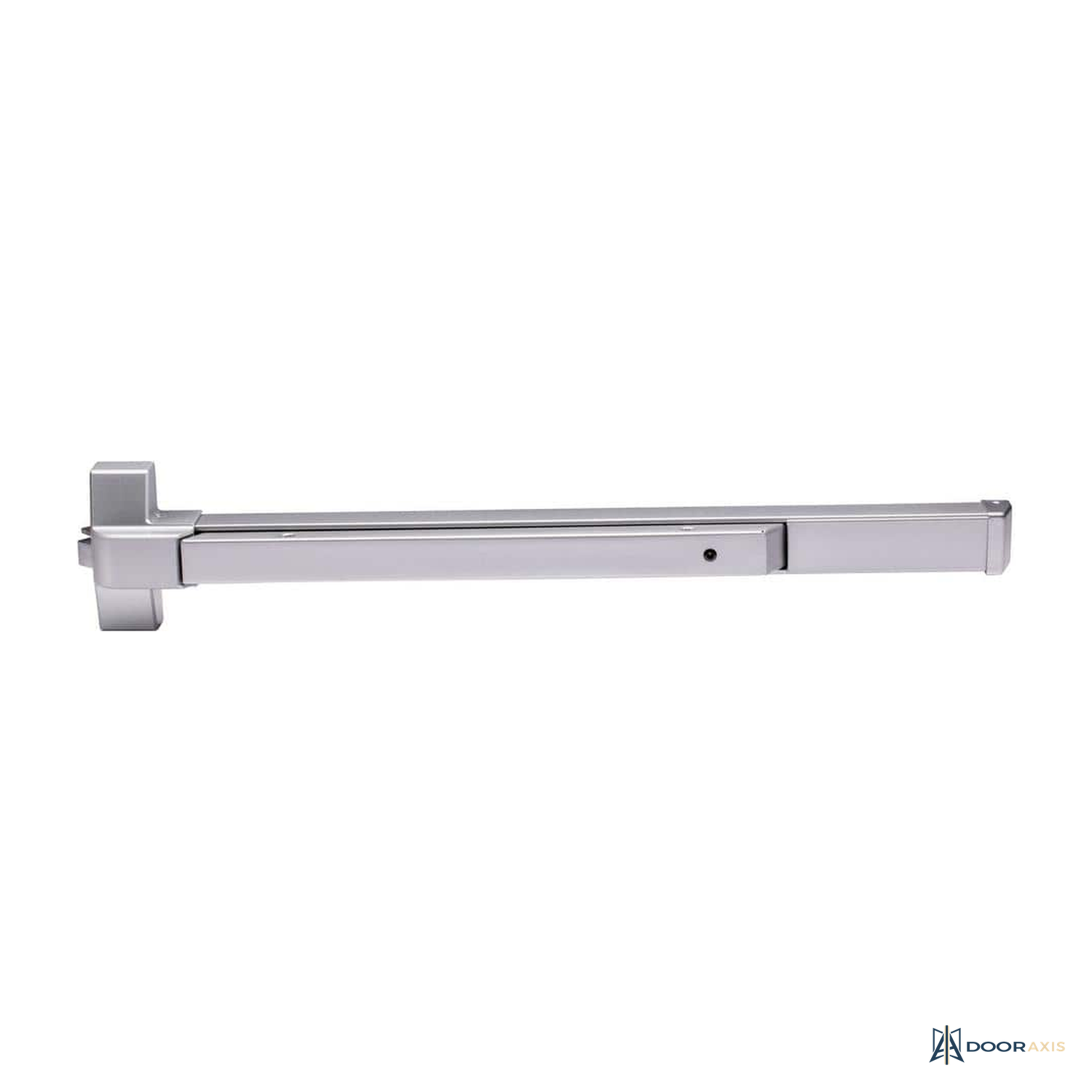

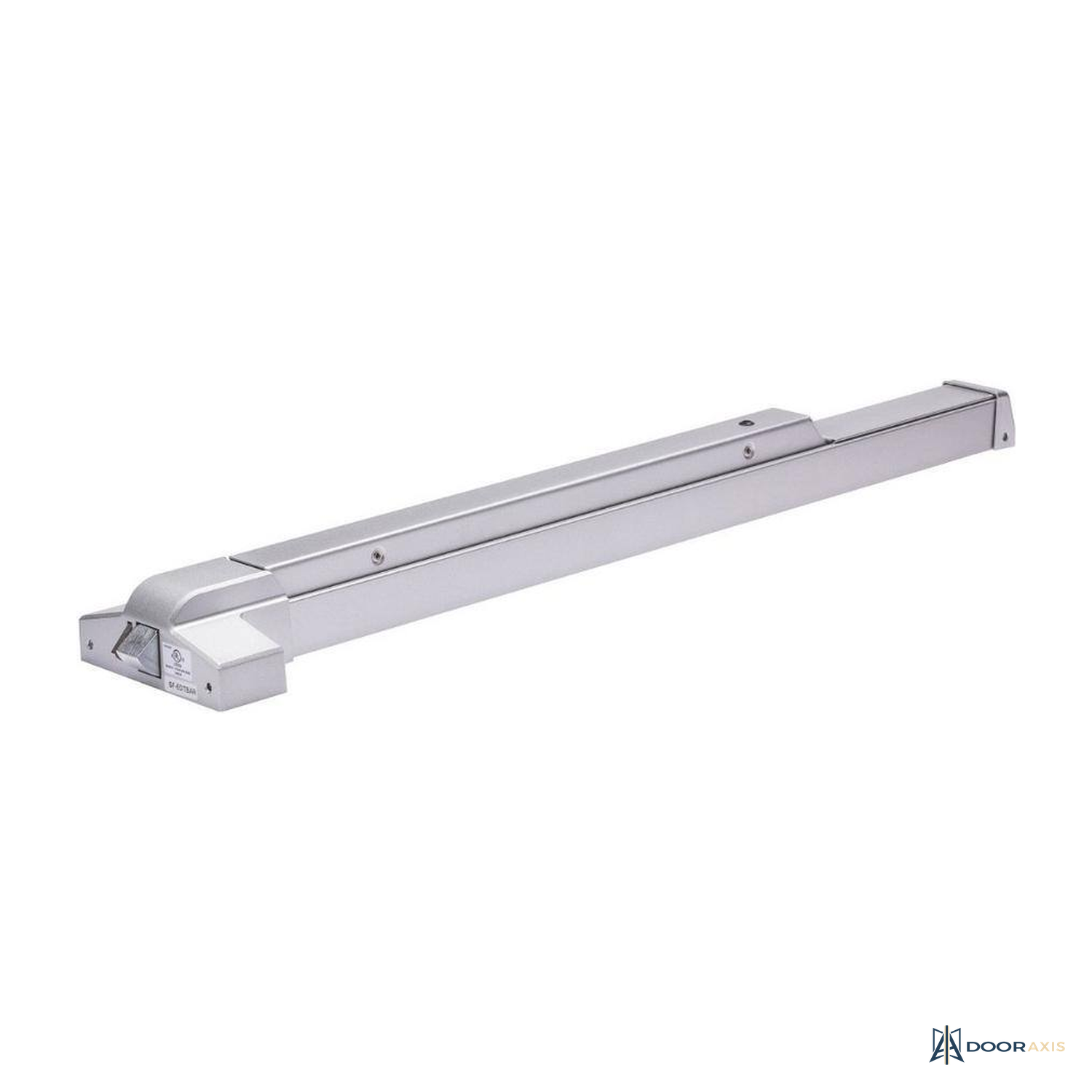

Door Axis Grade 2 Surface Vertical Rod Exit Device, 36 in, Aluminum
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Vertical Rod Exit Device secures double doors and mullion-free pairs at top and bottom while releasing instantly on push. Grade 2 series hardware in extruded hard anodized aluminum for 36 in doors.
The push rail drives a top pullman latch and bottom bolt assembly through surface-mounted rods, engaging strikes at head and floor. Projection runs 2-1/2 in, dropping to 1-7/8 in when dogged open for open-business hours. Non-handed and reversible on 1-3/4 in doors, with a published UL listing; pair two devices with the double-door strike for rim and vertical applications on pairs.
Highlights
- Top and bottom latching for pairs and single doors
- Grade 2 series, extruded hard anodized aluminum
- 2-1/2 in projection, 1-7/8 in dogged
- Non-handed, reversible, 36 in door width
- UL published listing
- Sheet metal and machine screws included
Specification Table
| Function | Surface vertical rod exit device |
| Grade | ANSI Grade 2 series |
| Door width | 36 in |
| Latching | Top pullman + bottom bolt |
| Backset | 2-3/4 in, 4-1/2 in min stile |
| Projection | 2-1/2 in; 1-7/8 in dogged |
| Door thickness | 1-3/4 in standard |
| Mounting height | 41 in to rail centerline |

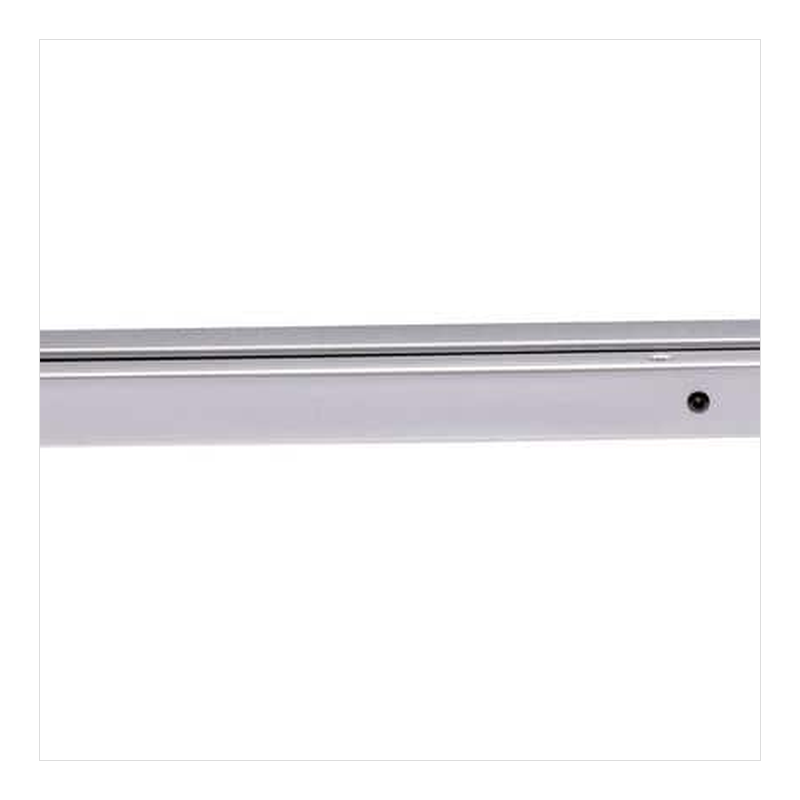

| Material | Hard anodized aluminum |
| Warranty | 1 year mechanical and finish |

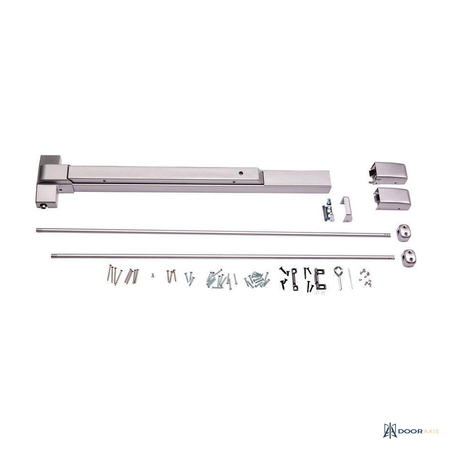

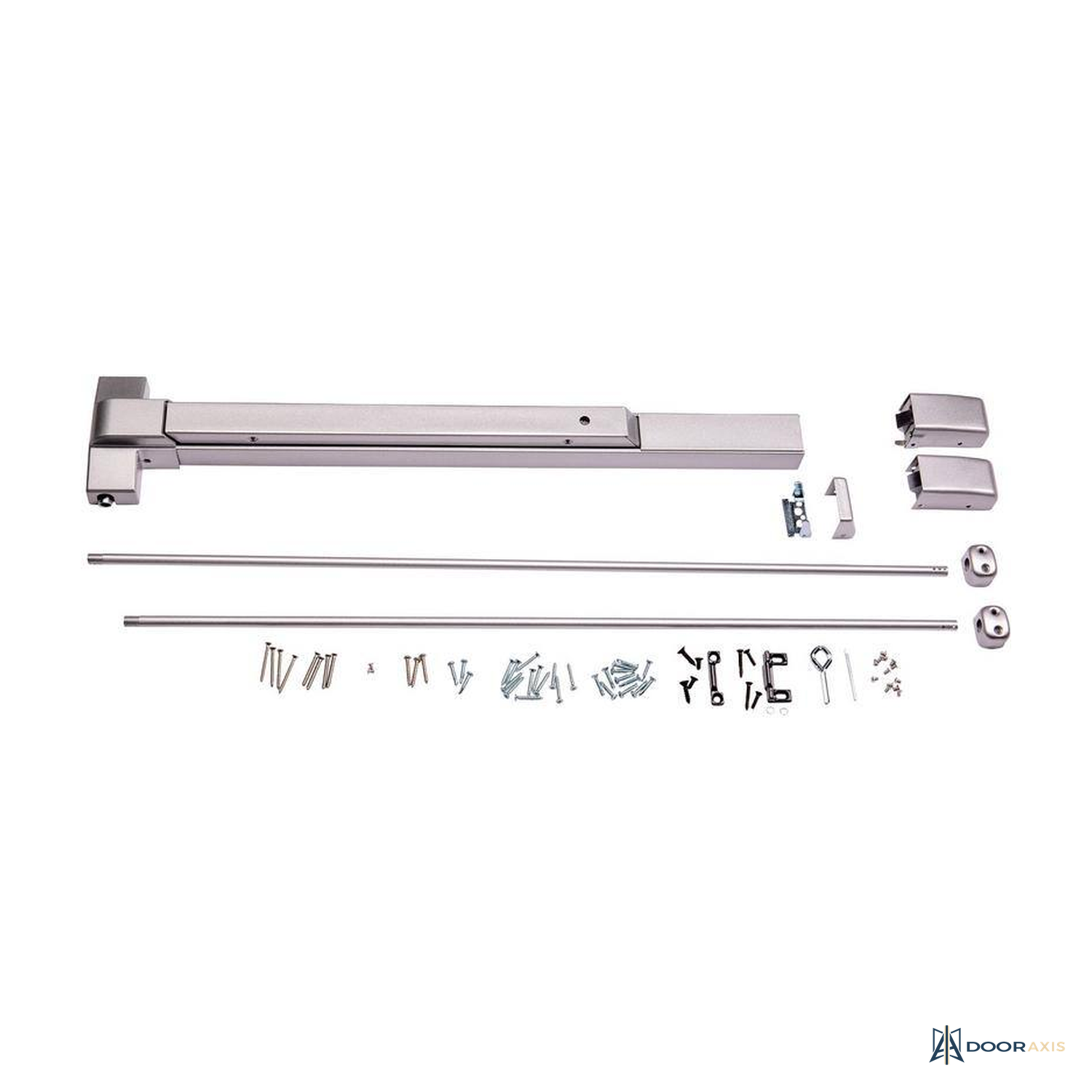

Included Components
- Exit device with push rail
- Vertical rods, top and bottom latch assemblies
- Surface strikes
- Sheet metal and machine screws
Installation Notes
- Set the push rail at the recommended 41 in centerline unless the schedule states otherwise.
- On stiles under 4-1/2 in, backset reduces to half the exposed stile width; verify before drilling.
- Use the double-door strike kit on pairs; it is quoted with the device.
- Egress hardware must remain operable at all times; dogging is for business hours only.
Warranty and Support
- 1 year mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
Single door or pairs?
Both. A single device secures one leaf top and bottom; pairs take one device per leaf with the double-door strike.
Is a fire-rated version available?
Fire-exit hardware variants of this series are quoted on request; this listing is the panic-rated device.
Documents
- Type Exit Device
- SKU DA-DR-HW-EXIT-VR
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
