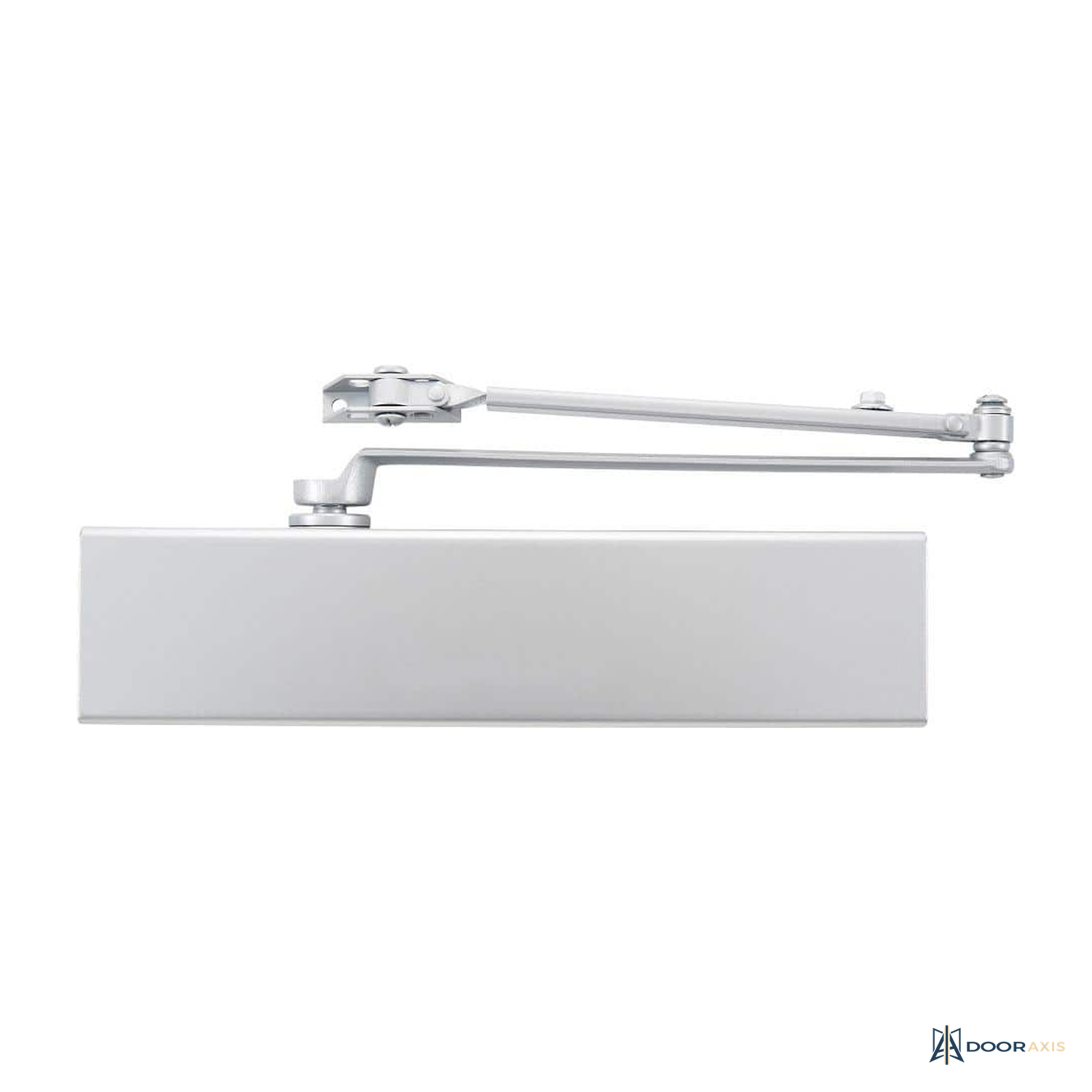

Door Axis Heavy Duty All-In-One Commercial Door Closer with Universal Plate
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

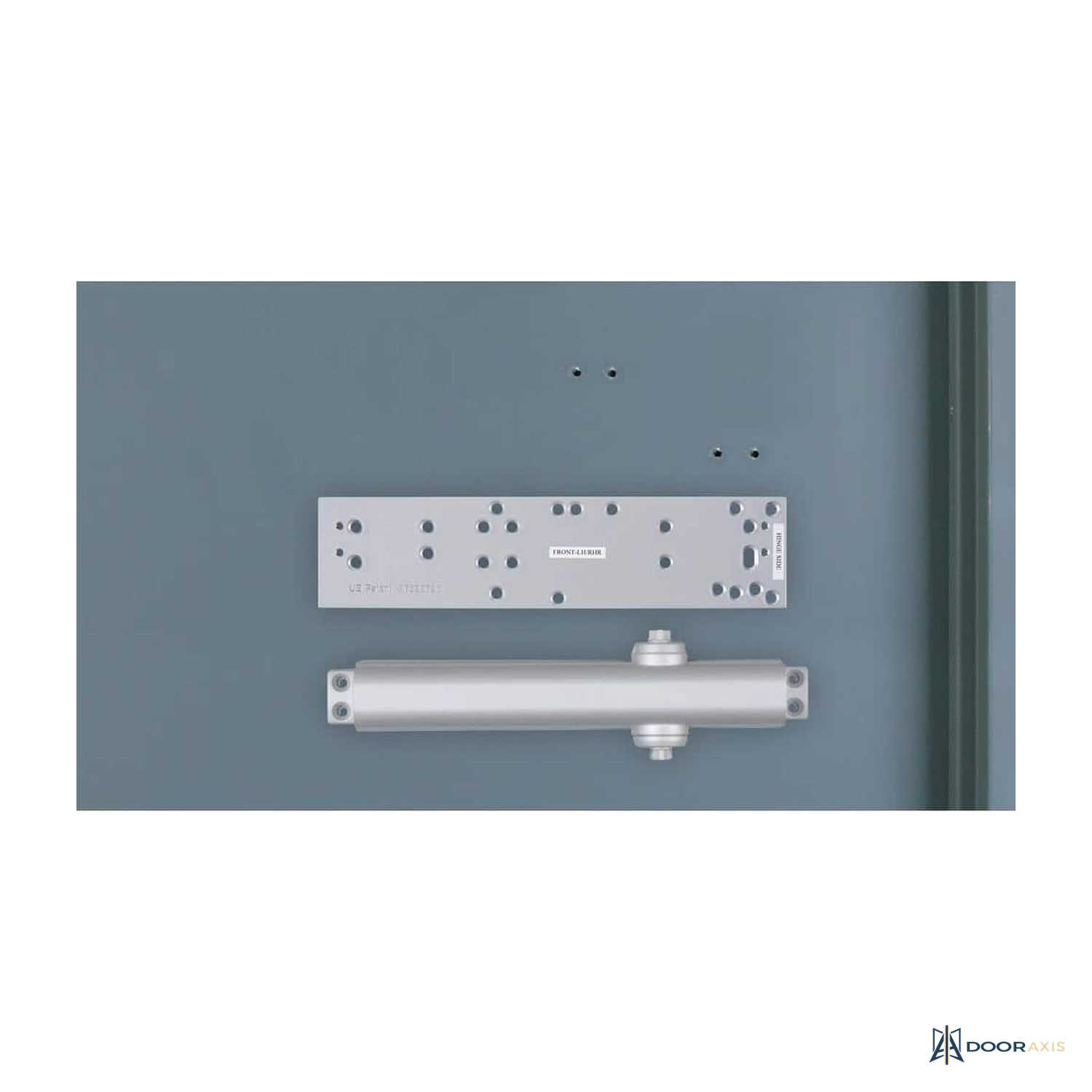

The Door Axis All-In-One Closer retrofits over the ghost holes of most departed closers: its pre-drilled universal steel plate matches common hole patterns, so replacement skips patch-and-drill. Heavy duty hydraulics run adjustable sizes 1 through 6.
Hydraulic sweep and latch speeds tune independently, and adjustable backcheck guards exterior doors against wind-throw. Capacity reaches 250 lb doors at widths to 60 in interior or 48 in exterior with a 180 degree swing. Published ANSI Grade 1 conformance, ADA compliance, and a UL 3-hour fire listing cover institutional schedules; the plate plus tri-mount hardware covers standard, top jamb, and parallel installs.
Highlights
- Universal pre-drilled plate covers common closer footprints
- Adjustable power sizes 1-6, doors to 250 lb
- Adjustable backcheck for wind exposure
- ANSI Grade 1 published conformance, ADA, UL 3-hour

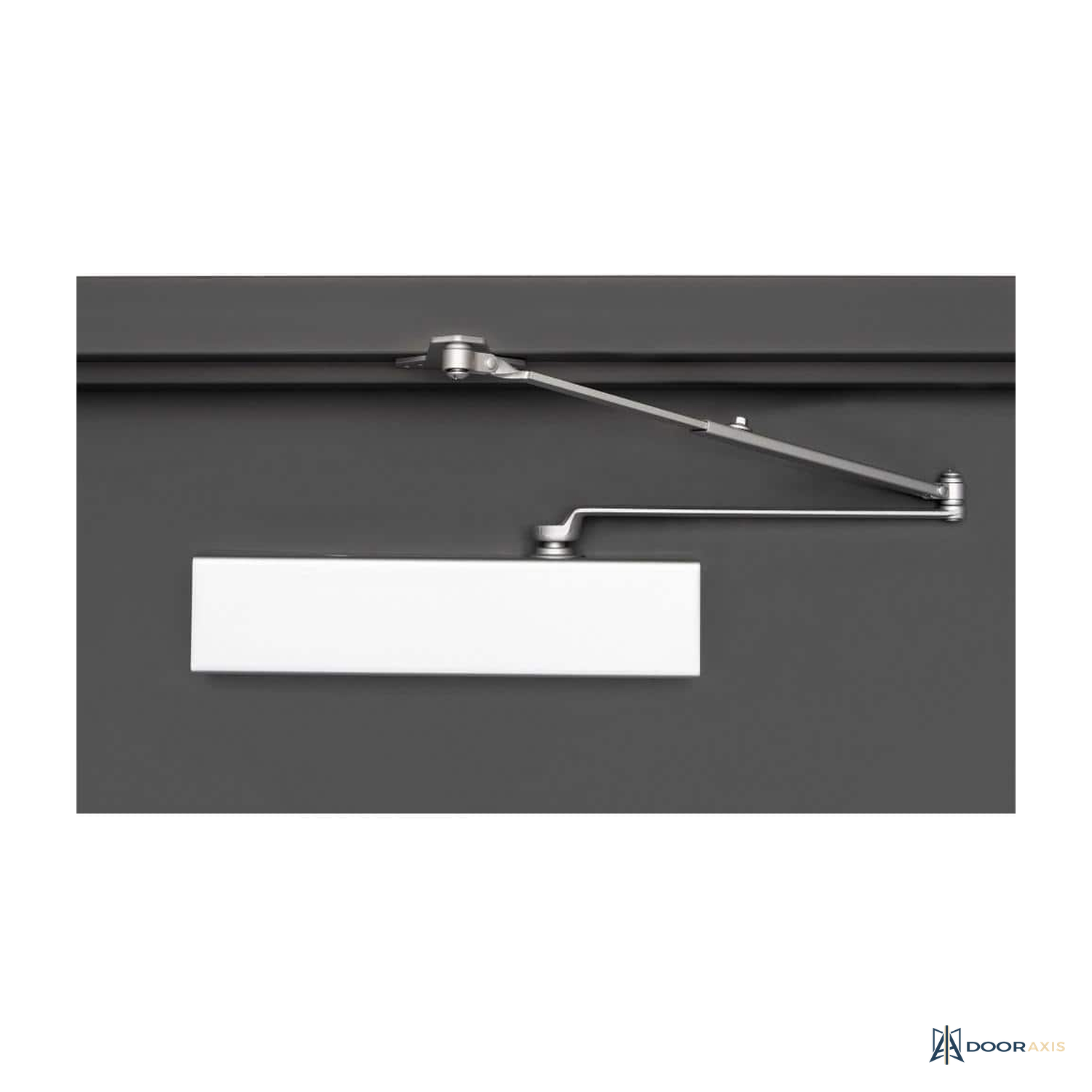

- Standard, top jamb, or parallel mounting
- 10 year limited warranty
Specification Table
| Function | Heavy duty hydraulic closer, retrofit plate |
| Power | Adjustable sizes 1-6 |
| Door capacity | 250 lb; 60 in interior, 48 in exterior |
| Backcheck | Adjustable |
| Opening | 180 degree |
| Listings | ANSI Grade 1, ADA, UL 3-hour (published) |
| Plate | Pre-drilled universal steel |
| Warranty | 10 year limited |
Included Components
- Hydraulic closer body
- Universal mounting plate
- Tri-mount arm hardware
- Fasteners
Installation Notes
- Align the universal plate over existing holes before drilling any new ones.
- Set power to the door, then sweep, then latch, then backcheck, in that order.
- On exterior doors, bias backcheck up before wind season.
Warranty and Support
- 10 year limited coverage on finish and function, confirmed during quote review.
Frequently Asked Questions
Will the plate really cover my old closer's holes?
The plate is pre-drilled for the most common commercial patterns. Send a photo of the existing footprint with your quote request and we confirm coverage before release.
Documents
- Type Door Closer
- SKU DA-DR-HW-CLS-AIO
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
