Door Axis

Door Axis Heavy Duty Pneumatic Screen and Storm Door Closer with Hold Button, Black

SKU: DA-DR-HW-CLS-PNEU

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

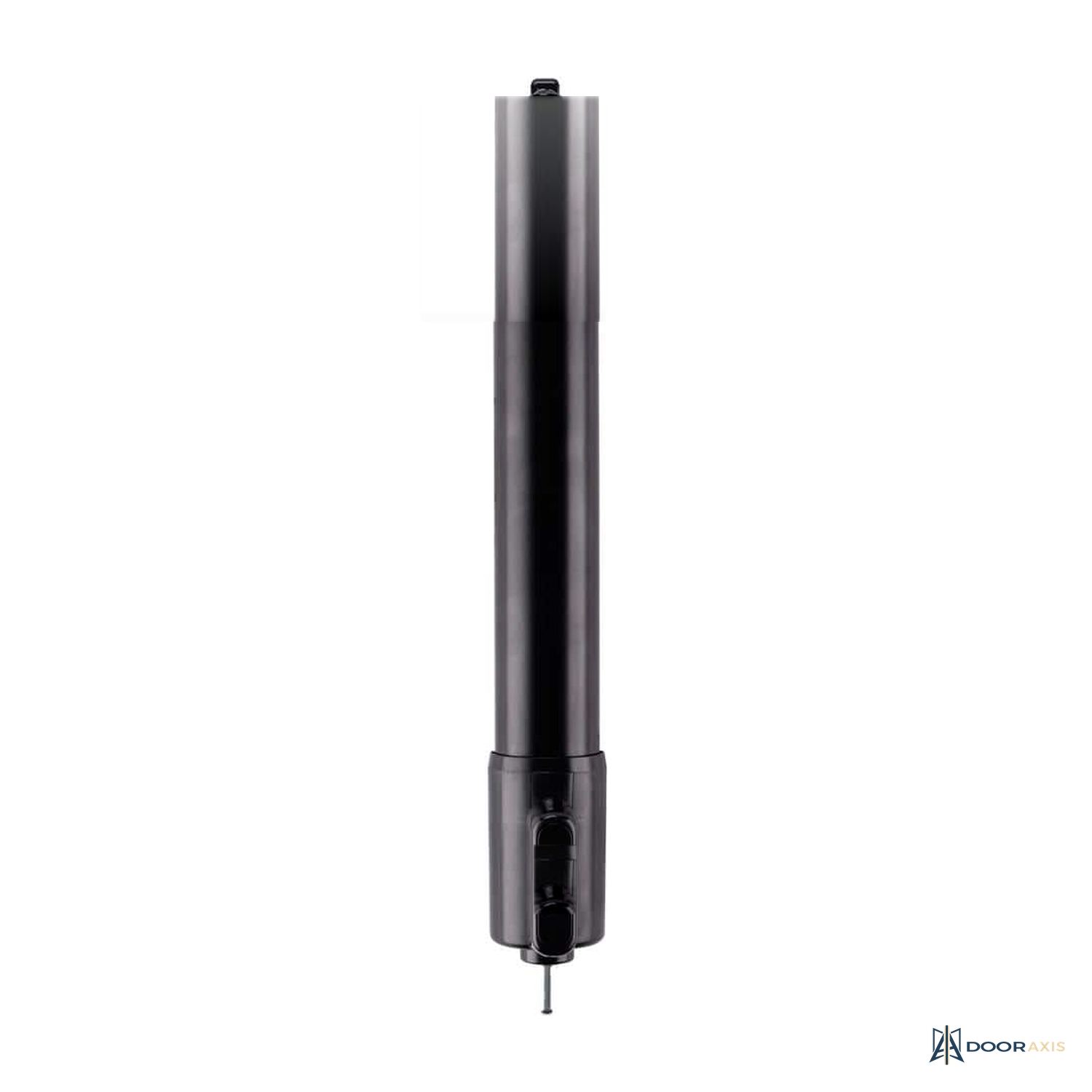

The Door Axis Pneumatic Closer pulls out-swinging screen and storm doors closed on an air-cushioned stroke, with a tap-button hold for carrying groceries through. Sized for medium to heavy storm doors.

Air inside the 1-1/2 in tube cushions the closing force so the door never slams, protecting the door, frame, and the closer itself. Closing speed and force adjust with an end screw, the spring is fully lubricated, and the seasonal latching adjustment switches cleanly between glass and screen inserts. The hold-open button parks the door with a tap.

Highlights

  • Air-cushioned closing, no slam
  • Push-button hold open
  • Adjustable speed and force
  • Seasonal glass-to-screen latching adjustment
  • Full 90 degree opening
  • Lifetime warranty

Specification Table

Function Pneumatic screen and storm door closer
Tube 12-5/8 in long, 1-1/2 in diameter
Hold open Push button
Adjustment Speed and force, end screw
Opening 90 degree

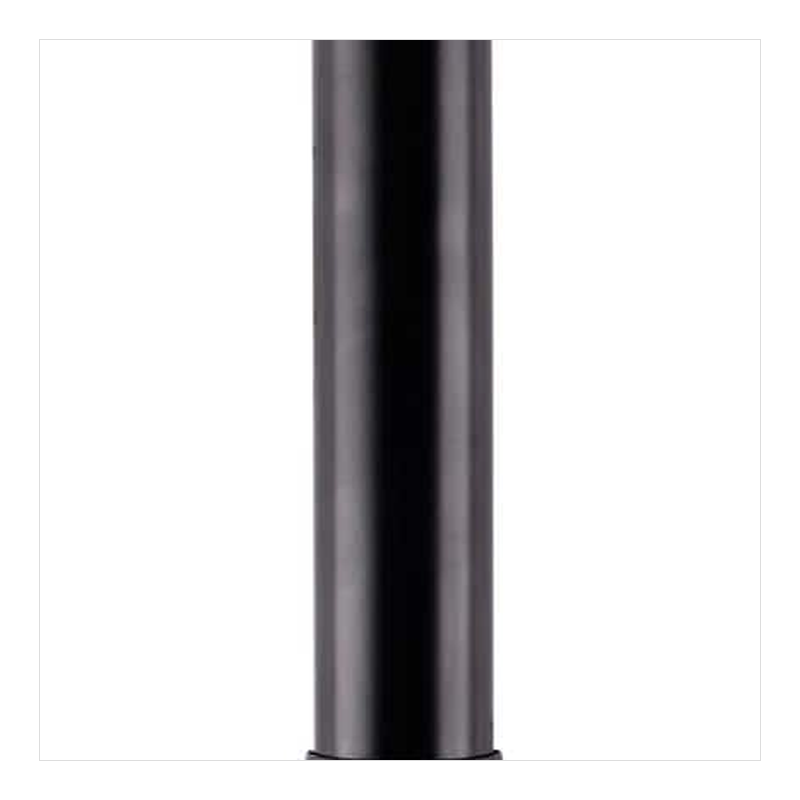

Finish Black
Warranty Lifetime

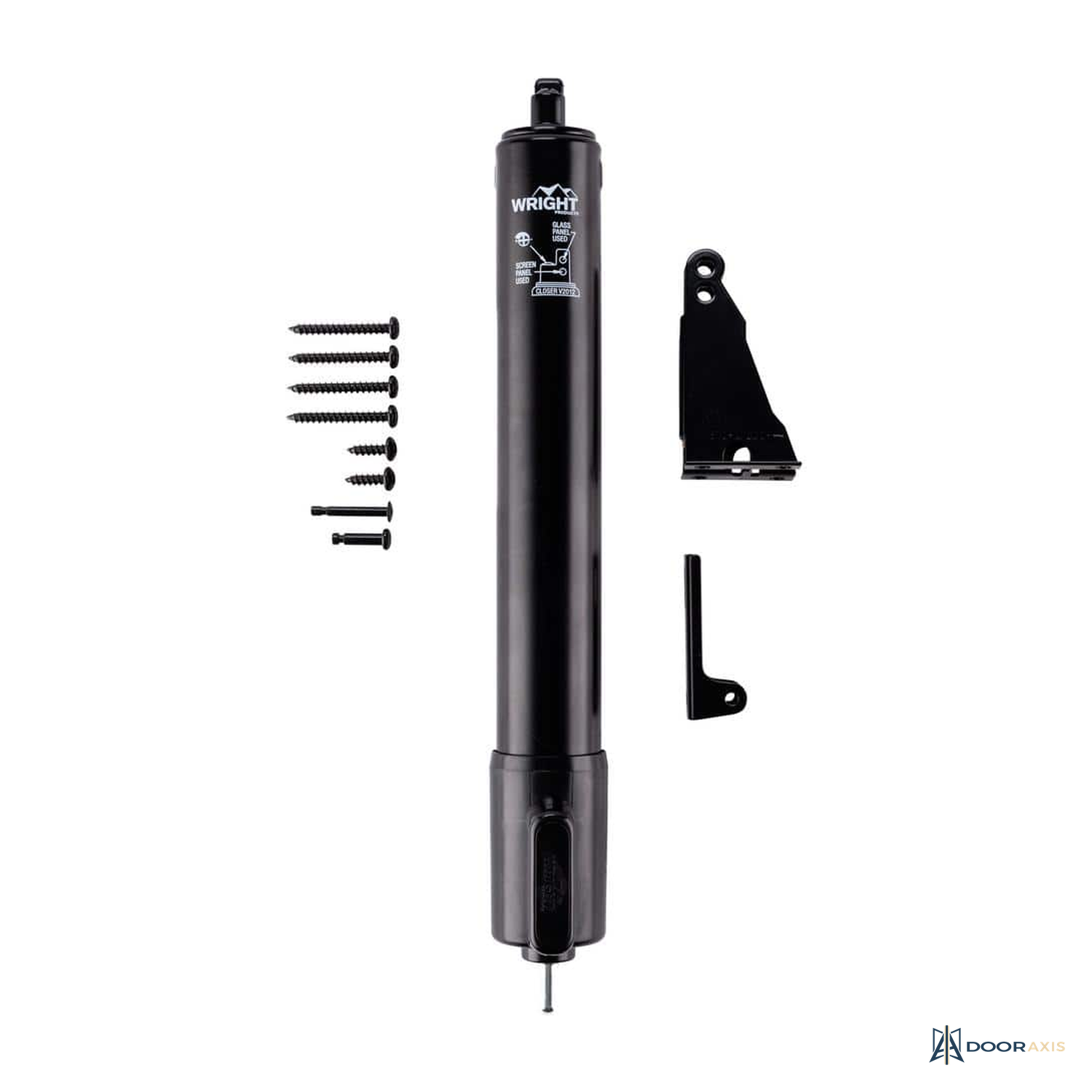

Included Components

  • Pneumatic closer tube
  • Door and jamb brackets
  • All mounting hardware

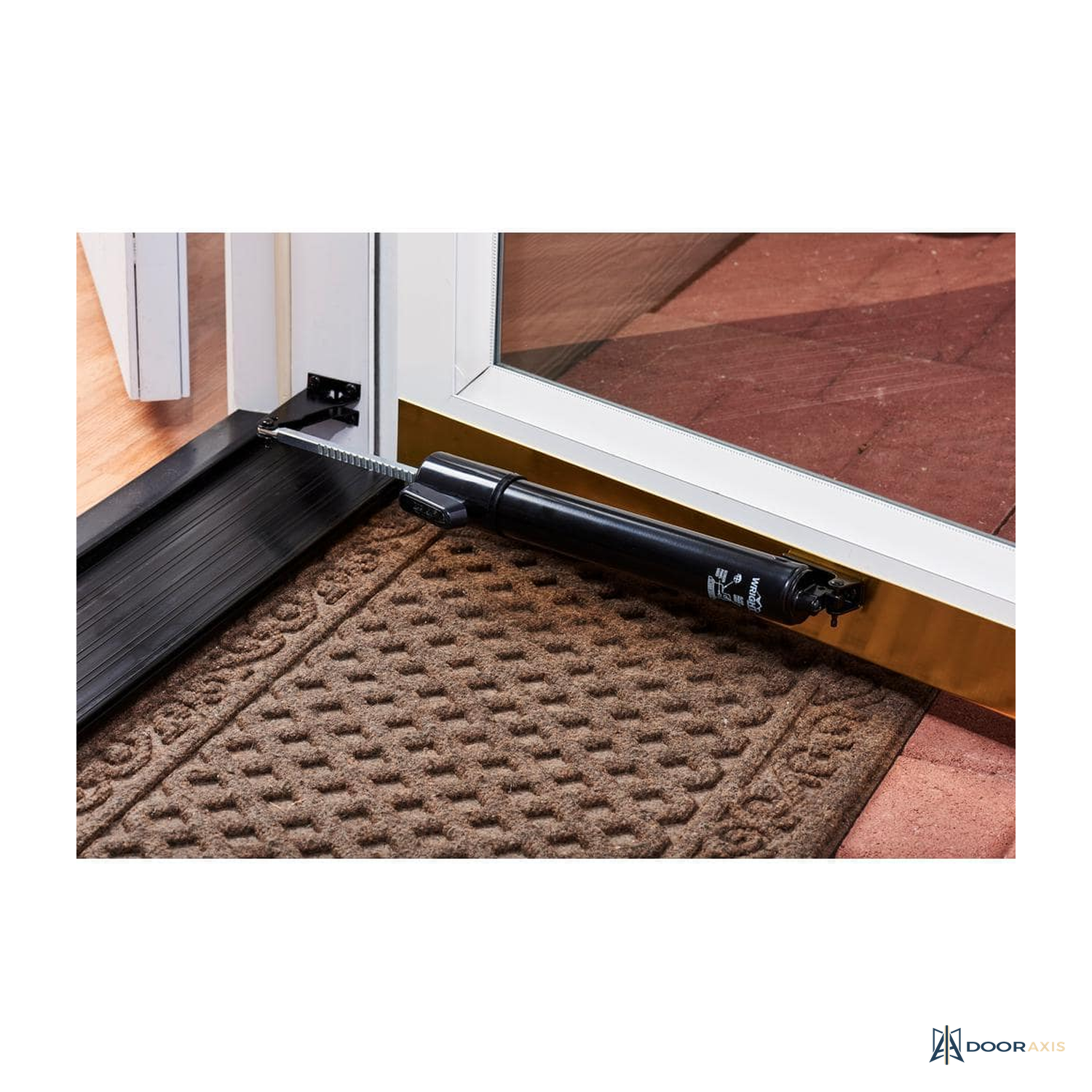

Installation Notes

  • Mount level on the out-swing face; the tube must stroke straight.
  • Adjust force so the door latches in calm air; retune for storm season.
  • Heavy full-view glass doors may take a second closer top and bottom, quoted on request.

Warranty and Support

  • Lifetime coverage, confirmed during quote review.

Frequently Asked Questions

Does it fit my existing storm door bracket?
Standard brackets and all hardware are included; unusual jamb depths are handled during quote review.

White instead of black?
The product line runs white as well; quoted on request.
