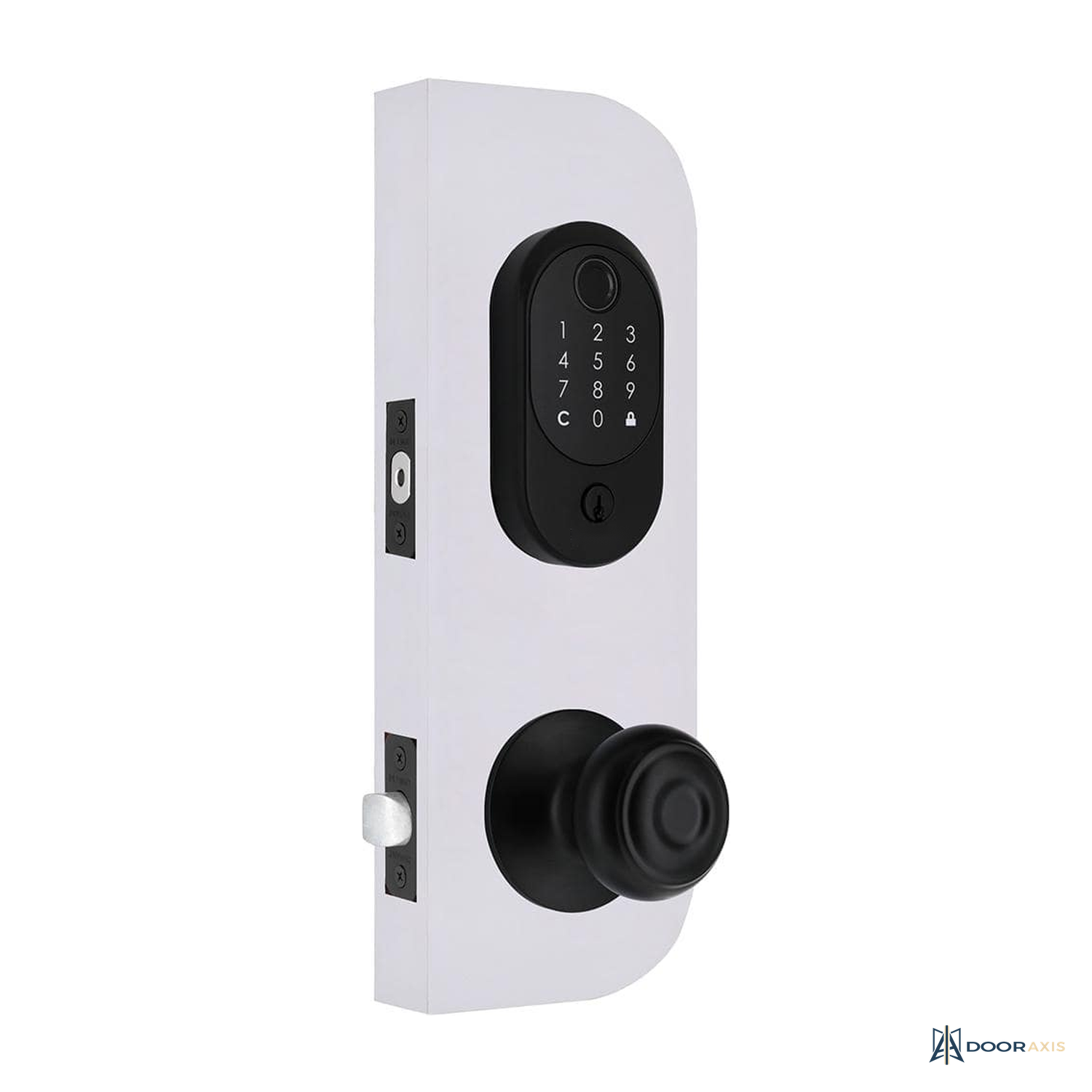

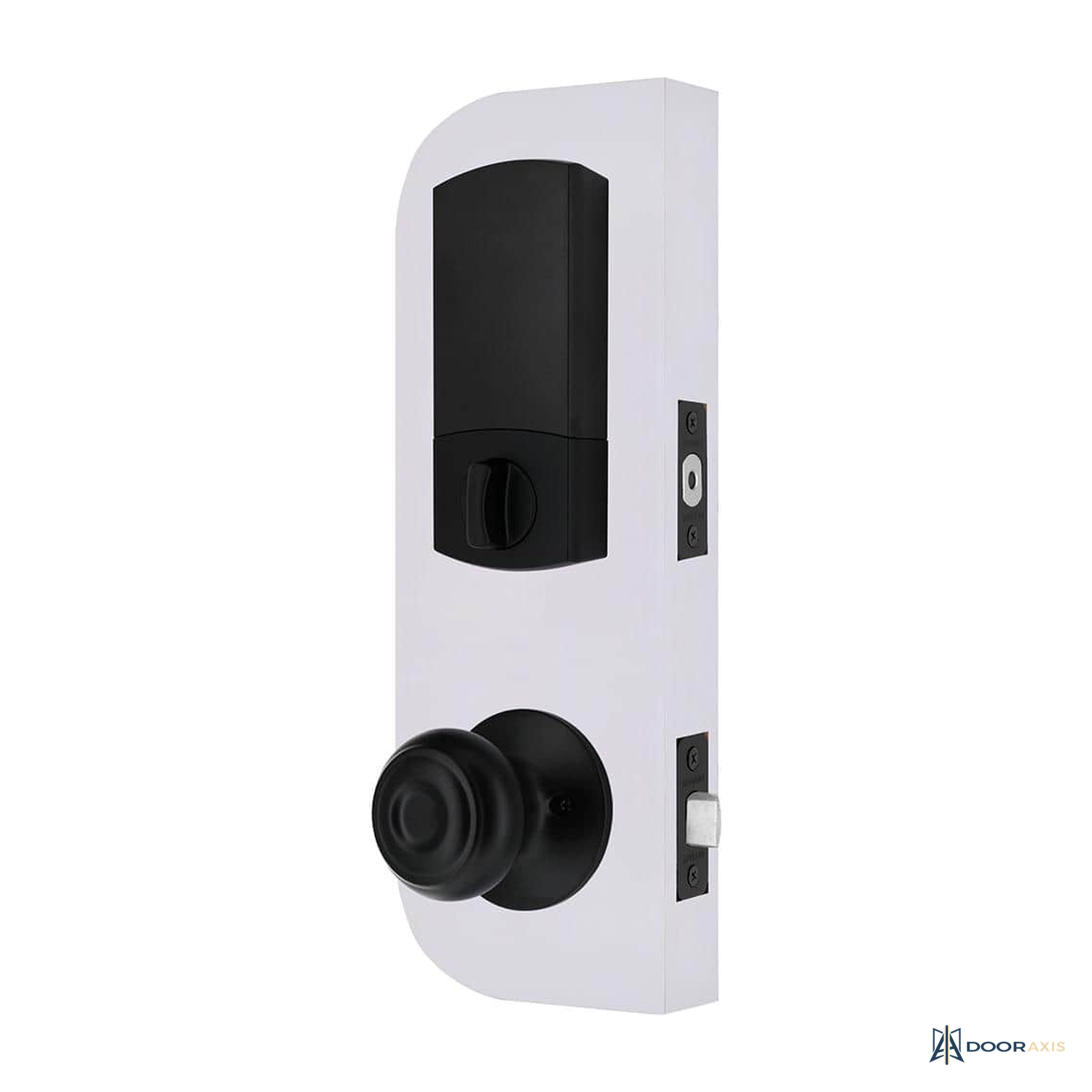

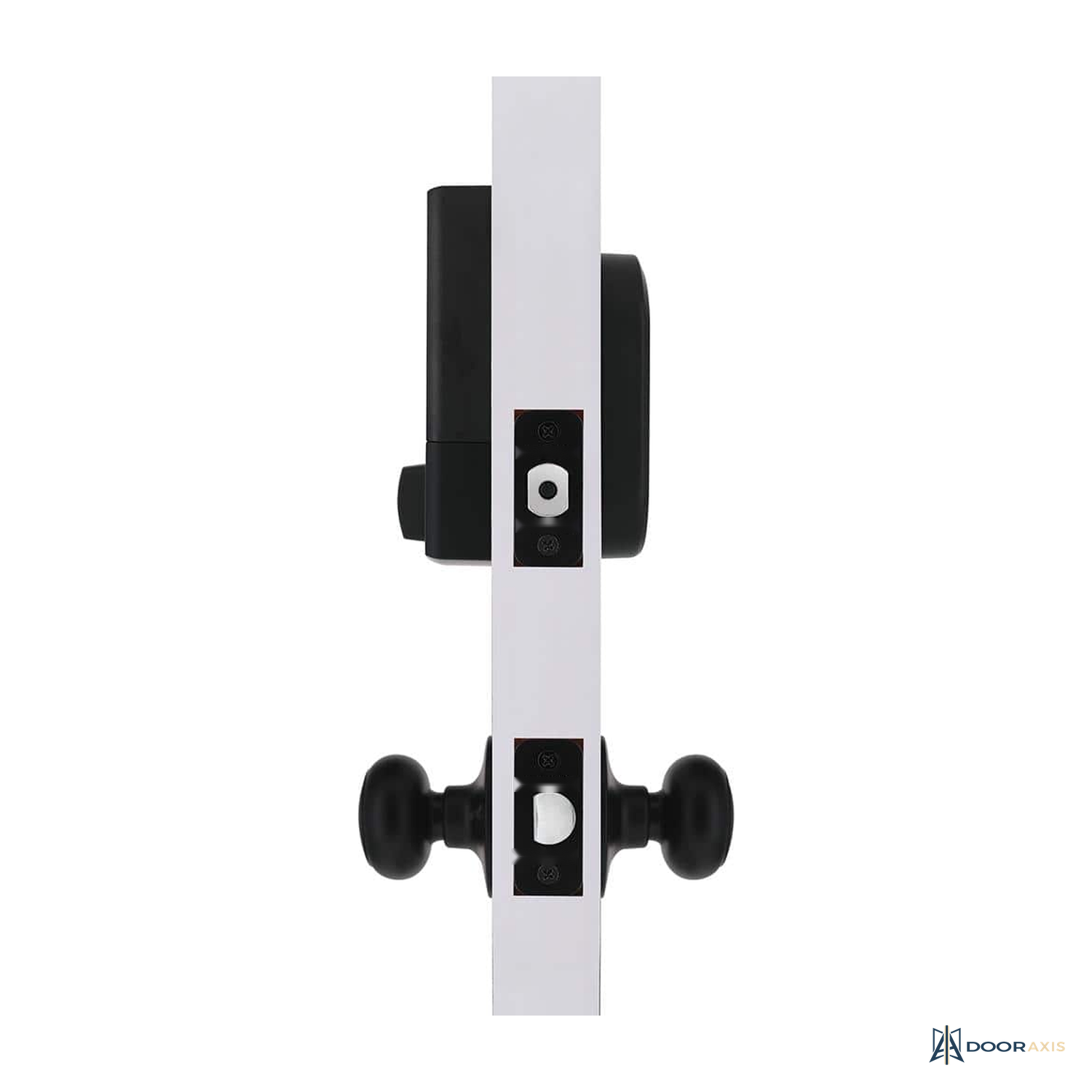

Door Axis Matte Black App-Controlled Fingerprint Deadbolt with Matching Knob
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Fingerprint Deadbolt Combo pairs an app-controlled biometric deadbolt with a matching matte black passage knob for residential entry doors. It serves households and small rentals that want keyless entry with a mechanical key fallback.
The reader stores up to 10 fingerprints, and the backlit keypad runs 1 master code plus 10 user codes, including one-time codes for guests. Programming, event logs, and access history run through the companion mobile app over Bluetooth and Wi-Fi with no hub required. Auto-locking, a vacation mode that suspends user codes, and a low battery indicator round out the electronics, and two backup keys cover power loss through the rekeyable cylinder. Rated ANSI Grade 3 (Good); the latch adjusts between 2-3/8 in and 2-3/4 in backsets. Not suited to openings where both faces are exposed to weather.
Highlights
- Fingerprint reader stores up to 10 prints
- Backlit keypad: 1 master, 10 user, and one-time codes
- App programming with event logs, Bluetooth and Wi-Fi, no hub
- Auto-locking and vacation mode
- 2 backup keys with rekeyable cylinder
- ANSI Grade 3 (Good) rated
- Matching matte black passage knob included
- Batteries included
Specification Table
| Function | Electronic fingerprint deadbolt plus passage knob |
| Security rating | ANSI Grade 3 (Good) |
| Access | Fingerprint, keypad, app, backup key |
| Fingerprints | Up to 10 |
| Codes | 1 master, 10 user, one-time capable |
| Connectivity | Bluetooth and Wi-Fi, no hub |
| Backset | Adjustable 2-3/8 or 2-3/4 in |
| Door thickness | 1-3/8 to 1-3/4 in |
| Power | Battery, included, low battery alert |
| Finish | Matte Black |
| Warranty | 1-year electronics coverage |
Included Components
- Electronic fingerprint deadbolt
- Matching matte black passage knob
- Batteries and 2 backup keys
- Strikes, mounting hardware, and drilling template
- Installation instructions
Installation Notes
- Fits standard two-bore preparations; the latch adjusts to either standard backset with a twist.
- Enroll fingerprints and codes through the companion app after mounting.
- Do not install where both door faces are exposed to the elements; the electronics need a sheltered exterior face.
- Test the backup keys before putting the door into service.
Warranty and Support
- One-year electronics coverage, confirmed during quote review.
Frequently Asked Questions
Does it need a smart home hub?
No. The lock connects directly over Bluetooth and Wi-Fi, and all programming runs through the companion mobile app.
What happens when the batteries die?
A low battery indicator warns well in advance, and two mechanical backup keys operate the deadbolt regardless of power.
Can I give a visitor temporary access?
Yes. One-time user codes can be issued from the app, and vacation mode suspends all user codes without deleting them.
Documents
- Type Door Knob
- SKU DA-DR-HW-KNB-SMRT
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
