Door Axis Matte Black Exterior Grip Door Handleset
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

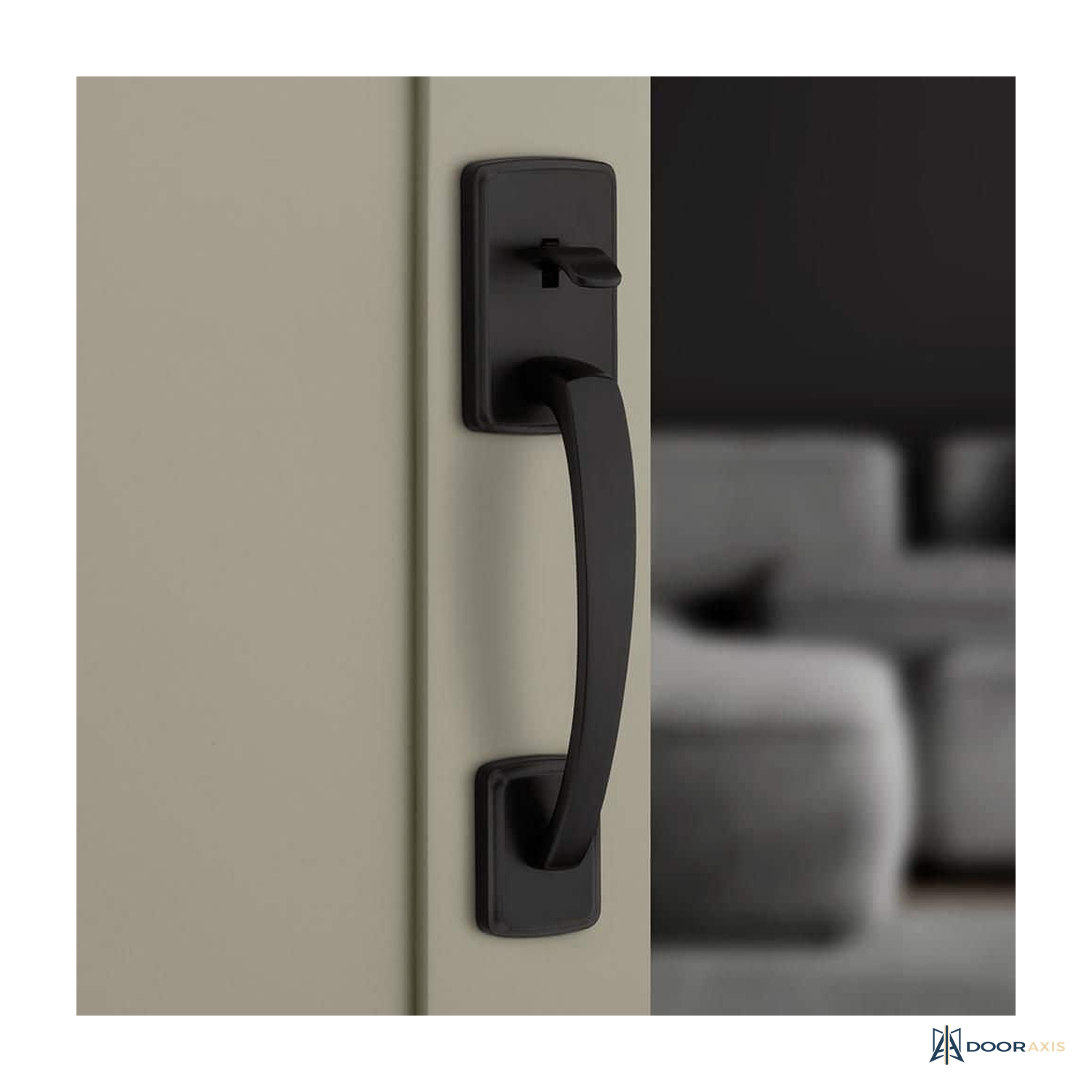

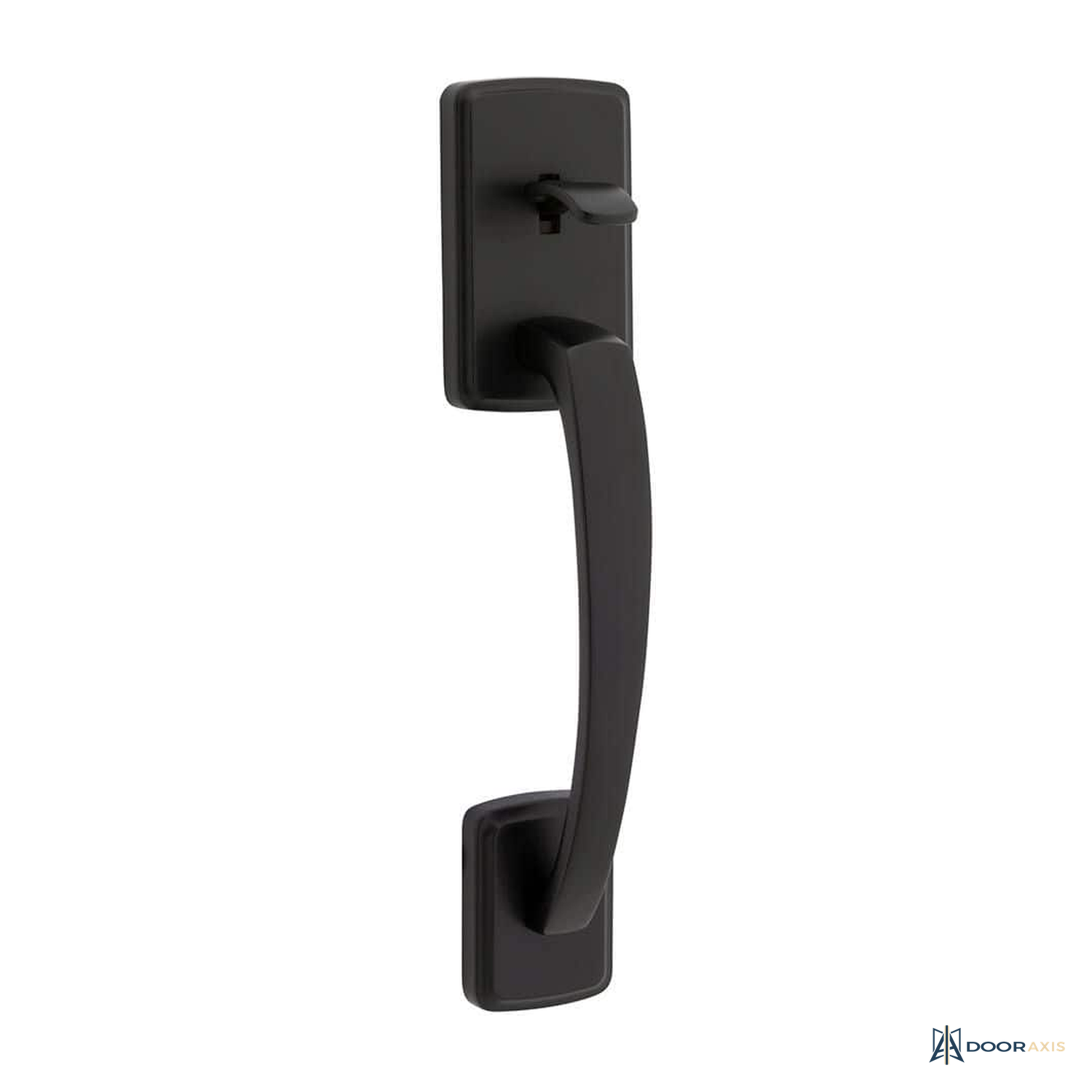

The Door Axis Exterior Grip Handleset is the outside half of a modern entry set: an arched matte black grip with thumbpiece, latch, and strike. It serves entries that pair a new exterior grip with existing or separately quoted interior trim and deadbolt.
The transitional straight-post grip mounts to the exterior face and retracts the included round-front latch from its thumbpiece. The latch backset slides between 2-3/8 in and 2-3/4 in by moving the adjustment pin during installation, and the set fits standard 1-3/4 in doors with universal handing. There is no keyway on the grip; keyed security comes from the deadbolt above, and a matching interior handle completes the trim, both quoted on request. Antimicrobial finish protection is available on select finishes as published by the product line.
Highlights
- Exterior grip half of a two-sided entry set
- Adjustable 2-3/8 or 2-3/4 in backset by sliding pin
- Round-front latch and round corner strike included
- Fits standard 1-3/4 in doors
- Universal handing, screwdriver installation
- Matte black transitional styling
- Lifetime mechanical and finish coverage
Specification Table
| Function | Exterior grip handleset, exterior side only |
| Grip | Arched with thumbpiece |
| Backset | Adjustable 2-3/8 or 2-3/4 in |
| Latch | Round front, round corner strike |
| Door thickness | 1-3/4 in standard |
| Handing | Universal |
| Keyway | None; deadbolt quoted separately |
| Finish | Matte Black |
| Included tools | Allen wrench in the box |

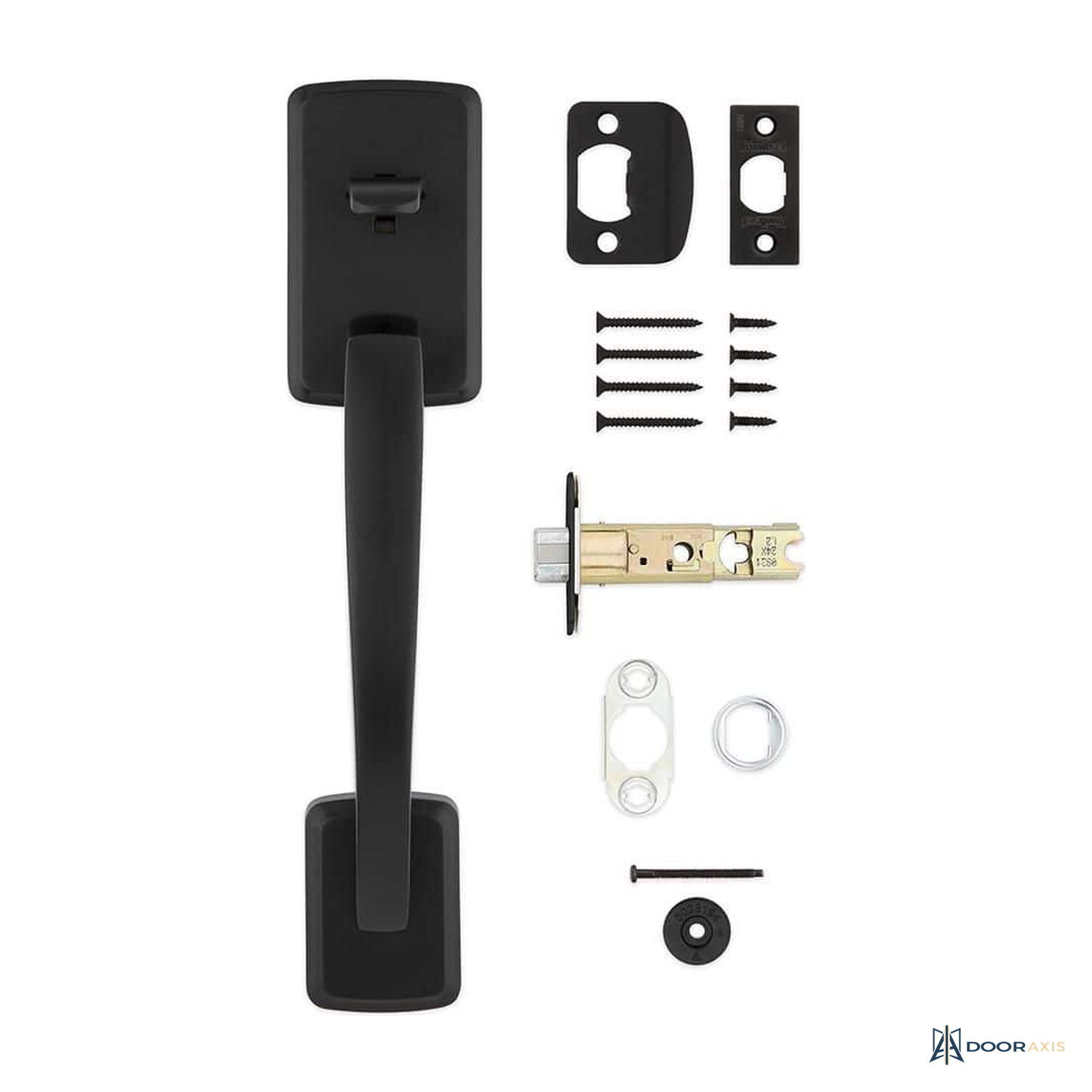

Included Components
- Exterior grip handleset with thumbpiece
- Adjustable latch with round front
- Round corner strike and installation hardware
- Allen wrench and detailed instructions
Installation Notes
- This is the exterior side only; plan the interior handle and deadbolt on the same quote.
- Slide the latch adjustment pin to match the door backset before mounting.
- Verify the door is standard 1-3/4 in thick; thinner slabs are reviewed at quote.
- Snug the grip posts with the included allen wrench after the latch is seated.
Warranty and Support
- Limited lifetime mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
Is the interior handle included?
No. This is the exterior grip half; a matching interior handle and turn piece are quoted on request.
Does the grip lock?
No keyway is fitted. Keyed security comes from the deadbolt above the grip, quoted separately or from this catalog.
Is a nickel finish available?
The product line also runs satin nickel; it is quoted on request while matte black ships as standard.
Documents
- Type Handleset
- SKU DA-DR-HW-HSET-EXT
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
