Door Axis Matte Black Single Cylinder Deadbolt and Keyed Entry Lever Combo
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

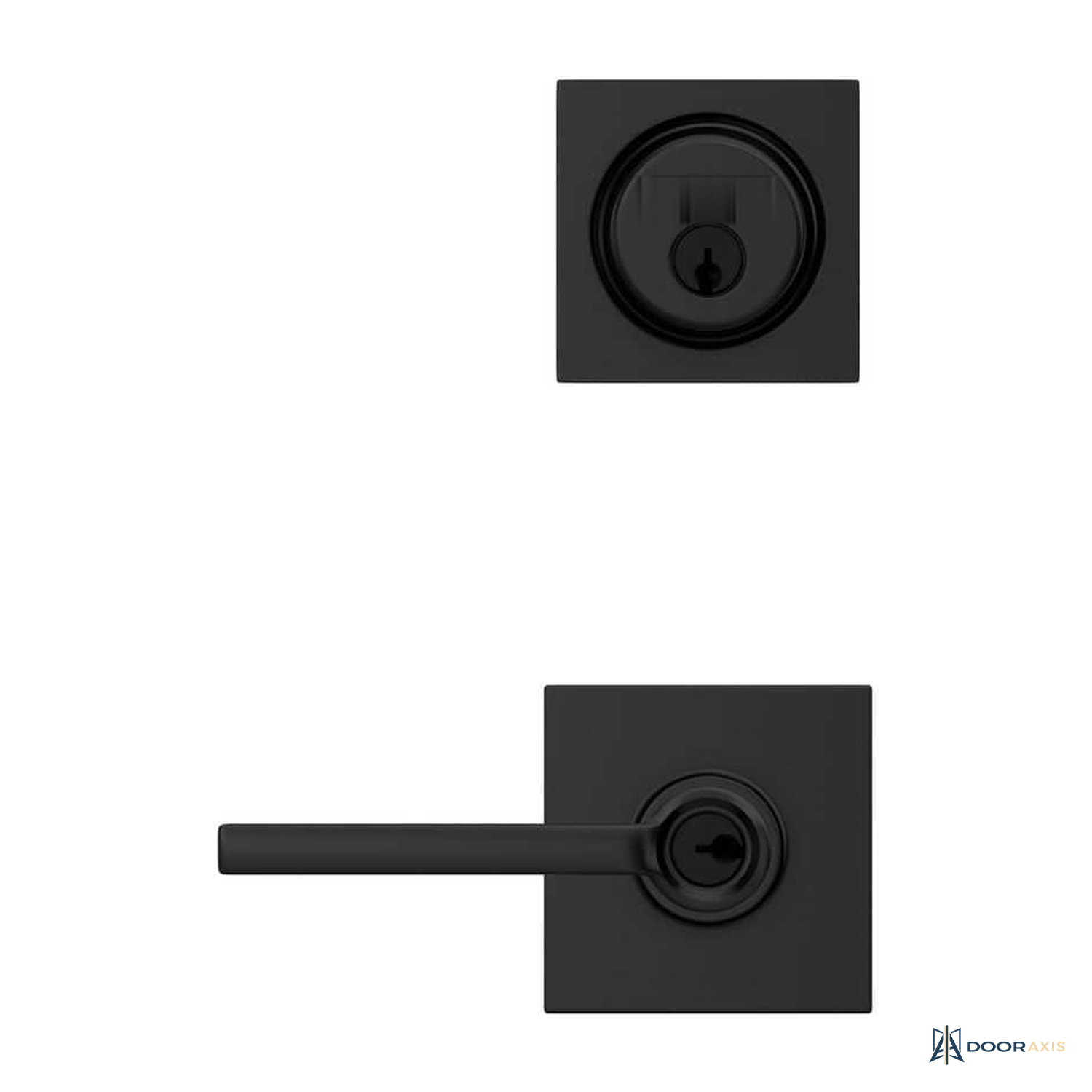

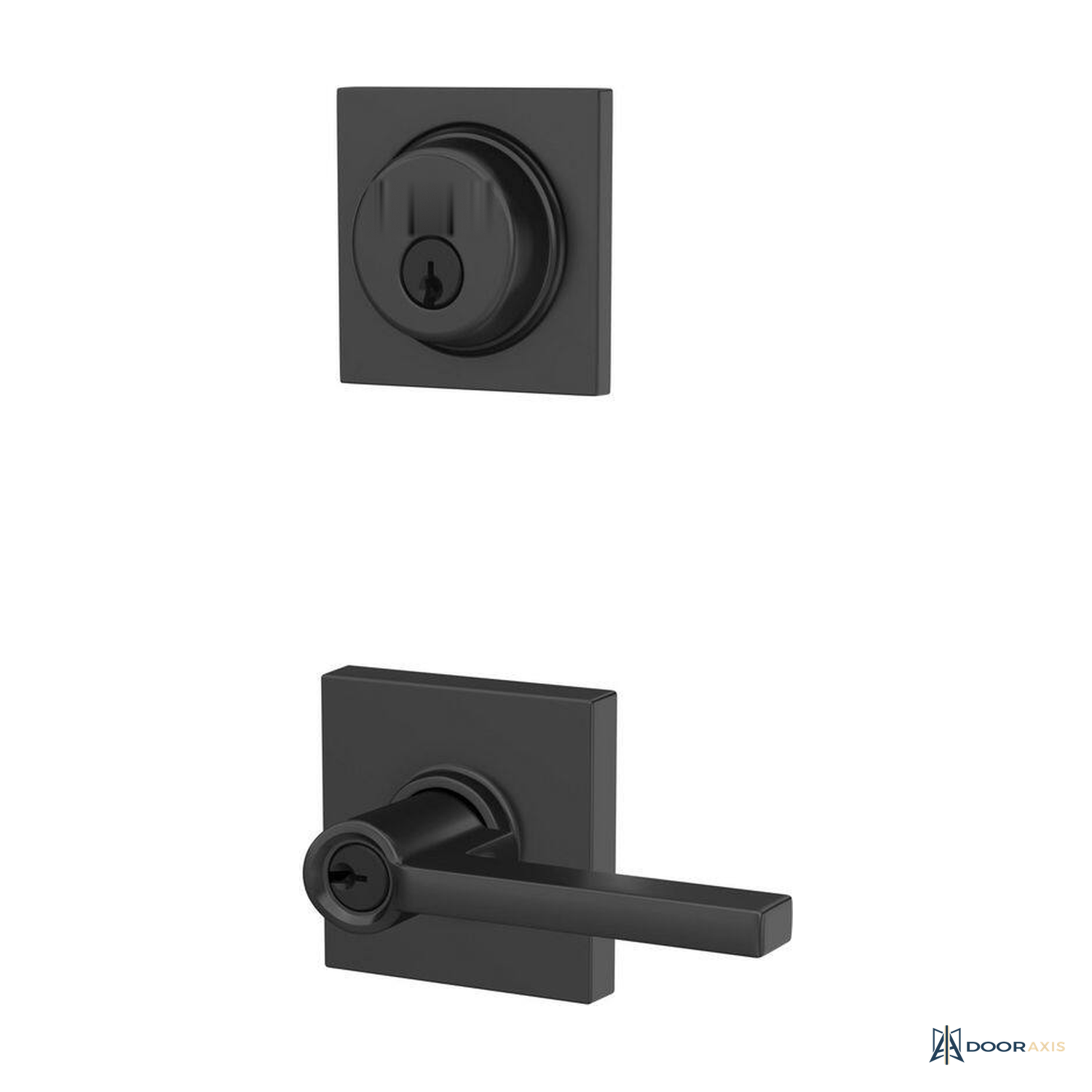

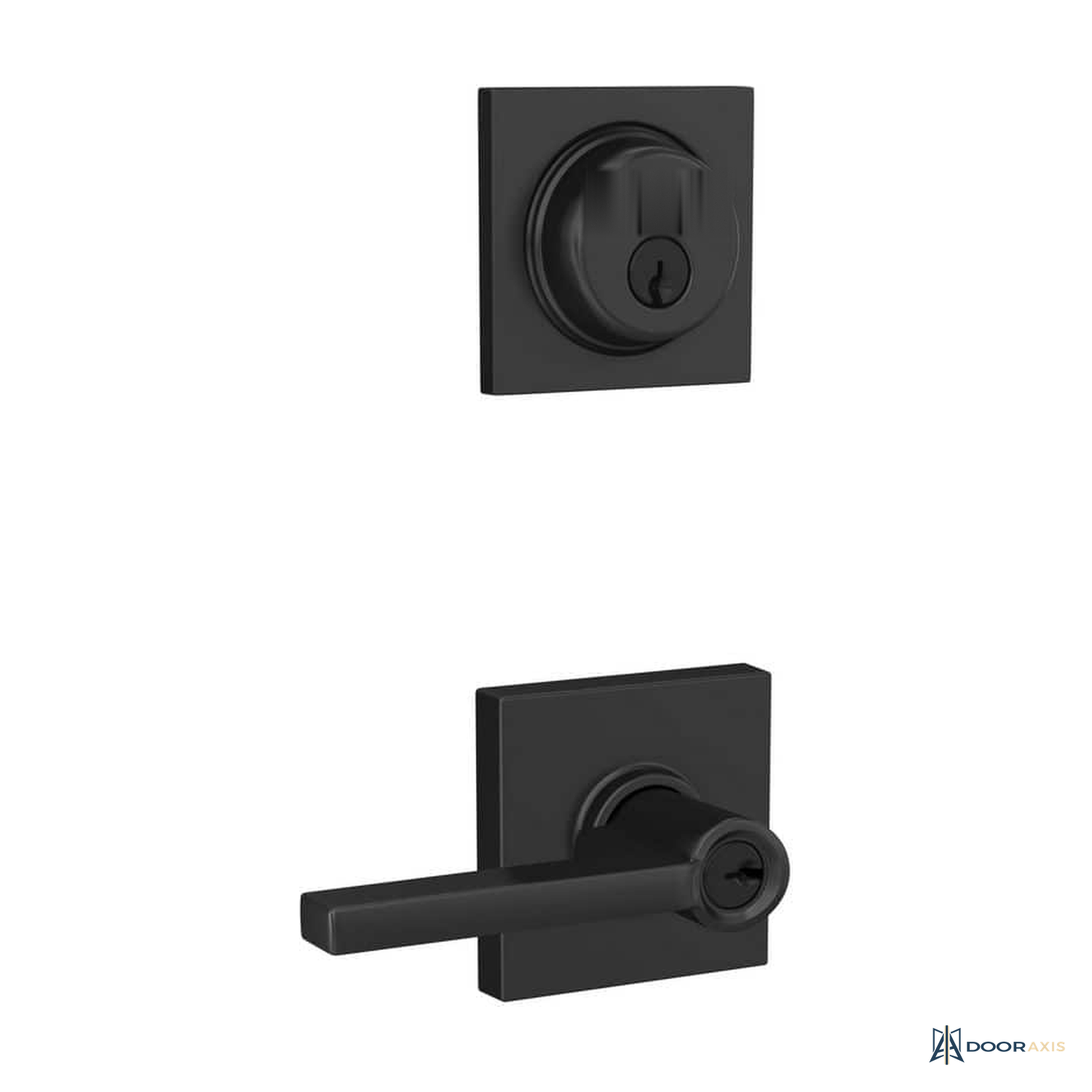

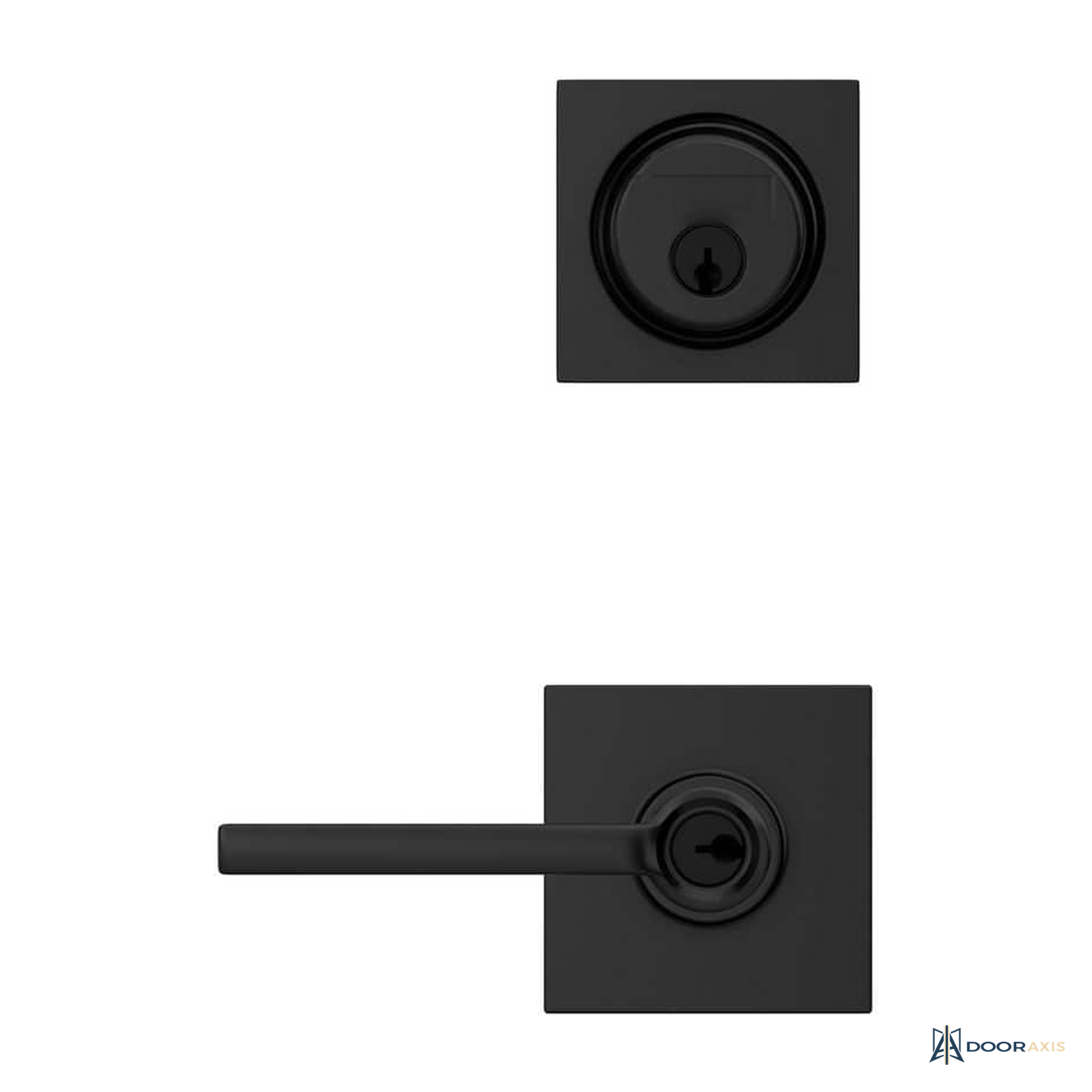

The Door Axis Deadbolt and Entry Lever Combo outfits a two-bore entry door with a matched matte black contemporary set in one pack. It serves front doors where top-tier certified security and a straight-lever look are both on the spec.
The deadbolt is certified ANSI Grade 1 (Best) and backs its 1 in bolt with a hardened steel spinning pin, anti-drill plates, and anti-pick pins against prying, drilling, and bumping. The keyed lever below unlocks from inside by turning the handle, so exits stay fast while re-entry stays keyed. Universal latches slide between 2-3/8 in and 2-3/4 in backsets, self-aligning screw holes speed the install, and both pieces fit doors 1-3/8 in to 1-3/4 in thick.
Highlights
- ANSI Grade 1 (Best) certified deadbolt
- Hardened steel spinning pin, anti-drill plates, anti-pick pins
- Matched keyed entry lever, contemporary straight style
- Interior lever unlocks by turn for fast egress
- Adjustable 2-3/8 or 2-3/4 in backsets, no tools
- Universal handing, screwdriver installation
- 2 keys included
Specification Table
| Function | Single cylinder deadbolt plus keyed entry lever |
| Security rating | ANSI Grade 1 (Best) |
| Bolt throw | 1 in |
| Security features | Hardened steel pin, anti-drill, anti-pick |
| Backset | Adjustable 2-3/8 or 2-3/4 in |
| Door thickness | 1-3/8 to 1-3/4 in |
| Handing | Universal |
| Finish | Matte Black |
| Keys | 2 included |
| Pack | 1 deadbolt, 1 lever, strikes and hardware |
Included Components
- One matte black Grade 1 single cylinder deadbolt
- One matte black keyed entry lever
- Latches, strikes, and mounting hardware
- Installation instructions
- 2 keys
Installation Notes
- Requires a two-bore entry prep on standard centers; both latches adjust to the door backset.
- Drive strike screws into framing to realize the Grade 1 rating.
- The lever is reversible; confirm swing direction and mount the interior turn on the room side.
- Check that the lever rotates freely after through-bolting; overtightening binds the spring cage.
Warranty and Support
- Limited lifetime mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
Do the deadbolt and lever share the same keys?
Yes, both operate from the included pair of keys as shipped. Larger keying schedules are consolidated during quote review.
Is the lever also Grade 1?
The Grade 1 certification is stated for the set by the product line; component-level ratings are confirmed during quote review.
Documents
- Type Deadbolt
- SKU DA-DR-HW-DBL-CMBL
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
