Door Axis Mobile Home Deadbolt Latch Conversion Kit
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

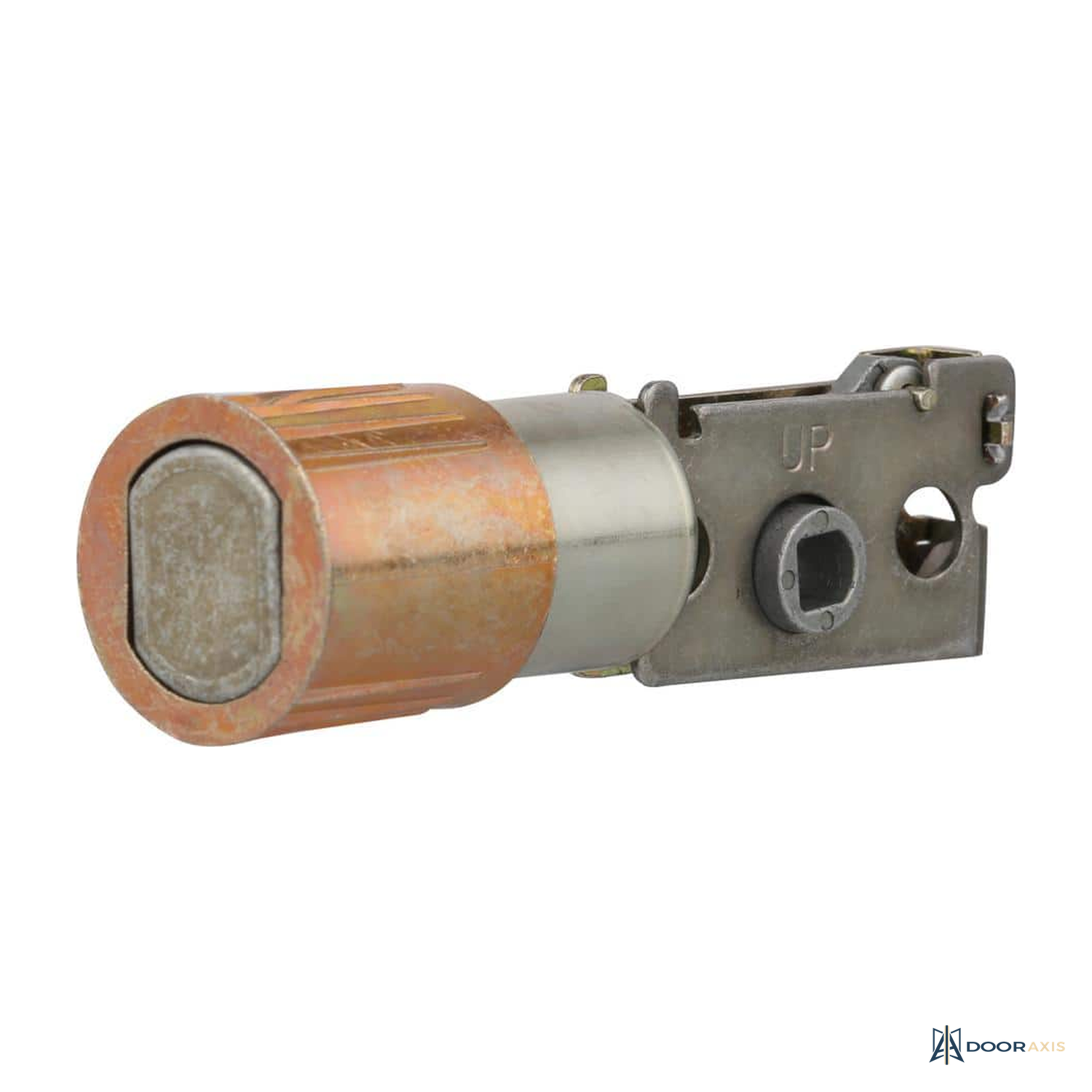

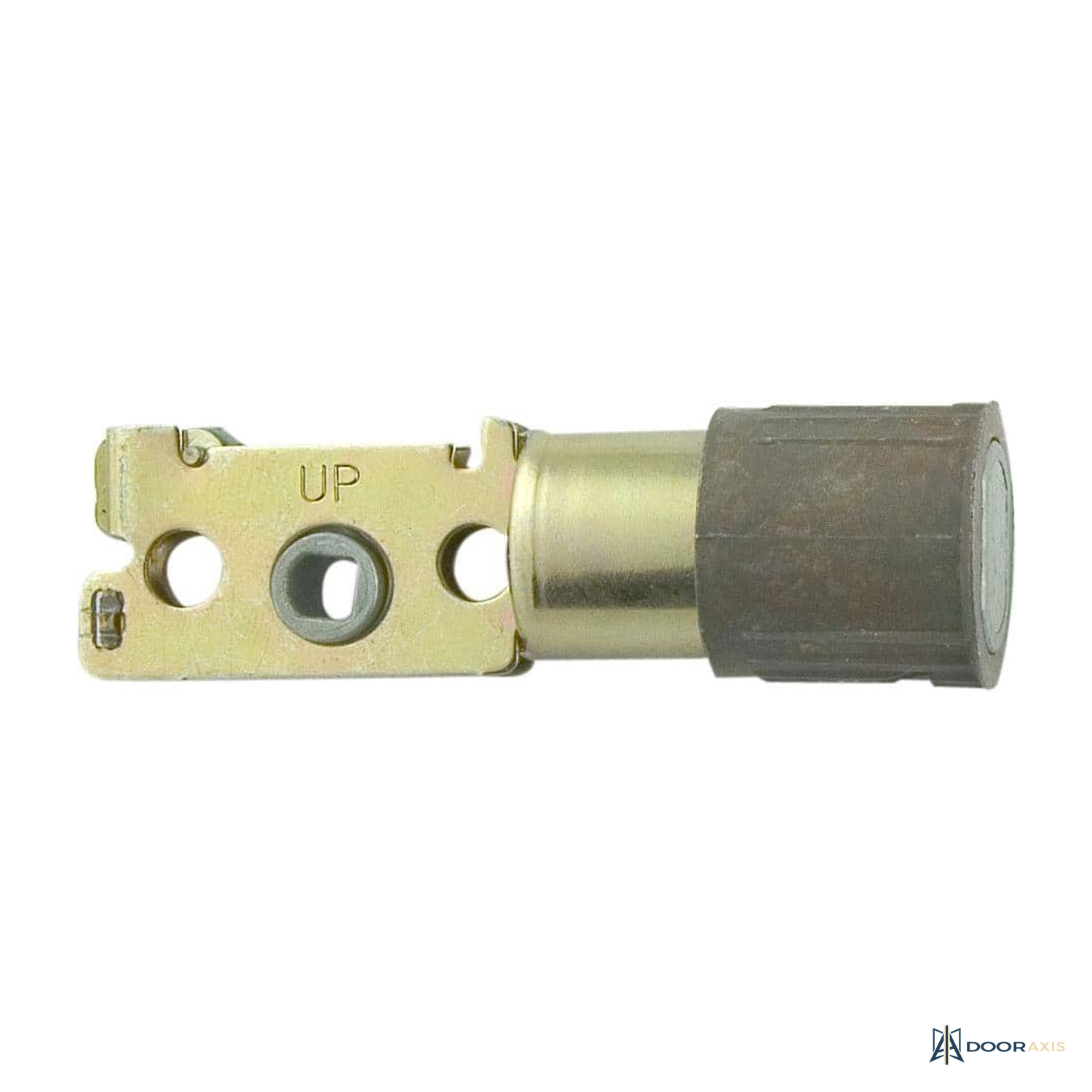

The Door Axis Mobile Home Deadbolt Conversion Kit adapts a standard deadbolt to the shallower door preparations used in mobile and manufactured home doors. It serves installers retrofitting keyed security onto factory door slabs.
Mobile home doors are thinner than site-built slabs and use a shorter latch assembly; this kit supplies the round corner face latch and hardware to make a standard single cylinder deadbolt seat correctly. The latch runs a fixed 2-3/8 in backset. Pair the kit with a deadbolt from this catalog for a complete mobile home lockset, quoted together on request.
Highlights
- Converts a standard deadbolt for mobile home doors
- Round corner face latch
- Fixed 2-3/8 in backset
- Deadbolt-only application
- Hardware and instructions included
Specification Table
| Function | Mobile home deadbolt conversion kit |
| Latch | Round corner face latch |
| Backset | 2-3/8 in fixed |
| Latch height | 1.2 in |
| Application | Mobile and manufactured home entry doors |
| Material | Metal, unfinished |
| Pack | 1 kit with hardware |
| Compatibility | Deadbolt-only preparations |
Included Components
- Mobile home conversion latch
- Mounting hardware
- Installation instructions
Installation Notes
- Verify the door uses a 2-3/8 in backset deadbolt prep; the kit latch is fixed and does not adjust.
- Intended for deadbolt applications only, not for knob or lever latches.
- Order the mating deadbolt in the same quote so the bolt and latch are matched at review.
Warranty and Support
- Limited lifetime mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
Does the kit include the deadbolt itself?
No. It is the conversion latch and hardware only; pair it with a compatible single cylinder deadbolt from this catalog, quoted together.
Why does a mobile home door need a different latch?
Factory mobile home doors are thinner and use a shorter latch case than site-built doors, so a standard latch will not seat. This kit bridges that difference.
Documents
- Type Deadbolt
- SKU DA-DR-HW-DBL-MH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
