Door Axis Polished Chrome Bed and Bath Privacy Door Lever, Contemporary
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

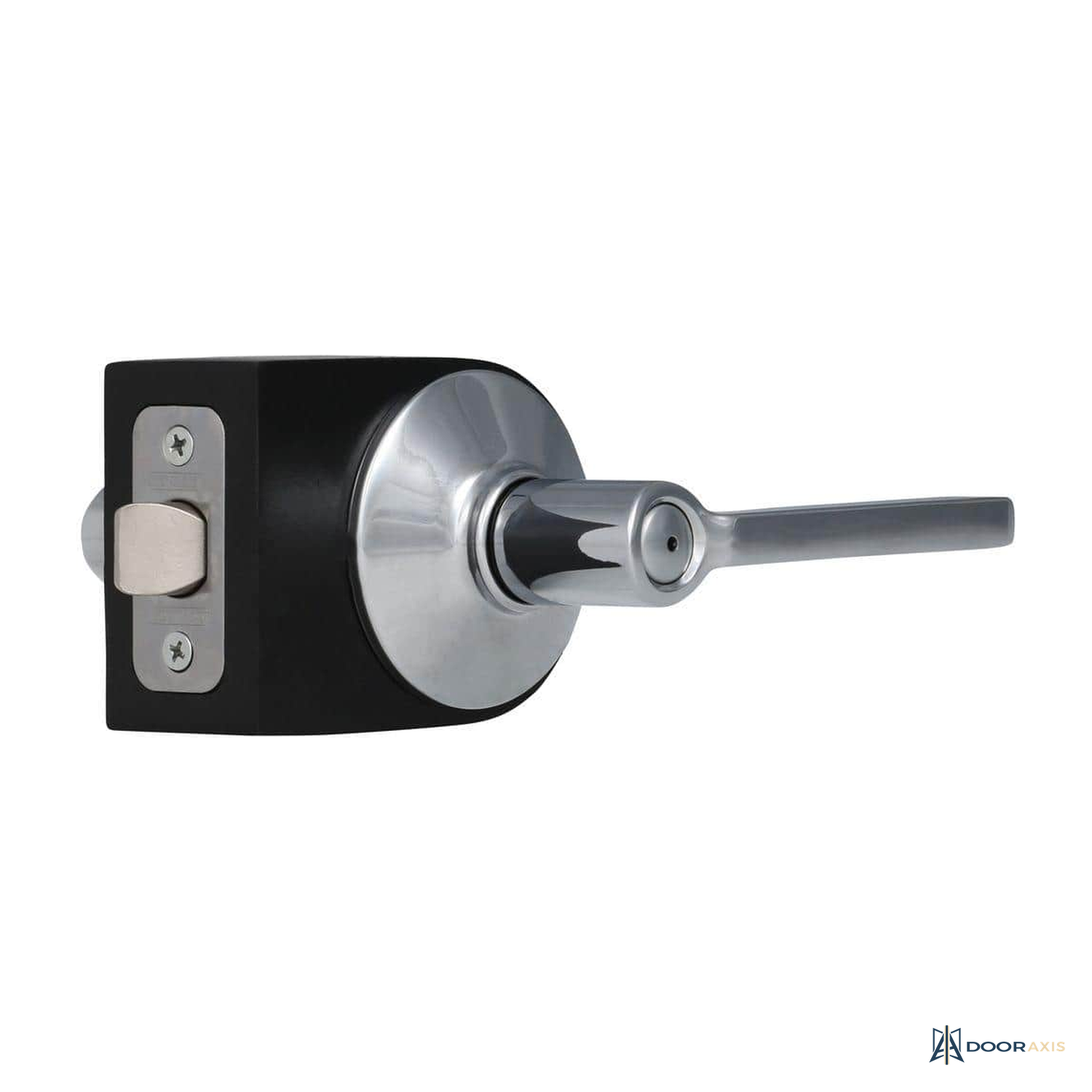

The Door Axis Polished Chrome Privacy Lever is a contemporary straight lever on a round rose, rated a tier above standard residential hardware. It serves bathrooms and bedrooms where a bright chrome finish and certified durability are both specified.

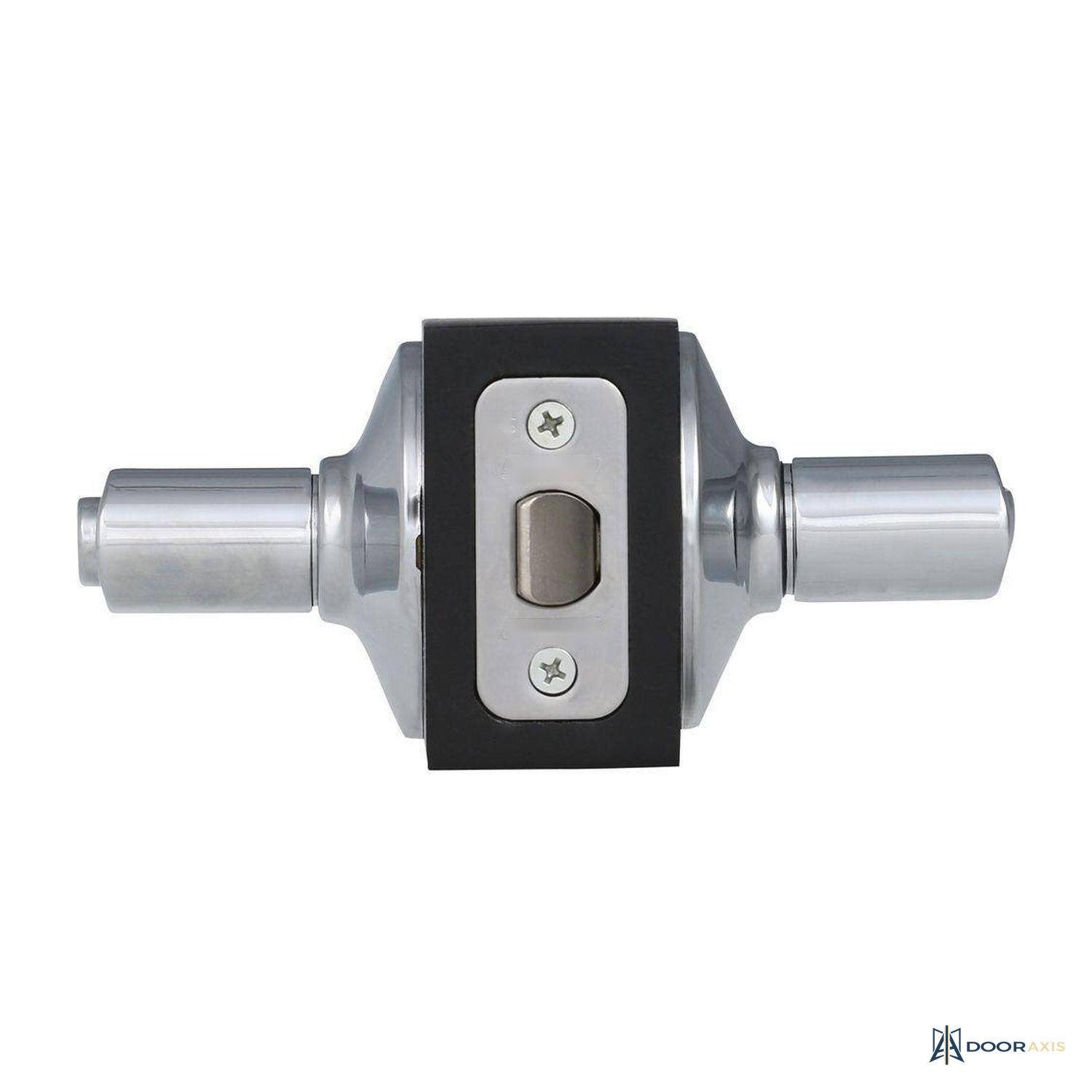

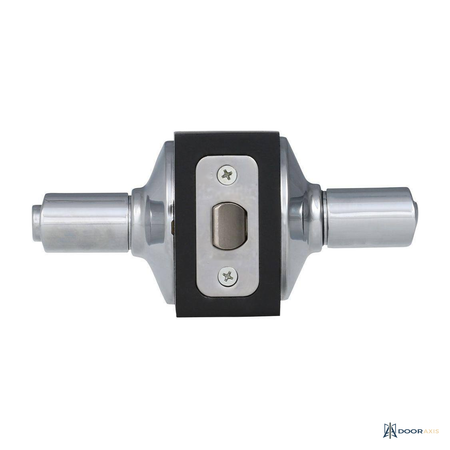

Certified ANSI Grade 2 (Better) for security, durability, and finish, the lever locks from a push button and unlocks automatically when the interior handle turns, so it cannot stay locked behind you. An included pin key releases the lock from outside in an emergency. The universal latch slides between 2-3/8 in and 2-3/4 in backsets without tools and ships with both radius and drive-in faceplates. Self-aligning screw holes make it a screwdriver install on doors 1-3/8 in to 1-3/4 in thick.
Highlights
- ANSI Grade 2 (Better) certified
- Push-button lock, auto-releases on interior turn
- Emergency pin key included
- Tool-free adjustable 2-3/8 or 2-3/4 in backset
- Radius and drive-in faceplates in the box
- Universal handing, self-aligning screw holes
- Polished chrome contemporary finish
Specification Table
| Function | Privacy, bed and bath |
| Security rating | ANSI Grade 2 (Better) |
| Lever style | Straight, round rose |
| Lock | Push button, auto-release |
| Backset | Adjustable 2-3/8 or 2-3/4 in |
| Door thickness | 1-3/8 to 1-3/4 in |
| Faceplates | Radius and drive-in included |
| Handing | Universal |
| Finish | Polished Chrome |
Included Components
- One polished chrome privacy lever set
- Latch with radius and drive-in faceplates
- Strike, self-guiding screws, and drilling template
- Emergency pin key and installation instructions
Installation Notes
- The push button unlocks automatically when the inside lever turns; test the action after mounting.
- Keep the pin key accessible near the door for emergency release.
- Choose the faceplate that matches the door edge prep before installing the latch.
Warranty and Support
- Limited lifetime mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
What makes Grade 2 better than standard interior hardware?
Grade 2 certification tests higher cycle counts and finish durability than the residential Grade 3 baseline, a sensible step up for hard-used family baths.
How does the emergency release work?
Insert the included pin key into the outside rose port to release the push-button lock from outside.
Documents
- Type Door Lever
- SKU DA-DR-HW-LVR-LAT-BB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
