Door Axis Residential Mini Door Closer with Hold Open, Size 3, White
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

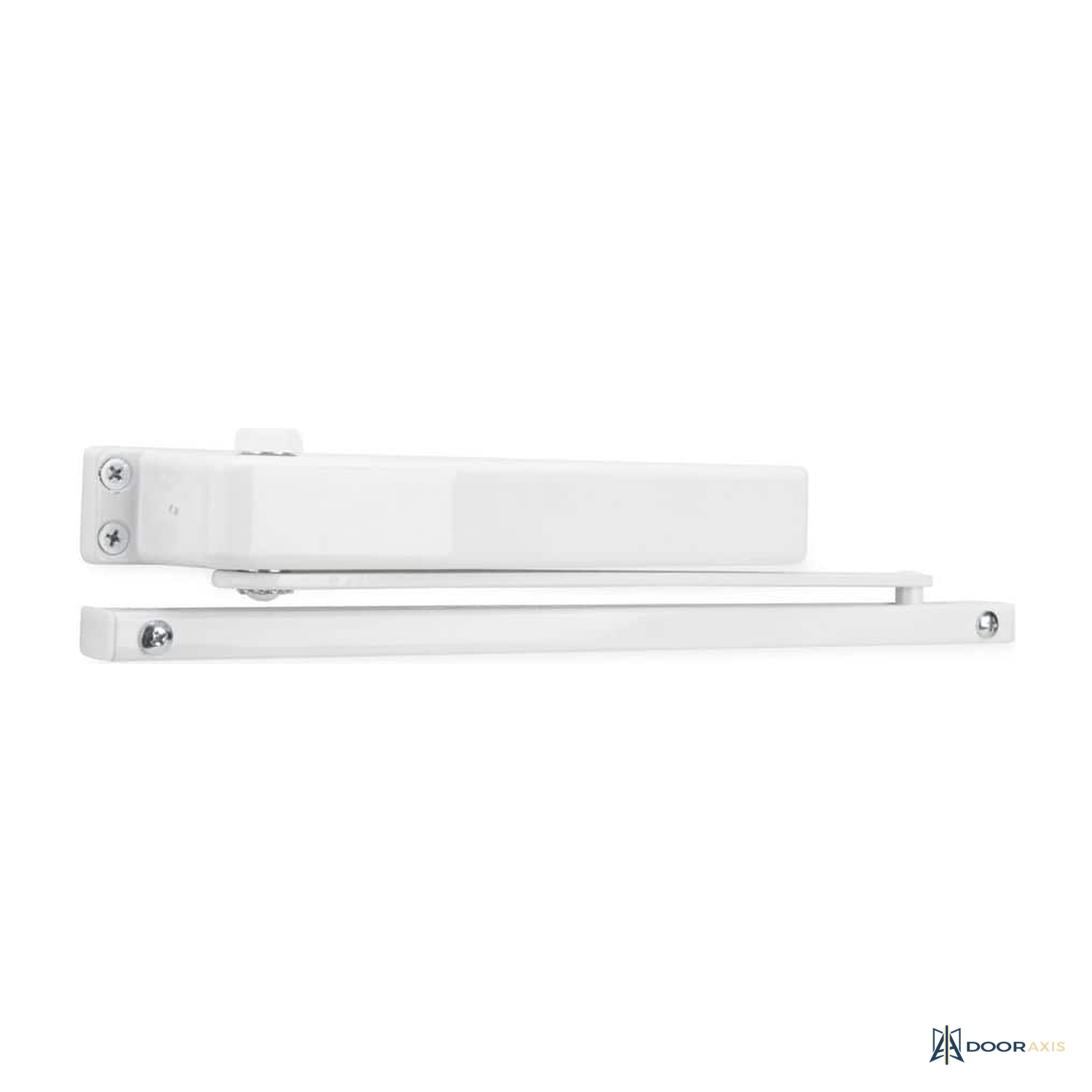

The Door Axis Mini Closer brings controlled closing to residential doors in a compact 9-1/2 in body, with a hold-open point for moving day and airflow. White finish blends with painted trim.
Sized for wood or metal residential doors to 150 lb and 36 in wide, the mini closer installs non-handed on in- or out-swinging doors without special tools. Spring power is fixed at size 3 with adjustable closing speed, and the hold-open function parks the door open until pushed off the detent.
Highlights
- Compact low-profile body for residential doors
- Hold-open detent
- Size 3 spring power, adjustable speed
- Non-handed, in- or out-swing
- Doors to 150 lb and 36 in wide
Specification Table
| Function | Residential mini closer, hold open |
| Power | Size 3 |
| Door capacity | 150 lb, 36 in wide |
| Handing | Non-handed |
| Body | 9-1/2 x 2 x 1-1/4 in |
| Material | Metal, white |
| Warranty | 5 year mechanical |
Included Components
- Mini closer body
- Arm assembly

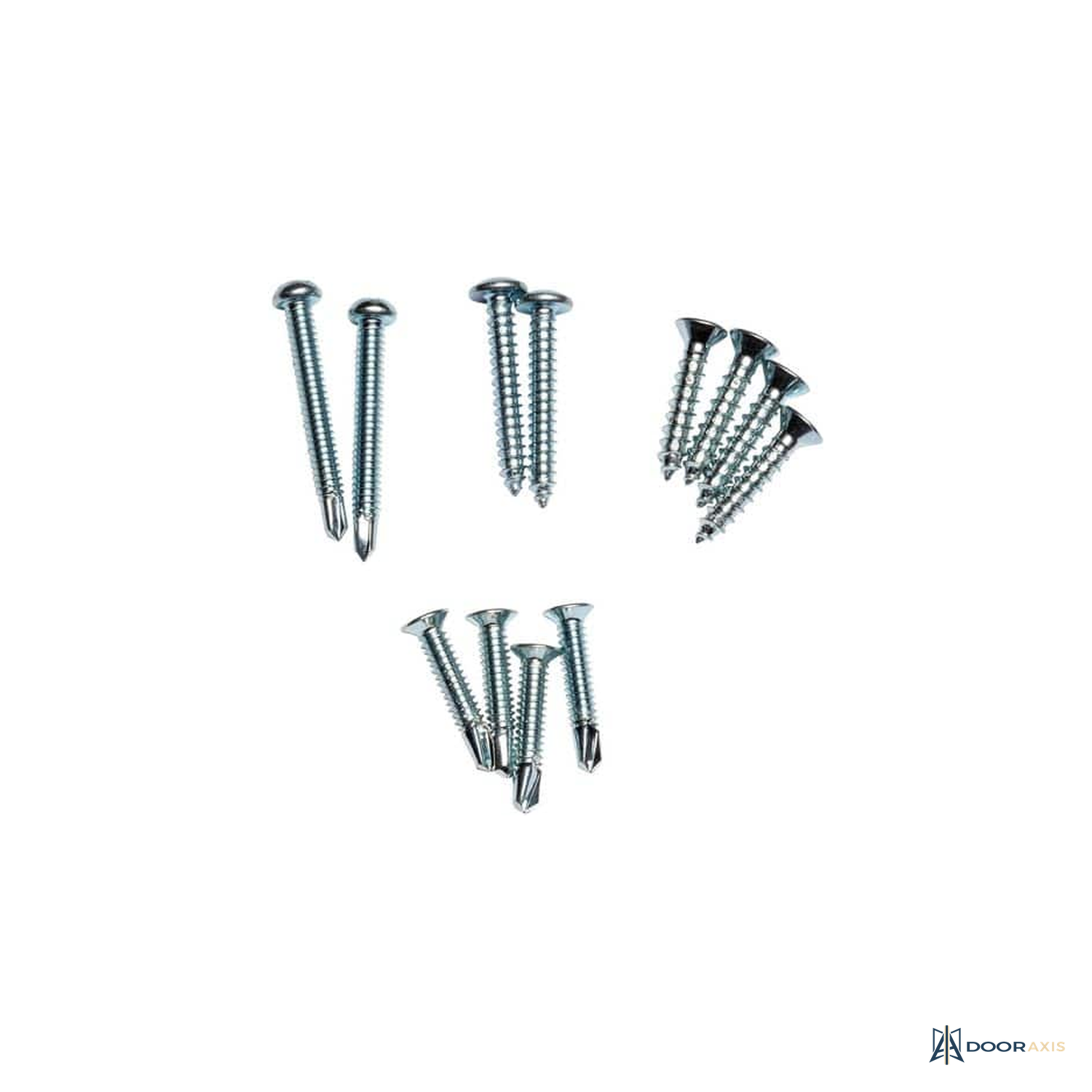

- Fasteners
Installation Notes
- Suits wood or metal doors; no special tools required.
- Set closing speed so the door latches from half-open without slam.
- Use the hold-open only on non-fire-rated openings.
Warranty and Support
- 5 year mechanical coverage, confirmed during quote review.
Frequently Asked Questions
Are other colors available?
The product line also runs black and brown; both are quoted on request.
Documents
- Type Door Closer
- SKU DA-DR-HW-CLS-MINI
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
