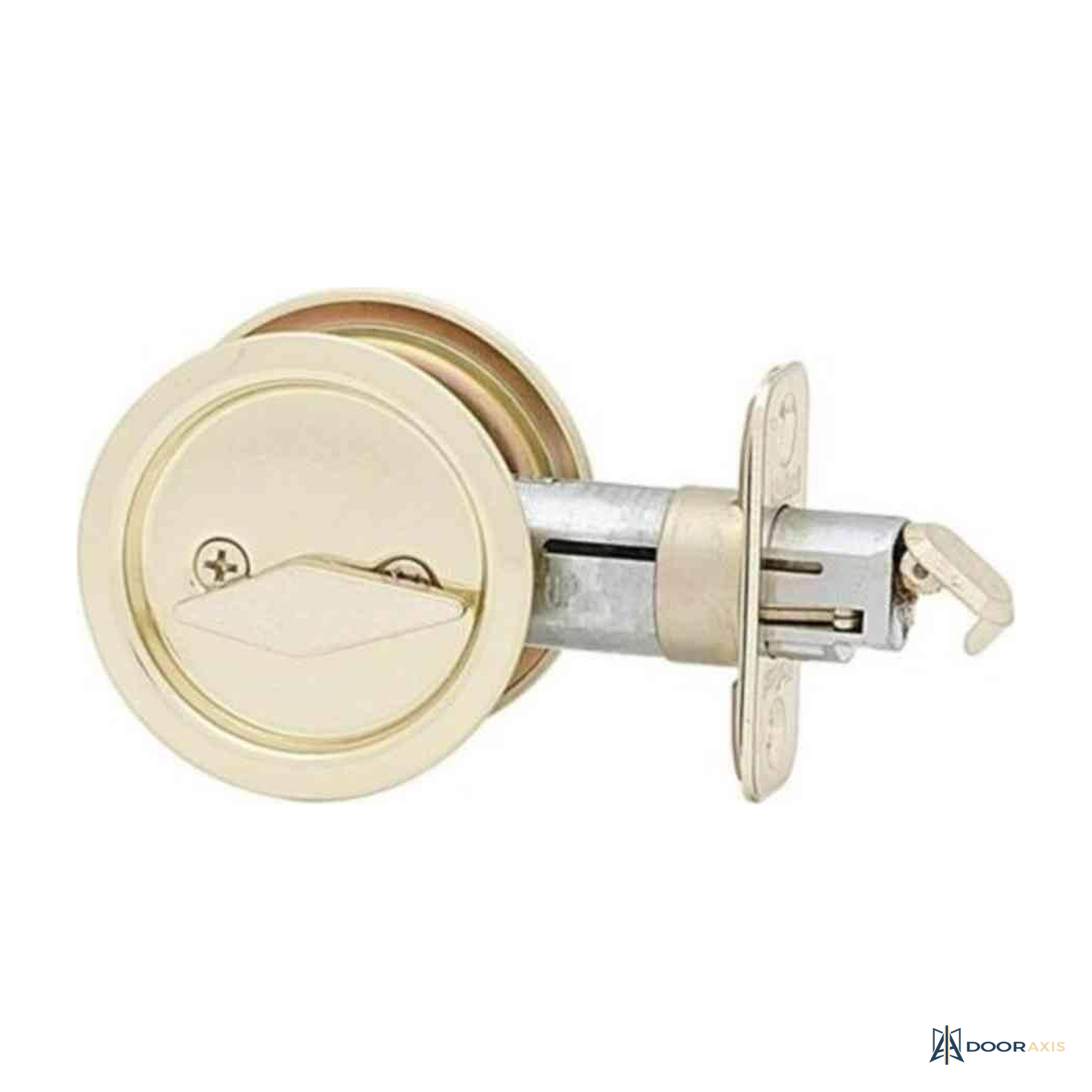

Door Axis Round Pocket Door Privacy Lock, Polished Brass
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Round Pocket Door Privacy Lock adds a locking function to bedroom and bathroom pocket doors using the standard 2-1/8 in round bore, so no notch gets cut in a new door. It serves installers converting stock slabs to pocket duty without special prep.
The round body drops into a standard 2-1/8 in cross bore and installs in minutes with a screwdriver. The hook bolt carries over 1-1/4 in of play within the strike, keeping the door lockable even when it settles or the strike sits proud, and the universal design fits right-hand and left-hand doors. The metal body wears a polished brass finish, fits 1-3/8 to 1-3/4 in doors, and the assembly is rated ANSI Grade 3.
Highlights
- Privacy locking for bedroom and bath pocket doors
- Installs in a standard 2-1/8 in bore, no edge notching
- Hook bolt with over 1-1/4 in of strike play
- Universal handing
- Fits 1-3/8 to 1-3/4 in doors
- ANSI Grade 3 rated
Specification Table
| Function | Round pocket door privacy lock |
| Grade | ANSI Grade 3 (Good) |
| Face | 2.5 in round |
| Cross bore | 2.125 in |
| Door thickness | 1-3/8 to 1-3/4 in |
| Bolt | Hook bolt, over 1.25 in strike play |
| Handing | Universal |
| Material | Metal |

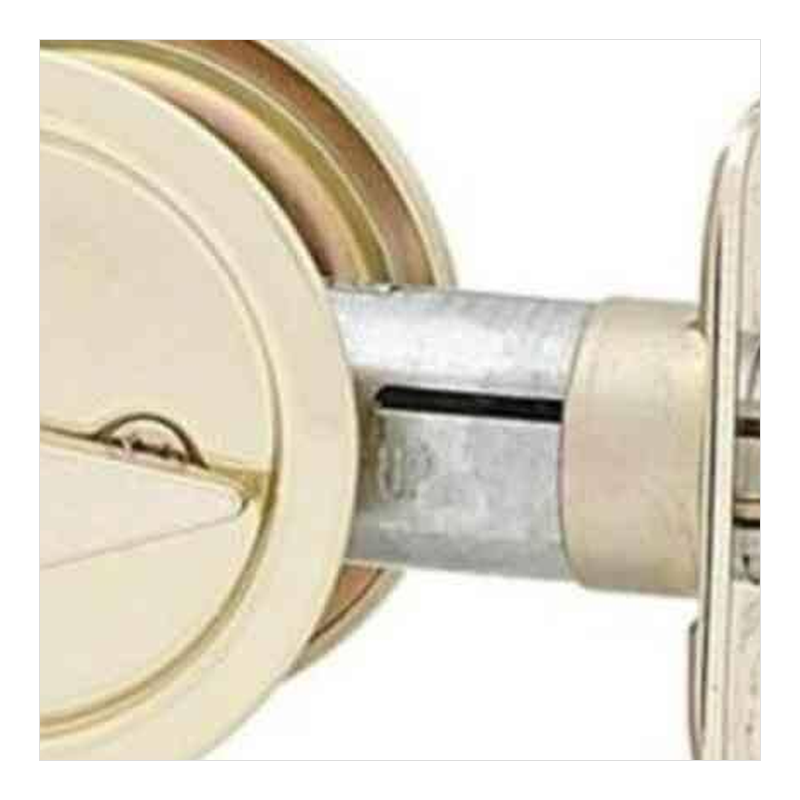

| Finish | Polished Brass |
| Application | Interior pocket doors |
Included Components
- Round pocket door privacy lock
- Mounting hardware
- Installation instructions
Installation Notes
- Use the existing 2-1/8 in bore on standard-prepped slabs; bore new doors with a hole saw per the instructions.
- Align the strike so the hook engages mid-slot, leaving travel both ways.
- Confirm a door thickness of 1-3/8 to 1-3/4 in before ordering.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Is it keyed?
No. It is an unkeyed privacy lock for bedrooms and baths, operated from the inside face.
Does the round design really skip the notch?
Yes. It installs entirely within the round bore, so new doors need no edge notch cut.
Documents
- Type Pocket Door Hardware
- SKU DA-DR-HW-PKT-RND
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
