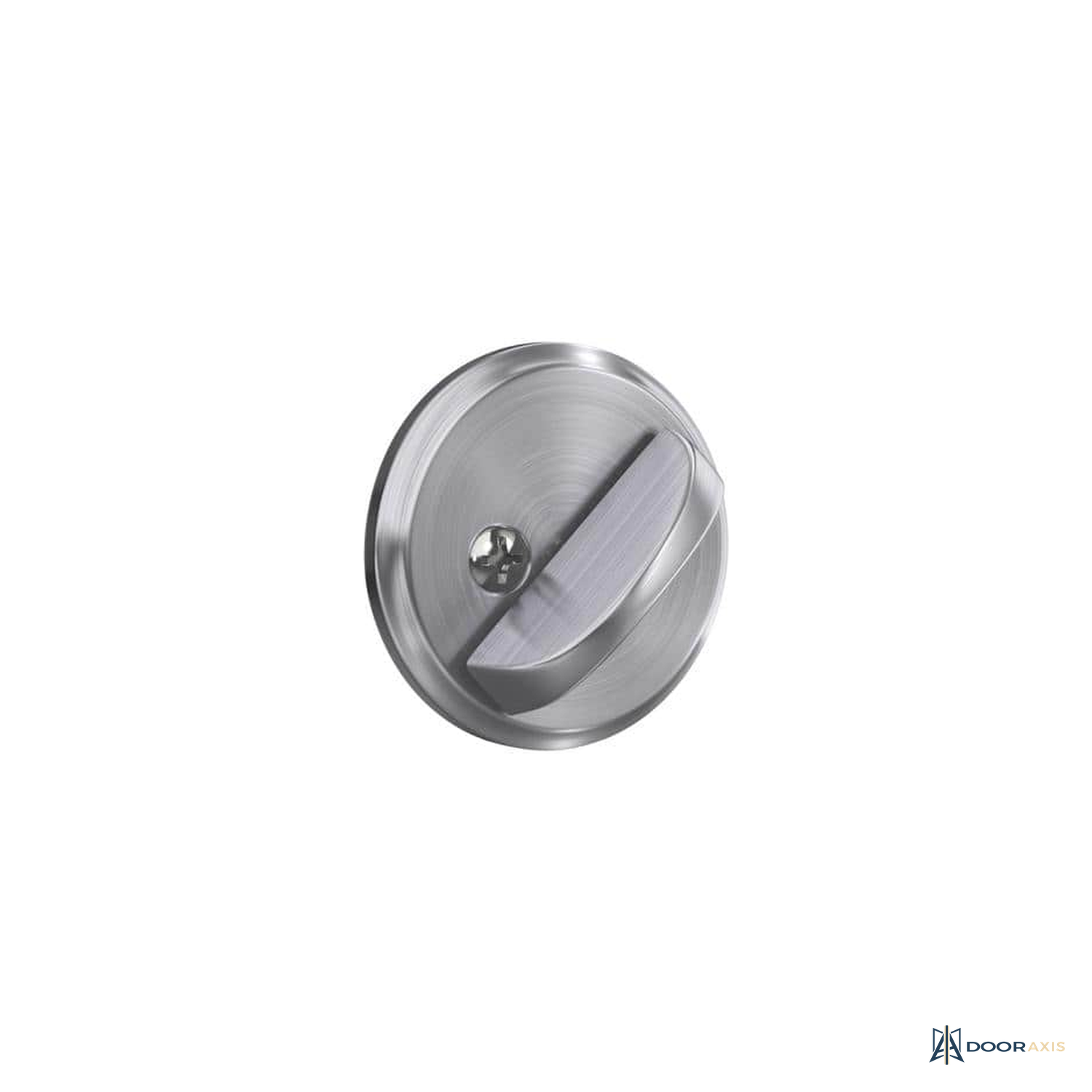

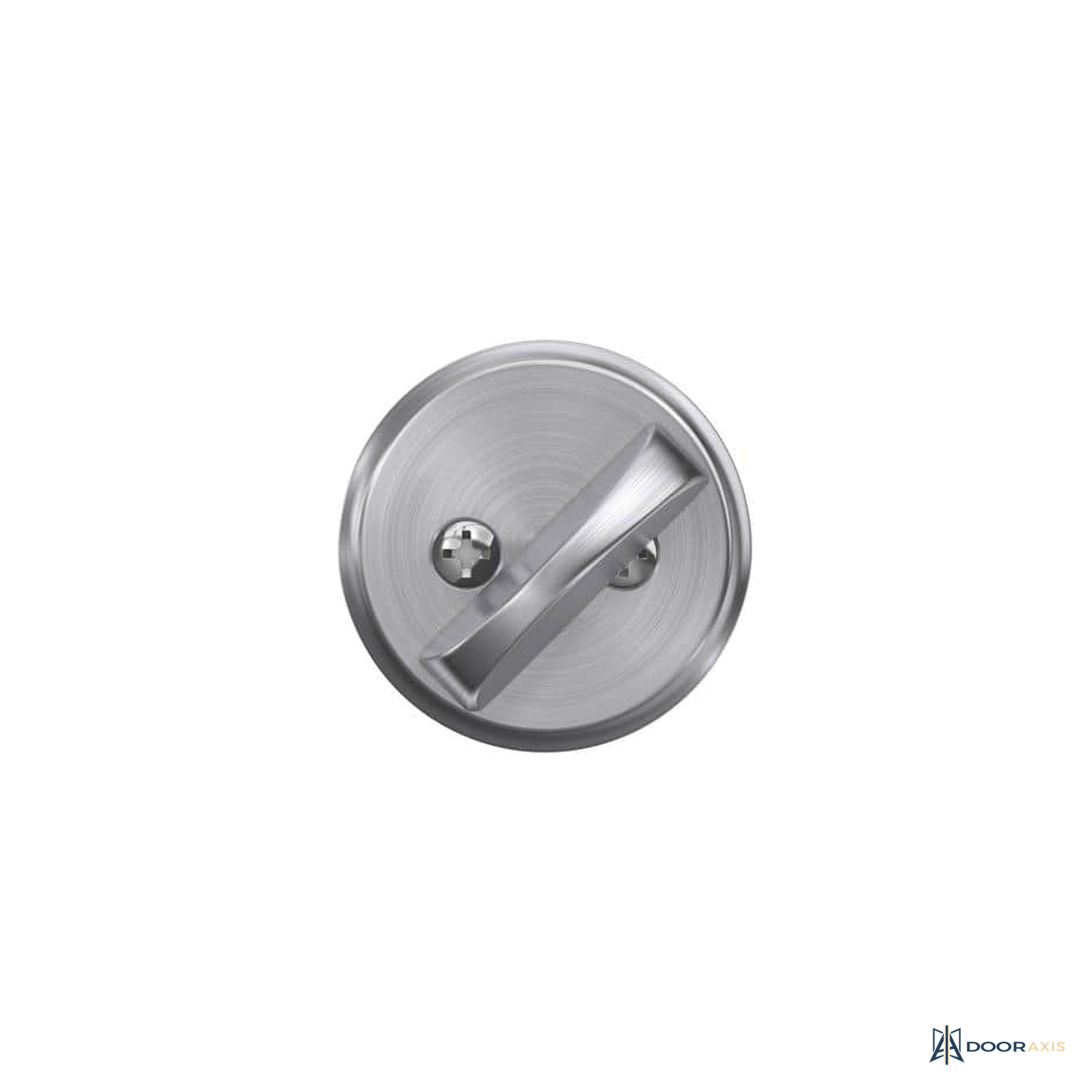

Door Axis Satin Chrome Grade 1 Single Cylinder Deadbolt, Light Commercial
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Grade 1 Deadbolt is a light commercial single cylinder deadbolt certified to the highest ANSI residential security tier. It serves storefront back doors, rental property entries, and homes where forced-entry resistance drives the hardware spec.
Certified ANSI Grade 1 (Best), the lock pairs a 1 in bolt with anti-drill plates and anti-pick pins to resist kick-ins, prying, drilling, picking, and bumping. An integrated strike reinforcer with 3 in screws ties the strike into the framing. The universal latch slides between 2-3/8 in and 2-3/4 in backsets without tools, self-aligning screw holes speed installation, and the satin chrome finish suits commercial door schedules. Two keys are included.
Highlights
- ANSI Grade 1 (Best) certified security
- Anti-drill plates and anti-pick pins
- Strike reinforcer with 3 in screws into framing
- Full 1 in bolt throw
- Tool-free adjustable 2-3/8 or 2-3/4 in backset
- Self-aligning screw holes for fast installation
- Satin chrome light commercial finish
Specification Table
| Function | Single cylinder deadbolt, light commercial |
| Security rating | ANSI Grade 1 (Best) |
| Bolt throw | 1 in |
| Security features | Anti-drill plates, anti-pick pins |
| Strike | Reinforced, 3 in screws |
| Backset | Adjustable 2-3/8 or 2-3/4 in |
| Face bore | 2.13 in |
| Door thickness | 1-3/8 to 1-3/4 in |
| Handing | Universal |
| Finish | Satin Chrome |
| Keys | 2 included |
Included Components
- One satin chrome Grade 1 single cylinder deadbolt
- Interior thumb turn and exterior keyed cylinder
- Reinforced strike with 3 in screws
- Mounting hardware and installation instructions
- 2 keys
Installation Notes
- Drive the 3 in strike screws into the wall framing, not just the jamb, to realize the Grade 1 rating.
- Slide the latch to the door backset; no tools are needed for either standard prep.
- Verify the bolt throws fully with the door closed; shim the strike if the gap exceeds spec.
- Suitable for exterior residential and light commercial openings.
Warranty and Support
- Limited lifetime mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
What does Grade 1 buy over a standard deadbolt?
Grade 1 is the highest ANSI security tier: heavier bolt assembly, more cycle life, and tested resistance to drilling, picking, and forced entry. Grade 3 units cover typical residential duty at lower cost.
Can it be keyed to match other locks on the property?
Keying options are consolidated during quote review; provide the full opening schedule with your request.
Documents
- Type Deadbolt
- SKU DA-DR-HW-DBL-GR2
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
