Door Axis Satin Nickel Butt Door Hinge Project Packs
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

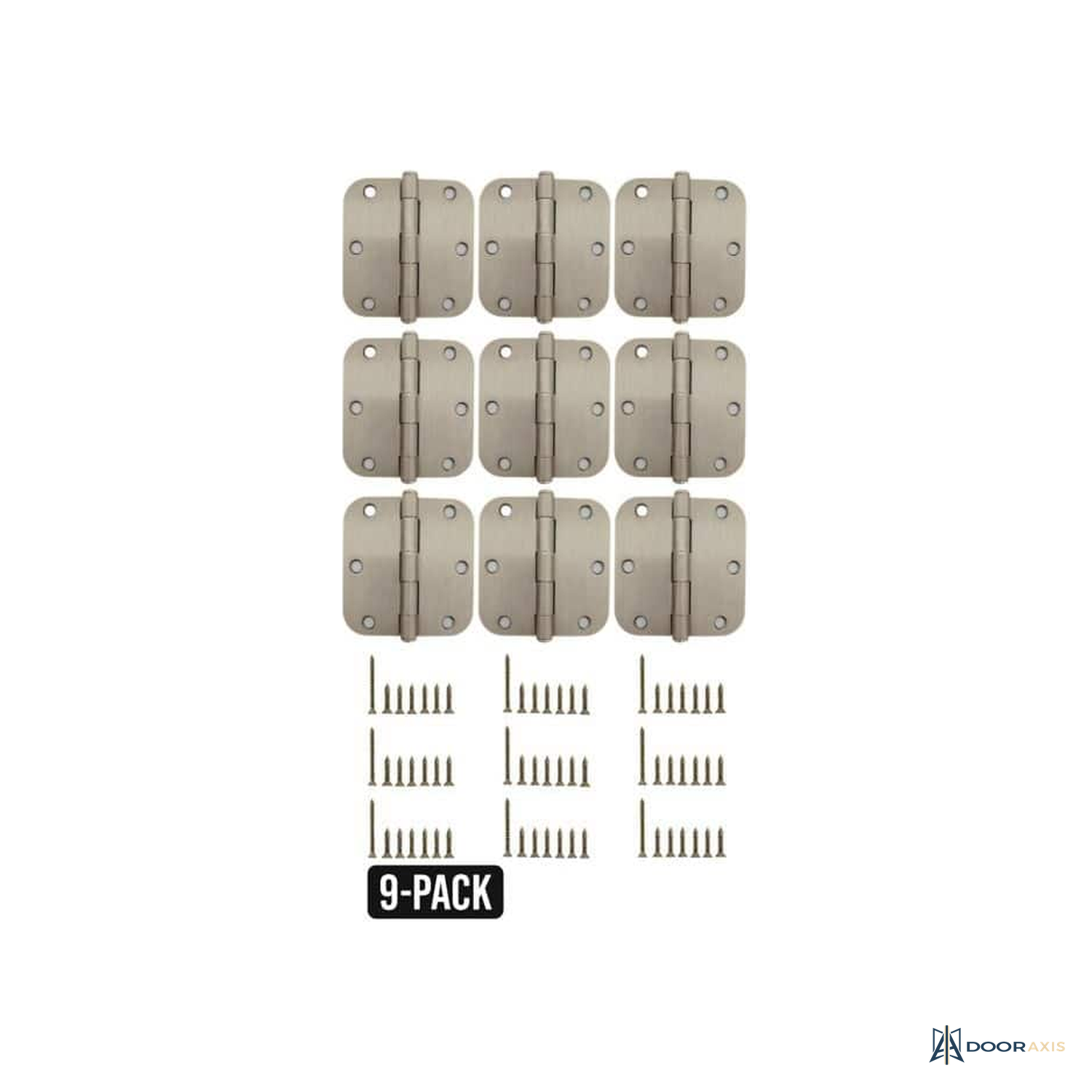

Door Axis Butt Hinge Project Packs bundle matched satin nickel hinges for whole-door and whole-floor interior work: one door per 3-Pack, three doors per 9-Pack. They serve trim crews standardizing hinge finish across a project without per-piece picking.

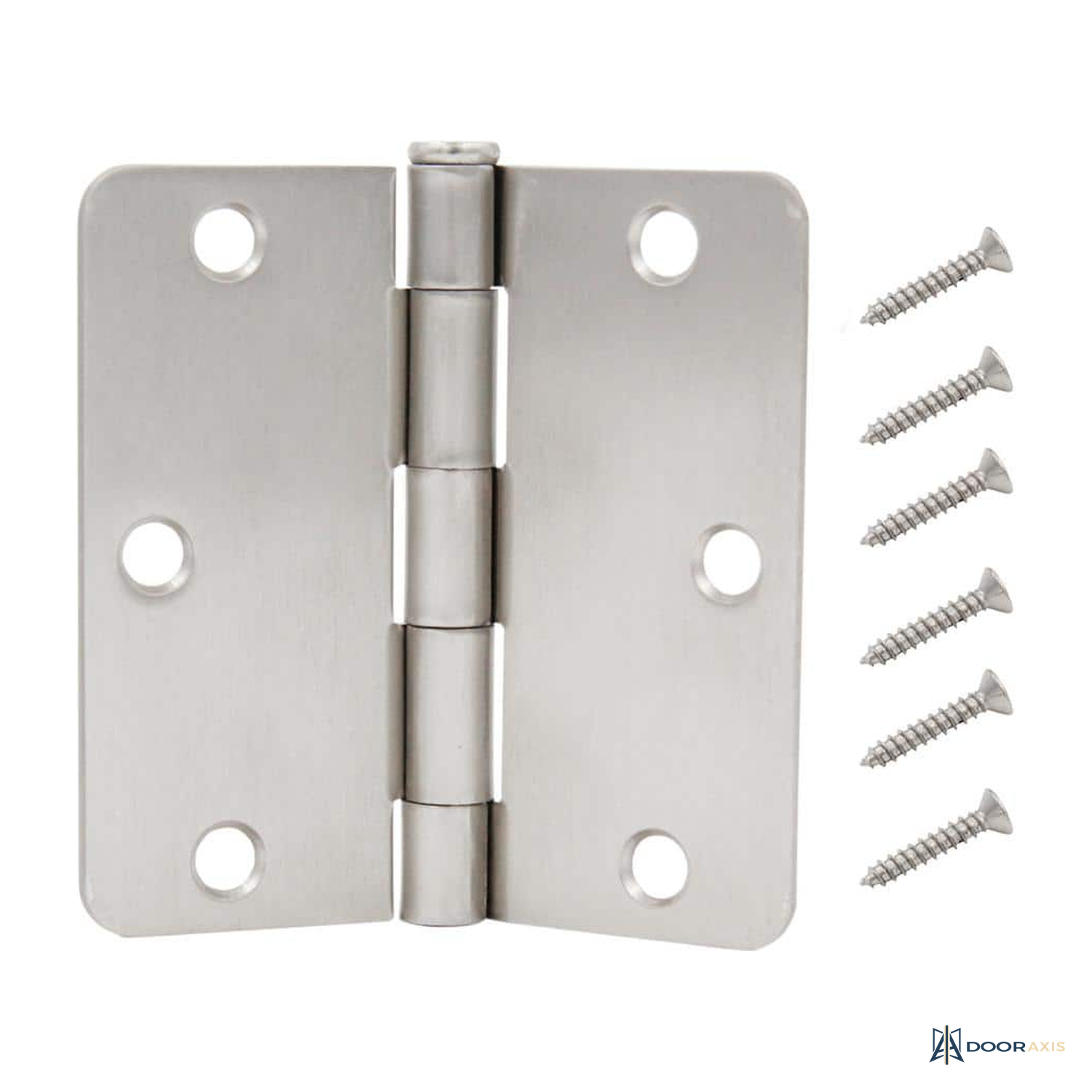

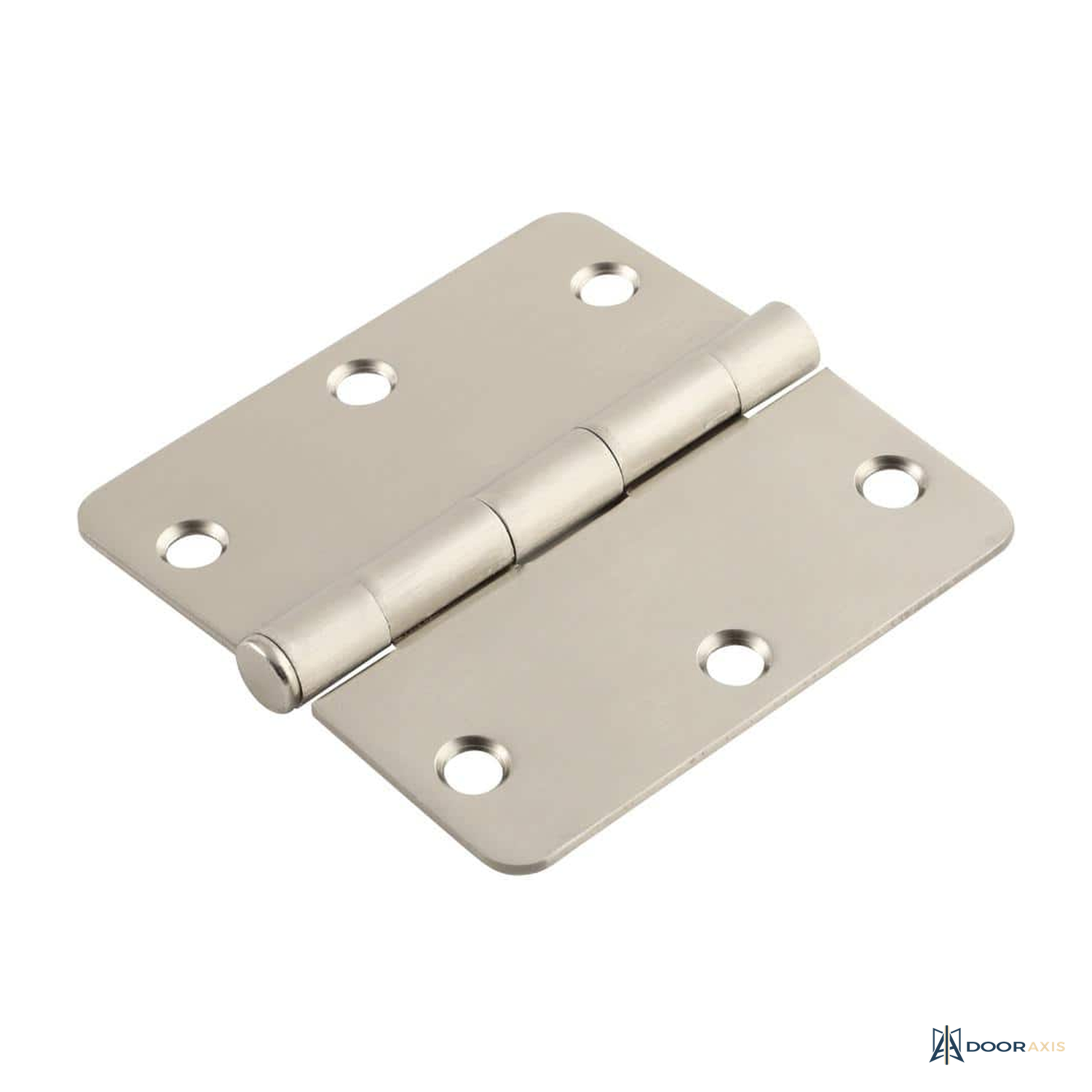

Both packs carry the standard 3-1/2 in steel leaf with removable pins and half moon screw patterns. The 3-Pack ships with 1/4 in radius corners and the 9-Pack with 5/8 in radius corners; match the pack to the mortise cut of the slabs on site. Every hinge in a pack is finish-matched from the same run, so knuckle color reads uniform up a hallway of doors.
Highlights
- One-door 3-Pack and three-door 9-Pack quantities
- Standard 3-1/2 x 3-1/2 in steel leaf, removable pin
- 3-Pack: 1/4 in radius corners; 9-Pack: 5/8 in radius corners

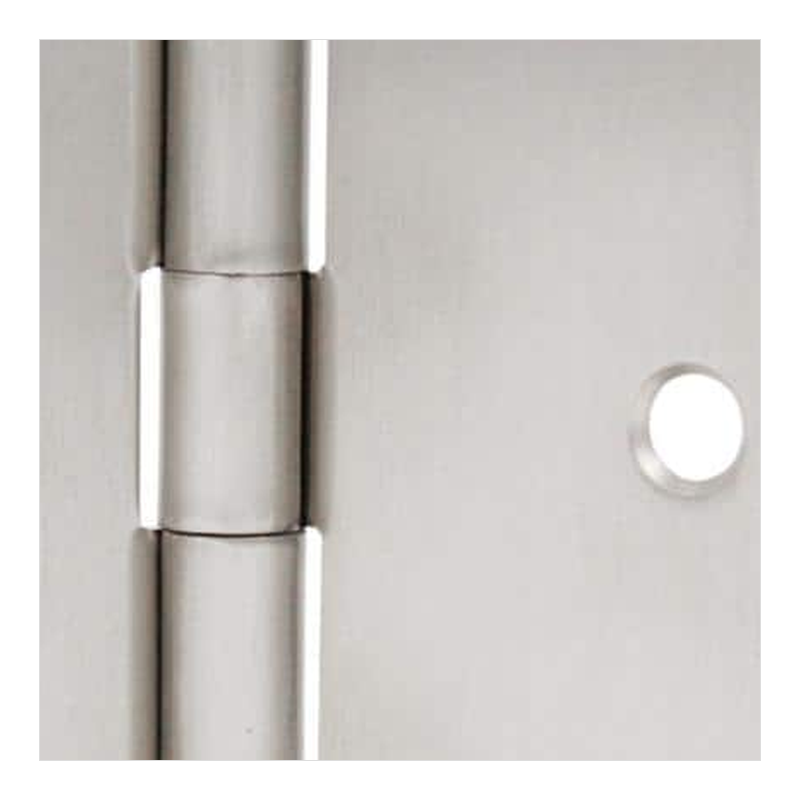

- Finish-matched satin nickel across the pack
- Fasteners included for every hinge
Specification Table
| Function | Interior butt hinge project packs |
| Leaf size | 3-1/2 x 3-1/2 in |
| Pack options | 3-Pack (1/4 in radius), 9-Pack (5/8 in radius) |
| Pin | Removable |
| Material | Steel, satin nickel |
| Mounting | Mortise, fasteners included |
| Application | Interior residential doors |
Included Components
- Three or nine satin nickel butt hinges per selected pack
- Mounting screws for every hinge
Installation Notes
- Plan three hinges per slab; the 9-Pack hangs three standard doors.
- Verify the corner radius against the router bit used on the slabs: 1/4 in and 5/8 in mortises are not interchangeable without touch-up.
- Keep packs door-matched; mixing runs across a single opening can show finish variation.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Why do the packs have different corner radii?
They mirror the two most common mortise cuts. Pick the pack that matches your slabs; both are quoted together for mixed projects.
Are larger job quantities available?
Yes. The product line runs to 48-count contractor boxes; volumes beyond the 9-Pack are quoted on request.
Documents
- Type Door Hinge
- SKU DA-DR-HW-HNG-VP-P3
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
