Door Axis Security Door Hinge with Safety Stud, Brass Finish
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Security Hinge adds a projecting stud that interlocks the leaves whenever the door is closed, so the door stays captive even if the pin is driven out. It serves bedroom, garage-entry, and outswing openings where the hinge barrel faces the unsecured side.

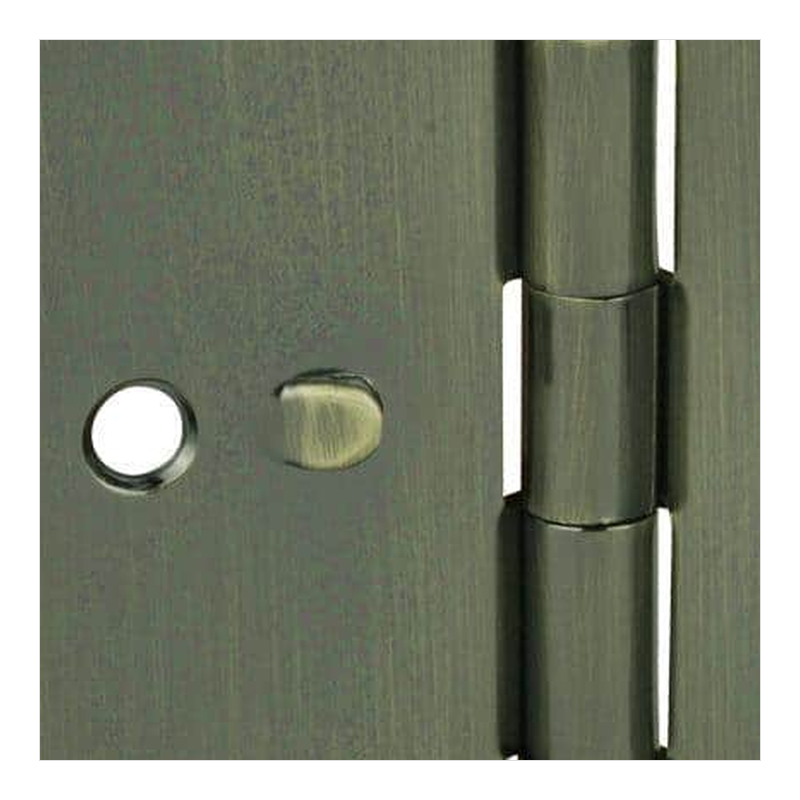

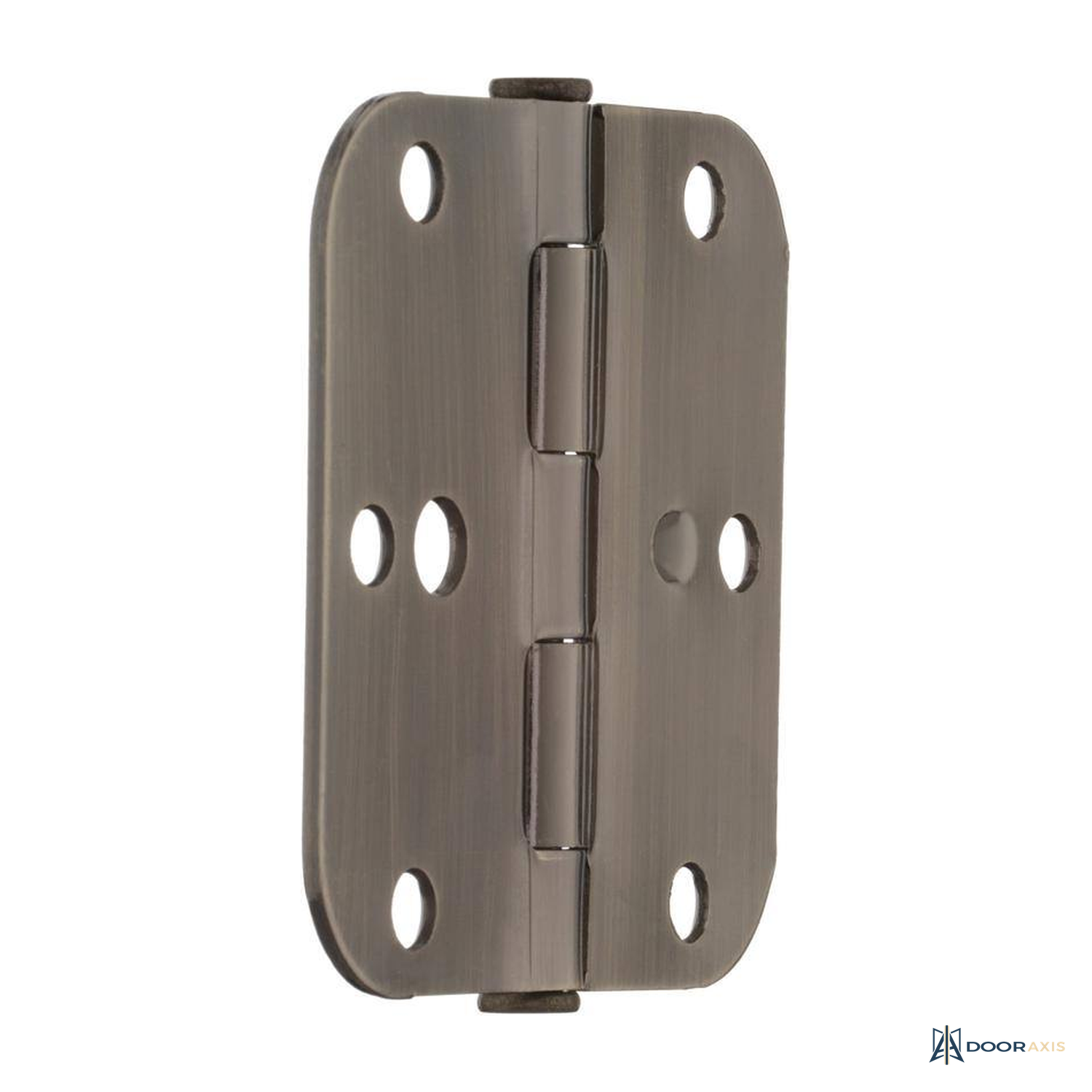

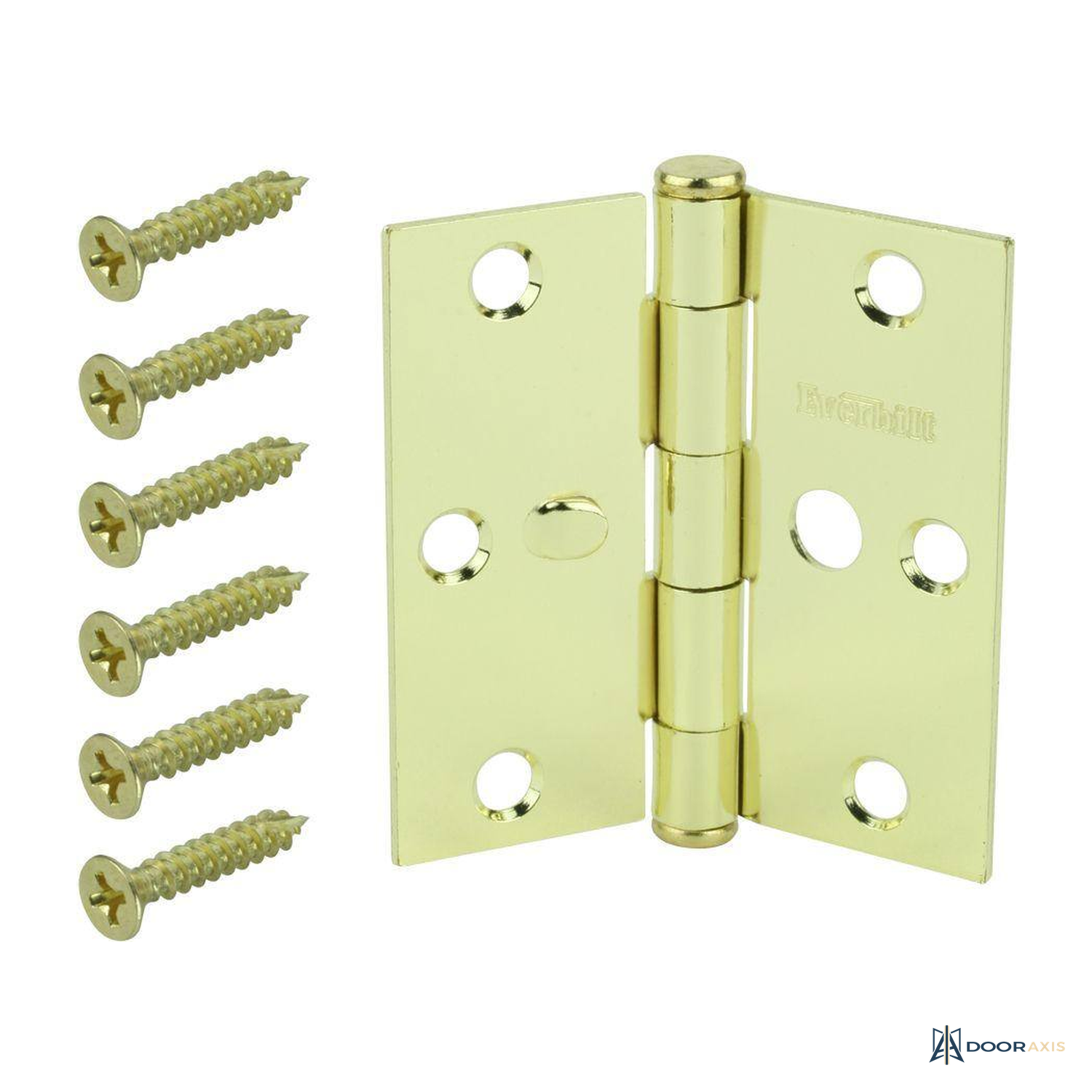

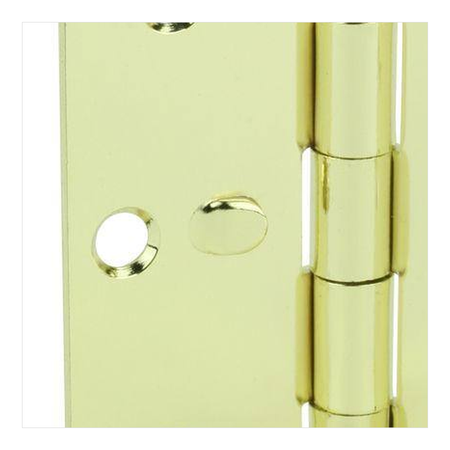

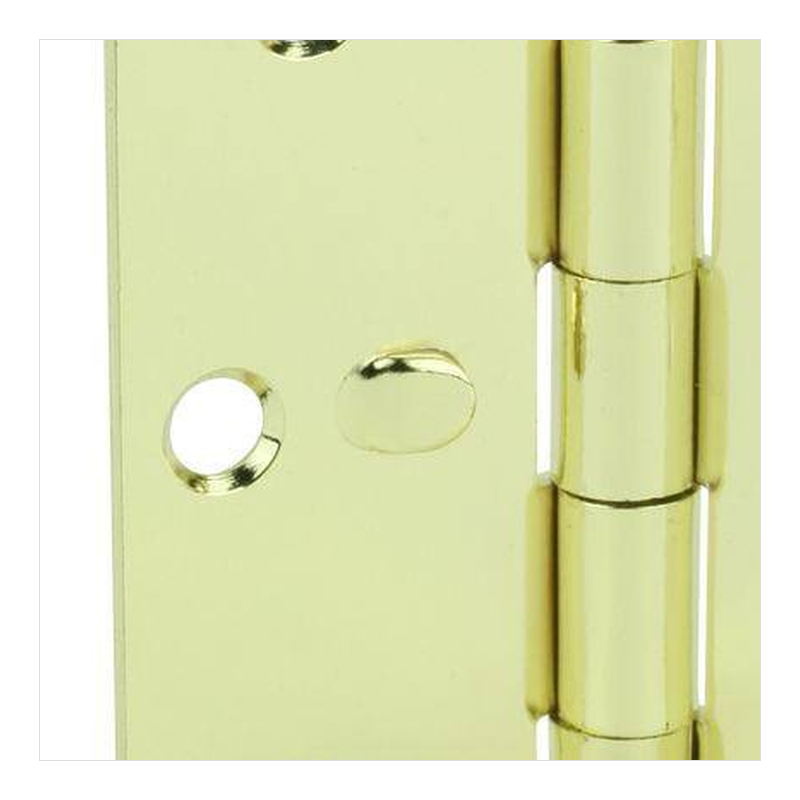

When the door closes, the stud on one leaf seats into the matching socket on the other, mechanically pinning the leaves together. Removing the hinge pin then gains an intruder nothing: the door cannot be lifted free. The hinge installs like any standard 3-1/2 in mortise butt hinge and is offered as a square-corner single in Bright Brass or a 5/8 in radius three-pack in Antique Brass.
Highlights
- Interlocking security stud defeats pin-removal attacks
- Standard 3-1/2 in mortise footprint, drop-in replacement
- Removable pin for normal service access
- Square-corner single or radius 3-Pack configurations
- Steel construction in brass finishes, fasteners included
Specification Table
| Function | Security butt hinge with safety stud |
| Leaf size | 3-1/2 x 3-1/2 in |
| Configurations | Square corner single; 5/8 in radius 3-Pack |
| Pin | Removable, stud-interlocked when closed |
| Material | Steel, brass finish |
| Mounting | Mortise, fasteners included |
| Hole pattern | Half moon, 6 holes |
| Application | Interior and garage-entry doors |
Included Components
- Security hinge(s) per selected configuration
- Matching mounting screws
Installation Notes
- Replace all hinges on the opening; one standard hinge in the set defeats the security benefit.
- Confirm corner style against the existing mortise: square for chiseled, radius for routed.
- Seat the stud and socket cleanly; a proud mortise prevents full stud engagement.
- Best applied to outswing doors where the barrel is exposed to the unsecured side.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Do security hinges replace a deadbolt?
No. They protect the hinge side of the opening; pair them with a deadbolt on the latch side for full-perimeter security.
Which configuration do I need for one door?
The 3-Pack covers a standard slab. The square-corner single suits repairs or chiseled mortises; mixed orders are consolidated at quote review.
