Door Axis Self-Closing Full Mortise Spring Hinge, 3-1/2 in Brass
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

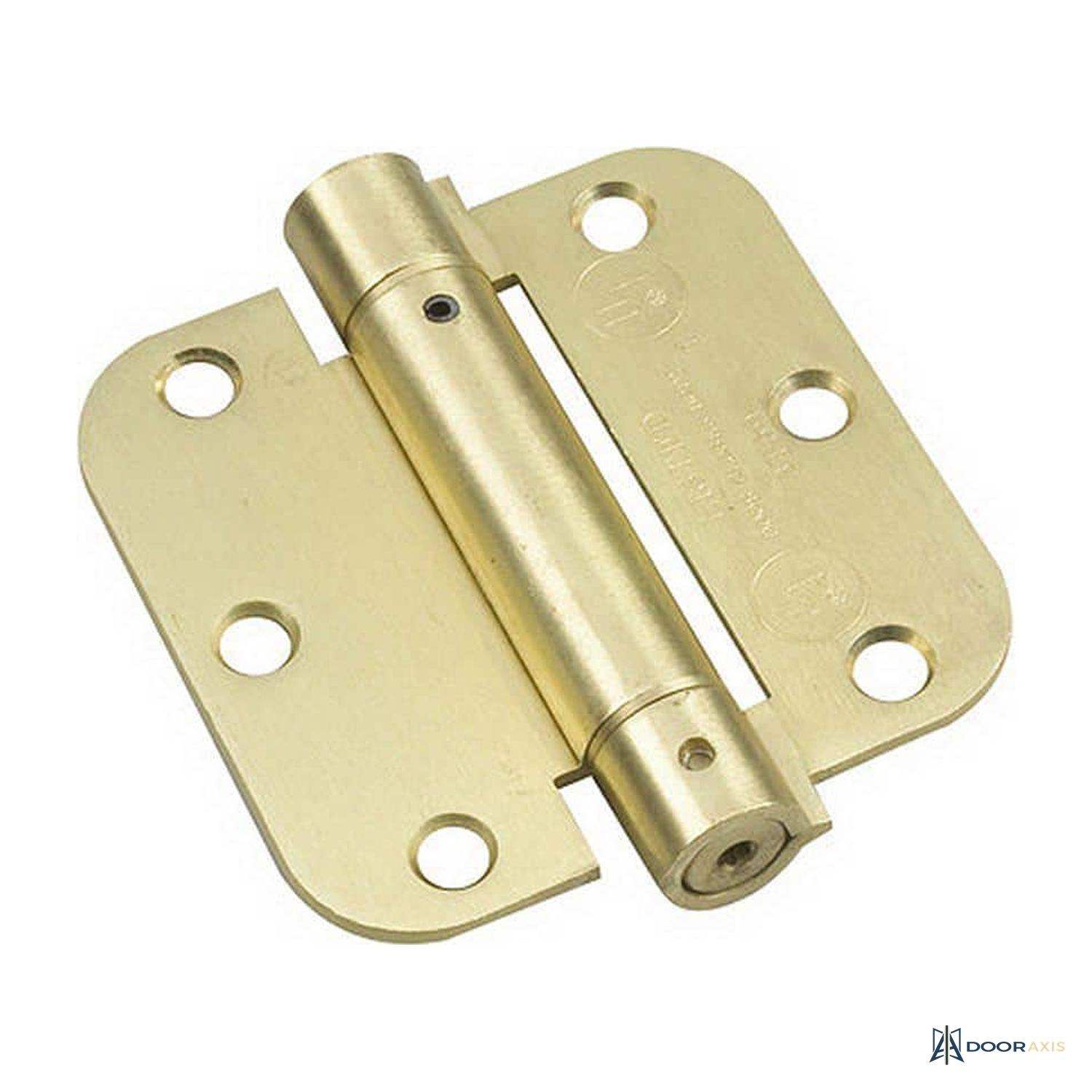

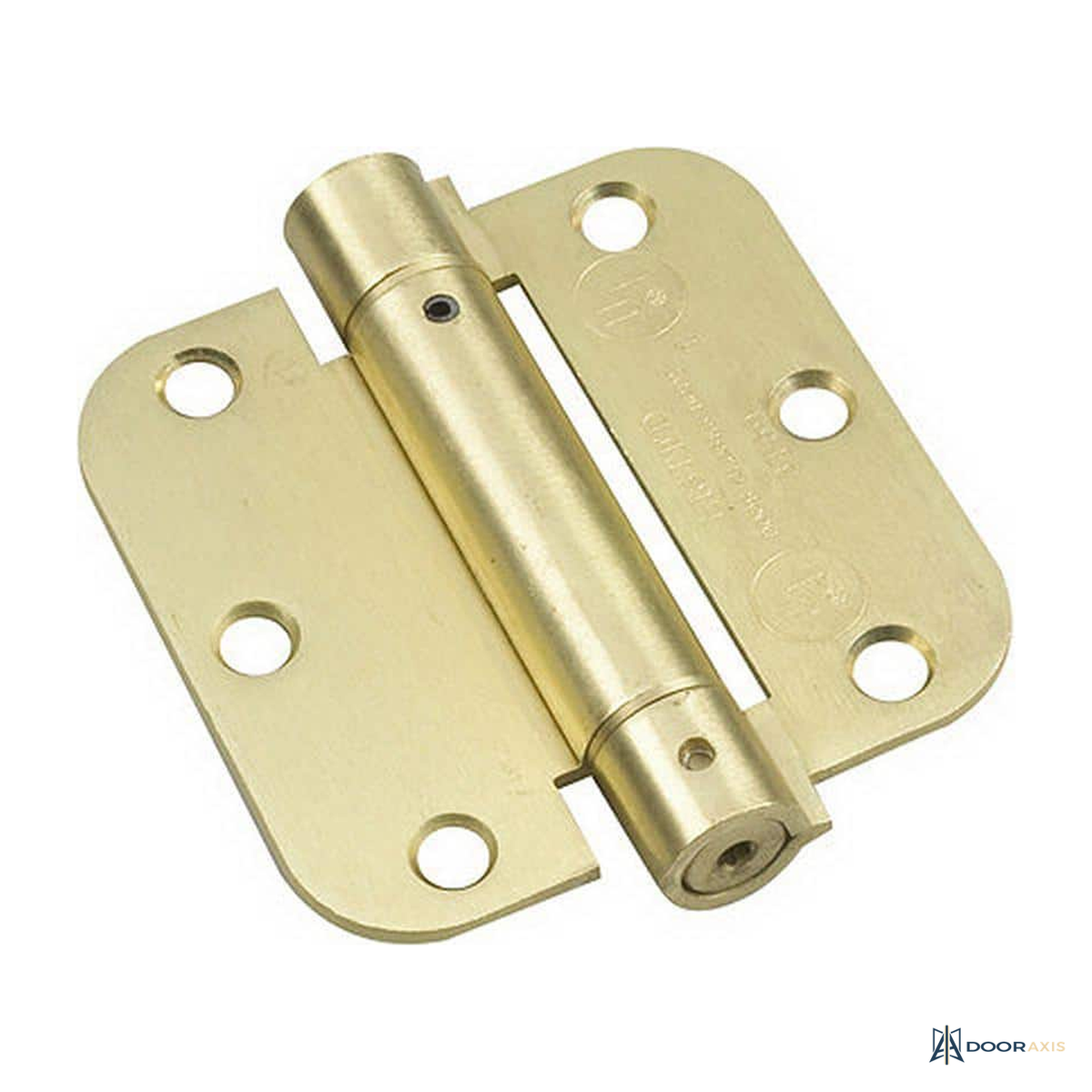

The Door Axis Self-Closing Mortise Spring Hinge closes a passage door behind every use without a surface closer. It fits standard 3-1/2 in mortises, so a swing door becomes self-closing with a hinge swap.
A coil spring inside the barrel returns the door to its frame, and tension adjusts with the included pin so the same hinge closes a light hollow-core or a heavier solid slab at a controlled pace. Codes commonly call for self-closing hinges on garage-to-house doors; two spring hinges paired with one plain butt hinge handle most residential slabs.
Highlights
- Converts a standard swing door to self-closing
- Adjustable spring tension with included pin tool
- Standard 3-1/2 in full mortise footprint
- Steel construction in bright brass finish
- Common code answer for garage-entry doors
Specification Table
| Function | Self-closing spring hinge |
| Leaf size | 3-1/2 x 3-1/2 in |
| Mounting | Full mortise, fasteners included |
| Tension | Adjustable, pin tool included |
| Material | Steel, bright brass finish |
| Pack | 1 hinge |
| Application | Interior and garage-entry doors |
Included Components
- One spring hinge
- Tension adjustment pins and tool
- Mounting screws
Installation Notes
- Use two spring hinges per standard slab with a plain butt hinge between them.
- Set tension only high enough to latch the door; excess tension slams and wears the frame.
- Adjust tension after hanging, with the door at rest.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Will one spring hinge close my door?
Light interior slabs sometimes close on one, but two spring hinges give controlled, reliable latching on standard doors.
Does this meet the garage-door self-close requirement?
Self-closing hinges are the common answer to that requirement. Confirm your local code text during quote review.
Documents
- Type Self-Closing Hinge
- SKU DA-DR-HW-HNGSC-MORT
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
