Door Axis Sliding Door Hardware Set, Stainless Tandem Rollers and Flush Locks
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Sliding Door Hardware Set packs the rolling and locking gear for one sliding door system: tandem stainless roller bogies, flush sliding locks, and arc pull handles. It serves installers refreshing a worn slider and fabricators completing Door Axis sliding systems.

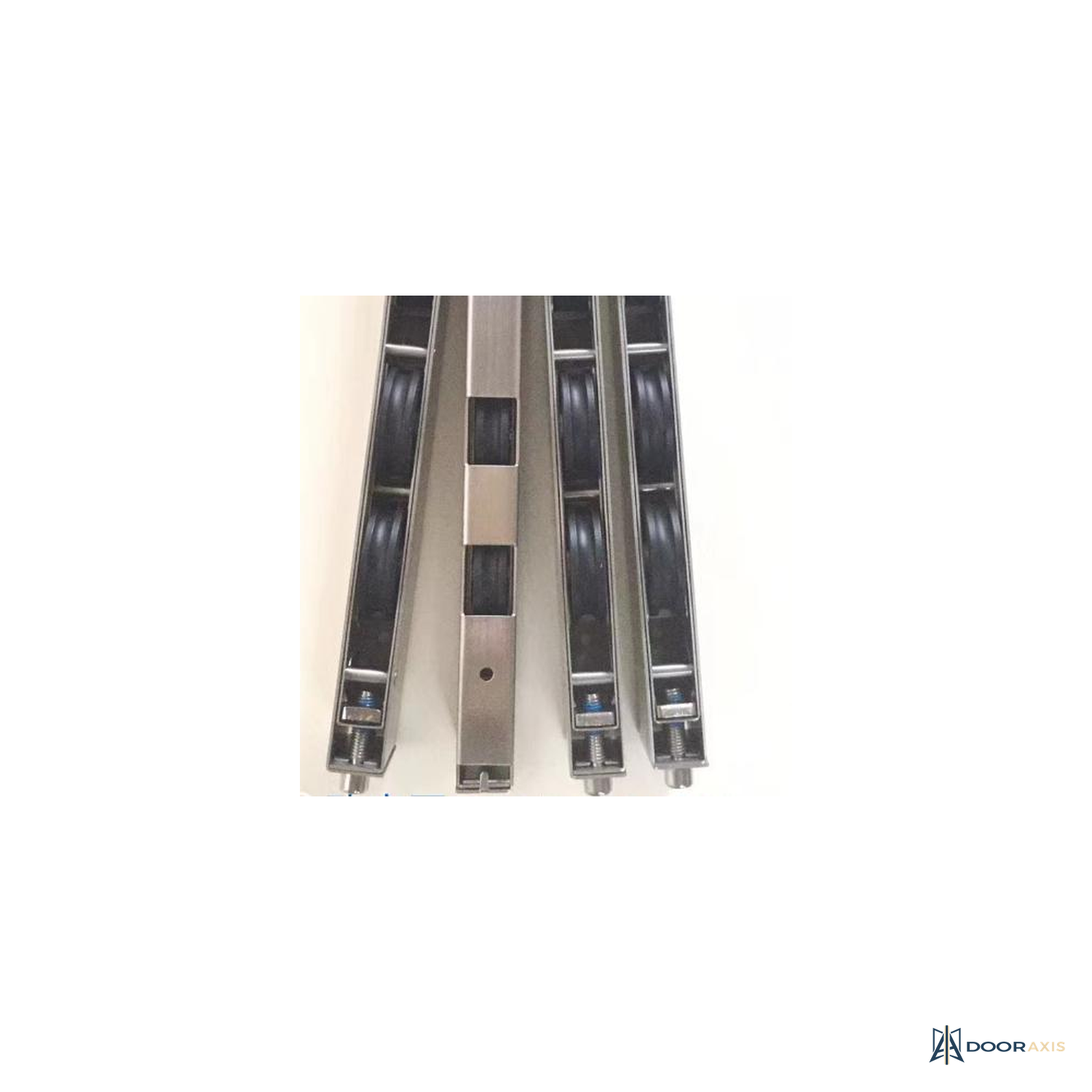

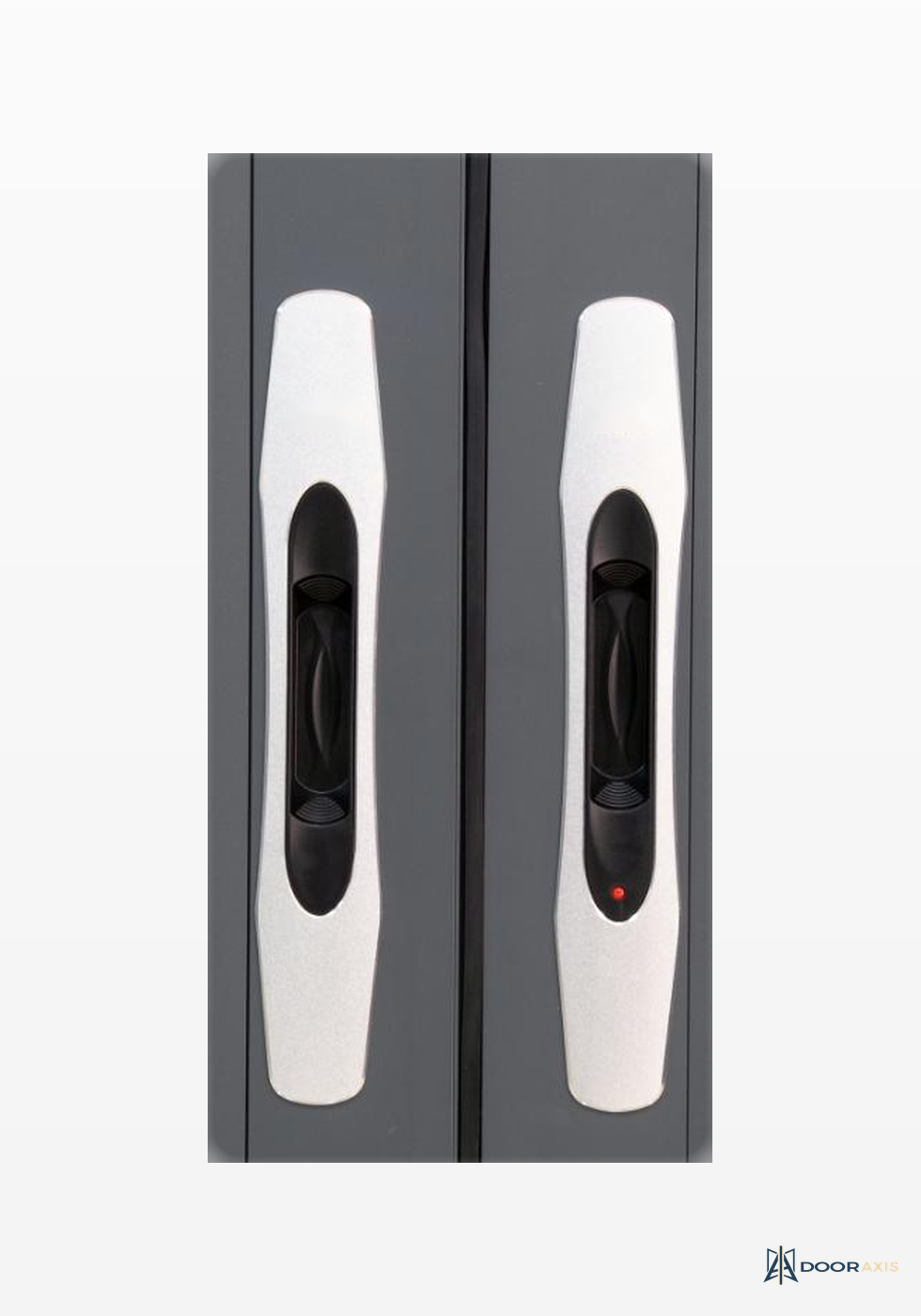

Roller bogies run four stainless wheels per unit on 21.5 x 39.5 mm wheel sets (0.85 x 1.56 in) with height adjustment for panel leveling after installation. Flush sliding locks recess into the stile with keyed and thumb turn options configured at order, and arc pull handles give a full grip without projecting into the interlock. Components are finished in stainless or Sand Black, and kits are configured per panel count during quote review.
Highlights
- Tandem stainless four wheel roller bogies, 0.85 x 1.56 in (21.5 x 39.5 mm)
- Height adjustable rollers for post installation leveling
- Flush sliding locks with keyed and thumb turn options

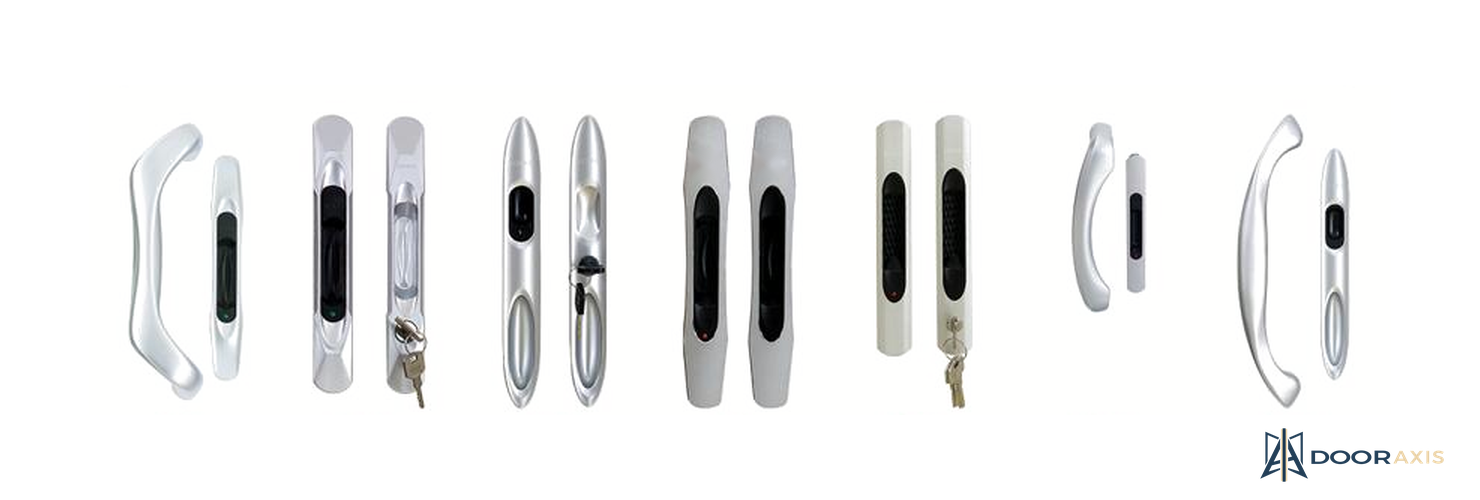

- Arc pull handles clear the panel interlock
- Stainless wear parts throughout
- Stainless or Sand Black finish to match the door run
Specification Table
| Kit scope | Rolling and locking hardware for one sliding door system |
| Rollers | Tandem stainless four wheel bogies, 0.85 x 1.56 in (21.5 x 39.5 mm), height adjustable |
| Locks | Flush sliding locks, keyed or thumb turn per order |
| Pulls | Arc pull handles, surface mounted |
| Keepers | Latch keepers and strike hardware |
| Material | Stainless steel rollers and wear parts |
| Finish options | Stainless or Sand Black |
| Compatibility | Door Axis sliding systems; other systems confirmed during quote review |
| Configuration | Roller and lock counts matched to the panel count at order |
| Kit weight | About 9.9 lb (4.5 kg) |
| Warranty | Confirmed during quote review |
Included Components
- Tandem stainless roller bogies (quantity per panel count)
- Flush sliding locks with cylinders or thumb turns per order
- Arc pull handles
- Latch keepers and strikes
- Mounting fasteners and adjustment key
Installation Notes
- Confirm panel weight, stile dimensions, and track profile before ordering so rollers and locks are matched to the system.
- Install bogies to the panel bottom rail per template, then set panels and level with the height adjusters.
- Mortise flush locks into the stile and align keepers so panels lock without lift.
- Professional installation is recommended for panels above 176 lb (80 kg).
Warranty and Support
- Warranty coverage is confirmed during quote review before release.
- Quote packages include hardware adjustment guidance and finish care notes.
Frequently Asked Questions
Will these rollers fit my existing door?
The kit is configured for Door Axis sliding systems. For other doors, share panel weight, bottom rail profile, and track dimensions during quote review and fit is confirmed before release.
Are keyed locks included?
Flush locks are configured keyed or thumb turn at order, and keyed alike sets are available on request.
Which finishes are offered?

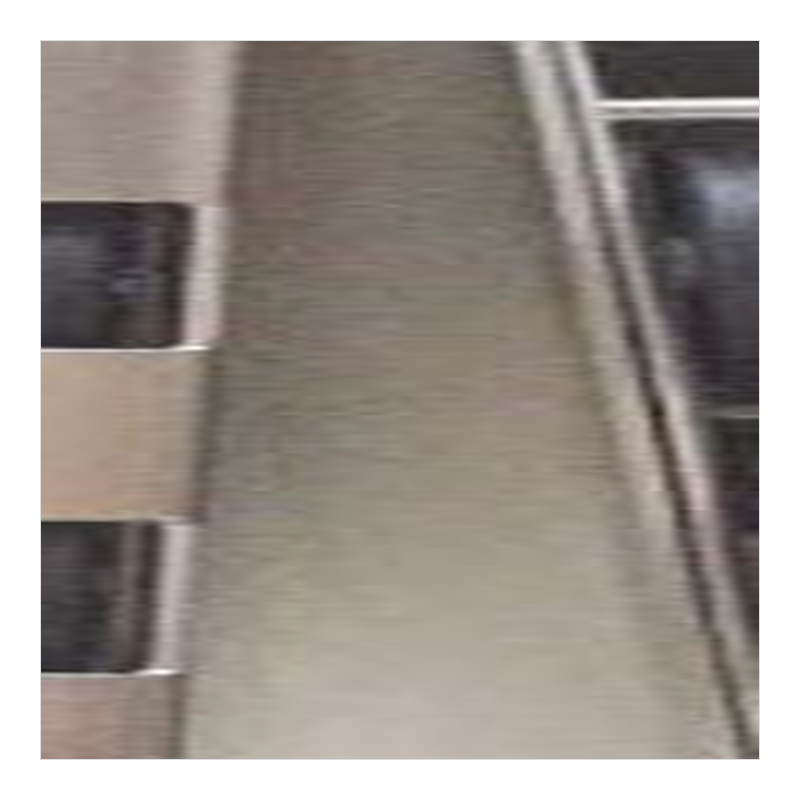

Stainless and Sand Black. Rollers stay stainless in both; the finish applies to visible lock faces and pulls.
Documents
- Type Door Hardware
- SKU DA-DR-HW-SLIDESET-SS
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
