Door Axis Square Contemporary Single Cylinder Deadbolt
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

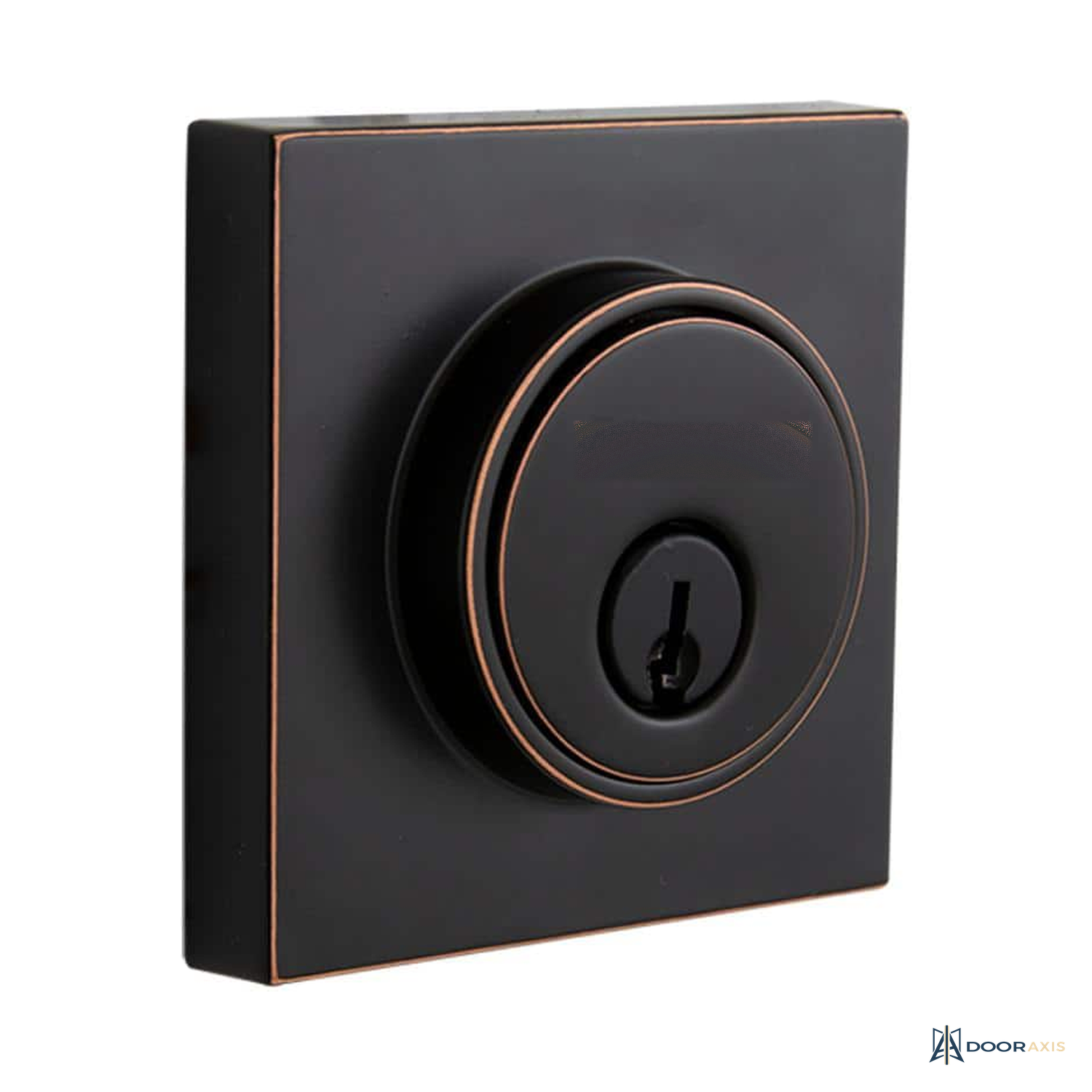

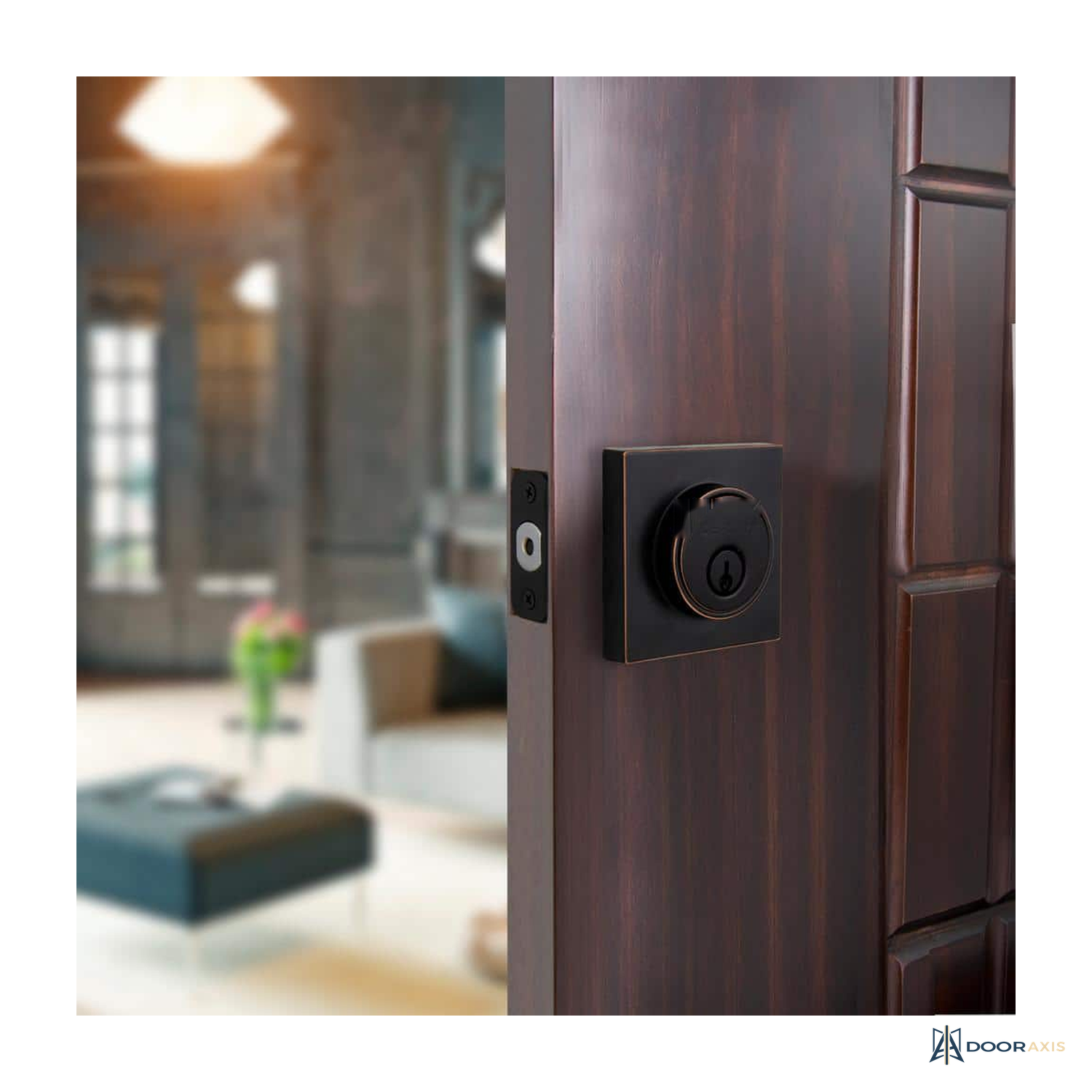

The Door Axis Square Contemporary Deadbolt is a single cylinder deadbolt with clean square trim for modern entry doors. It serves builders and remodelers running black or gold hardware schedules across a project.

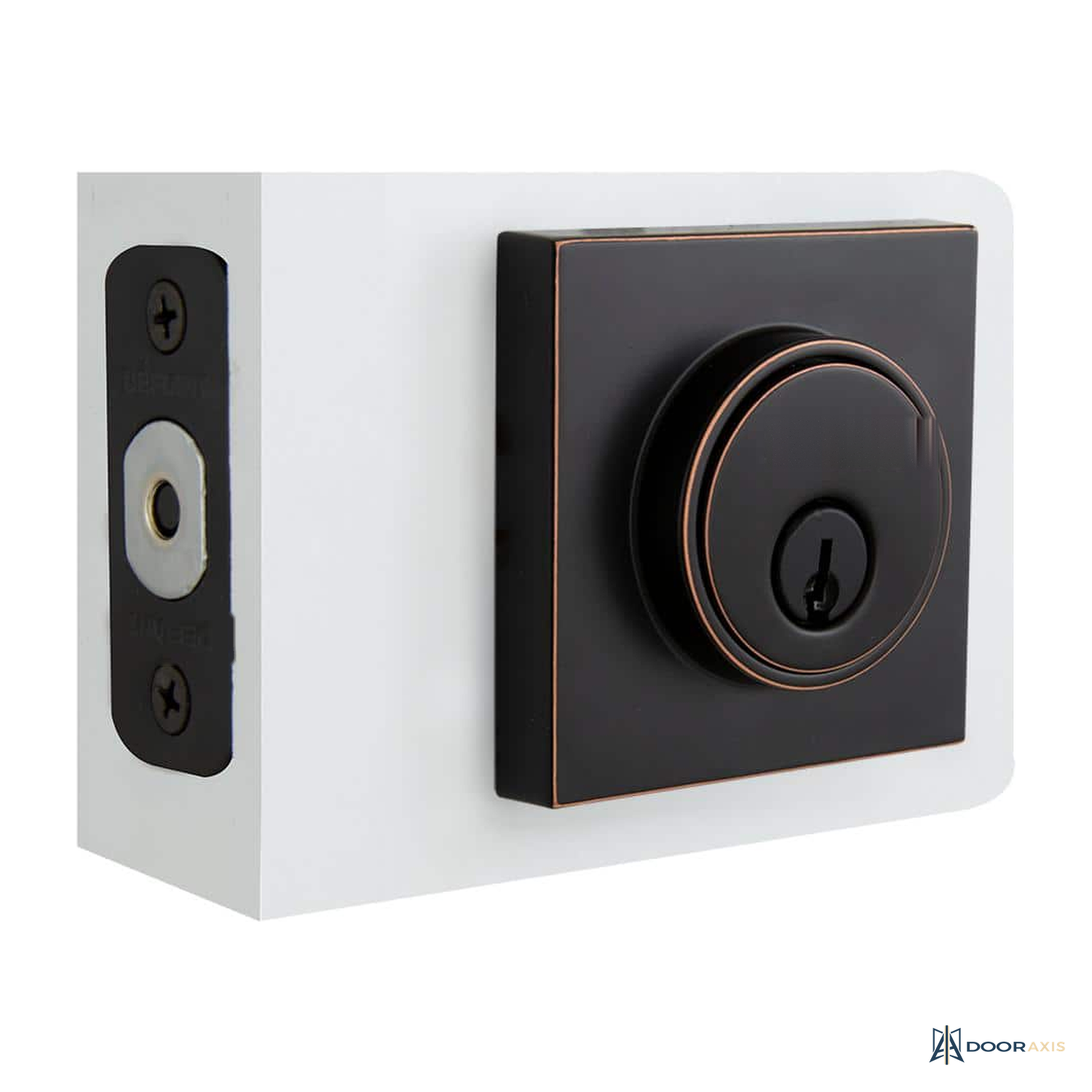

The zinc alloy lock carries an ANSI Grade 3 (Good) residential security rating and throws the bolt from a keyed exterior cylinder to an interior thumb turn. The latch seats 2-3/8 in and 2-3/4 in backsets without adjustment, the 2-1/8 in face bore drops into standard door preparations, and doors from 1-3/8 in to 1-3/4 in thick are covered. A drilling template and mounting hardware ship in the box with two keys. Offered in Matte Black and Brushed Gold; additional finishes from the product line are quoted on request.
Highlights
- ANSI Grade 3 (Good) residential security rating
- Square low-profile trim in Matte Black or Brushed Gold
- Latch fits 2-3/8 in and 2-3/4 in backsets without adjustment
- Standard 2-1/8 in bore, universal handing
- Fits 1-3/8 in to 1-3/4 in doors
- Drilling template, mounting hardware, and 2 keys included
- Limited lifetime mechanical and finish coverage
Specification Table
| Function | Single cylinder deadbolt |
| Security rating | ANSI Grade 3 (Good) |
| Trim | Square, contemporary |
| Backset | Adjustable 2-3/8 or 2-3/4 in |
| Face bore | 2-1/8 in |
| Edge bore | 1 in |
| Door thickness | 1-3/8 to 1-3/4 in |
| Handing | Universal |
| Material | Zinc alloy |
| Finishes | Matte Black, Brushed Gold |
| Keys | 2 included |
| Application | Exterior residential entry doors |
Included Components
- One single cylinder deadbolt in the selected finish
- Interior thumb turn and exterior keyed cylinder
- Strike plate and mounting hardware
- Drilling template and installation instructions
- 2 keys
Installation Notes
- Verify the existing bore is 2-1/8 in before ordering; the included template covers new preparations.
- Slide the latch to match the door backset; both 2-3/8 in and 2-3/4 in seat without tools.
- Keep the bolt path clear of the strike box; a full 1 in throw is required for the rating to hold.
- Square trim reads best aligned level with the door edge; check plumb before final tightening.
Warranty and Support
- Limited lifetime mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
Is this a single or double cylinder lock?
Single cylinder: keyed outside, thumb turn inside. Double cylinder alternatives are quoted on request.
What does the Grade 3 rating mean?
ANSI Grade 3 is the standard residential security tier, rated for typical single-family entry service. Higher-grade deadbolts are available in this catalog for harder duty.
Are other finishes available?
The product line also runs satin brass and satin nickel; these are quoted on request while Matte Black and Brushed Gold ship as standard.
Documents
- Type Deadbolt
- SKU DA-DR-HW-DBL-CONT-MB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
