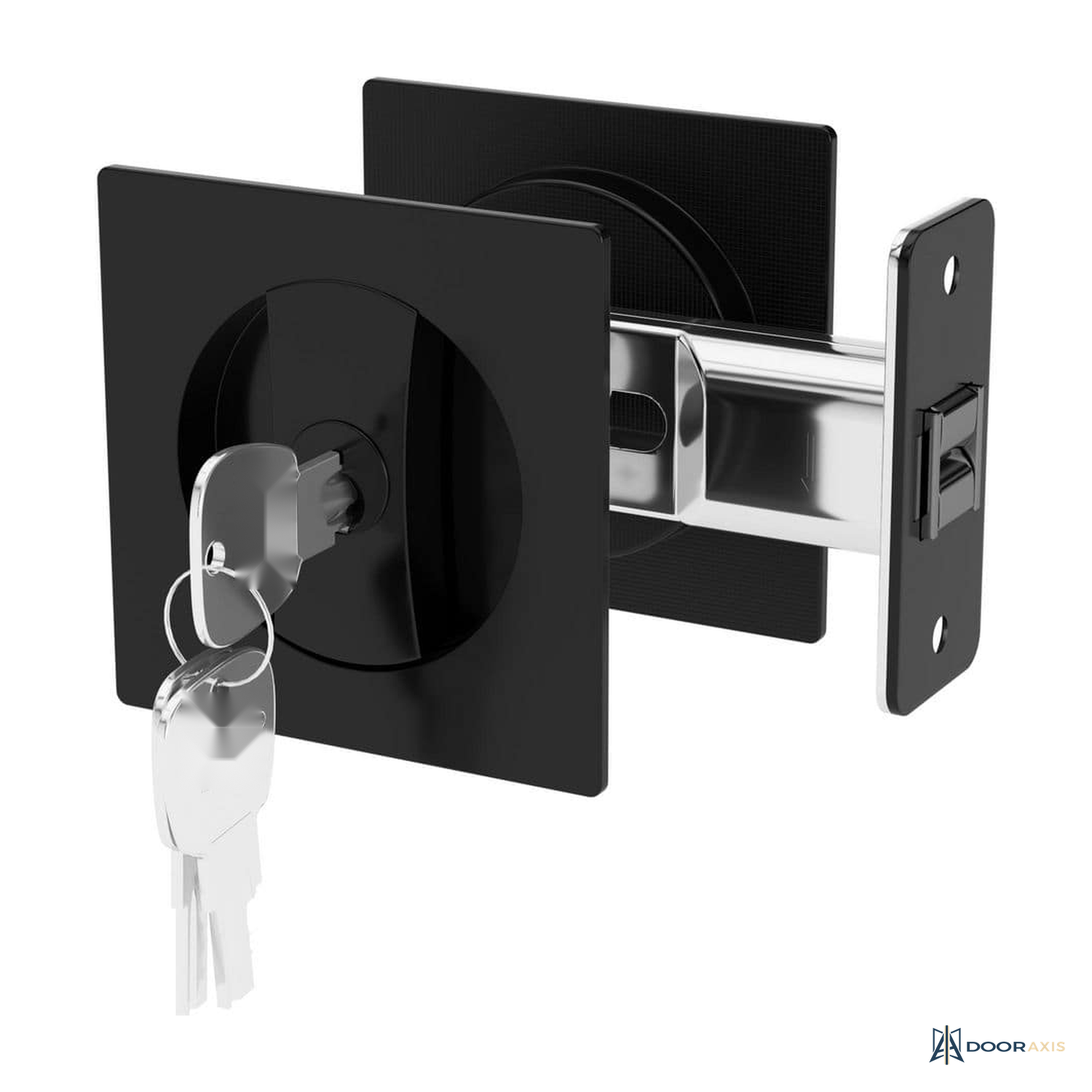

Door Axis Square Keyed Pocket Door Lock, Matte Black
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

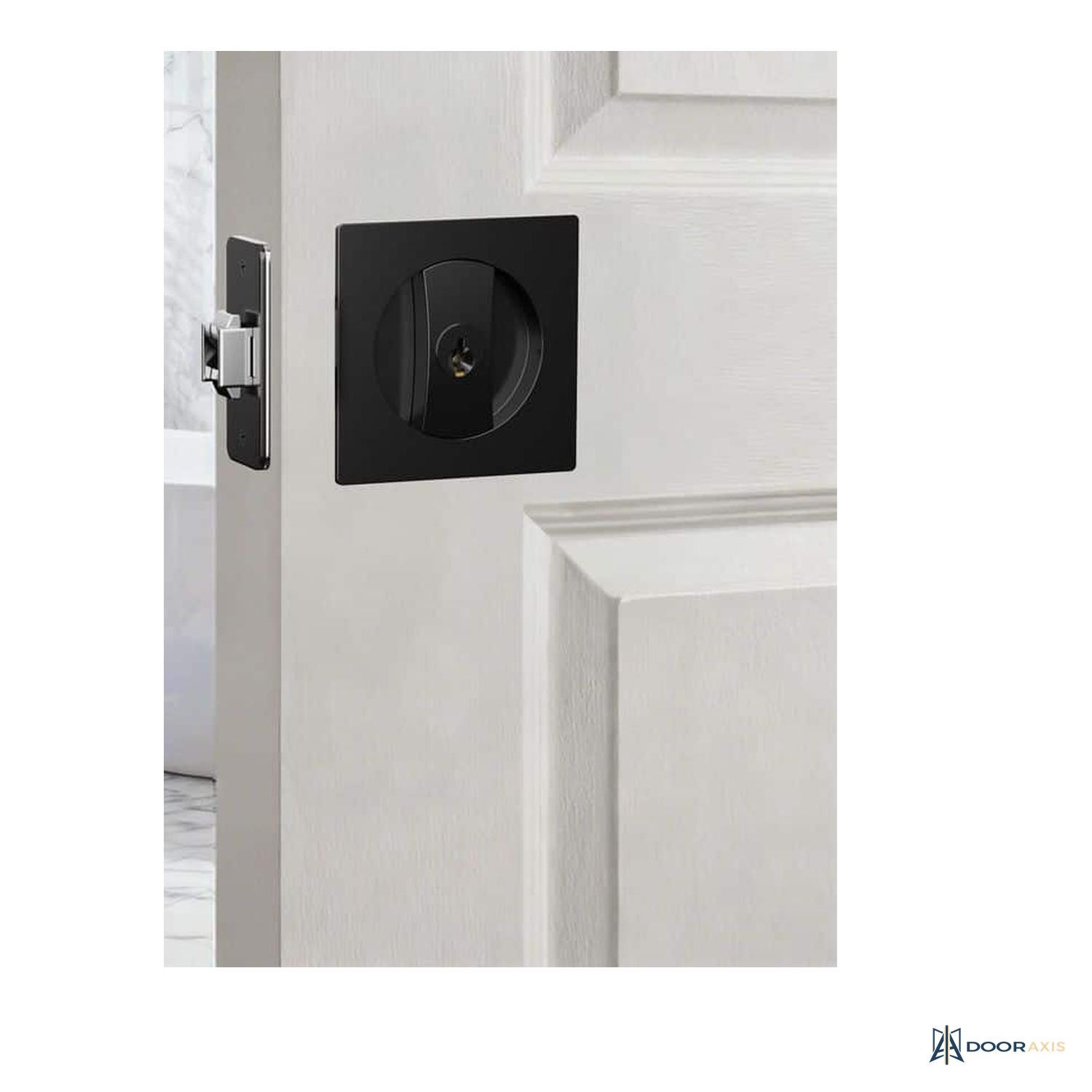

The Door Axis Square Keyed Pocket Door Lock secures a sliding pocket door with a key cylinder, covering offices, studies, and rooms that need lockout rather than simple privacy. Its square recessed face sits snug in the door panel for a modern flush look.
The zinc alloy body installs in a round cross bore with no grooving around the door edges, so the slab keeps its strength and stays true. The square recessed trim conceals the opening, the electroplated matte black surface resists corrosion, and the keyed cylinder locks the door from the outside face. It fits door thicknesses from 1-1/8 to 2 in, and a drilling template and instructions are included.
Highlights
- Keyed locking for pocket and sliding doors
- Square recessed face, modern flush profile
- Installs in a round bore, no edge grooving
- Zinc alloy body, electroplated matte black
- Fits 1-1/8 to 2 in door thickness
- Drilling template and instructions included
Specification Table
| Function | Keyed square pocket door lock |
| Lock | Keyed cylinder, keys included |
| Cross bore | 2.125 in |
| Door thickness | 1-1/8 to 2 in |
| Face | Square recessed, 2.56 in |
| Material | Zinc alloy, electroplated |
| Finish | Matte Black |
| Handing | Universal |
| Application | Interior pocket and sliding doors |
Included Components
- Keyed square pocket door lock with keys
- Drilling template
- Installation instructions
Installation Notes
- Bore per the template and test-fit the square trim before final seating.
- Keep the recessed face flush; a proud face catches the split jamb.
- Cycle the key with the door open to verify bolt throw before hanging trim.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Can it lock a bathroom door?
Yes, though for bedroom and bath privacy without key control we also quote unkeyed privacy versions.
Is a silver finish available?
The product line runs a silver version, quoted on request; matte black is stocked.
Documents
- Type Pocket Door Hardware
- SKU DA-DR-HW-PKT-SQR
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
