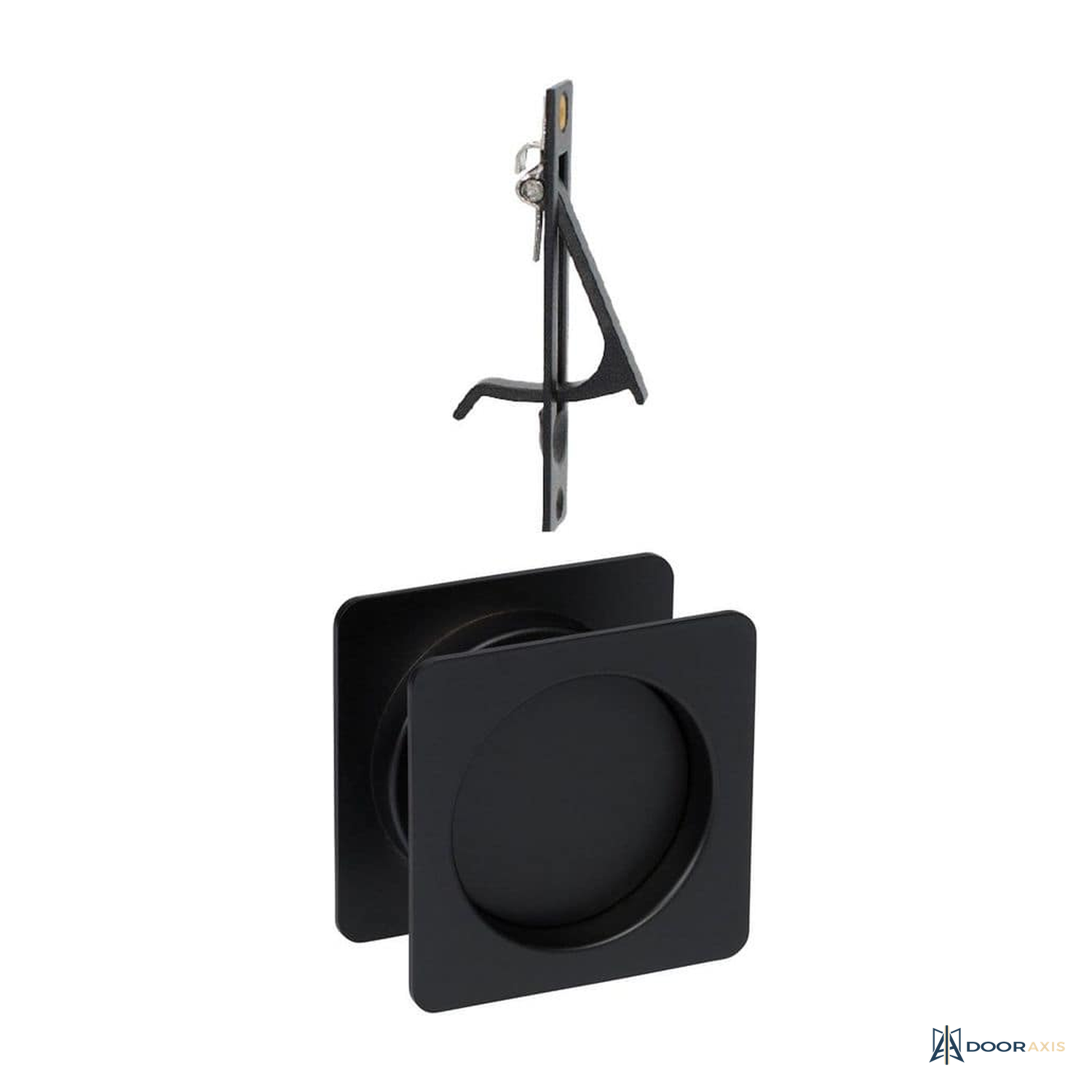

Door Axis Square Passage Pocket Door Lock, Matte Black
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Square Passage Pocket Door Lock is the pull-and-latch set for hall and closet pocket doors where no locking is needed. It matches the square matte black trim of the Door Axis keyed and privacy pocket hardware for a consistent look down a hallway.
The all-metal set installs flush in a standard 2-1/8 in cross bore with universal handing for right-hand and left-hand doors. An edge pull is included for drawing the door out of the pocket, and the flush faces keep the panel clean through the split jamb. It fits 1-3/8 to 1-3/4 in doors, and mounting hardware, a drilling template, and instructions come in the box.
Highlights
- Passage function for hall and closet pocket doors
- Square flush face, matte black finish
- Standard 2-1/8 in cross bore prep
- Edge pull included
- All-metal construction
- Universal handing
Specification Table
| Function | Passage pocket door lock, non-locking |
| Face | 2.563 x 2.063 in |
| Cross bore | 2.125 in, standard prep |
| Door thickness | 1-3/8 to 1-3/4 in |
| Mounting | Flush mount |
| Edge pull | Included |
| Handing | Universal |
| Material | Metal |
| Finish | Matte Black |
| Application | Interior pocket doors |
Included Components
- Passage pocket door lock set
- Edge pull
- Drilling template
- Mounting hardware
- Installation instructions
Installation Notes
- Use the standard 2-1/8 in cross bore; prepped slabs need no extra cutting.
- Set the flush faces square so the door clears the split jamb in both directions.
- Mount the edge pull centered on the lock stile at a comfortable reach.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Passage versus privacy: which do I need?
Passage sets like this one latch but never lock, right for halls and closets. Bedrooms and baths take a privacy set, which we quote in matching trim.
Are other finishes available?
The product line also runs polished chrome and satin nickel, quoted on request; matte black is stocked.
Documents
- Type Pocket Door Hardware
- SKU DA-DR-HW-PKT-PSG
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
