Door Axis Squeak-Free Steel Butt Door Hinge, Mortise Mount
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Door Axis Squeak-Free Steel Butt Hinge is a mortise-mount interior door hinge with a factory-lubricated knuckle that stays quiet through daily service. It serves remodelers and builders standardizing door hardware across a project in matched finishes.

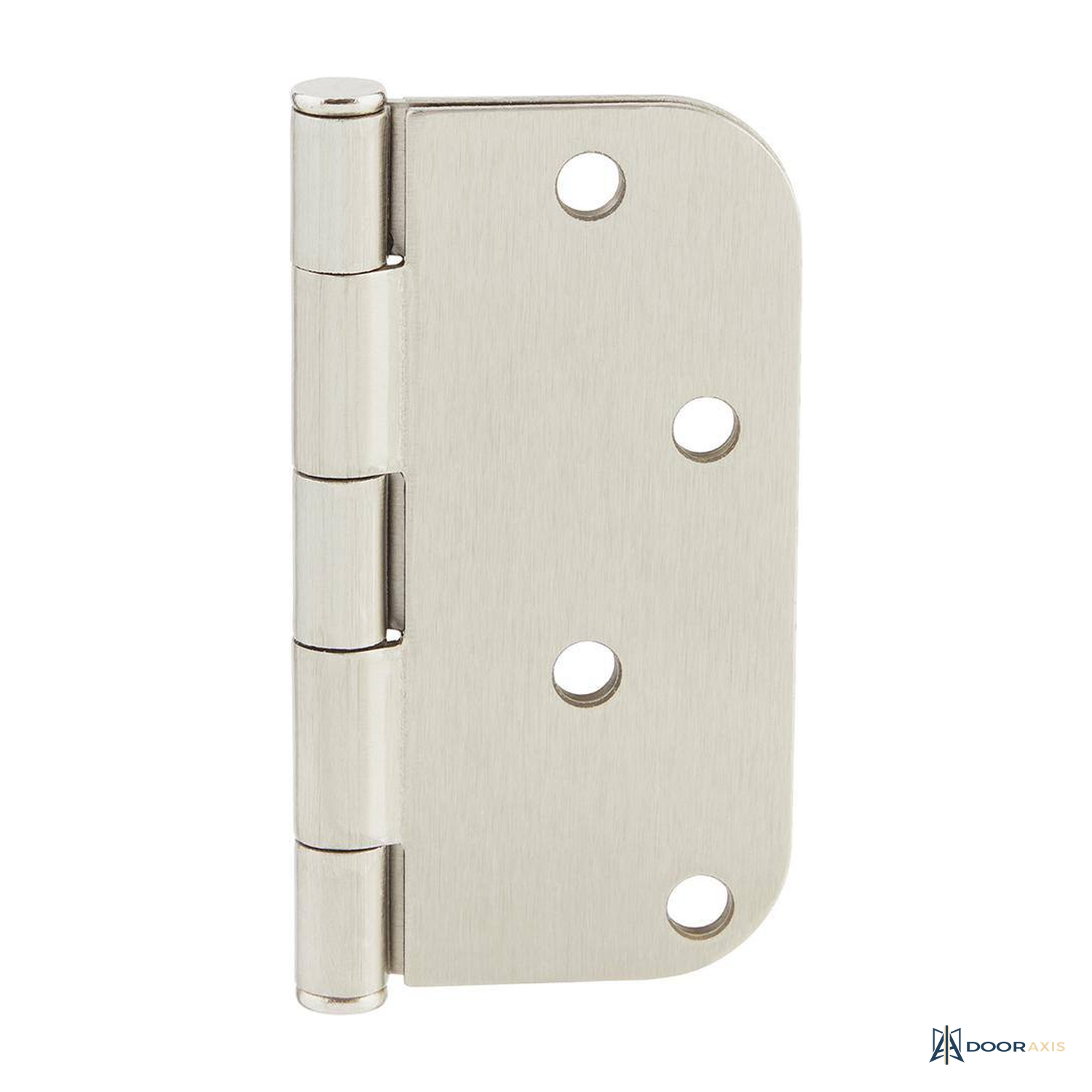

Each hinge is stamped from steel with a 5/8 in corner radius that drops into standard router-cut mortises without corner chiseling. The removable pin allows a hung door to be lifted off without unscrewing the leaves, and the zig zag hole pattern spreads fastener load across the jamb leaf. Sold per hinge in two leaf sizes and three architectural finishes; a typical 1-3/8 in interior slab hangs on three 3-1/2 in hinges, and heavier or wider slabs step up to the 4 in leaf.
Highlights
- Factory-lubricated knuckle for squeak-free swing
- 5/8 in radius corners fit standard router mortises
- Removable pin for easy door removal

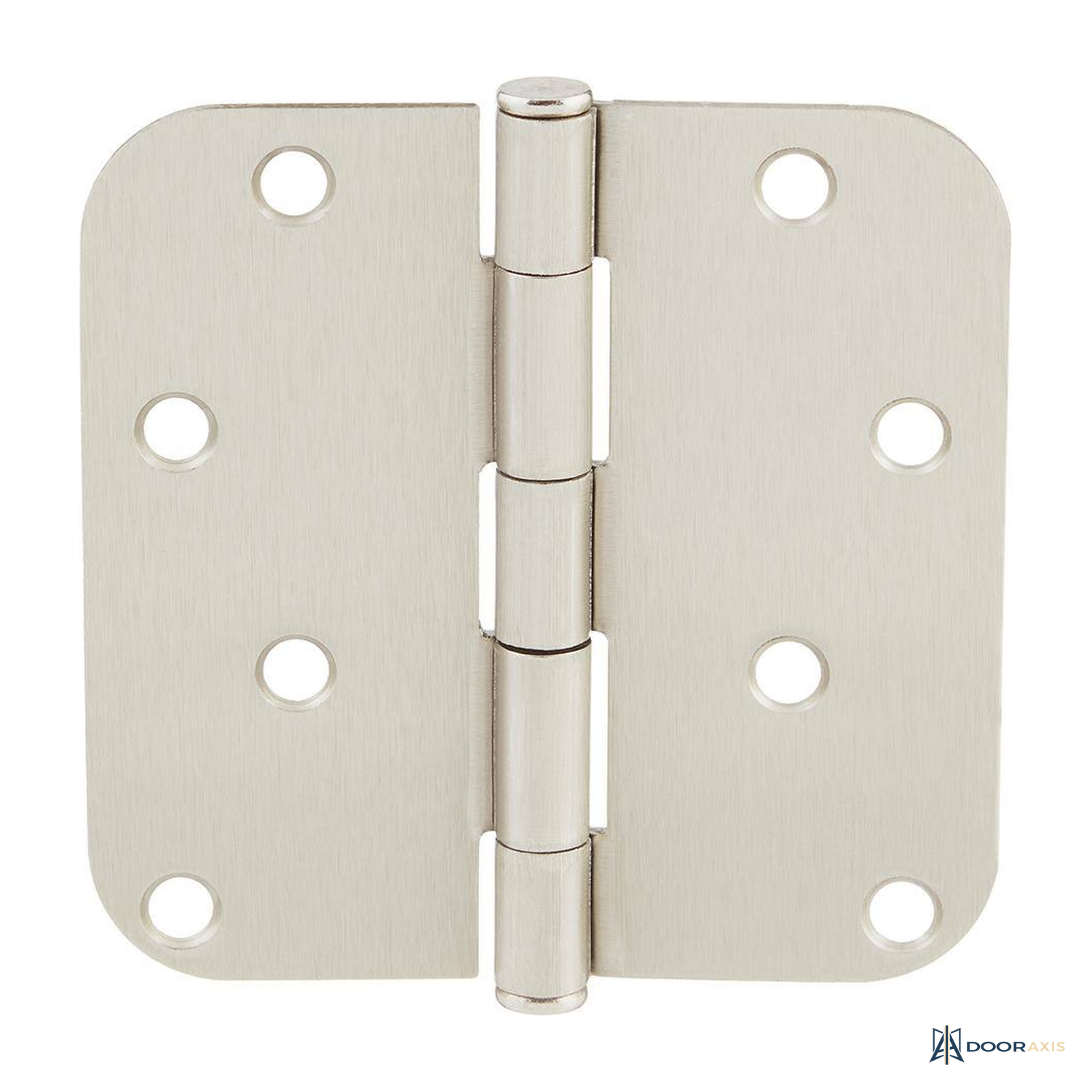

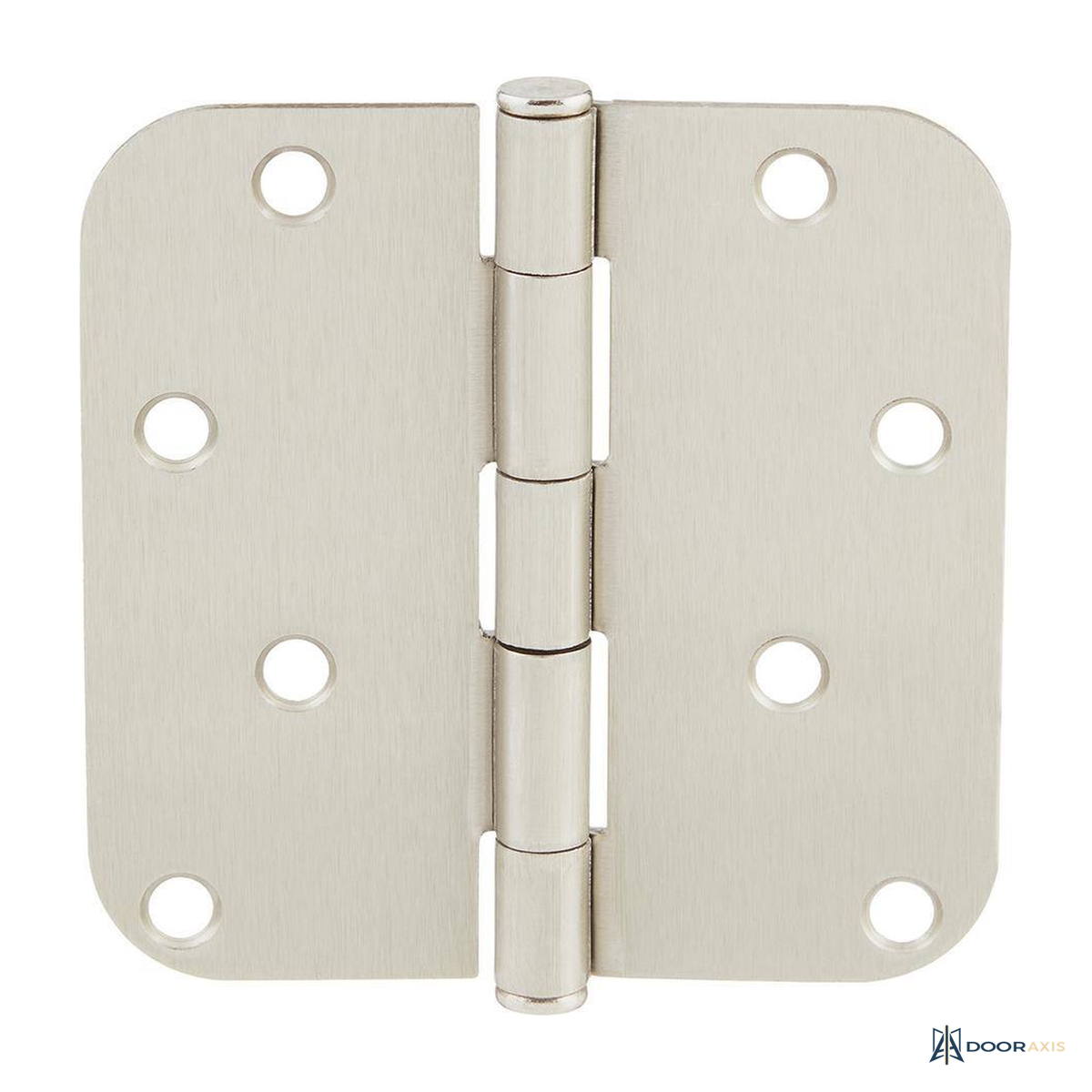

- Zig zag 8-hole screw pattern with fasteners included
- Two leaf sizes: 3-1/2 in and 4 in

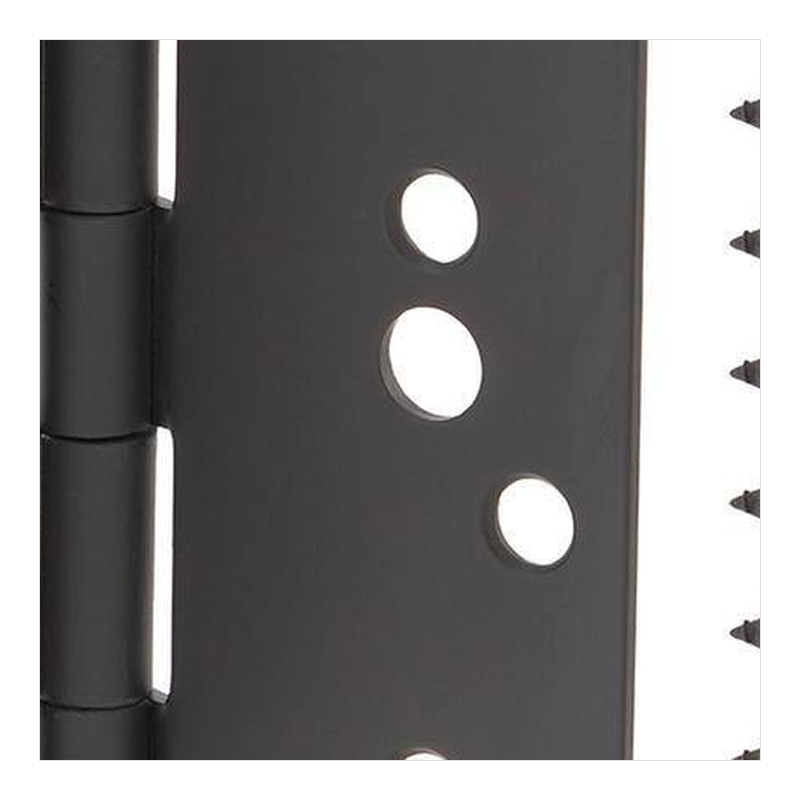

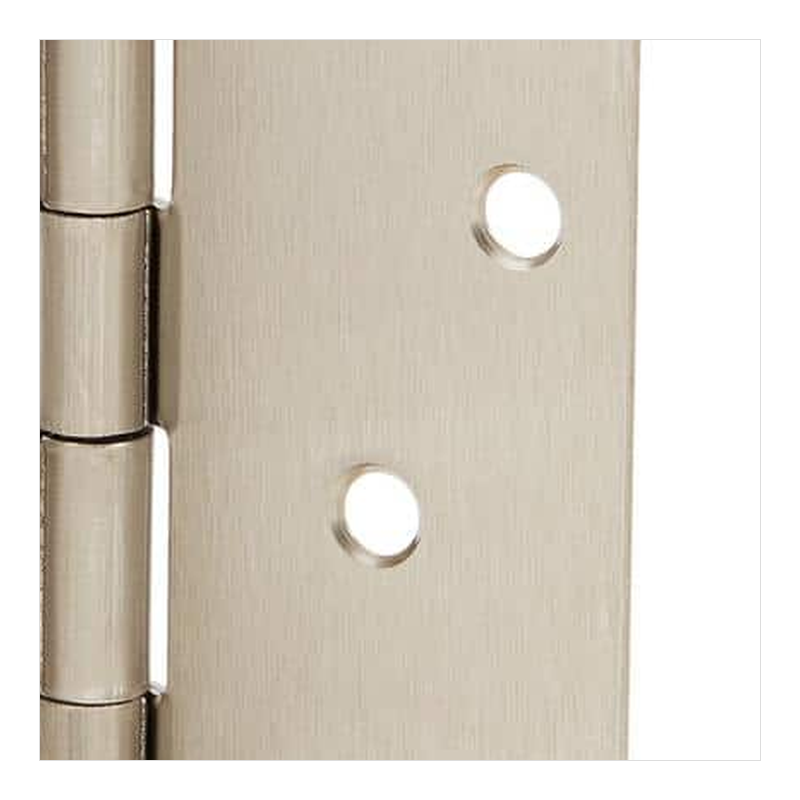

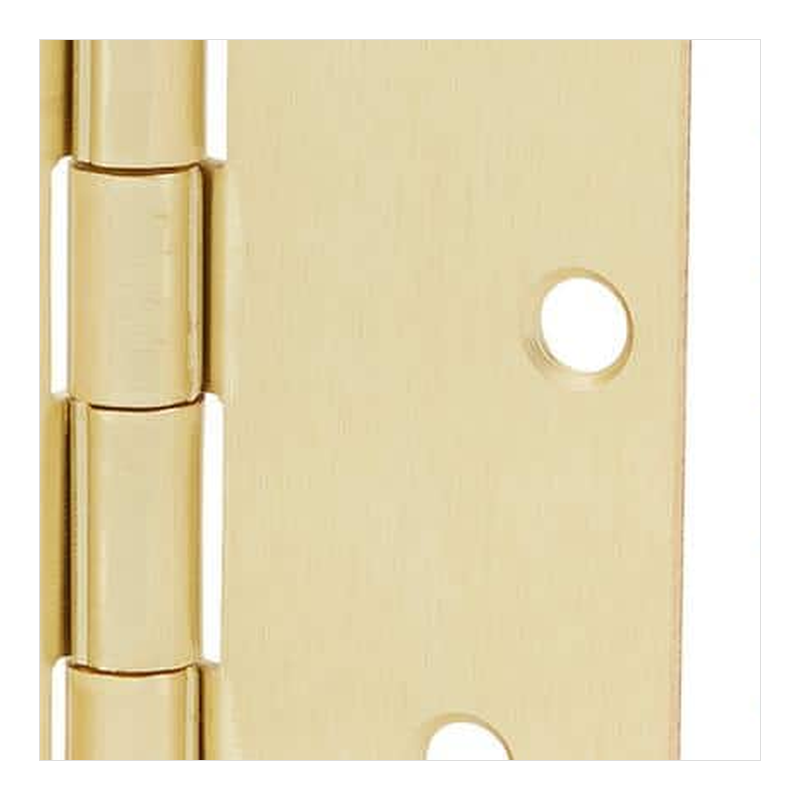

- Three matched finishes: Satin Nickel, Satin Brass, Matte Black
- Steel construction, mortise mount
Specification Table
| Function | Squeak-free butt hinge, interior |
| Leaf sizes | 3-1/2 x 3-1/2 in or 4 x 4 in |
| Corner | 5/8 in radius |
| Pin | Removable |
| Material | Steel |
| Mounting | Mortise, fasteners included |
| Hole pattern | Zig zag, 8 holes |
| Finishes | Satin Nickel, Satin Brass, Matte Black |
| Pack | Sold per hinge |
| Application | Interior residential doors |
Included Components
- One steel butt hinge in the selected size and finish
- Matching mounting screws
Installation Notes

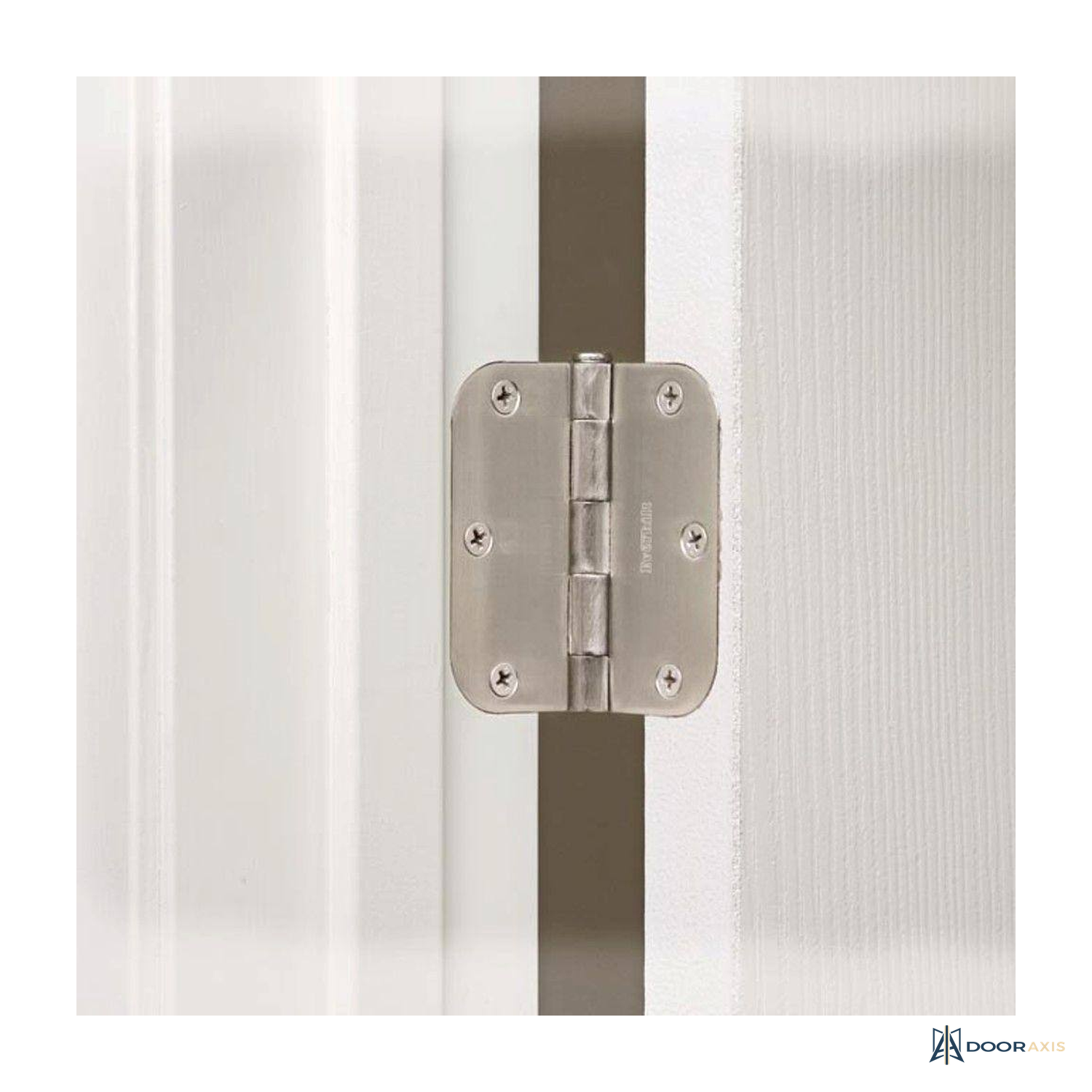

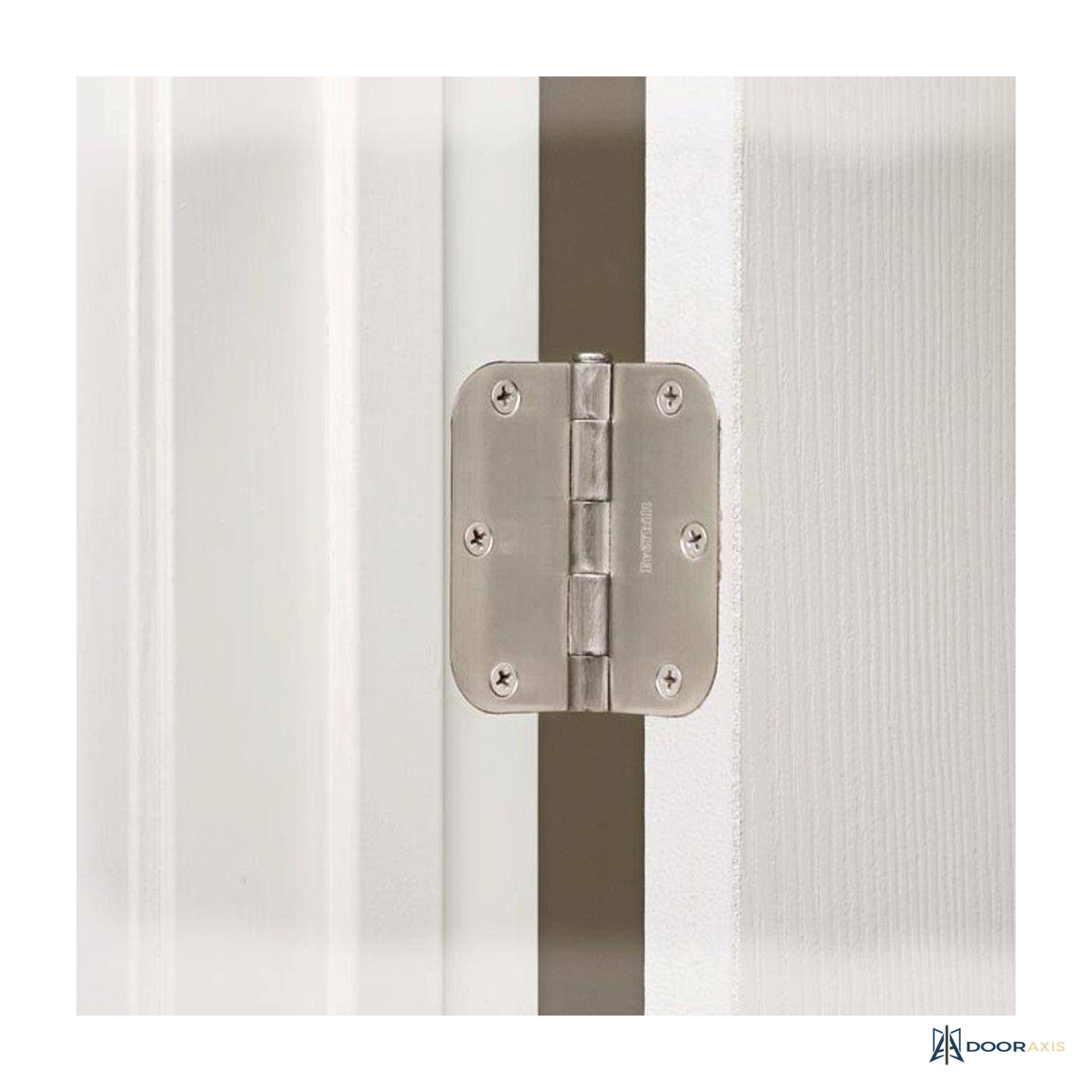

- Hang standard interior slabs on three hinges; use the 4 in leaf on wide or solid-core slabs.
- Mortise depth should seat the leaf flush; a proud leaf binds the door edge.
- Drive screws straight and snug; overdriving distorts the leaf and telegraphs squeaks.
- Match hinge size to the existing mortise when replacing hardware one-for-one.
Warranty and Support
- Finish and mechanical coverage confirmed during quote review.
Frequently Asked Questions
How many hinges does one door need?
Three per standard interior slab. Doors over 90 in tall or unusually heavy take four; confirm counts during quote review.
Will the radius corners fit my existing mortise?
The 5/8 in radius matches the most common router-cut residential mortise. Square-cut mortises accept radius hinges with minor corner gaps, or we quote square-corner alternatives.
Can I mix sizes on one order?
Yes. Size and finish are selected per line item, and project quantities are consolidated during quote review.
Documents
- Type Door Hinge
- SKU DA-DR-HW-HNG-SQF-35-SN
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
