Door Axis Stainless Steel Square Floor Door Stop, Satin Brass, 10-Pack
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

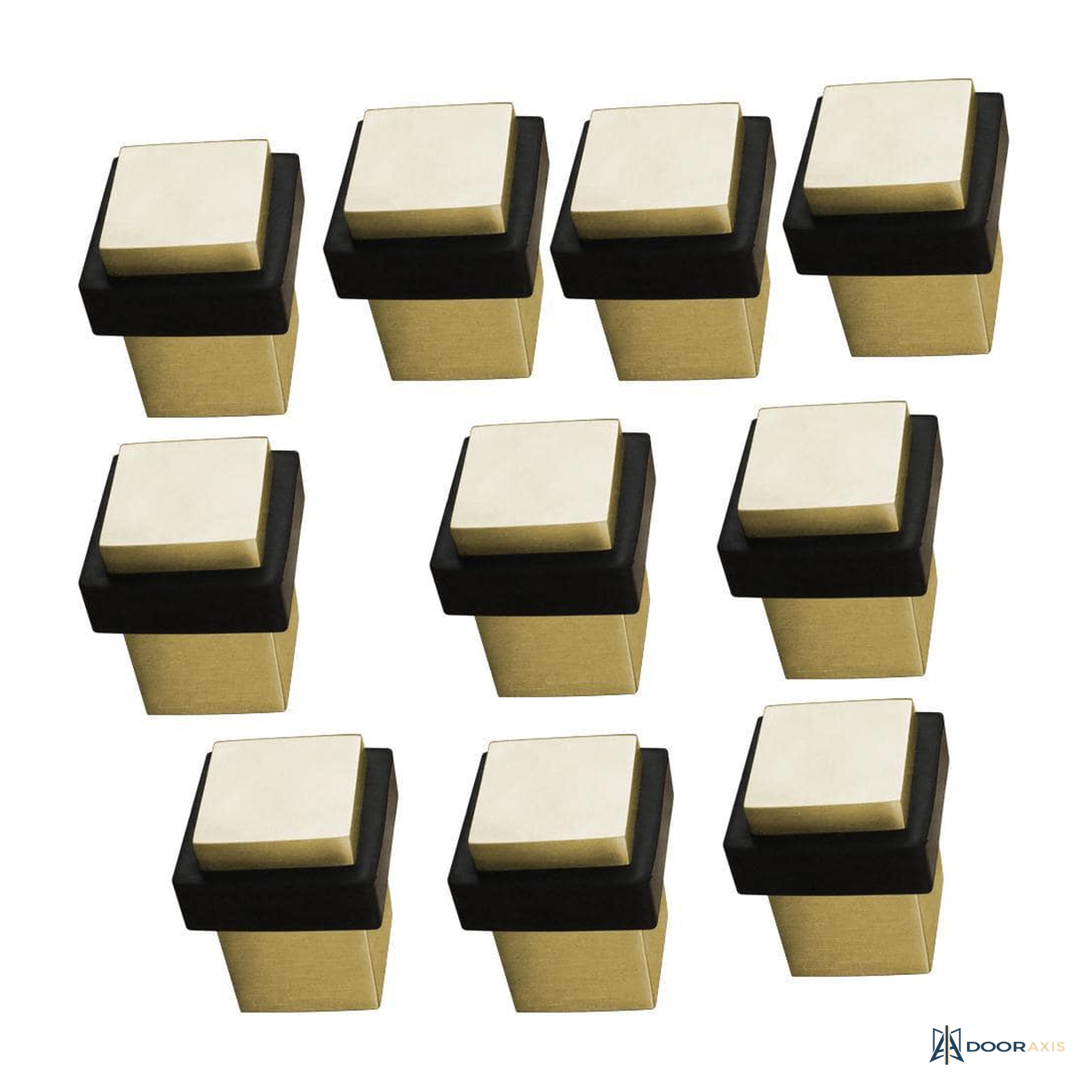

The Door Axis Stainless Steel Floor Door Stop 10-Pack outfits a whole project with low-profile, square-edged floor stops in a warm satin brass tone. It serves multifamily and boutique commercial jobs standardizing door hardware in brass.

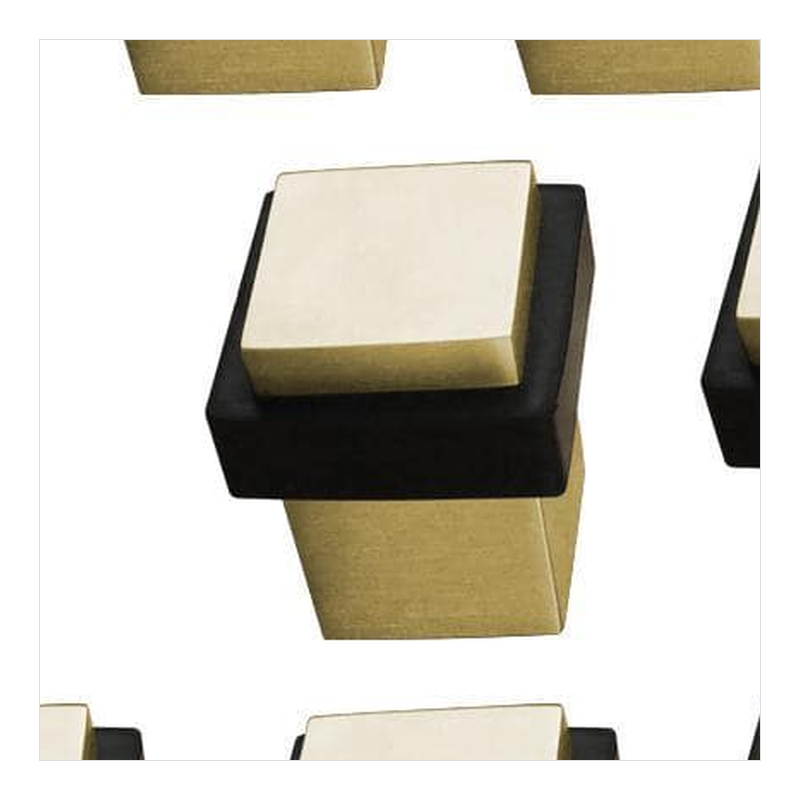

Each stop is machined from stainless steel and PVD coated in satin brass, a physical vapor deposition process that bonds the color into a wear layer harder than conventional plating. The body stands 1-9/16 in tall by 1-1/4 in across with a rubber tip to take the door strike, and each unit floor-mounts through an anchor with stainless steel fasteners. Rated for residential and light commercial doors.
Highlights
- 10-Pack project quantity
- Stainless steel body, satin brass PVD coating
- PVD color layer outwears conventional plating
- 1-9/16 in tall, 1-1/4 in body
- Rubber tip cushions the door strike
- Floor mount with anchors and stainless steel fasteners
Specification Table
| Function | Floor bumper door stop |
| Height | 1-9/16 in |
| Body | 1-1/4 in |
| Material | Stainless steel, PVD coated |
| Finish | Satin Brass |
| Tip | Rubber |
| Mounting | Floor mount, anchors and fasteners included |
| Pack | 10 stops |
| Application | Residential and light commercial |
Included Components
- Ten stainless steel floor door stops
- Floor anchors and stainless steel fasteners
Installation Notes

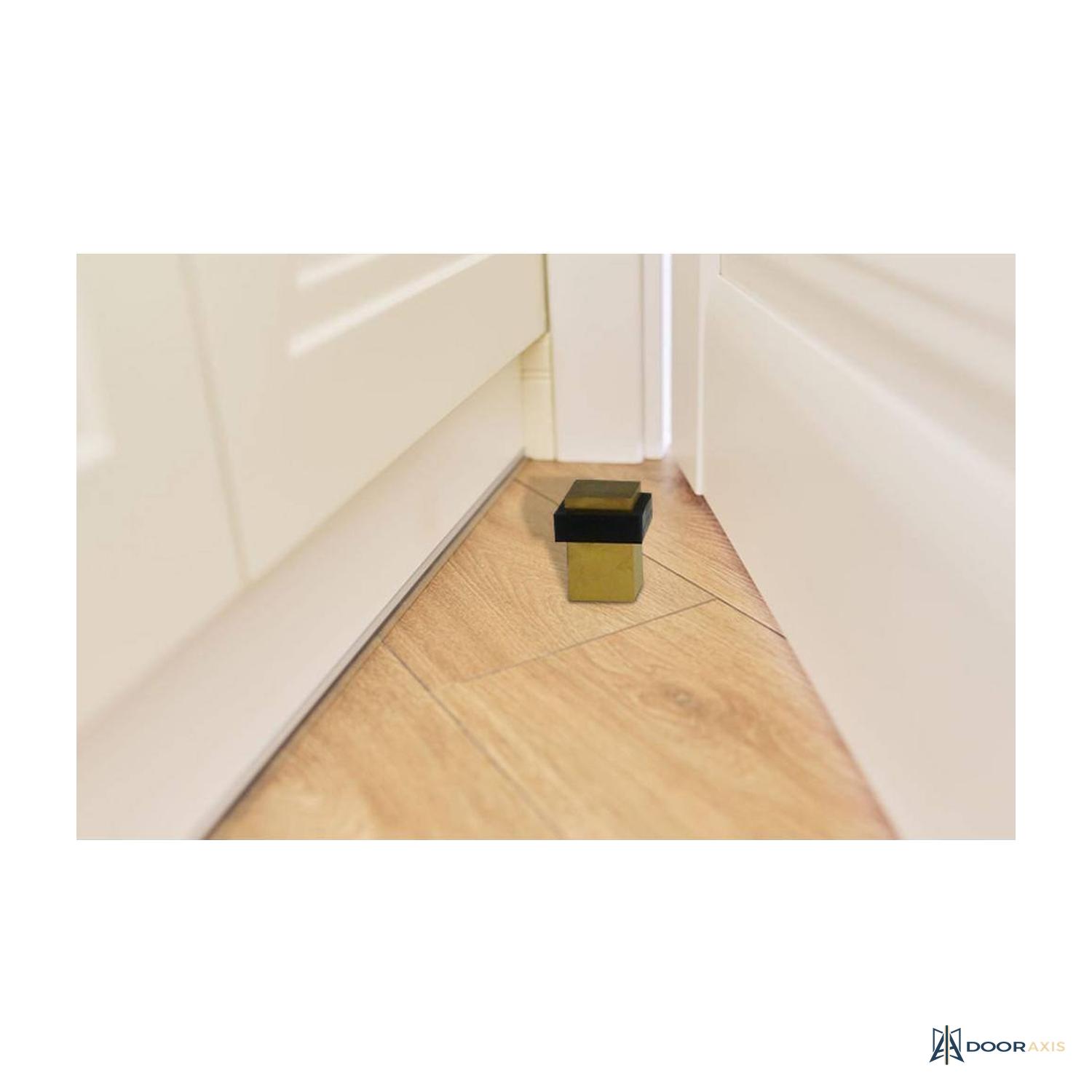

- Locate each stop so the rubber tip meets the door at the lock stile.
- Use a masonry bit and the supplied anchors on concrete; drive straight into wood subfloors.
- Snug the fasteners; overtightening can distort the tip seat.
Warranty and Support
- Coverage confirmed during quote review.
Frequently Asked Questions
Is the finish solid brass?
The body is stainless steel with a satin brass PVD coating. The PVD layer carries the brass tone with better wear and corrosion resistance than plated brass.
Are other finishes available?
The product line also runs graphite black, oil rubbed bronze, polished stainless, and satin stainless. Additional finishes are quoted on request.
Documents
- Type Door Stop
- SKU DA-DR-HW-STP-FLR10
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
