Door Axis Straight Privacy Door Lever Project Packs
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Door Axis Straight Privacy Lever Project Packs bundle matched bed and bath levers for multi-door jobs: eight round-rose sets in satin nickel or four square-rose sets in brushed gold. They serve builders running one lever profile down an entire floor.

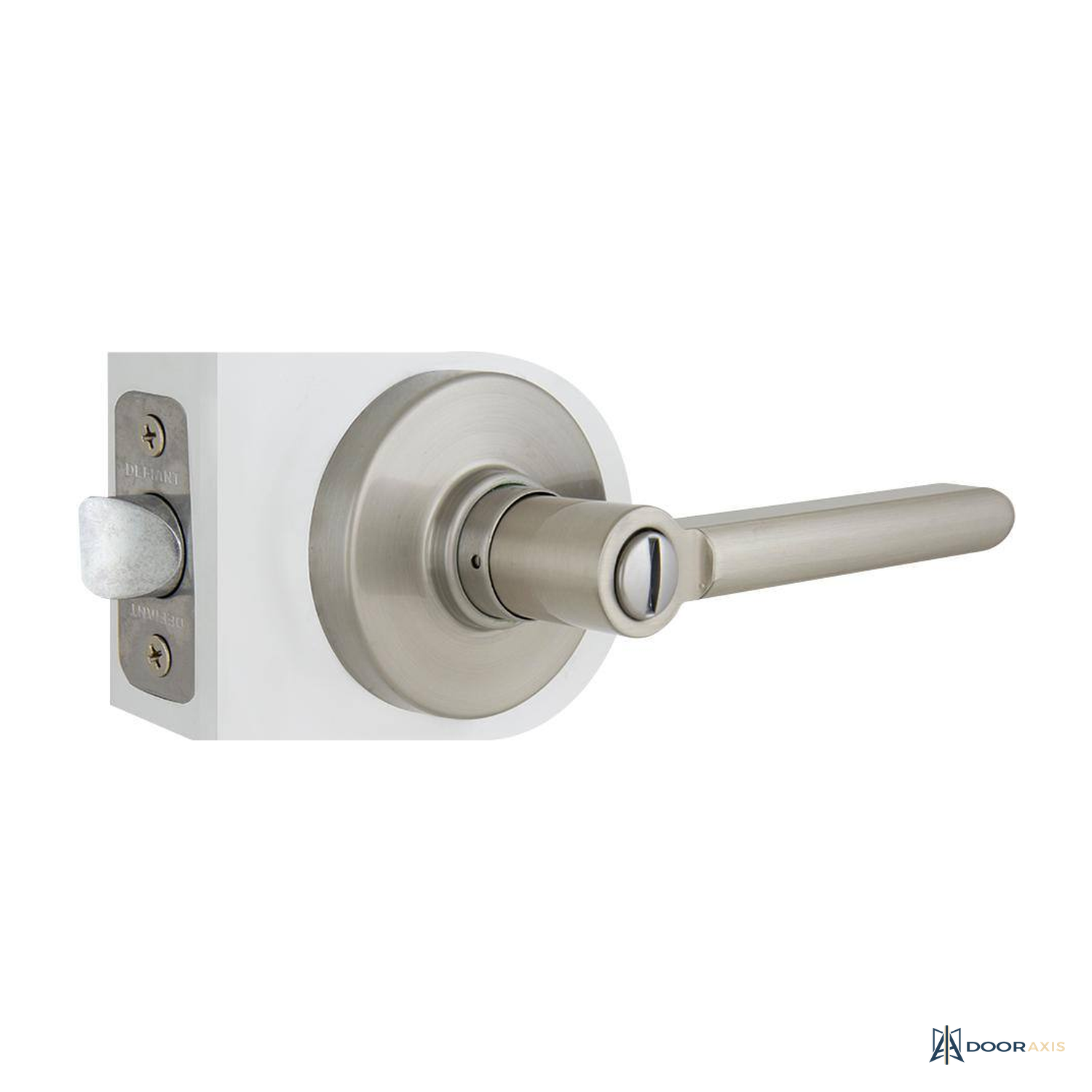

Both configurations carry the same straight zinc alloy lever with an ANSI Grade 3 (Good) rating and universal handing. The latch seats 2-3/8 in and 2-3/4 in backsets without adjustment and ships with a radius faceplate that converts to drive-in style. The 8-Pack pairs a round rose with satin nickel for classic schedules; the 4-Pack pairs a square rose with brushed gold for modern ones. Every set includes the drilling template and hardware for a screwdriver installation.
Highlights
- Privacy function for bedrooms and bathrooms
- ANSI Grade 3 (Good) rated

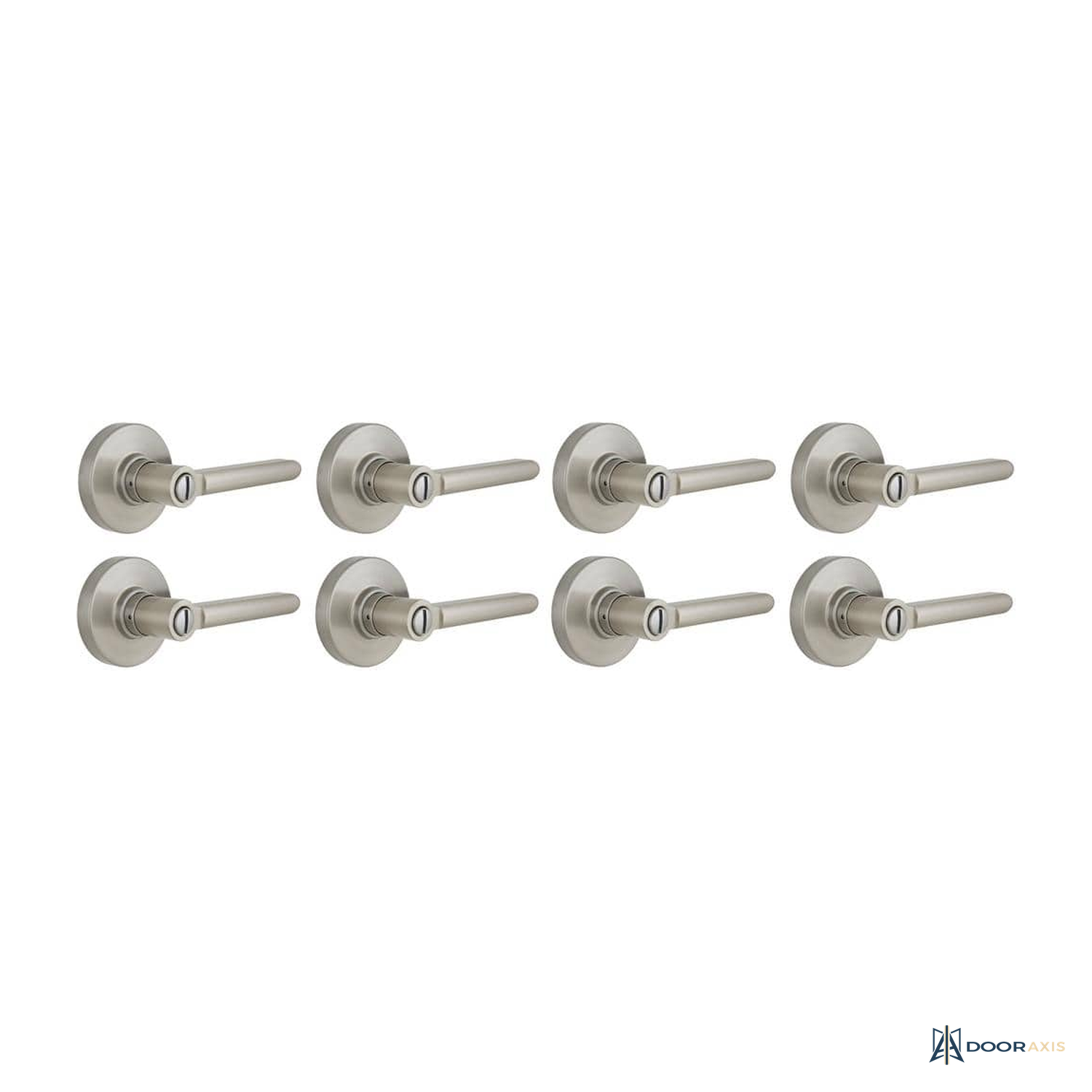

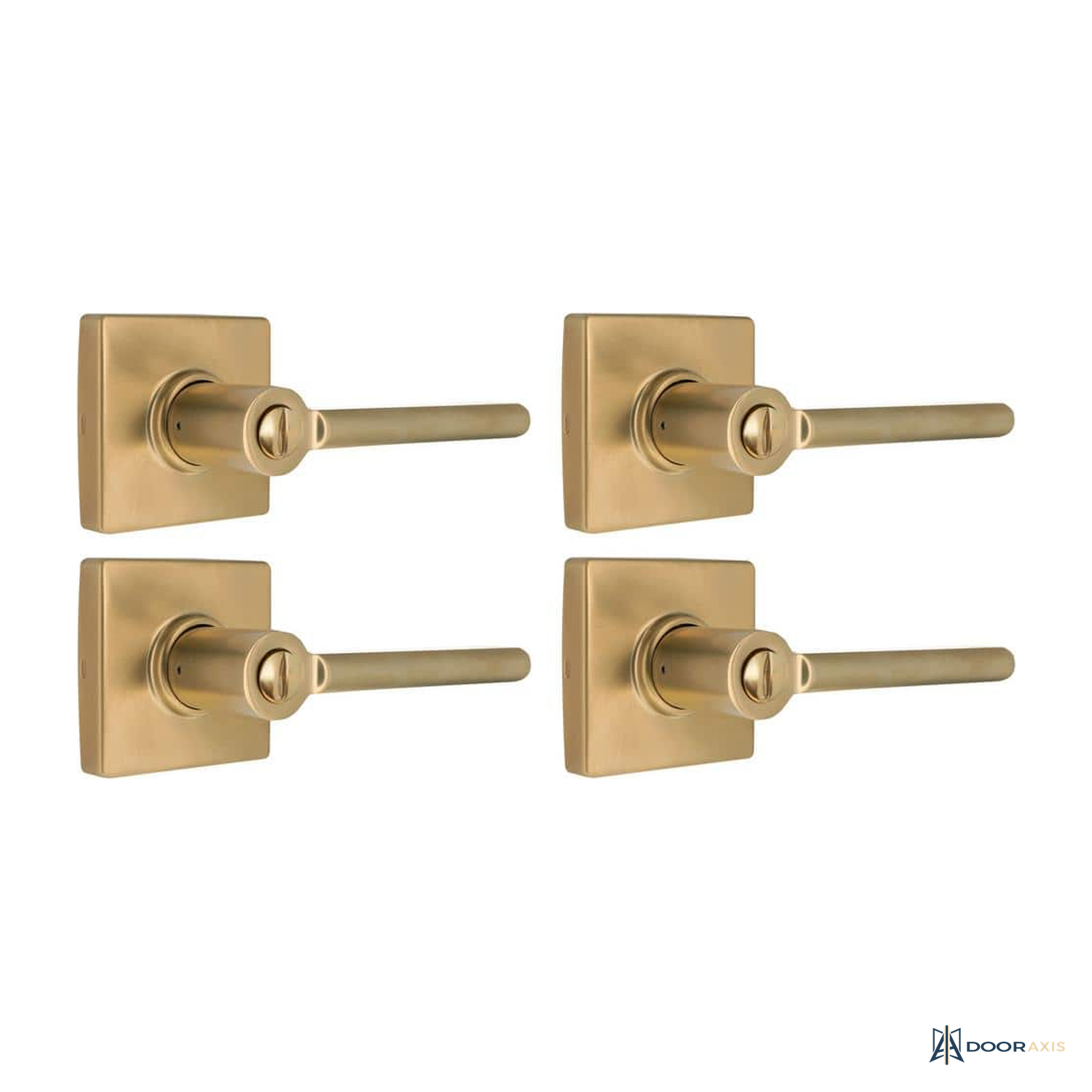

- Round Rose 8-Pack in Satin Nickel; Square Rose 4-Pack in Brushed Gold
- Dual backset latch, radius or drive-in faceplate
- Universal handing, screwdriver installation
- Finish-matched sets from a single run
Specification Table
| Function | Privacy, bed and bath |
| Security rating | ANSI Grade 3 (Good) |
| Lever style | Straight |
| Configurations | Round Rose 8-Pack Satin Nickel; Square Rose 4-Pack Brushed Gold |
| Backset | 2-3/8 or 2-3/4 in, dual latch |
| Latch | Radius faceplate, drive-in convertible |
| Material | Zinc alloy |
| Handing | Universal |
| Application | Interior residential doors |
Included Components
- Complete lever sets per selected pack: levers, latch, strike, hardware
- Drilling template and installation instructions per set
Installation Notes
- One set covers one door; size the pack to the door count and mix packs across a quote as needed.
- The dual latch seats either standard backset as-is; convert the faceplate to drive-in where the edge prep requires it.
- Keep packs floor-matched so finish reads uniform along a corridor.
Warranty and Support
- Limited lifetime mechanical coverage, confirmed during quote review.
Frequently Asked Questions
Can I get the round rose in brushed gold or the square in nickel?
The stocked packs pair round with satin nickel and square with brushed gold, matching how the product line runs. Other rose and finish pairings are quoted on request.
Are other pack sizes available?
The product line runs singles and 10 and 12 packs; volumes beyond the stocked packs are quoted on request.
Do these come in passage or keyed versions?
The same lever family runs hall and closet, dummy, and keyed entry functions, quoted on request.
Documents
- Type Door Lever
- SKU DA-DR-HW-LVR-TB-R8-SN
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
