Door Axis Wave Door Lever, Classic Brass and Bronze Interior Set
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

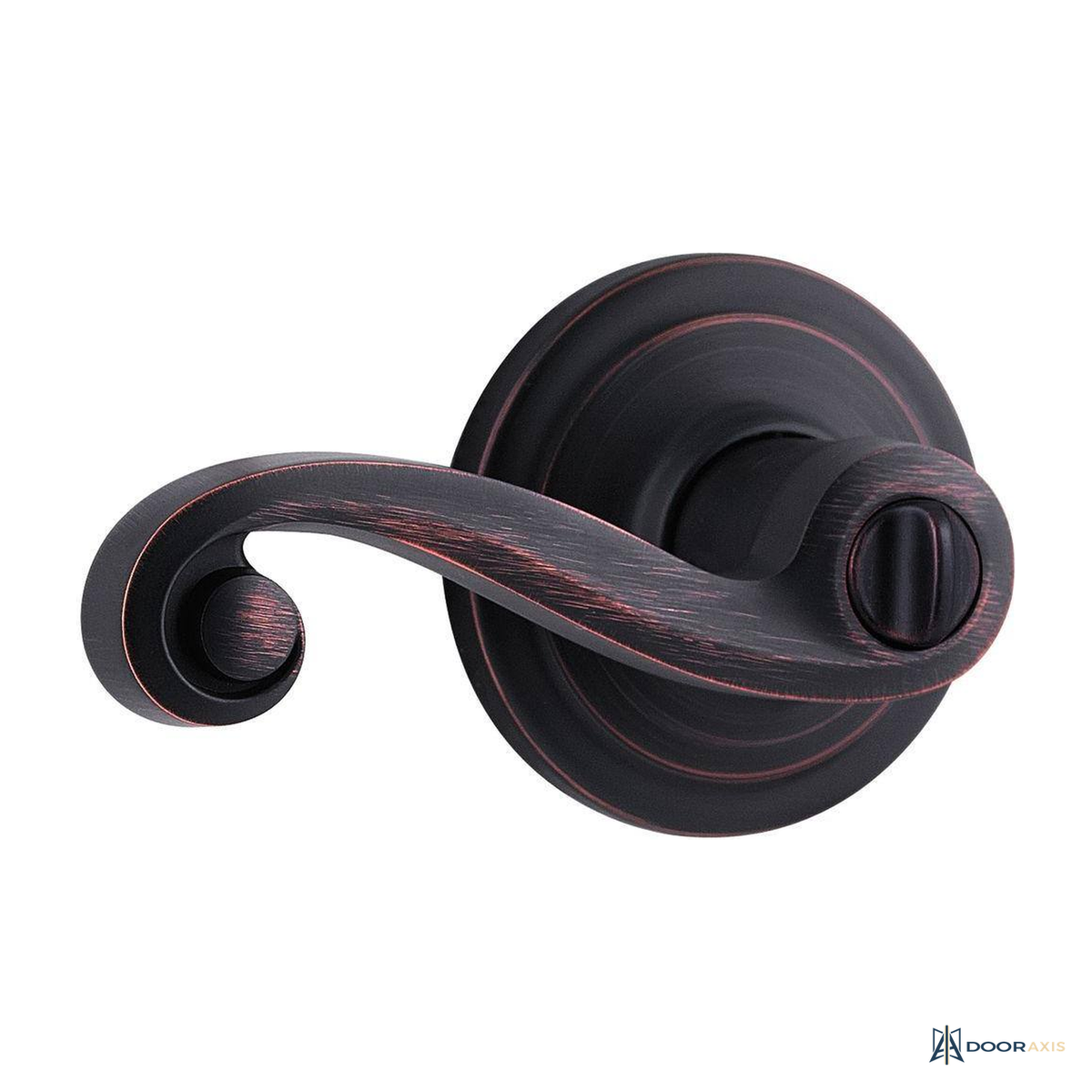

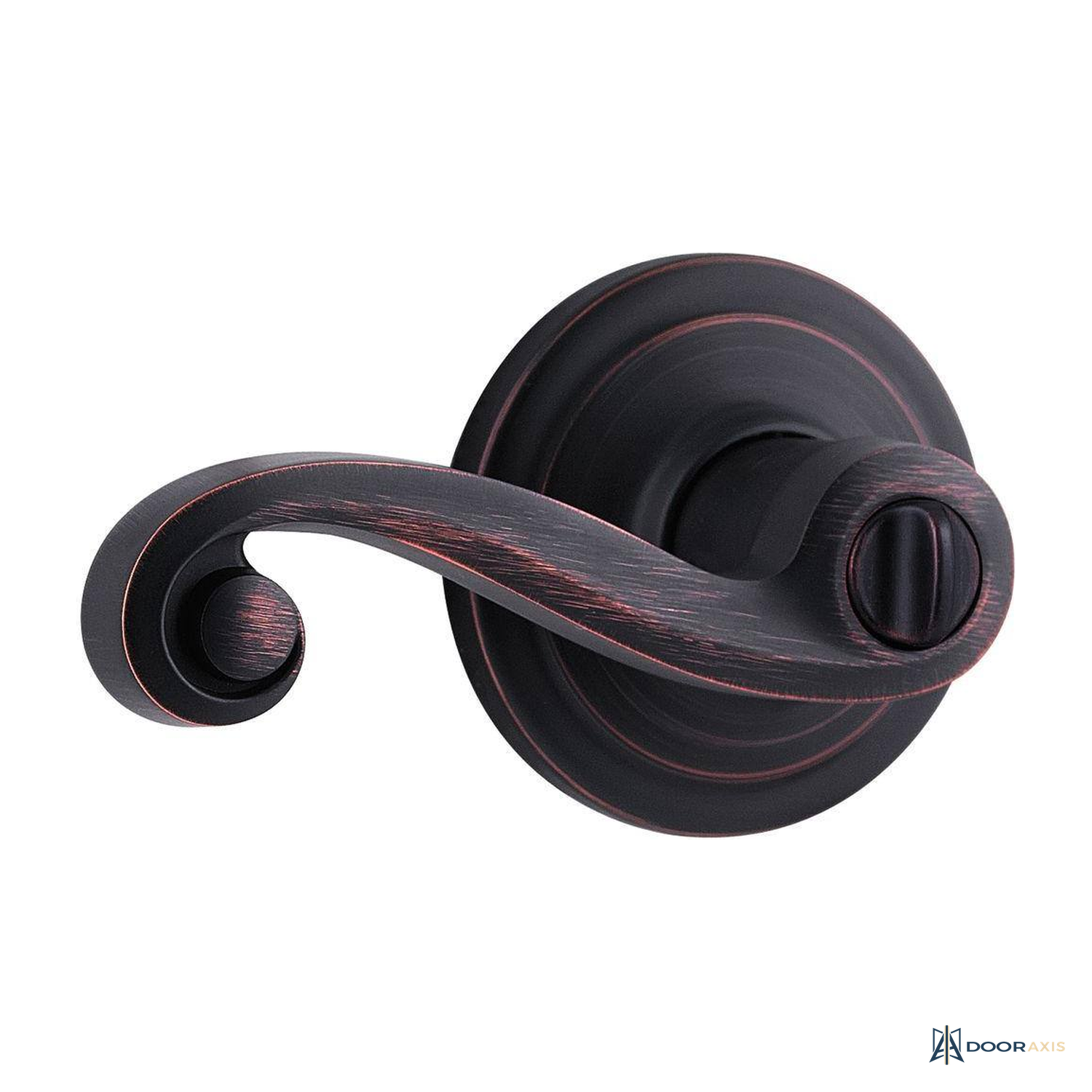

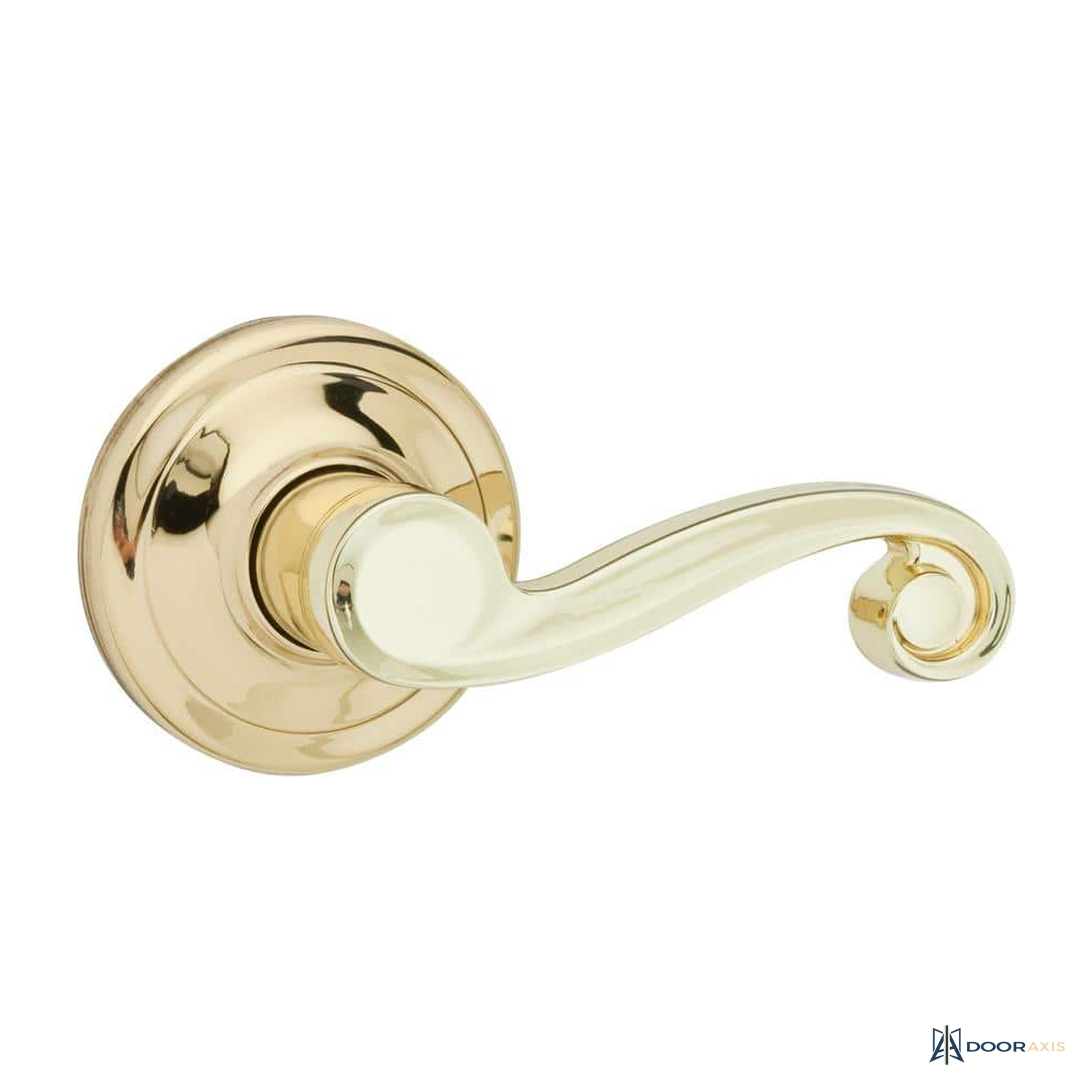

The Door Axis Wave Lever is a classic curved-grip interior lever offered as a polished brass passage set or a venetian bronze privacy set. It serves traditional interiors pairing warm metal finishes with lever accessibility.
The wave grip runs 3.75 in with a fully reversible mount for either handing. The passage configuration in polished brass turns freely for halls and closets and is ADA compliant per the product line's published listing, rated ANSI Grade 3 (Good). The privacy configuration in venetian bronze adds an interior lock for bedrooms and baths and carries an ANSI Grade 2 (Better) rating. Both run adjustable latches for 2-3/8 in and 2-3/4 in backsets, fit 1-3/8 in to 1-3/4 in doors, and install with a screwdriver.
Highlights
- Wave grip, 3.75 in lever length, fully reversible

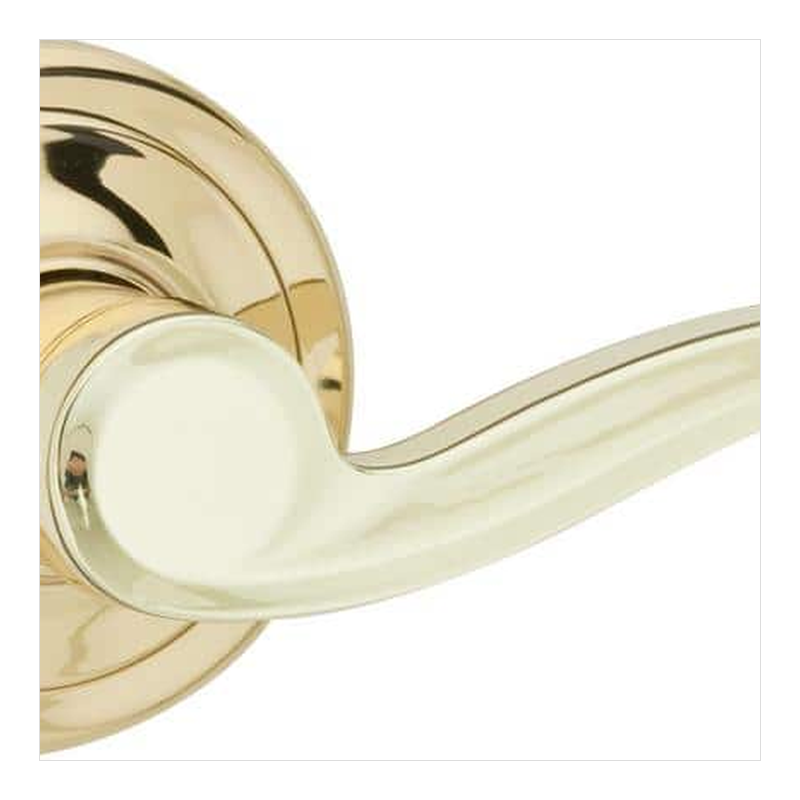

- Passage, Polished Brass: ANSI Grade 3 (Good), ADA compliant listing

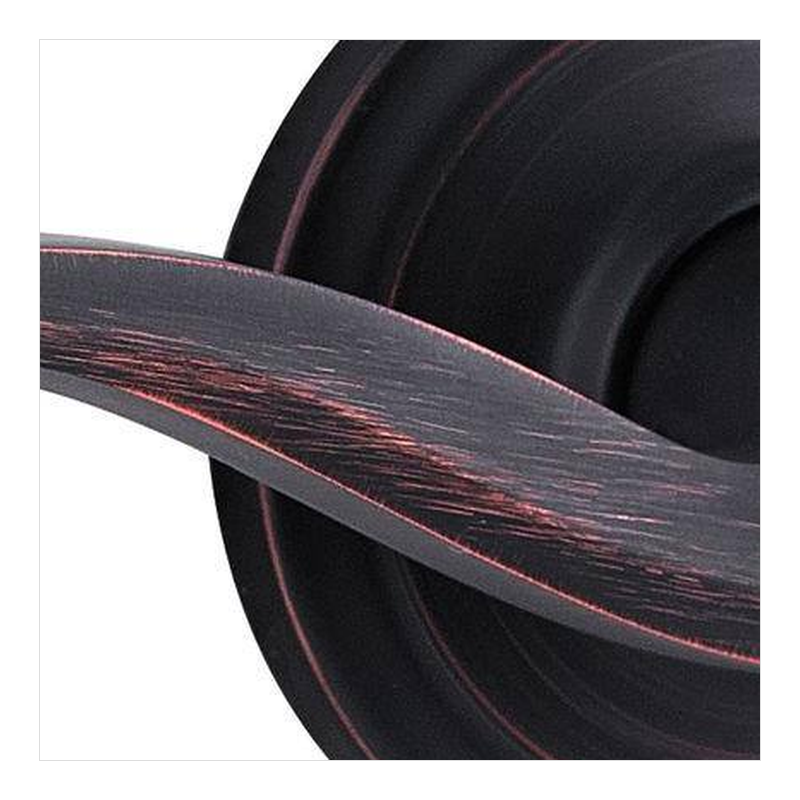

- Privacy, Venetian Bronze: ANSI Grade 2 (Better)
- Adjustable 2-3/8 or 2-3/4 in backset
- Fits 1-3/8 to 1-3/4 in doors
- Published product weights per set
- Lifetime mechanical and finish coverage
Specification Table
| Function options | Passage (Polished Brass) or Privacy (Venetian Bronze) |
| Security rating | Grade 3 passage; Grade 2 privacy |
| Accessibility | ADA compliant listing on the passage set |
| Lever grip | 3.75 in wave |
| Projection | 2.47 in passage; 1.91 in privacy |
| Backset | Adjustable 2-3/8 or 2-3/4 in |
| Door thickness | 1-3/8 to 1-3/4 in |
| Strike | Round corner |
| Handing | Fully reversible |
| Weight | 1.85 lb passage; 2.42 lb privacy |
Included Components
- One wave lever set in the selected configuration
- Latch, round corner strike, and mounting hardware
- Installation instructions
Installation Notes
- Choose passage for halls and closets, privacy for bedrooms and baths.
- Set the adjustable latch to the door backset before mounting the roses.
- The reversible lever flips for either swing during installation.
- Match finishes room by room; both configurations share the same wave profile.
Warranty and Support
- Limited lifetime mechanical and finish coverage, confirmed during quote review.
Frequently Asked Questions
Why do the two configurations carry different grades?
The ratings follow the product line's published certifications per function: Grade 3 (Good) on the passage set and Grade 2 (Better) on the privacy set.
Can I get passage in bronze or privacy in brass?
The stocked sets pair passage with polished brass and privacy with venetian bronze. Other pairings from the line are quoted on request.
Documents
- Type Door Lever
- SKU DA-DR-HW-LVR-CLS-PSG-PB
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
