Fast Balcony Aluminum Picket Balcony Railing System
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

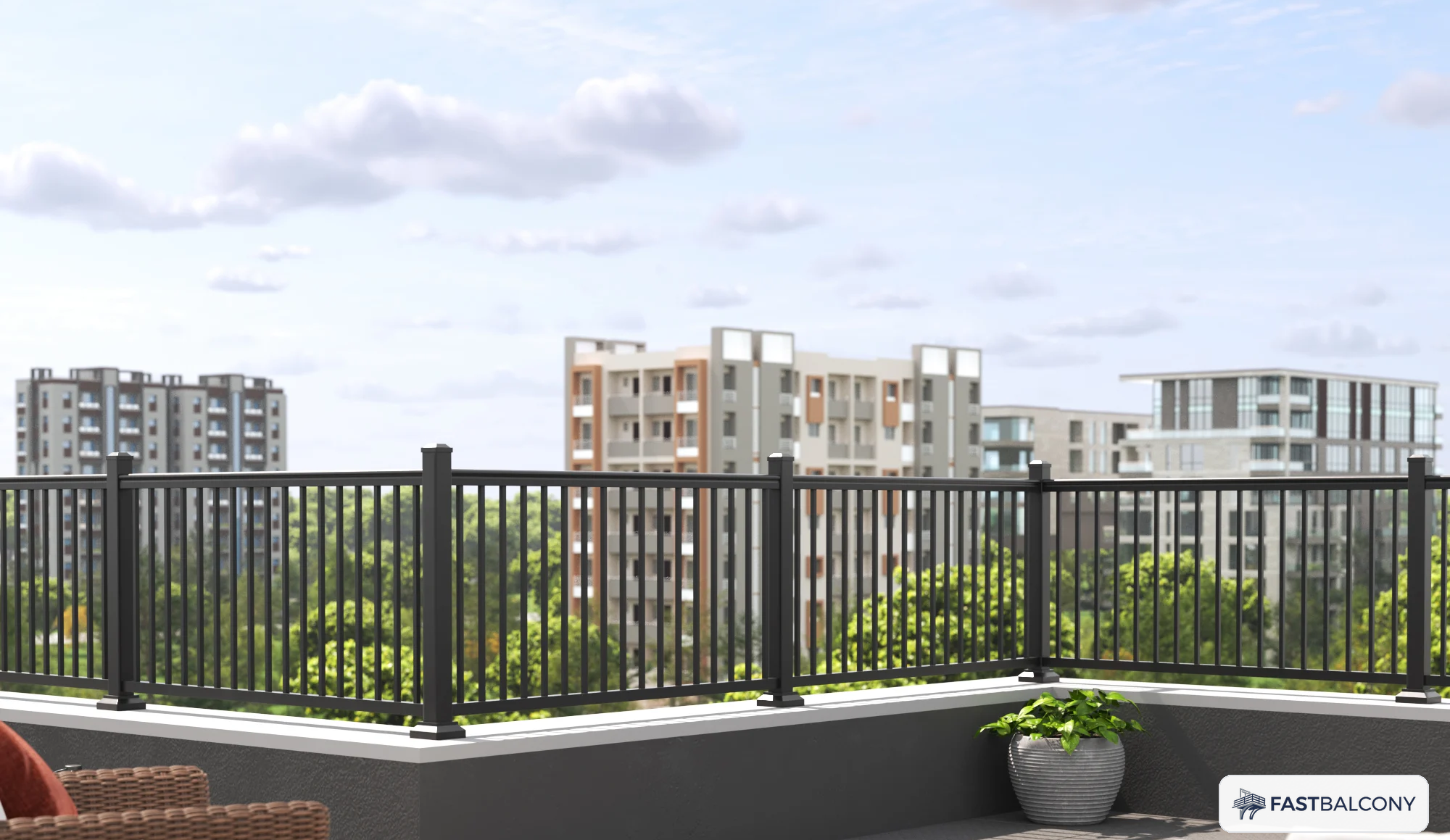

The Fast Balcony Aluminum Picket Balcony Railing System is a welded, powder coated guard rail program sold by the section for balconies, elevated decks, and walkway edges. It gives general contractors and modular builders the same picket guard used on the balcony platforms as a standalone system for site-built structures and retrofit runs.

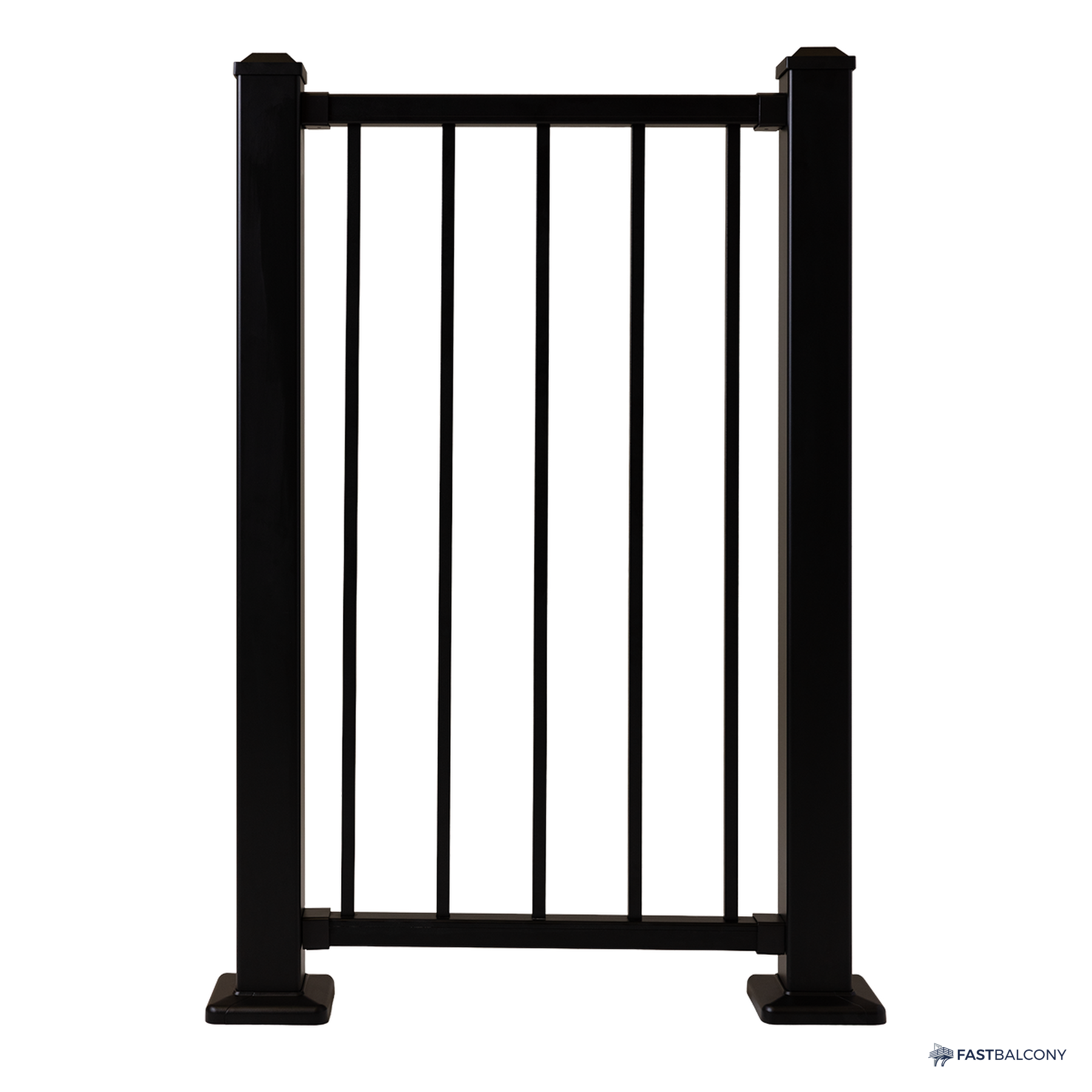

Sections are welded aluminum posts and rails with vertical picket infill set to a 4 in maximum clear opening, shipped in 4, 5, 6, and 8 ft section lengths that assemble into continuous runs. The standard guard height is 42 in, with 36 in available where the project code allows. Sections bolt to the balcony frame, deck structure, or parapet per the released details, with no field welding, and post spacing follows the released engineering for the project. Every section is powder coated after fabrication in Matte Black, White, Bronze, or Slate Gray, with custom colors quoted on request.
Highlights
- Welded aluminum picket guard sections in 4, 5, 6, and 8 ft lengths
- Vertical pickets set to a 4 in maximum clear opening
- 42 in guard height standard; 36 in available where project code allows
- Bolt-on surface mount to frame, deck, or parapet, no field welding
- Section weights 26 to 44 lb including one post per section for take-off math
- Matches the guard system on the balcony platform line for consistent elevations
- Powder coat program: Matte Black standard; White, Bronze, Slate Gray; custom colors quoted on request
Specification Table
| Section lengths | 4 ft, 5 ft, 6 ft, 8 ft; runs cut to project layout during quote review |
| Guard height | 42 in standard; 36 in available where project code allows |
| Construction | Welded aluminum posts and rails, powder coated after fabrication |
| Railing infill | Vertical aluminum pickets, 4 in maximum clear opening |
| Post program | Welded aluminum posts with base hardware; spacing per released engineering |
| Mount system | Surface mount to balcony frame, deck structure, or parapet |
| Installation | Bolt-on section installation, no field welding |
| Structural basis | Engineered to project live-load requirements; structural verification completed during quote review |
| Finish | Powder coat: Matte Black standard; White, Bronze, Slate Gray; custom colors quoted on request |
| Section weight | About 26 lb (4 ft), 31 lb (5 ft), 35 lb (6 ft), 44 lb (8 ft), including one post per section (engineering estimate) |
| Lead time | Confirmed during quote review; typical production runs are scheduled after drawing approval |
| Freight | Ships by commercial freight; freight confirmed during quote review |
| Warranty | Warranty coverage for the final quoted configuration is documented and confirmed during quote review |
Included Components
- Welded aluminum picket railing sections in the selected length
- One welded aluminum post with base hardware per section; corner and starter posts scoped at quote review
- Section splice and mounting hardware per the released details
- Powder coat finish in the selected color
Installation Notes
- Guard attachment is structural: substrate, blocking, and anchorage must be verified by the project engineer of record, with structural verification completed during quote review.
- Lay out post locations from the released engineering before drilling; post spacing is set per project, not per section length.
- Bolt posts to the frame, deck, or parapet per the released details, then set sections and splice per the installation documents.
- Check plumb and rail alignment before final torque, then torque all fasteners to the released values.
- Wash powder coated surfaces with mild detergent and water; avoid abrasive pads and solvent cleaners.
Warranty and Support
- Warranty coverage for the final quoted configuration is documented and confirmed during quote review.
- AAMA 2604-class powder coat performance is available and confirmed during quote review.
Frequently Asked Questions
How do I estimate sections for my run?
Divide the run length by the section sizes, favoring 8 ft sections for long straight runs and shorter sections at corners and ends. Send the run drawing with the quote request and the section schedule, corner posts, and cut sections are confirmed during quote review.
Is this the same guard as the balcony platforms?

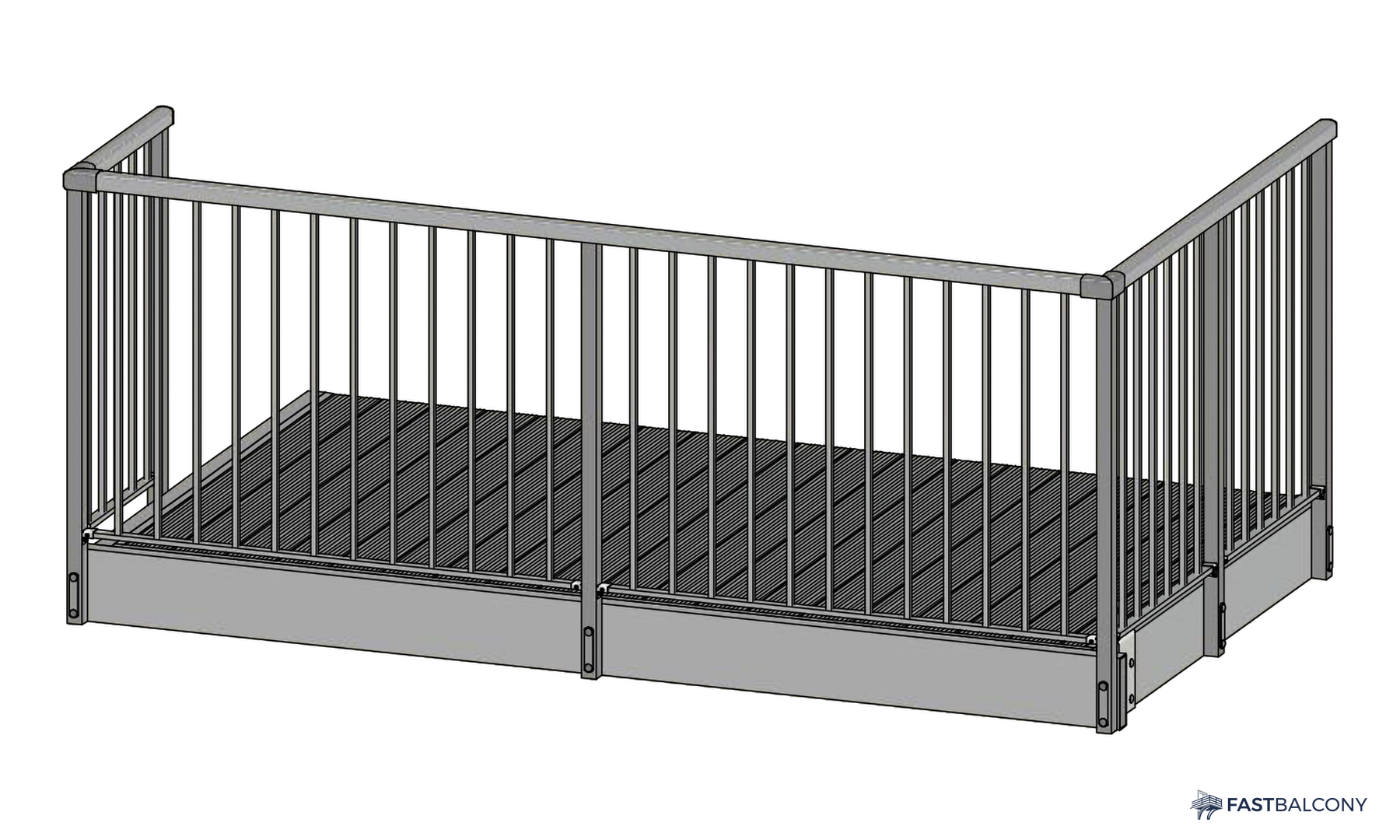

Yes. The picket infill, guard height, and finish program match the balcony platform line, so site-built stairs, walkways, and patios can carry the same guard language as the prefabricated balconies.
Can I get a 36 in height?
Yes, 36 in guards are available where the project code allows, typically in one and two family residential settings. The height is confirmed against the applicable code during quote review.
What do the sections mount to?
Sections bolt to aluminum balcony frames, wood or steel deck structure, or concrete and masonry parapets. Anchorage details per substrate ship with the released installation documents.
Documents
- Type Balcony Railing System
- SKU FB-BAL-RAIL-PICKET-L4-BK
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
