Fast Balcony Custom Footprint Aluminum Balcony, Engineered to Project Spec
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

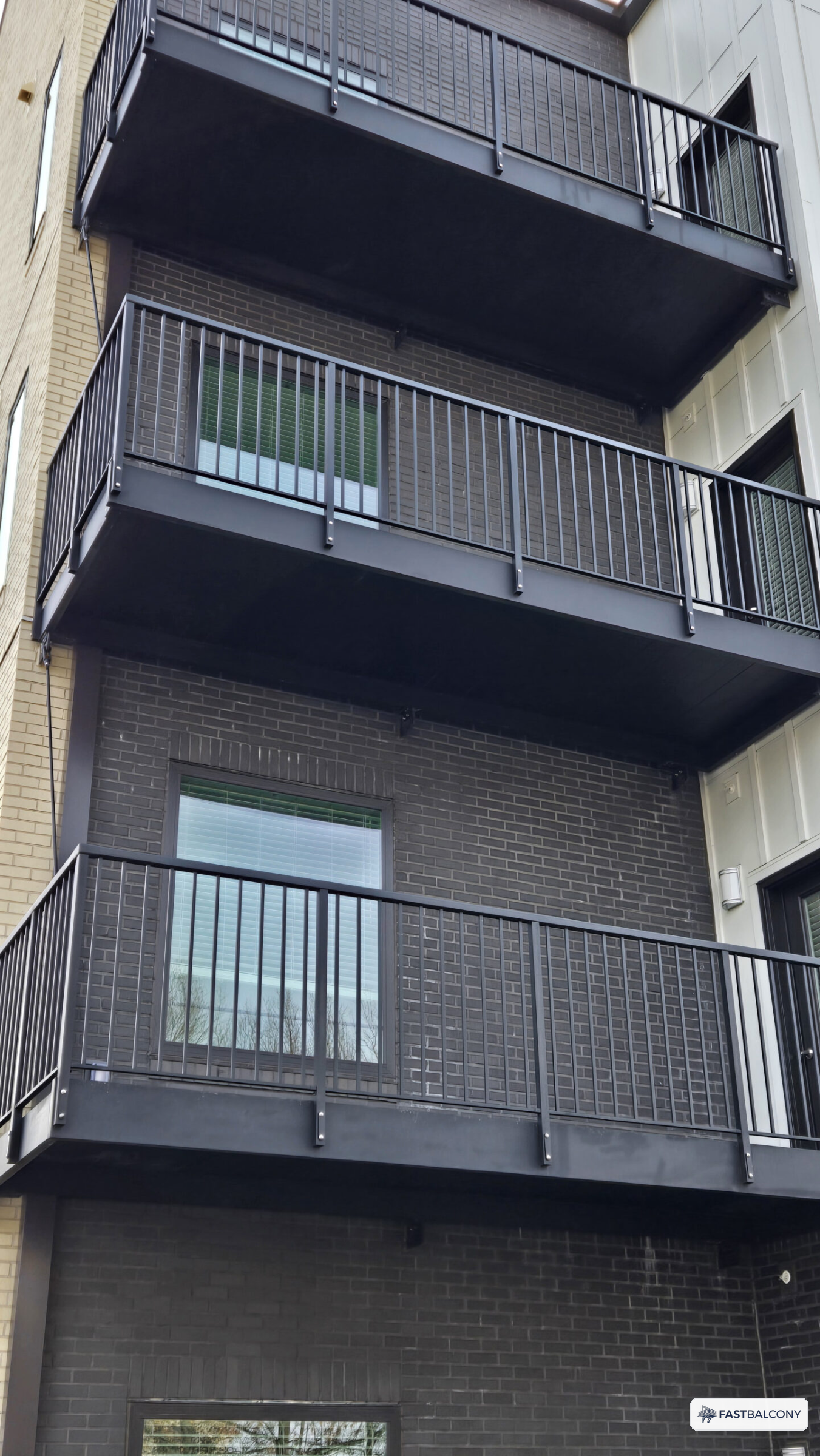

The Fast Balcony Custom Footprint Aluminum Balcony is the engineered-to-order path when the standard grid does not fit the elevation: enter the width along the building and the projection, pick the railing and finish, and the balcony is engineered to the project spec. It serves architects and general contractors matching existing openings, corner conditions, and unit plans the standard sizes cannot cover.
Custom footprints carry the same construction as the standard line: a welded aluminum perimeter frame and joist assembly with 45 degree mitered corners welded at 0.25 in and 0.375 in thickness, a 42 in guard in vertical picket, stainless cable, perforated mesh, or clear glass, and a composite WPC deck with the watertight interlocking aluminum deck available for dry-space applications. The standard custom program spans widths of 6 to 12 ft along the building and projections of 3 to 7 ft, with wider continuous runs engineered as multi-unit assemblies. Mounting is knife plate embeds or fascia brackets, selected to the wall construction, and every custom order ships with project drawings for approval before production.
Highlights
- Custom widths of 6 to 12 ft along the building; projections of 3 to 7 ft
- Wider continuous runs engineered as multi-unit assemblies
- Four railing infills: vertical picket, stainless cable, perforated mesh, clear glass
- Same welded construction as the standard platforms, 0.25 in and 0.375 in weld thickness
- Composite WPC deck standard; watertight aluminum deck for dry space below
- Knife plate or fascia bracket mounting, selected to the wall construction
- Approval drawings issue before production on every custom order
- Powder coat program: Matte Black standard; White, Bronze, Slate Gray; custom colors quoted on request
Specification Table
| Footprint | Custom, engineered to project spec; width and projection entered with the quote request |
| Width range | 72 to 144 in (6 to 12 ft) along the building; wider runs as multi-unit assemblies |
| Projection range | 36 to 84 in (3 to 7 ft) |
| Frame construction | Welded aluminum perimeter frame and joists, 45 degree mitered and welded corners |
| Weld specification | 0.25 in and 0.375 in weld thickness at 45 degree welded angles; welding qualified to AWS D1.2 Structural Welding Code for Aluminum |
| Guard system | Welded aluminum posts and rails, 42 in guard height |
| Railing infill | Vertical picket, stainless cable, perforated mesh, or clear glass |
| Deck surface | Composite WPC standard; interlocking watertight aluminum optional |
| Mount system | Knife plate embeds or fascia brackets, selected to the wall construction |
| Installation | Crane or lift set, bolt-on connection, no field welding |
| Structural basis | Engineered to project live-load requirements; structural verification completed during quote review |
| Finish | Powder coat: Matte Black standard; White, Bronze, Slate Gray; custom colors quoted on request |
| Unit weight | Quoted per engineered footprint; 5 ft x 10 ft class runs about 560 to 755 lb by railing (engineering estimate) |
| Lead time | Confirmed during quote review; approval drawings issue before production |
| Freight | Ships by flatbed or commercial freight; freight confirmed during quote review |
| Warranty | Warranty coverage for the final quoted configuration is documented and confirmed during quote review |
Included Components
- Welded aluminum balcony frame built to the approved custom dimensions
- 42 in guard assembly with the selected railing infill, factory installed
- Deck surface in the selected program, factory installed
- Powder coat finish in the selected color
- Project approval drawings before production; mounting hardware scope confirmed during quote review
Installation Notes
- Custom orders release to production only after drawing approval; review the approval set against field dimensions before signing.
- Structural attachment, embed or bracket placement, and project live loads must be verified by the project engineer of record; structural verification is completed during quote review.
- Install embeds or brackets from the released placement drawings before balcony delivery.
- Set the unit by crane or lift and bolt the connections per the released installation documents, then align the deck surface level with the interior subfloor.
- Torque fasteners per the released installation documents and wash powder coated surfaces with mild detergent and water.
Warranty and Support
- Warranty coverage for the final quoted configuration is documented and confirmed during quote review.
- Powder coated surfaces should be washed with mild detergent and water; AAMA 2604-class powder coat performance is available and confirmed during quote review.
Frequently Asked Questions
What dimensions can be ordered?
The standard custom program spans 6 to 12 ft widths along the building and 3 to 7 ft projections. Dimensions outside that envelope are reviewed as multi-unit or special engineering during quote review, so nothing is off the table, it is just engineered differently.
How do I enter my dimensions?
Enter the width along the building and the projection from the wall with the quote request on this page. The quote returns approval drawings with the engineered frame, mounting, and hardware for those dimensions.
Does a custom footprint change the lead time?
Custom orders add an engineering and drawing-approval step before production. The full schedule, from drawings through delivery, is confirmed during quote review.
Which mounting will my project use?
Knife plate embeds suit new structures planned around them; fascia brackets suit retrofits and framing without embeds. The mounting is selected to the wall construction during quote review, and both carry the same engineering basis.
Documents
- Type Aluminum Balcony System
- SKU FB-BAL-CUSTOM-PK-BK
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
