Fast Balcony Flat-Face Fascia-Mount Aluminum Balcony System
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

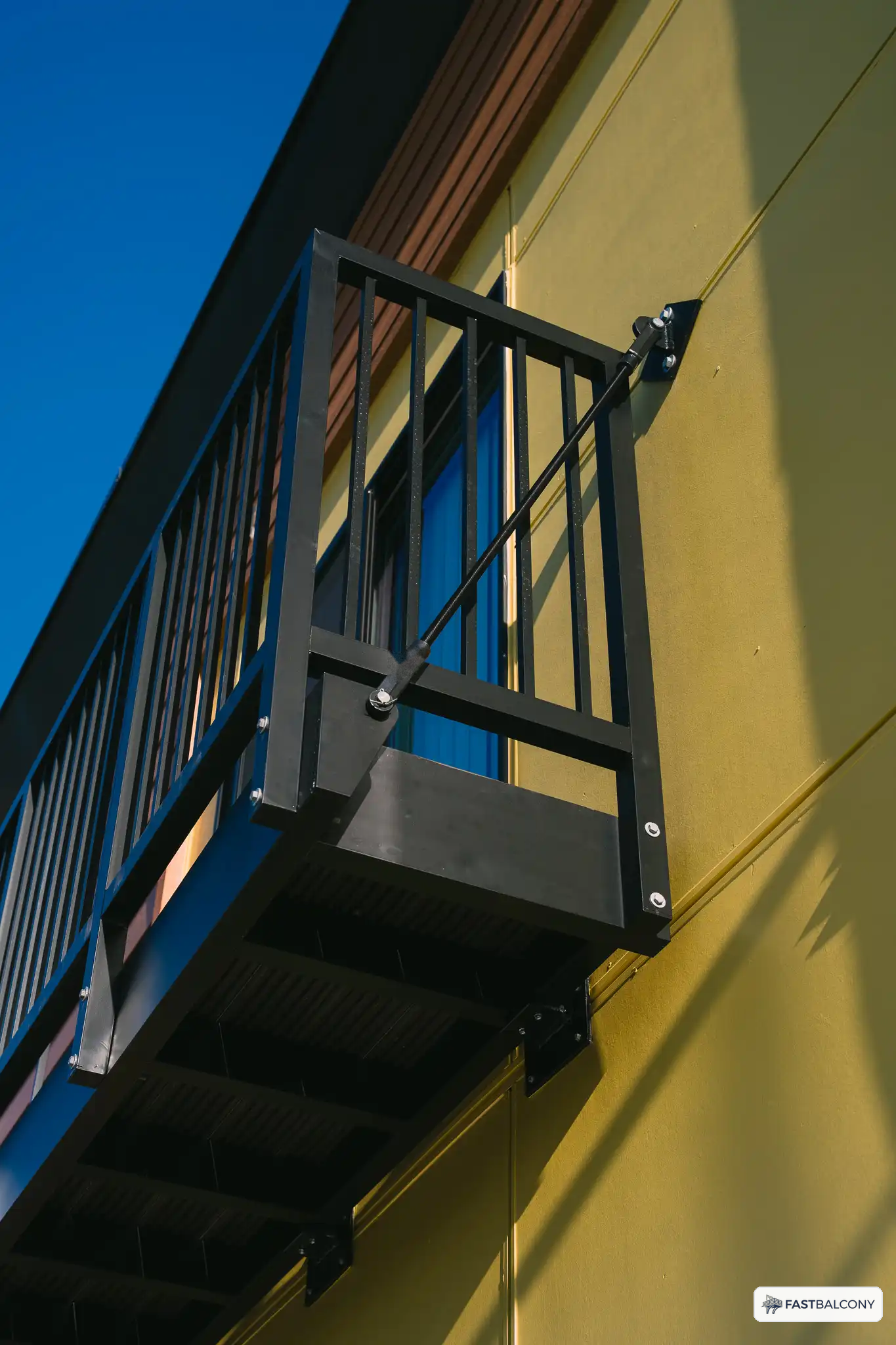

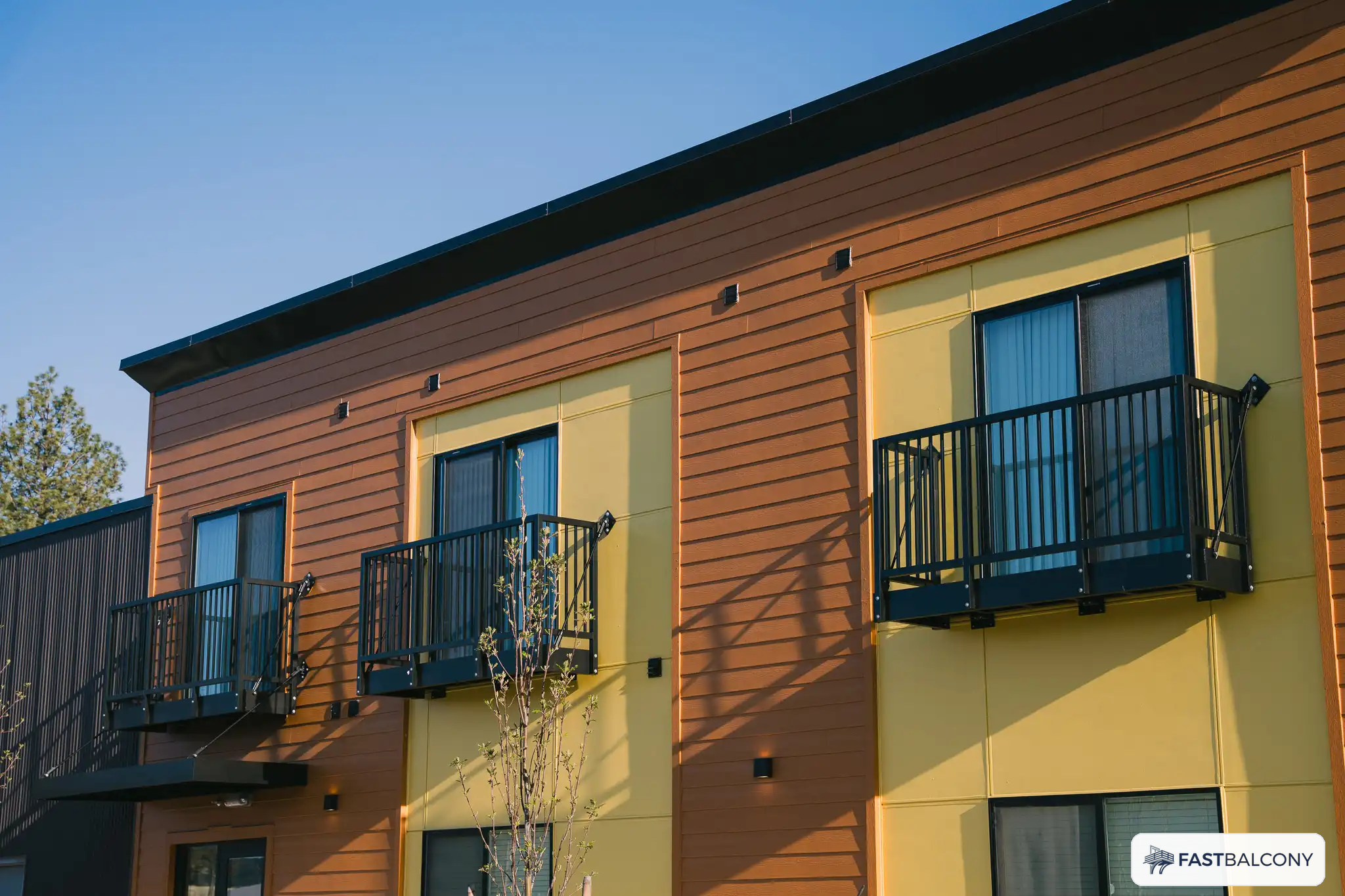

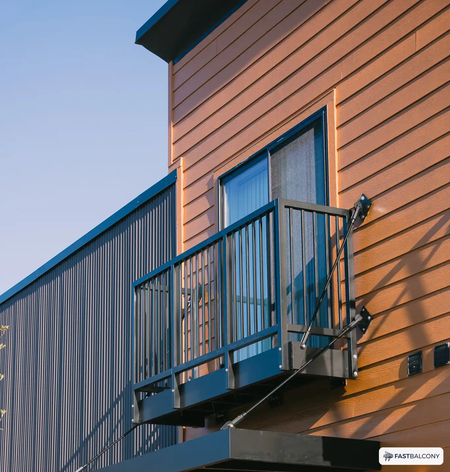

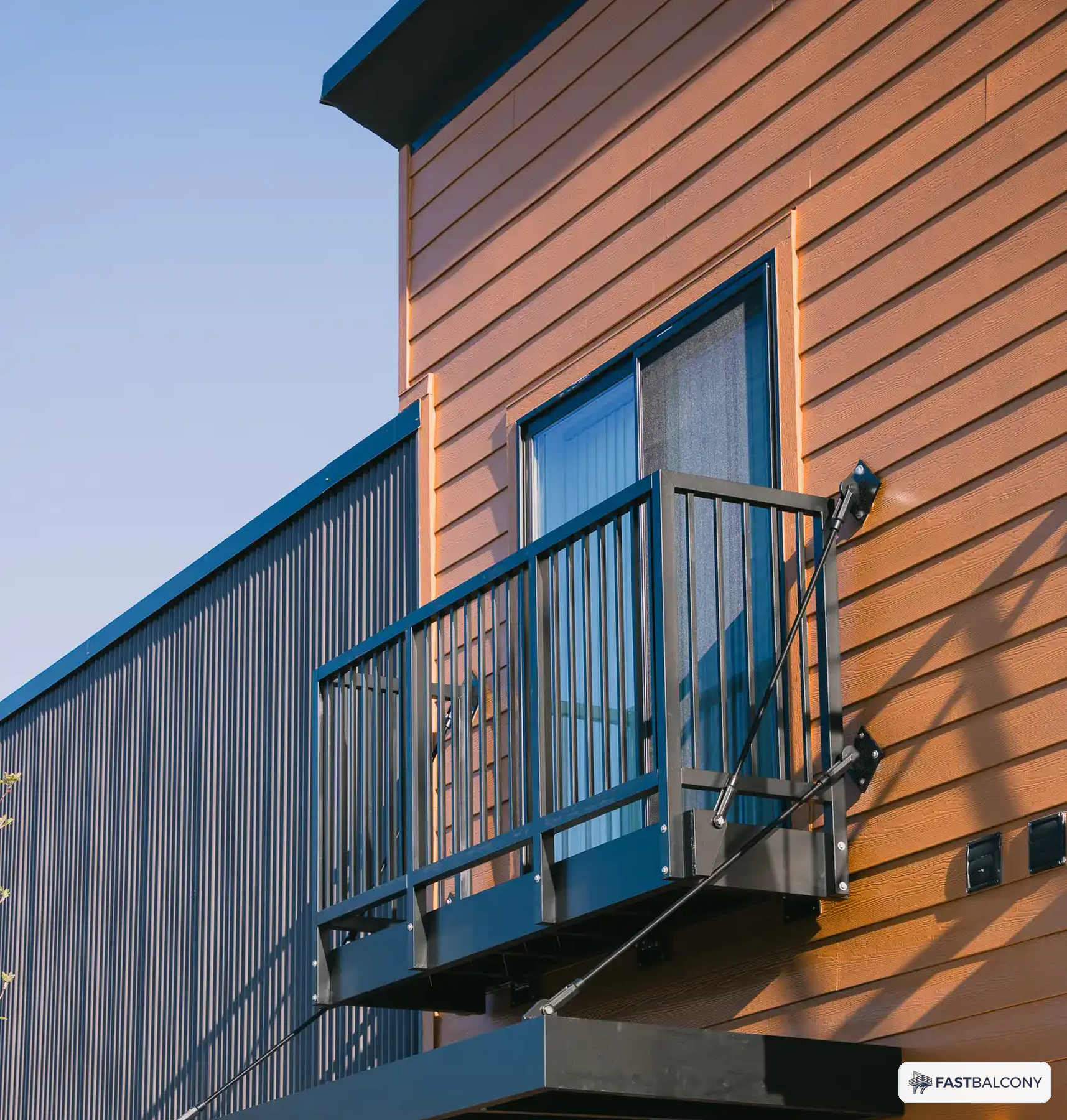

The Fast Balcony Flat-Face Fascia-Mount Aluminum Balcony System attaches through the building's fascia and floor band with a bracket program instead of embedded knife plates, for structures where embeds were never cast or cannot be reached. It gives general contractors and renovation teams a prefabricated bolt-on balcony that mounts to the face of the structure with a clean, flat wall-side presentation.

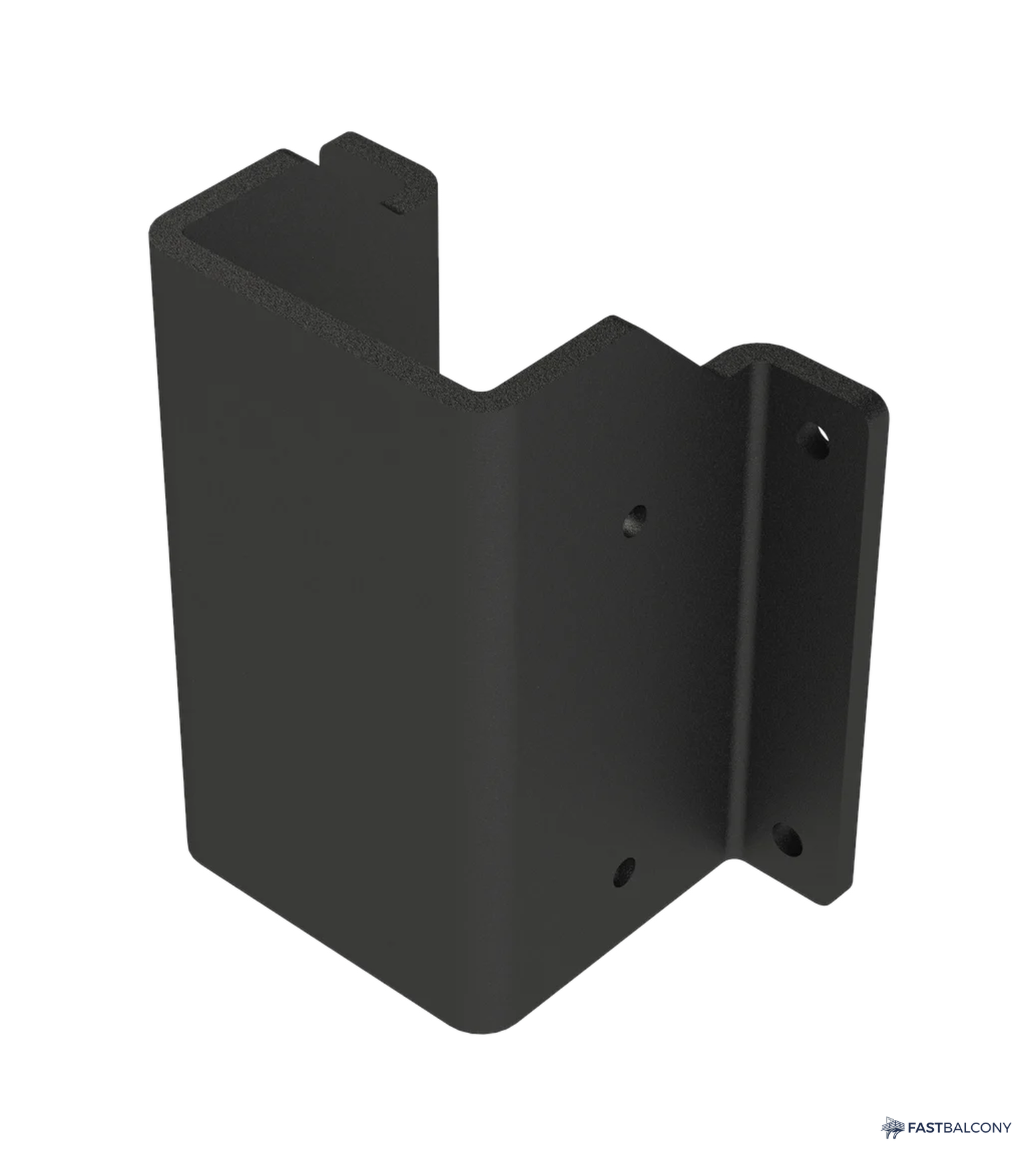

The chassis is a welded aluminum perimeter frame and joist assembly, corners mitered at 45 degrees and welded at 0.25 in and 0.375 in thickness, with the wall-side member finished as a flat face that lands flush against the fascia line. Attachment is a fascia bracket program engineered to the floor band: brackets install with the framing, the balcony lifts onto the brackets, and the connection bolts through without field welding. Fascia depths of 6, 8, 10, and 12 in are accommodated, with the bracket schedule confirmed during quote review. The 42 in guard is available in vertical picket, tensioned stainless cable, or clear tempered glass, over a factory-installed 140 x 25 mm composite WPC deck. Five standard footprints and the four-color powder coat program complete the matrix.
Highlights
- Fascia bracket attachment through the floor band; no embedded knife plates required
- Flat-face wall-side frame presentation lands flush against the fascia line
- Accommodates 6, 8, 10, and 12 in fascia depths; bracket schedule confirmed during quote review
- Three guard options: vertical picket, stainless cable, or clear tempered glass at 42 in height
- Five standard sizes: 4 ft x 8 ft, 5 ft x 8 ft, 4 ft x 9 ft 6 in, 5 ft x 9 ft 6 in, 5 ft x 10 ft
- Welded aluminum frame, 45 degree mitered corners, 0.25 in and 0.375 in weld thickness
- Composite WPC deck, 140 x 25 mm boards on keel and clip fasteners, factory installed
- Powder coat program: Matte Black standard; White, Bronze, Slate Gray; custom colors quoted on request
Specification Table
| Footprint options | 4 ft x 8 ft, 5 ft x 8 ft, 4 ft x 9 ft 6 in, 5 ft x 9 ft 6 in, 5 ft x 10 ft |
| Deck area | 4 ft x 8 ft = 32 sq ft; 5 ft x 8 ft = 40 sq ft; 4 ft x 9 ft 6 in = 38 sq ft; 5 ft x 9 ft 6 in = 47.5 sq ft; 5 ft x 10 ft = 50 sq ft |
| Frame construction | Welded aluminum perimeter frame and joists with flat-face wall-side presentation, 45 degree mitered and welded corners |
| Weld specification | 0.25 in and 0.375 in weld thickness at 45 degree welded angles; welding qualified to AWS D1.2 Structural Welding Code for Aluminum |
| Mount system | Fascia bracket attachment through the floor band |
| Fascia compatibility | 6, 8, 10, and 12 in fascia depths; bracket schedule confirmed during quote review |
| Guard system | Welded aluminum posts and rails, 42 in guard height |
| Railing options | Vertical picket, tensioned stainless cable, or clear tempered glass |
| Deck surface | Composite WPC deck board, 140 x 25 mm profile, keel and clip fastened |
| Installation | Brackets install with the framing; balcony lifts onto the brackets and bolts on, no field welding |
| Structural basis | Engineered to project live-load requirements; structural verification completed during quote review |
| Finish | Powder coat: Matte Black standard; White, Bronze, Slate Gray; custom colors quoted on request |
| Unit weight | About 379 to 755 lb across the size and railing matrix; per-variant weight published (engineering estimate) |
| Lead time | Confirmed during quote review; typical production runs are scheduled after drawing approval |
| Freight | Ships by flatbed or commercial freight; freight confirmed during quote review |
| Warranty | Warranty coverage for the final quoted configuration is documented and confirmed during quote review |
Included Components
- Welded aluminum balcony frame with flat-face wall-side member
- 42 in guard assembly in the selected railing option, factory installed
- Composite WPC deck surface on keel and clip fasteners, factory installed
- Powder coat finish in the selected color
- Fascia bracket kit scope confirmed during quote review to match the floor band construction and fascia depth
Installation Notes
- The floor band and fascia framing must be verified for the bracket reactions by the project engineer of record; structural verification is completed during quote review.
- Install the fascia brackets with the framing per the released bracket schedule, maintaining the waterproofing membrane details at each penetration.
- Lift the balcony onto the installed brackets by crane or lift and bolt the connection per the released installation documents.
- Align the top of the deck surface level with the top of the interior subfloor before final torque.
- Torque fasteners per the released installation documents and wash powder coated surfaces with mild detergent and water; avoid abrasive pads and solvent cleaners.
Warranty and Support
- Warranty coverage for the final quoted configuration is documented and confirmed during quote review.
- Powder coated surfaces should be washed with mild detergent and water; AAMA 2604-class powder coat performance is available and confirmed during quote review.
Frequently Asked Questions
When should I choose fascia mount over knife plates?
Knife plate mounts need embeds cast or built into the structure, which suits new construction planned around them. Fascia brackets attach through the floor band from the face of the building, which suits renovations, retrofits, and framing that was not detailed for embeds. Both paths are engineered to project live-load requirements.
What fascia sizes does the system fit?
The bracket program accommodates 6, 8, 10, and 12 in fascia depths. The bracket schedule, fastener sizing, and blocking requirements are confirmed against the actual floor band construction during quote review.
Which railing should I specify?
Vertical picket is the standard and most economical, stainless cable and clear glass maximize the view. All three mount to the same welded post and rail system, so the choice is architectural.
Does fascia mounting risk water intrusion?
Bracket penetrations are detailed to maintain the waterproofing membrane, and the released installation documents include the flashing sequence at each bracket. The waterproofing detail is coordinated with the wall assembly during quote review.
Documents
- Type Aluminum Balcony System
- SKU FB-BAL-FFF-ALU-48-PK-BK
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
