Fast Balcony Juliet Balcony Guard System, Bolt-On Aluminum

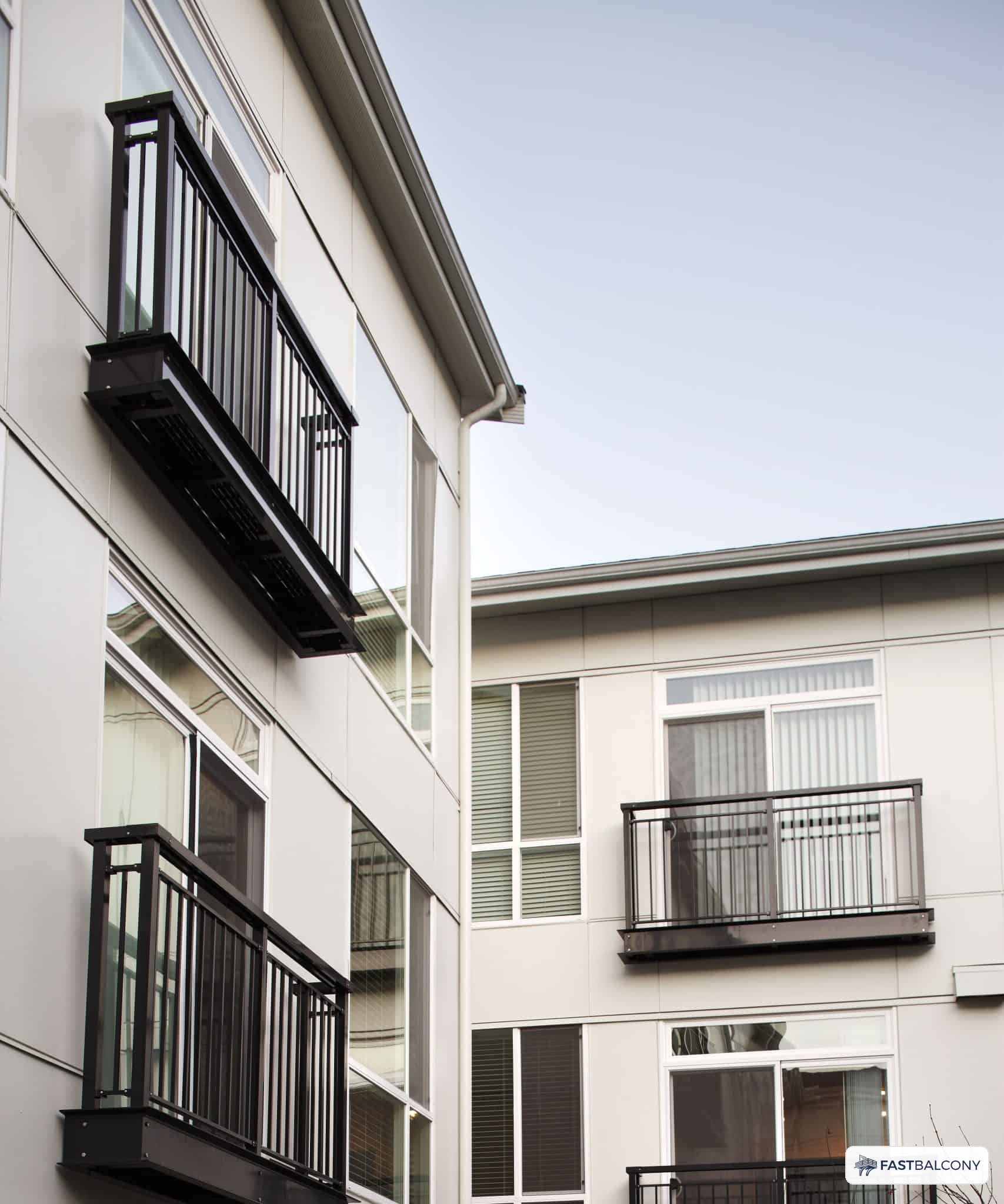

The Fast Balcony Juliet Balcony Guard System puts a welded aluminum guard and shallow step-out at a full-height door opening, giving units the open-door experience without a full balcony platform. Developers use it to bring light and air to interior-facing units, meet operable-door guard requirements, and add facade rhythm at a fraction of the structure a projecting balcony needs.

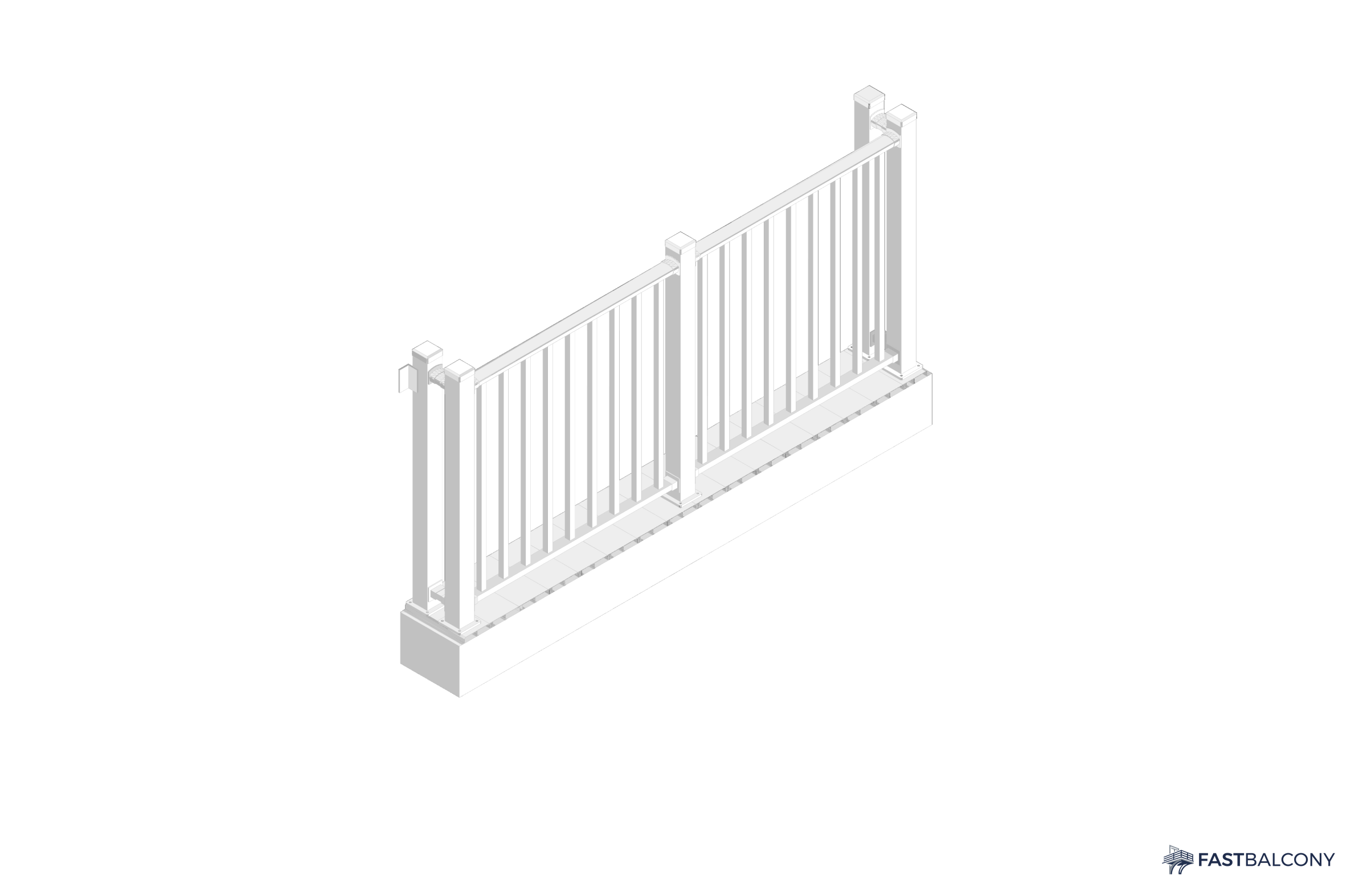

The system is a welded aluminum frame in the 1 ft projection class, decked with the 140 x 25 mm composite WPC board program and guarded on all exposed sides at 42 in. Corners are mitered at 45 degrees and welded at 0.25 in and 0.375 in thickness, the same construction as the platform line. Guard infill is vertical picket or clear tempered glass, and the assembly bolts to the structure at the door opening with anchorage matched to the wall construction. At about 120 to 281 lb depending on width and infill, most conditions install with a two-person lift and no crane, which is why compact guard systems like this set quickly across repeat elevations.

Highlights

• Shallow 1 ft projection class step-out at a full-height door opening
• Three widths: 6 ft, 8 ft, 10 ft, guarded on all exposed sides at 42 in
• Vertical picket or clear tempered glass infill

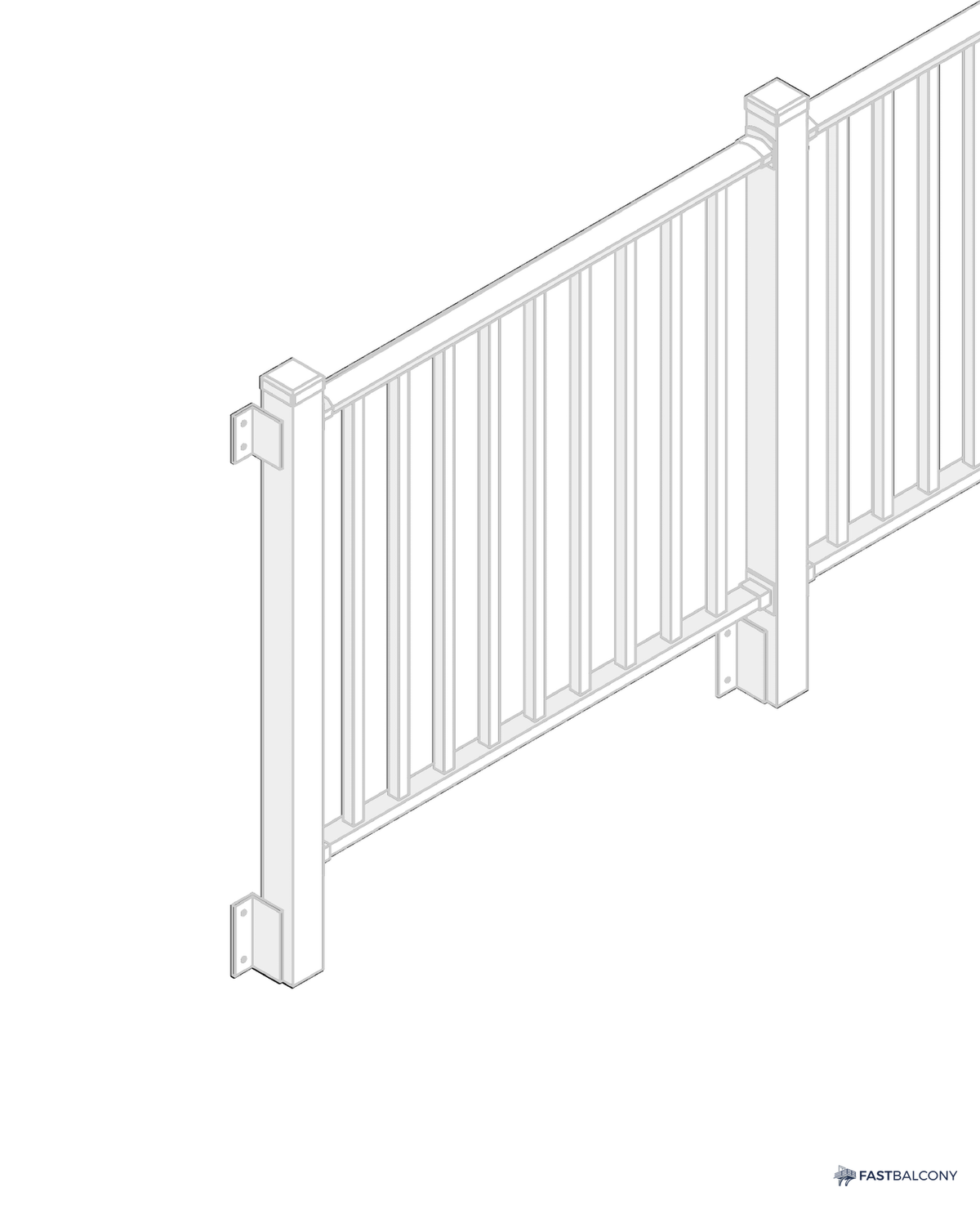

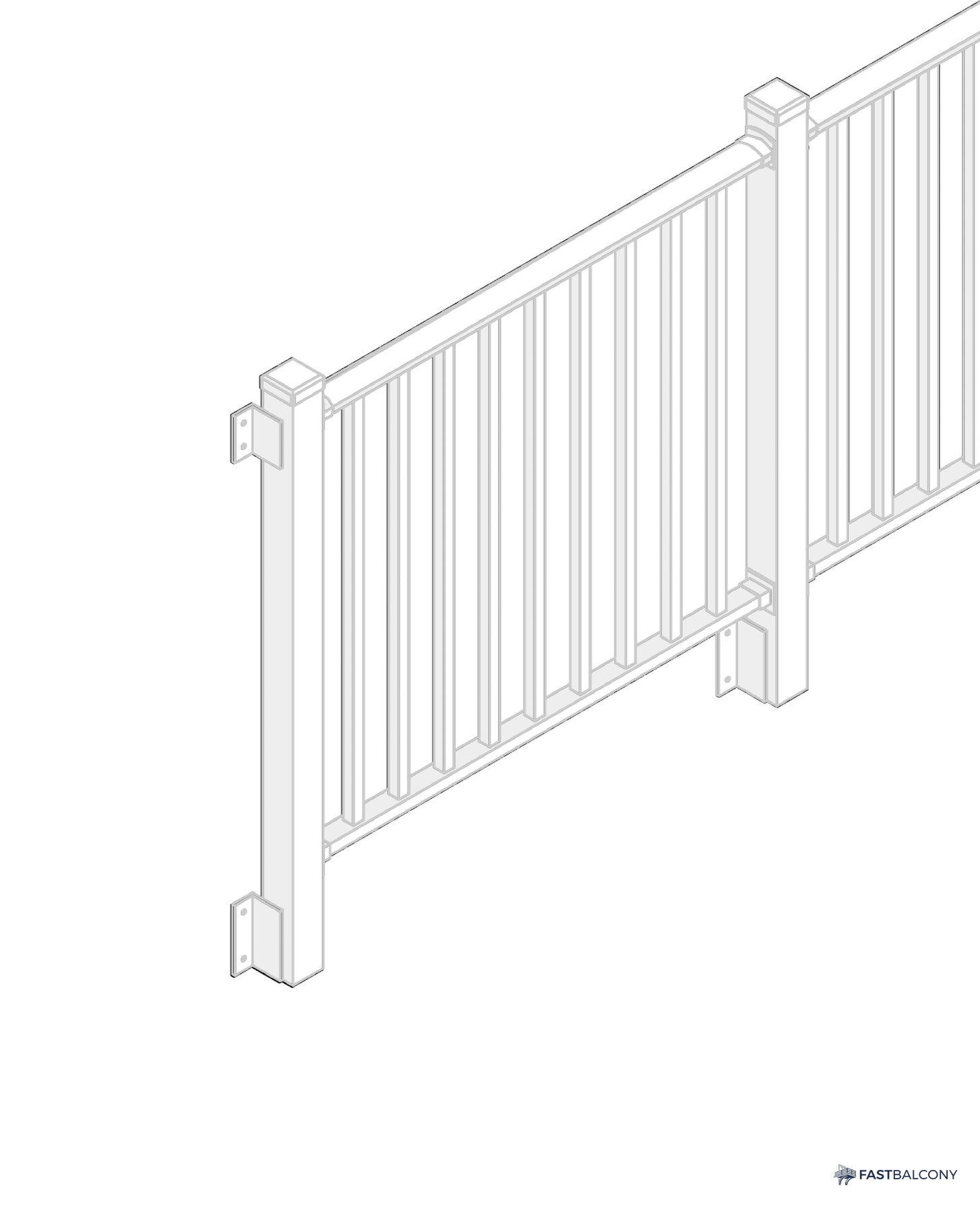

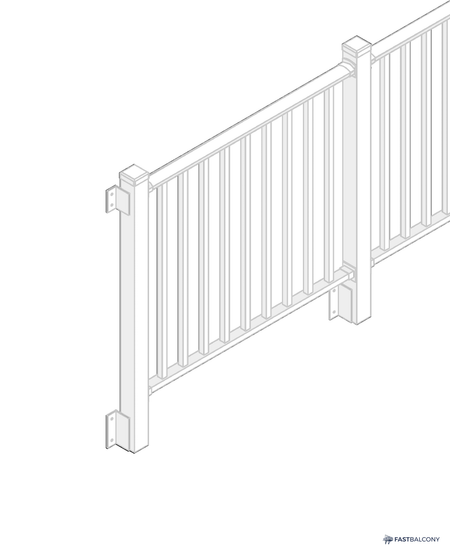

• Welded aluminum frame, 45 degree mitered corners, 0.25 in and 0.375 in weld thickness
• Composite WPC step-out deck, 140 x 25 mm boards, factory installed
• Bolt-on installation, two-person lift for most conditions, no crane required
• Per-variant weights 120 to 281 lb published for handling planning
• Powder coat program: Matte Black standard; White, Bronze, Slate Gray; custom colors quoted on request

Specification Table

Included Components

• Welded aluminum Juliet frame with guard on all exposed sides
• Guard infill in the selected option, factory installed
• Composite WPC step-out deck surface, factory installed
• Powder coat finish in the selected color
• Anchorage hardware scope confirmed during quote review to match the wall construction at the opening

Installation Notes

• Anchorage at the door opening is structural: wall construction and fastening must be verified by the project engineer of record, with structural verification completed during quote review.
• Verify the opening dimensions and sill condition against the released drawings before the unit arrives.
• Lift the unit to the opening, level it, and bolt the anchorage per the released installation documents; most conditions are a two-person lift without a crane.
• Flash and seal the anchorage penetrations per the released details to protect the wall assembly.
• Torque fasteners to the documented values and wash powder coated surfaces with mild detergent and water; avoid abrasive pads and solvent cleaners.

Warranty and Support

• Warranty coverage for the final quoted configuration is documented and confirmed during quote review.
• Powder coated surfaces should be washed with mild detergent and water; AAMA 2604-class powder coat performance is available and confirmed during quote review.

Frequently Asked Questions

What is a Juliet balcony and when do I use one?
A Juliet balcony is a guard system at a full-height operable door, here with a shallow 1 ft class step-out. Use it where units need the open-door experience and code-required guarding but the budget, structure, or setback rules out a projecting platform.

Can someone stand on it?
The step-out is a walkable surface in the 1 ft projection class, sized for standing at the threshold rather than furniture. Each order is engineered to project live-load requirements, with structural verification completed during quote review.

Does it need a crane like the full balconies?
No. At about 120 to 281 lb depending on configuration, most installations are a two-person lift with the anchorage bolted from the opening or a lift platform.

Which widths and railings are available?
Widths of 6, 8, and 10 ft cover single and double door openings with margin, in vertical picket or clear tempered glass. Custom widths are engineered to project spec through the quote process.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
