Fast Balcony Knife Plate and Embed Mounting Kit

The Fast Balcony Knife Plate and Embed Mounting Kit is the structural connection package for bolt-on balcony installation: wall-side knife plates, matching embed hardware, and structural fasteners supplied as one per-balcony set. It is ordered by general contractors coordinating embed placement ahead of balcony delivery, and as replacement or add-on hardware on phased projects.

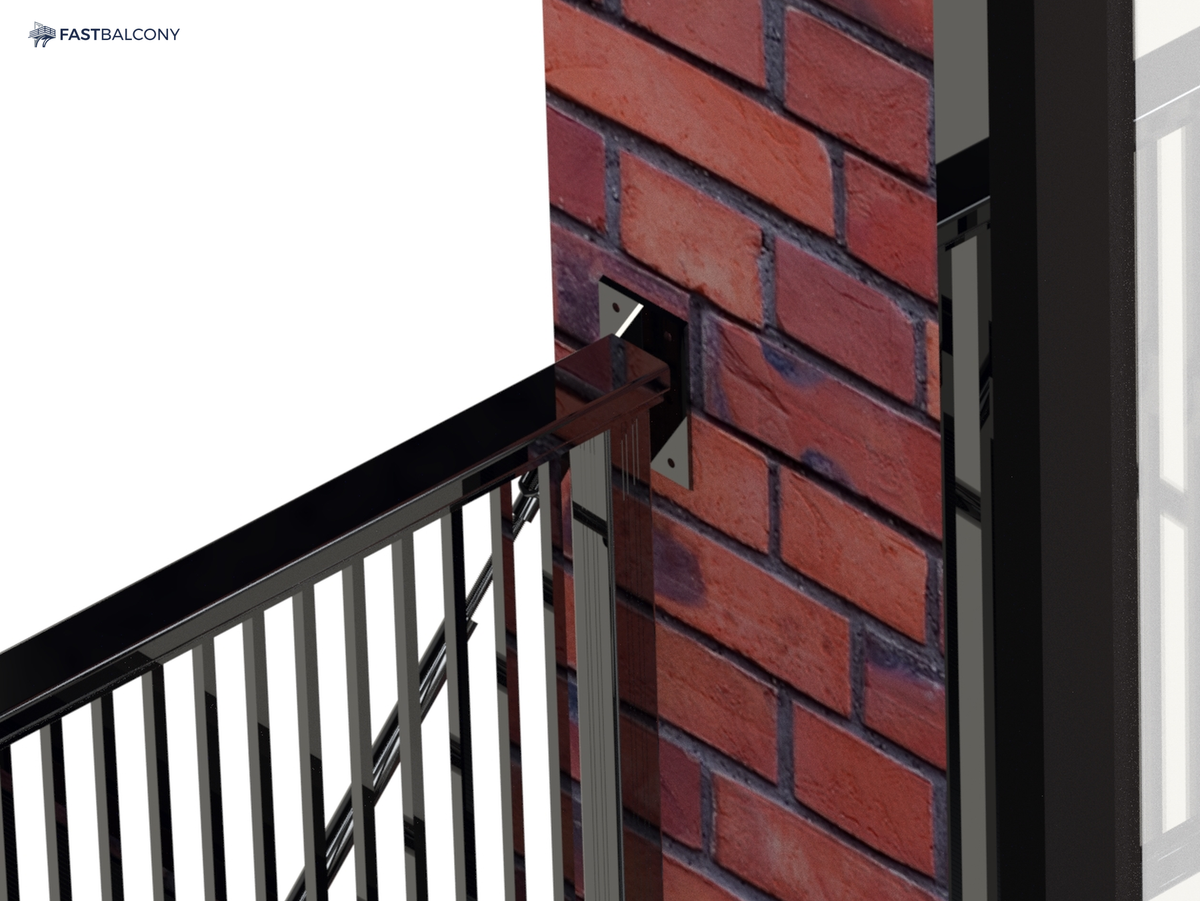

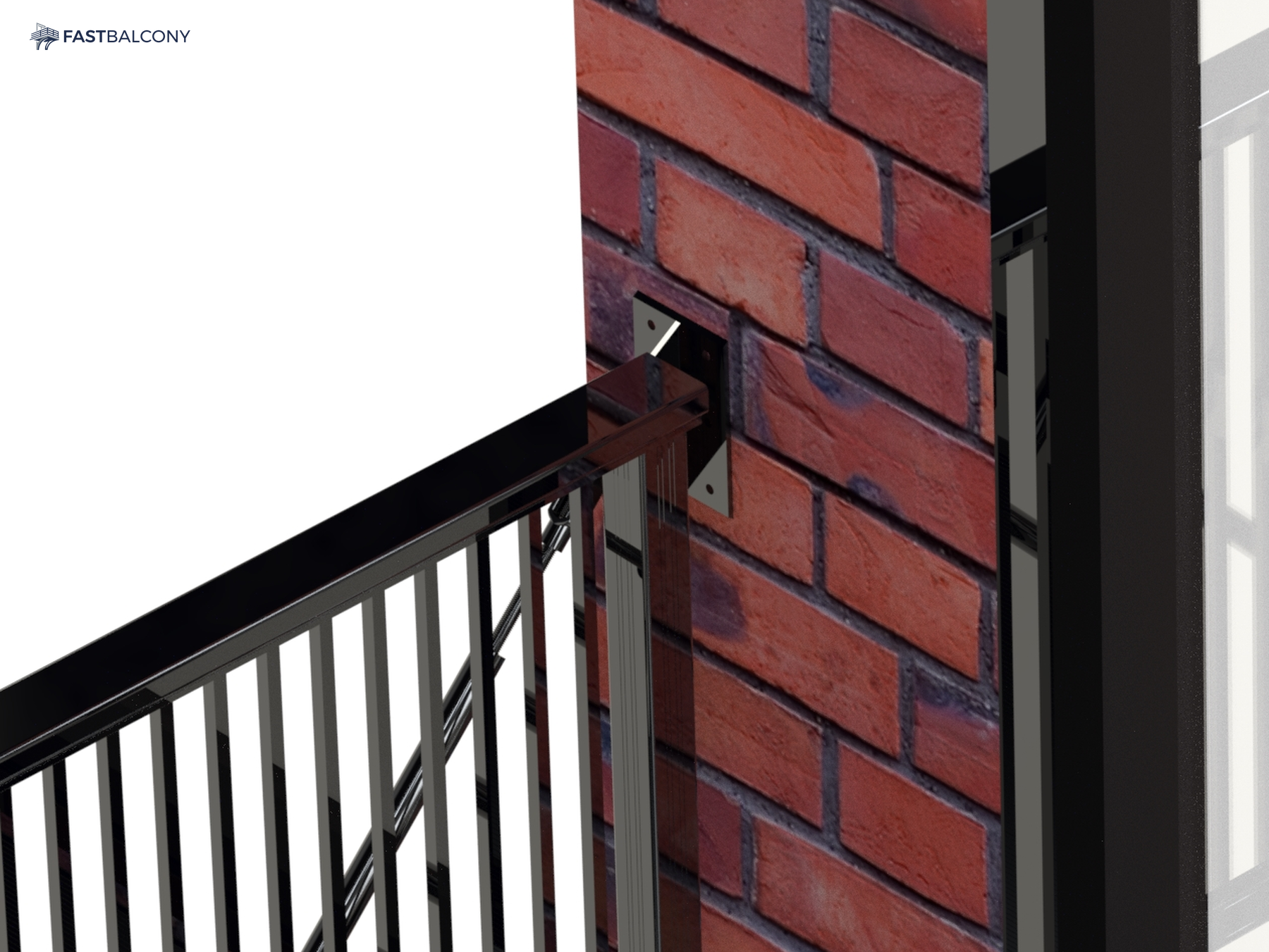

Each kit carries the knife plates for one balcony in 0.5 in stock A36 steel plate, powder coated to match the balcony finish, plus the embed plates or anchor hardware matched to the wall construction and the structural fasteners for the connection. Plate configuration follows the project connection design: seat, clevis, cantilever, and angle plate types cover bearing, tension, and small-frame conditions, and the plate schedule is matched to the balcony model during quote review. Embeds install with the structure using the released placement drawings, then the balcony lands on the plates and bolts through at set.

Highlights

• Complete per-balcony mounting set: knife plates, embed hardware, structural fasteners
• A36 steel plate, 0.5 in stock class, powder coated to match the balcony
• Seat, clevis, cantilever, and angle plate configurations per the connection design
• Embed placement drawings ship with the released installation documents
• Plate schedule matched to the balcony model during quote review
• About 45 lb per set for take-off and freight math

Specification Table

Included Components

• Wall-side knife plates per the balcony connection design
• Embed plates or anchor hardware matched to the wall construction
• Structural fasteners for the plate-to-embed connection
• Powder coat finish matched to the balcony order

Installation Notes

• Embed placement and wall capacity must be verified by the project engineer of record; structural verification is completed during quote review.
• Install embeds or anchors with the structure using the released placement drawings, before facade close-in where the wall assembly requires it.
• Protect embed faces and threads until balcony set; verify plate alignment before the balcony arrives.
• Bolt knife plates per the released installation documents and torque to the documented values at balcony set.

Warranty and Support

• Warranty coverage for the final quoted configuration is documented and confirmed during quote review.
• Touch up handling damage on powder coated plates before installation; care guidance ships with the install documents.

Frequently Asked Questions

Is this kit included with a balcony order?
Balcony orders scope their mounting hardware during quote review, and on most projects the kit is coordinated with the balcony release. Order it separately when embeds must release early to the framing or concrete schedule, or when replacing hardware on a phased project.

Which plate configuration do I need?

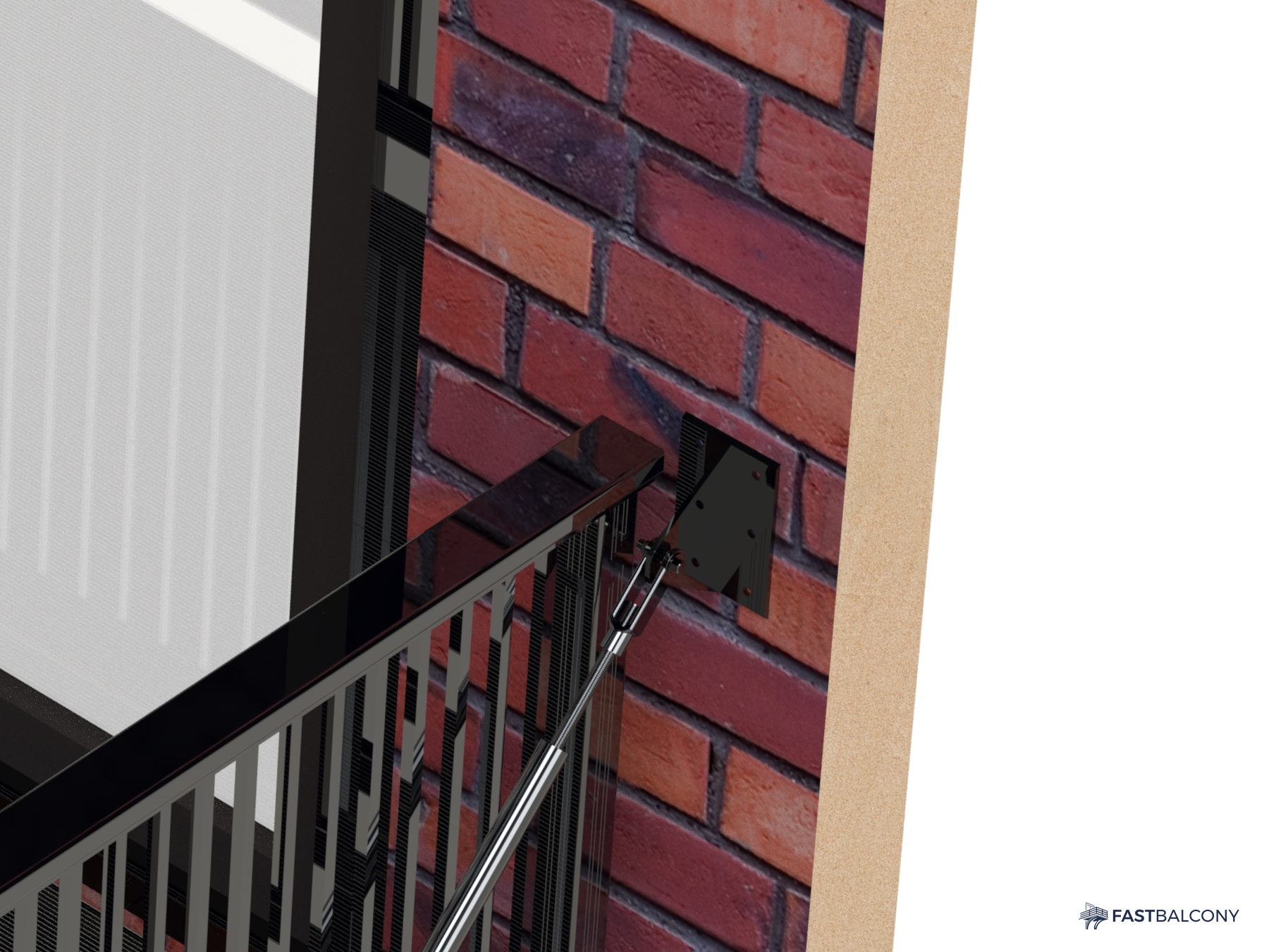

The connection design sets the plate type: seat plates carry bearing for hoisted sets, clevis plates take tension and pair with rods, cantilever plates replace the pair on small frames, and angle plates serve small frames and guard posts. The schedule is confirmed to the balcony model during quote review.

What wall constructions are supported?
Embed and anchor hardware is matched to the wall type during quote review, including cast concrete, masonry, and framed walls with engineered blocking, with placement drawings in the released installation documents.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
