Fast Balcony Stanchion and Post Kit

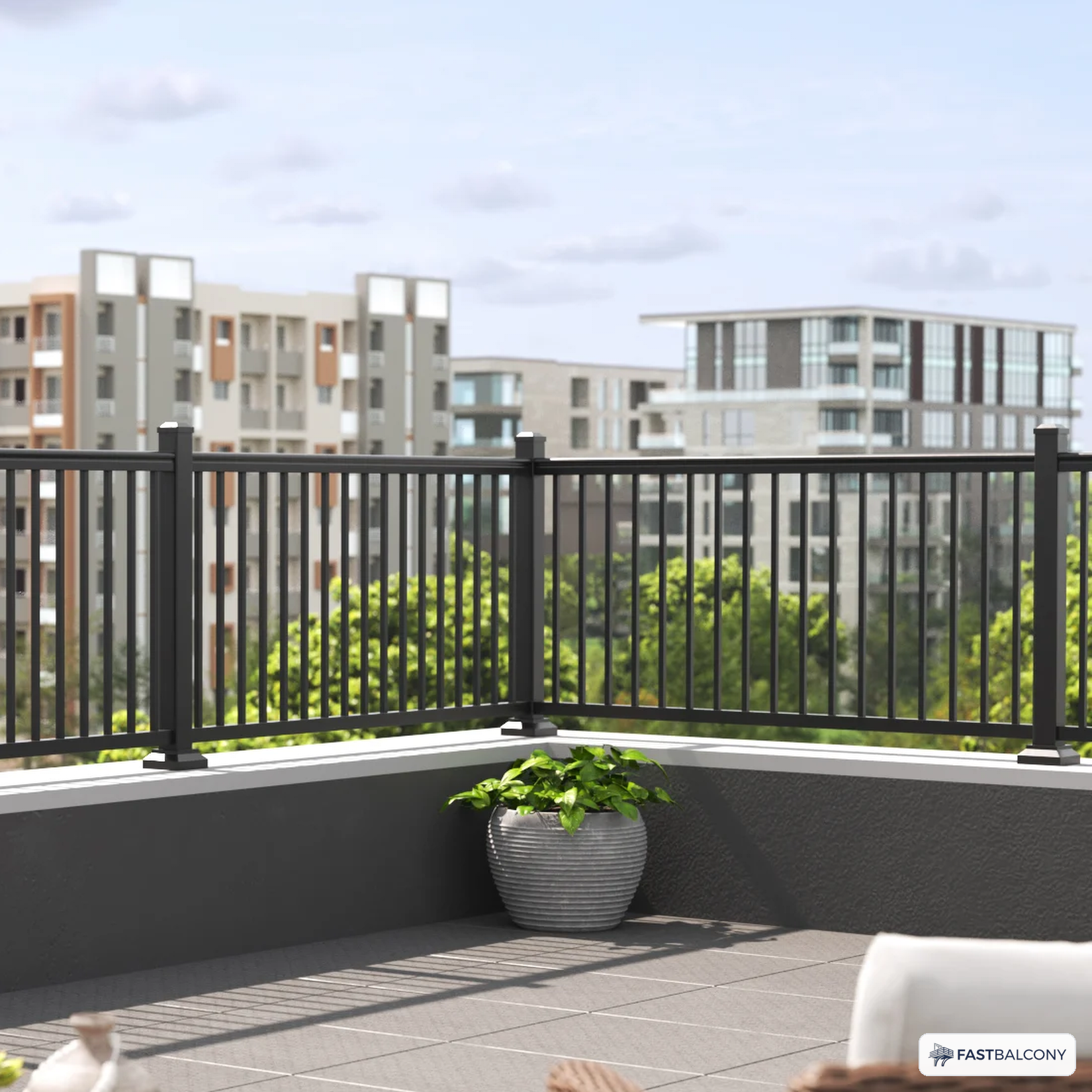

The Fast Balcony Stanchion and Post Kit supplies the vertical structure of the guard program: five welded aluminum stanchions with base hardware, matched to the balcony and railing systems. It covers guard extensions, replacement posts, and site-built runs that need to match the prefabricated balcony line.

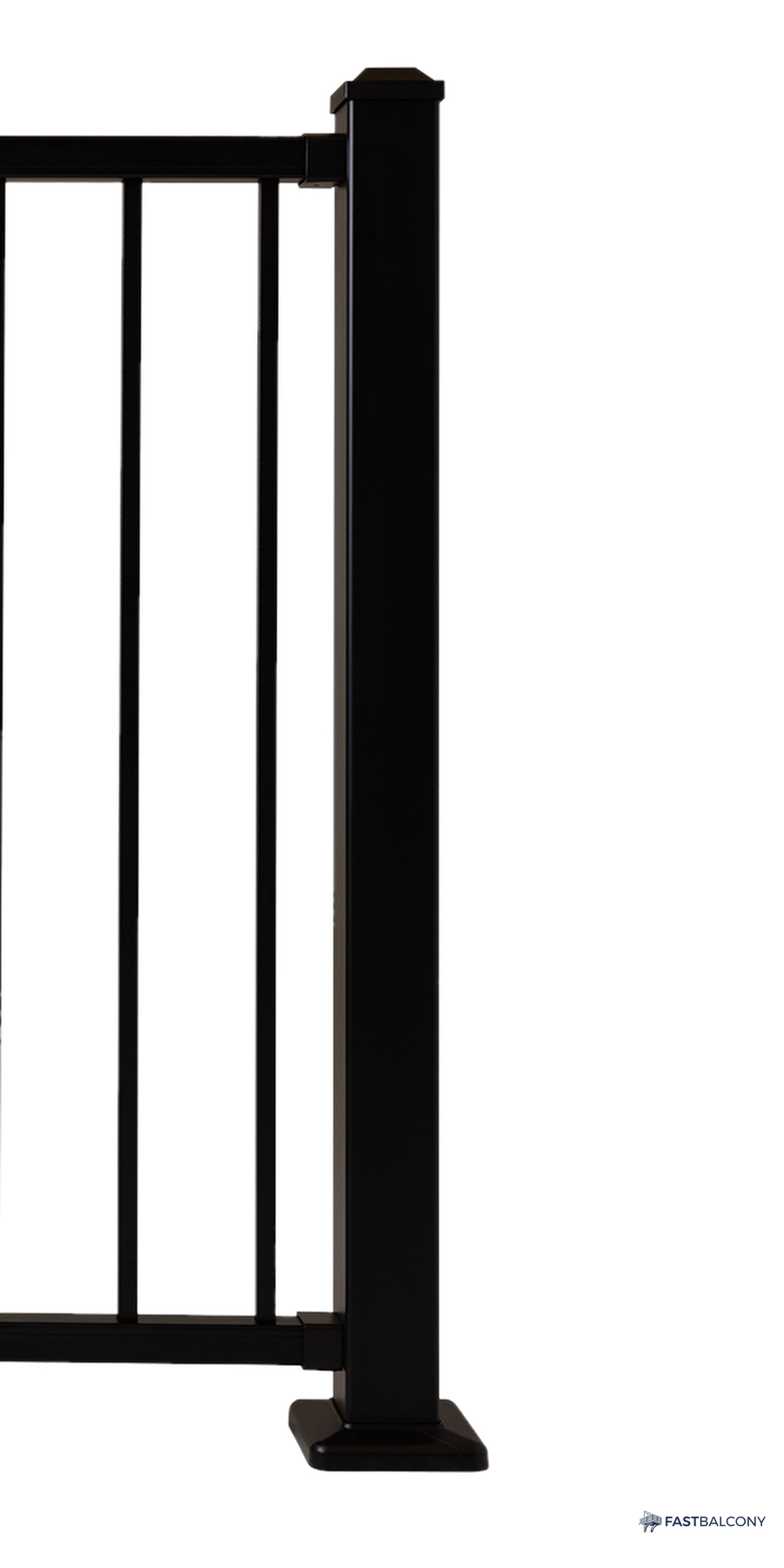

Each kit carries five AL 2.5 x 2.5 x 3/16 in square aluminum stanchions cut for a 42 in guard height, with a 36 in option where the project code allows, plus base hardware for bolt-on installation. The profile matches the guard structure used across the balcony platforms and railing systems, so mixed scopes read as one program on the elevation. Posts surface-mount to the balcony frame or deck structure per the released details, with spacing set by the project engineering, and every post is powder coated in the four-color program to match the guard order.

Highlights

• Five AL 2.5 x 2.5 x 3/16 in square aluminum stanchions with base hardware
• 42 in guard height standard; 36 in where project code allows
• Matches the guard structure across the balcony and railing lines
• Bolt-on surface mount, no field welding
• Powder coated to match the guard order in Matte Black, White, Bronze, or Slate Gray
• About 43 lb per set at 42 in for take-off math

Specification Table

Included Components

• Five welded aluminum stanchions in the selected guard height
• Base hardware for bolt-on surface mounting
• Powder coat finish in the selected color

Installation Notes

• Post anchorage is structural: substrate and blocking must be verified by the project engineer of record, with structural verification completed during quote review.
• Lay out post locations from the released engineering before drilling; spacing is set per project.
• Bolt posts plumb per the released details and check alignment along the run before rail installation.
• Torque base fasteners to the documented values and wash powder coated surfaces with mild detergent and water.

Warranty and Support

• Warranty coverage for the final quoted configuration is documented and confirmed during quote review.
• AAMA 2604-class powder coat performance is available and confirmed during quote review.

Frequently Asked Questions

How many kits do I need for my run?
Post spacing comes from the released engineering rather than a fixed module, so send the run drawing with the quote request. As a planning class, guard bays in this program run in the 4 to 5 ft range, and the exact schedule is confirmed during quote review.

Do these match the posts on the prefabricated balconies?
Yes. The stanchion profile matches the guard structure used across the balcony platforms and railing systems, so extensions and repairs read as the same program.

When is the 36 in height allowed?
Typically in one and two family residential settings where the applicable code permits a 36 in guard. The height is confirmed against the project code during quote review.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)
