Fast Balcony

Fast Balcony Top Rail and Bottom Rail Profile Set

Name: Fast Balcony Top Rail and Bottom Rail Profile Set
Brand: Fast Balcony
SKU: FB-BAL-ACC-TOPRAIL-R16-BK

SKU: FB-BAL-ACC-TOPRAIL-R16-BK

Rail Run

16 ft 18 ft 20 ft

Finish

Matte Black White Bronze Slate Gray

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

The Fast Balcony Top Rail and Bottom Rail Profile Set supplies the horizontal rail members of the guard program: miter-cut top rails and matching bottom rails, sized to the guard run. It serves guard rebuilds, infill changes, and site-built runs that need to match the prefabricated balcony line.

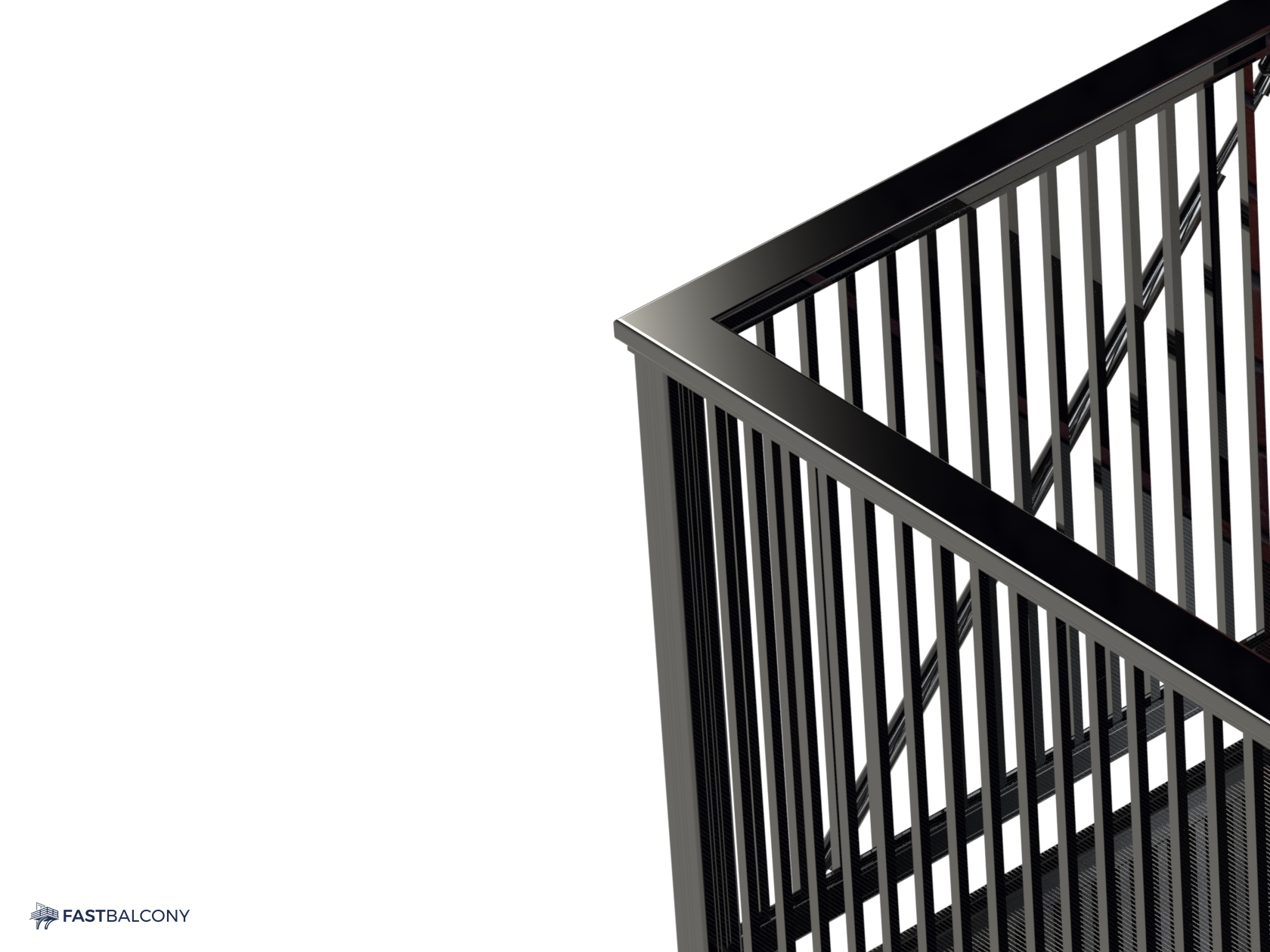

The top rail is AL 2.5 x 2.5 x 1/8 in square aluminum with miter-cut corners, paired with an AL 2 x 2 x 1/8 in bottom rail, both powder coated in the four-color program. Sets are sized to guard runs of 16, 18, and 20 ft, which cover the standard platform grid from 4 ft x 8 ft through 5 ft x 10 ft, and cut-to-project runs are quoted from the run drawing. Rails join the stanchions and posts of the matching guard program with bolt-on splice hardware, no field welding, and the miter-cut corners land the wrap-around guard geometry cleanly.

Highlights

AL 2.5 x 2.5 x 1/8 in miter-cut top rail with AL 2 x 2 x 1/8 in bottom rail
Run sets of 16, 18, and 20 ft matching the standard platform guard runs
Bolt-on splice hardware, no field welding
Matches the rail geometry across the balcony and railing lines
Powder coated to the guard order in Matte Black, White, Bronze, or Slate Gray
Set weights 43 to 53 lb for take-off math; cut-to-project runs quoted

Specification Table

Kit scope	Miter-cut top rails, bottom rails, and splice hardware for one guard run
Top rail profile	AL 2.5 x 2.5 x 1/8 in square aluminum, miter-cut corners
Bottom rail profile	AL 2 x 2 x 1/8 in square aluminum
Run lengths	16 ft, 18 ft, 20 ft standard sets; cut-to-project runs quoted
Installation	Bolt-on rail installation with splice hardware, no field welding
Structural basis	Engineered to project live-load requirements; structural verification completed during quote review
Finish	Powder coat: Matte Black, White, Bronze, Slate Gray; matched to the guard order
Set weight	About 43 lb (16 ft), 48 lb (18 ft), 53 lb (20 ft) (engineering estimate)
Lead time	Confirmed during quote review
Freight	Ships by commercial freight; freight confirmed during quote review
Warranty	Warranty coverage for the final quoted configuration is documented and confirmed during quote review

Included Components

Miter-cut top rail members for the selected run length
Matching bottom rail members
Splice and attachment hardware per the released details
Powder coat finish in the selected color

Installation Notes

Guard geometry must follow the released engineering; structural verification is completed during quote review.
Dry-fit the miter-cut corners and splices before fastening to confirm the run geometry.
Set the bottom rail clearance per the released details before locking the top rail line.
Torque splice and attachment fasteners to the documented values and wash powder coated surfaces with mild detergent and water.

Warranty and Support

Warranty coverage for the final quoted configuration is documented and confirmed during quote review.
AAMA 2604-class powder coat performance is available and confirmed during quote review.

Frequently Asked Questions

Which run length fits my balcony?
The 16 ft set fits the 4 ft x 8 ft platform guard run, 18 ft fits 5 ft x 8 ft, and 20 ft fits 5 ft x 10 ft; the 9 ft 6 in platforms fall between and are cut from the next set up. Send the run drawing for cut-to-project sets, confirmed during quote review.

Do these rails fit the stanchion kit?
Yes. The rail profiles are dimensioned to the 2.5 x 2.5 in stanchion program used across the balcony platforms and railing systems, and the splice hardware ships in the set.

Can I order top rail only?
The set ships as top and bottom rail together because the guard geometry uses both. Odd-lot and top-only replacements are handled as a quote line item.
