Light Archon Axiom 200W Smart Low-Voltage Landscape Lighting Transformer

The Light Archon Axiom is the control heart of a low-voltage landscape lighting system: a 200 W smart transformer with three independently switched output channels, selectable 12V or 15V AC output, and app-based scheduling that includes true astronomical dusk-to-dawn logic. It upgrades ordinary non-smart landscape fixtures into a zoned, scheduled system without replacing a single head. Pricing is quote-based: add it to a quote list and the desk confirms system sizing.

Three channels mean the path lights, the uplights, and the water feature each get their own zone, switched and scheduled independently from the app over Wi-Fi or Bluetooth with no hub required; voice control runs through major smart ecosystems. The app also shows the real-time connected wattage, so an installer can see the load against the 200 W capacity while stringing runs, and integrated surge, overload, and short-circuit protection guard the system. The 15V tap compensates for voltage drop on long cable runs. It plugs into an exterior GFCI-protected receptacle, hangs on the wall with the included mounting template, and meets DOE VI no-load efficiency per source documentation, so it idles at almost no cost when the lights are off.

Highlights

• 200 W capacity across 3 independently controlled channels
• Selectable 12V or 15V AC output for long-run voltage drop
• Astronomical dusk-to-dawn, timer, and clock schedules in the app
• App and voice control via major smart ecosystems, no hub
• Real-time load wattage display prevents overloading
• Integrated surge, overload, and short-circuit protection
• Controls existing non-smart low-voltage fixtures, submersible included
• UL1838 and FCC Class B per source documentation; DOE VI efficiency

Specification Table

Included Components

• 200 W smart transformer
• Wall mounting template
• AC power cord
• Low-voltage landscape cable and fixtures quoted separately

Installation Notes

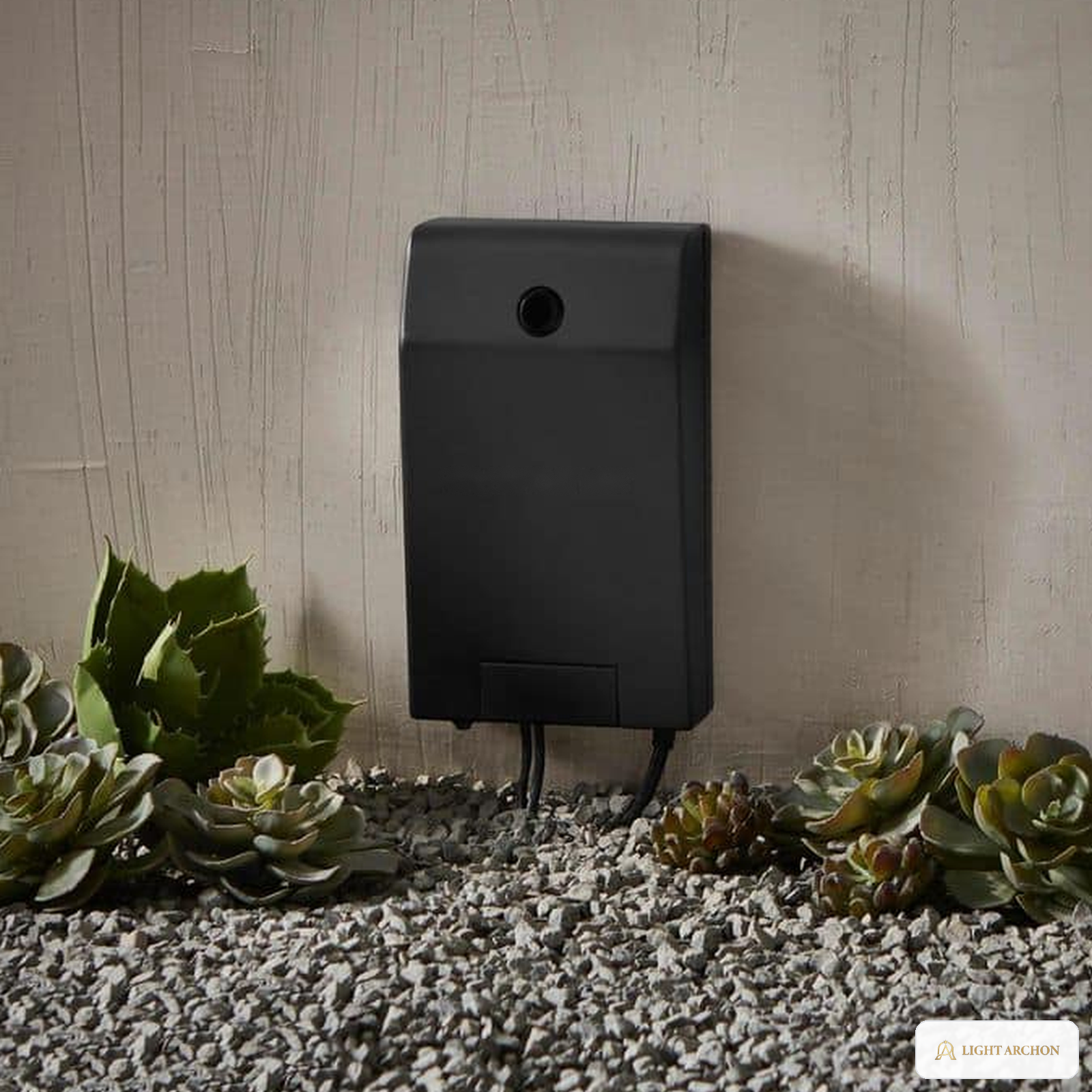

• Wall-mount beside an exterior GFCI-protected receptacle using the included template.
• Land low-voltage runs on the 3 output channels by zone; select 12V or 15V per system voltage-drop math.
• Check the app's live wattage readout while connecting runs; keep total load within 200 W.
• Set dusk-to-dawn, timer, or clock schedules per zone in the app after pairing.
• Use exterior-rated low-voltage landscape cable; sizing confirmed at quote review.

Warranty and Support

• 2-year limited warranty program confirmed on the quote sheet
• System sizing help: send the fixture schedule with the quote for load review
• Quote-first program: no public prices; submit the list for project terms

Frequently Asked Questions

How does it mount and connect?
It wall-mounts with the included template next to an exterior GFCI-protected receptacle and plugs in with the included cord; low-voltage runs land on the three output channels. No junction box work is required.

Will it run my existing landscape lights?
Yes. It controls standard non-smart low-voltage landscape fixtures, including submersible fixtures per source documentation, up to 200 W total across the three zones.

What does the 15V setting do?
Long cable runs lose voltage; the 15V tap compensates so distant fixtures still see proper voltage. Choose per zone based on run length and load at quote review.

Does dusk-to-dawn need a photocell on the wall?
No. The astronomical logic computes sunset and sunrise for the site in the app, so schedules track the seasons without a hardware sensor.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
