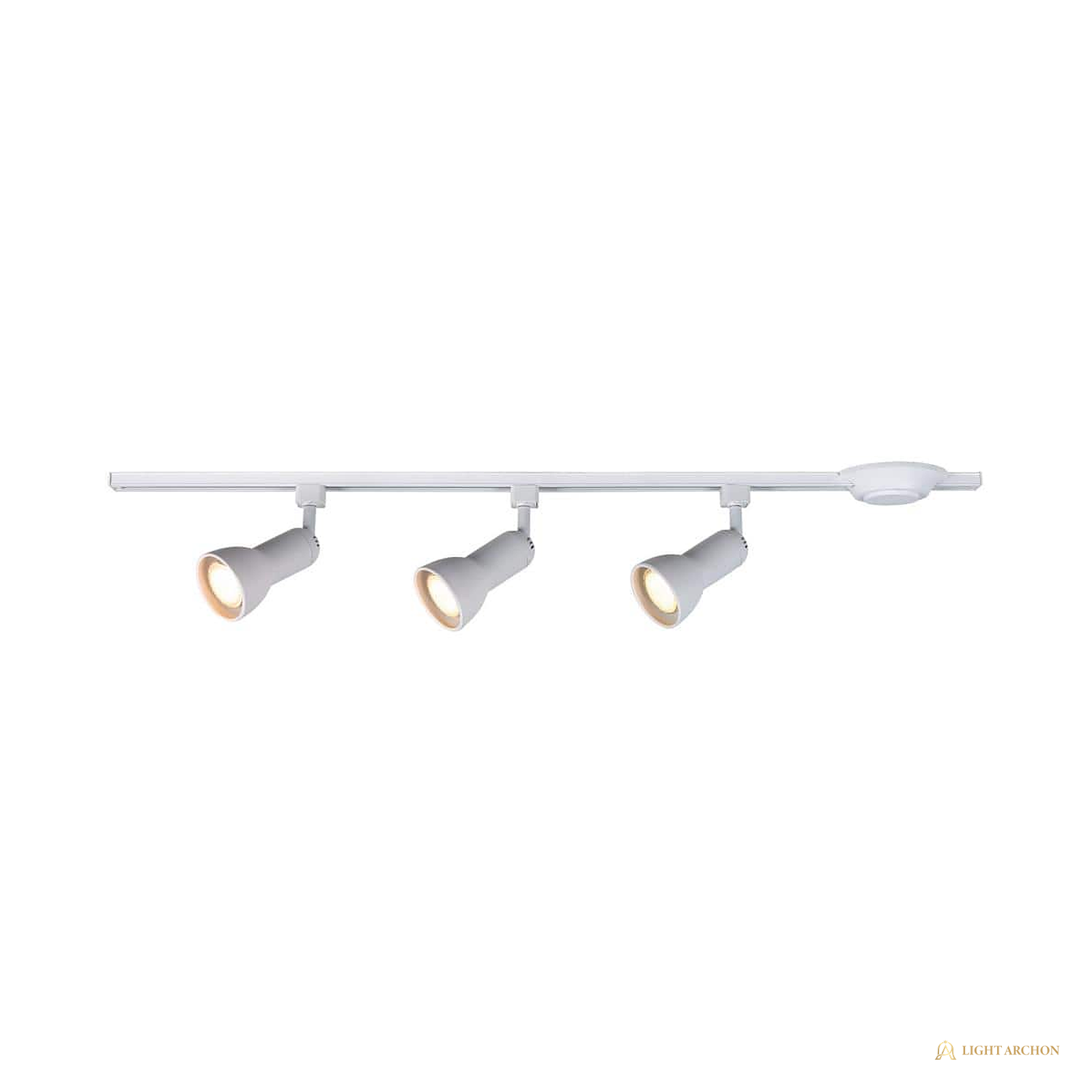

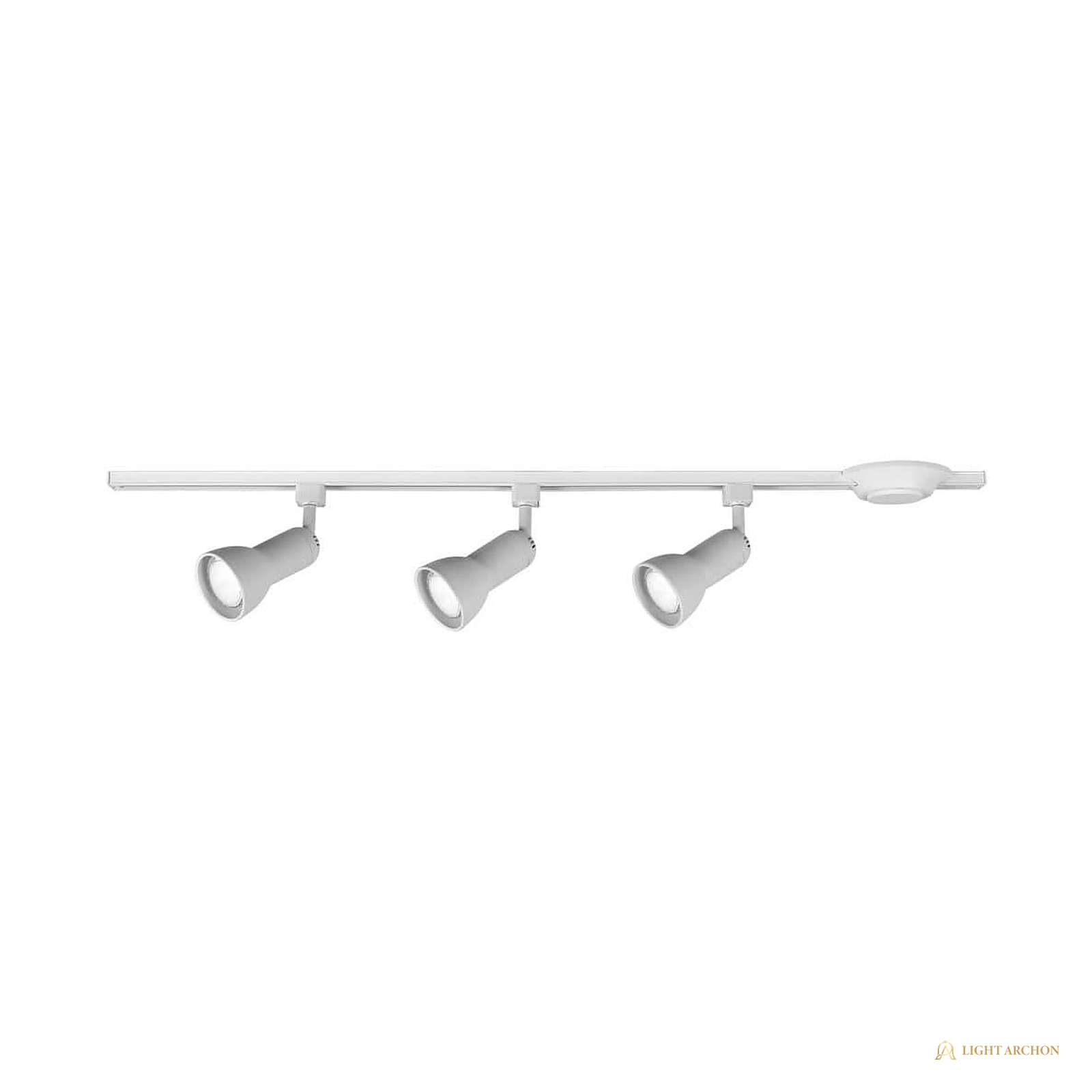

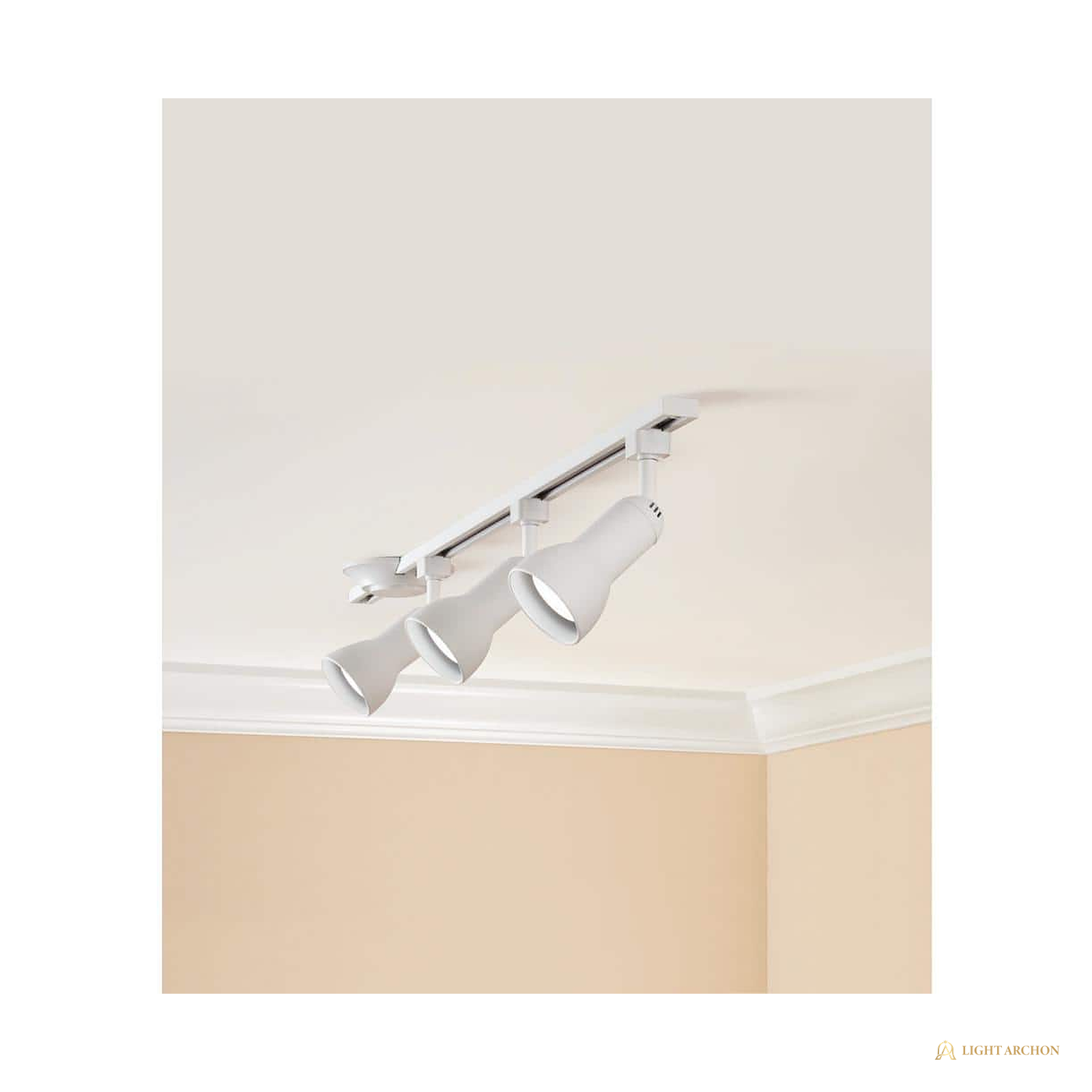

Light Archon Axis 4 ft. Linear Track Kit with 3 Step Heads, White

The Light Archon Axis 4 ft. track kit is the fastest way to put three aimable beams on one junction box: a 44 in. single-circuit track, a floating power feed canopy, and three step heads that swivel and pitch to hit art, shelving, or a work surface. Pricing is quote-based: add it to your quote list and our team confirms configuration and delivery.

Each step head takes an E26 medium-base R20, PAR20, or BR20 lamp to 60 W, so beam spread, output, and color temperature follow the lamps you specify, and the circuit dims on most standard 120V dimmers when paired with dimmable lamps. The floating power feed slides along the track to land on the junction box wherever it falls, and the kit installs on ceilings or walls. The Axis program stays expandable: 8 ft. track sections, track-to-track couplers, and extra step heads join at quote review.

Highlights

• Complete kit: 44 in. track, floating power feed, 3 step heads
• Heads swivel and pitch for multi-directional aiming
• Three E26 sockets take R20, PAR20, or BR20 lamps to 60 W each
• Photometrics follow the lamps you specify
• Dims on most standard 120V dimmers with dimmable lamps
• Floating power feed lands on the box anywhere along the track
• Ceiling or wall mounted, dry locations
• Expandable with 8 ft. sections, couplers, and extra heads

Specification Table

Included Components

• 44 in. single-circuit track section
• Floating power feed with canopy
• 3 adjustable step heads
• Mounting hardware and instructions

Installation Notes

• Hardwire the floating power feed to a standard ceiling or wall junction box on a switched 120V circuit.
• Slide the power feed along the track to meet the box location before locking it down.
• Lamps sold separately: specify three E26 R20, PAR20, or BR20 lamps, 60 W max each, at quote review.
• For dimming, pair dimmable lamps with a compatible 120V dimmer; verify at quote review.
• Dry interior locations only. Installation by a qualified electrician.

Warranty and Support

• Track program hardware terms confirmed at quote review
• Expansion planning (sections, couplers, heads) supported at quote review
• Specifier support and submittal documents available on request

Frequently Asked Questions

Where does the power come in?
Through the floating power feed: its canopy covers the junction box and the feed slides anywhere along the 44 in. track, so the box never dictates the layout.

Which lamps do the heads take?
E26 medium-base R20, PAR20, or BR20 lamps, up to 60 W per head. Beam spread and color temperature follow the lamps, so spot and flood mixes are per-head choices.

Can the run be extended?
Yes. The Axis program adds 8 ft. track sections and track-to-track couplers, plus extra step heads; expansion pieces are configured at quote review.

Does it dim?
The track circuit works with most standard 120V dimmers. Dimming quality follows the lamps: specify dimmable lamps and verify the dimmer match at quote review.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
