Light Archon Axis LED Track Head, Cylinder, Black
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

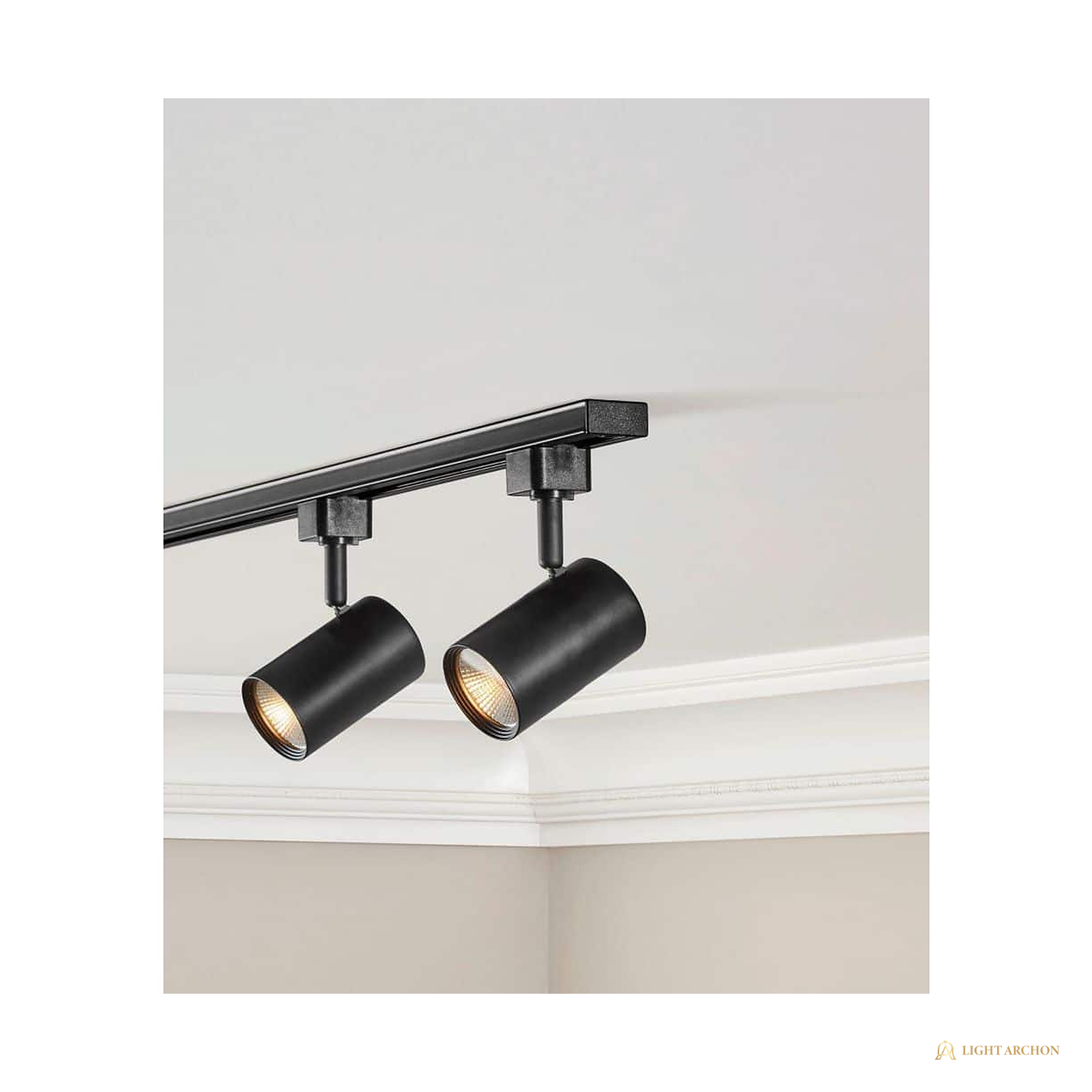

The Light Archon Axis cylinder head drops integrated LED performance onto any run of the Axis single-circuit track: 500 lumens of 2700K warm white at 90 CRI from a clean black cylinder that swivels and pitches to aim. No lamps to stock, no sockets to relamp. Pricing is quote-based: add it to your quote list and our team confirms configuration and delivery.
The die-formed metal cylinder houses a long-life LED array behind a diffusing aperture and produces gallery-grade warm light with high color accuracy for art walls, shelving, and counters. It dims on compatible 120V LED dimmers, and the multi-directional yoke covers wall-wash to down-beam positions. Heads snap into the matching single-circuit linear track anywhere along the run; track sections and power feeds are configured separately at quote review.
Highlights
- Integrated LED: 500 lumens at 2700K warm white
- 90 CRI keeps art and finishes true
- Clean cylinder profile in black, 5.51 in. tall
- Swivels and pitches for aimable beams
- Dims on compatible 120V LED dimmers
- Snaps anywhere along the matching single-circuit track
- No lamps to stock or replace
- ETL Listed
Specification Table
| Head type | Cylinder, integrated LED |
| Body | 3.23 W x 5.51 H x 2.17 D in. |
| Light output | 500 lumens |
| Color temperature | 2700K warm white |
| Color rendition | 90 CRI |
| Input watts | Confirmed at quote review |
| Dimming | Compatible 120V LED dimmers |
| Aiming | Multi-directional yoke |
| Track | Matching single-circuit linear track, sold separately |
| Finish | Black |
| Location | Dry rated, indoor |
| Listings | ETL, FCC |
Included Components
- Integrated LED cylinder track head
- Track adapter, factory fitted
Installation Notes
- Snaps into the matching Light Archon single-circuit linear track; track sections and power feed sold separately.
- De-energize the track circuit before adding or moving heads.
- For dimming, use a compatible 120V LED dimmer; verify the model at quote review.
- Dry interior locations only.
Warranty and Support
- LED array terms confirmed at quote review
- Track program compatibility support at quote review
- Specifier support and submittal documents available on request
Frequently Asked Questions
Which track does it mount to?
The matching Light Archon Axis single-circuit linear track: the head snaps in anywhere along a 44 in. or 8 ft. section. Track and power feed are configured separately at quote review.
Can I mix it with lamp-based step heads?
Yes. The single-circuit track powers integrated LED heads and E26 step heads side by side on the same run, within the run's total load.
Does it dim?
Yes, on compatible 120V LED dimmers. Confirm the dimmer model at quote review for flicker-free low end.
What about lamp replacement?
There is none: the LED array is integrated and rated for long service. The whole head swaps in minutes if service is ever needed.
Documents
- Type Track Lighting Kit
- SKU LA-LGT-TR-HD1-CYLN
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
