Light Archon Bastion 7 in. LED Up-Down Wall Light

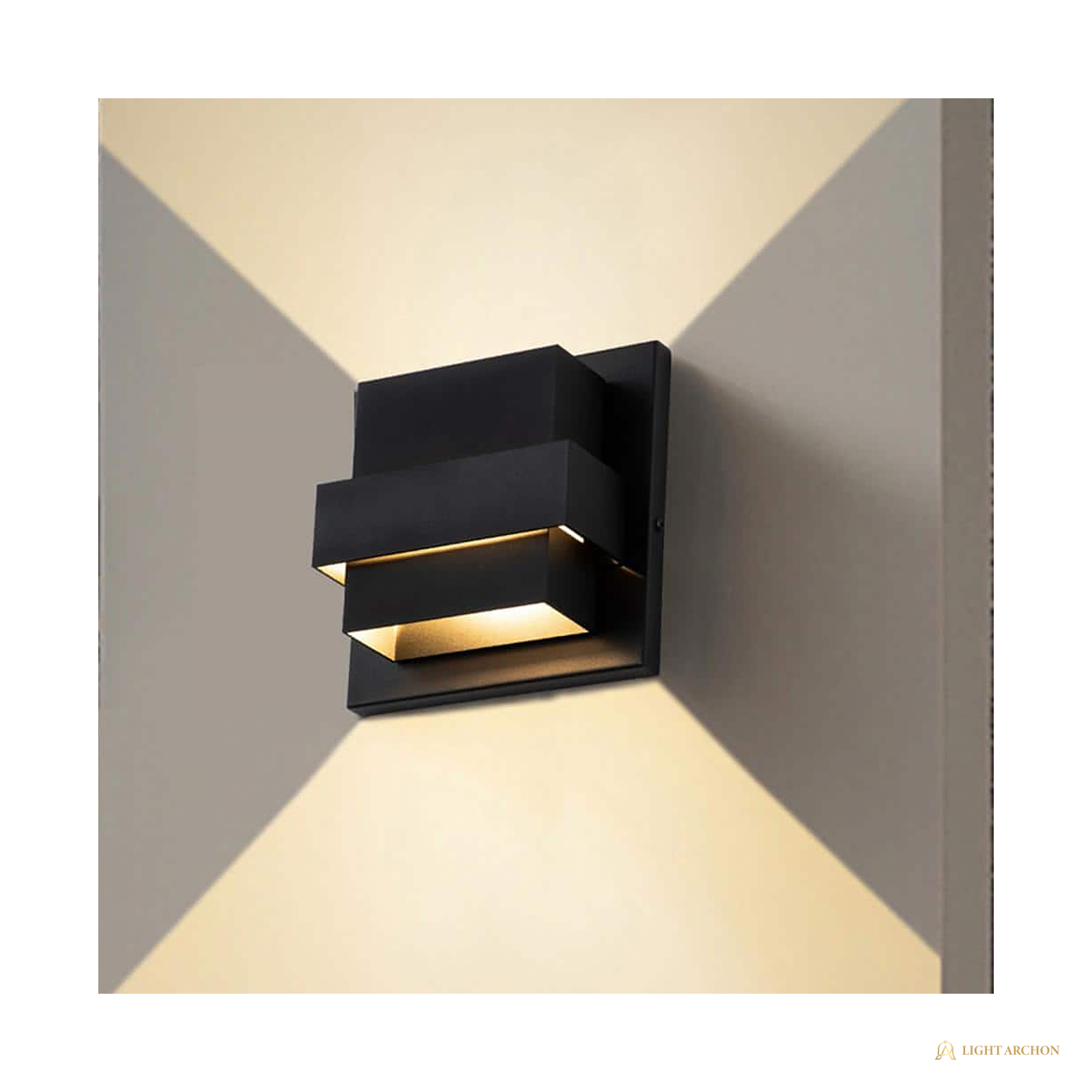

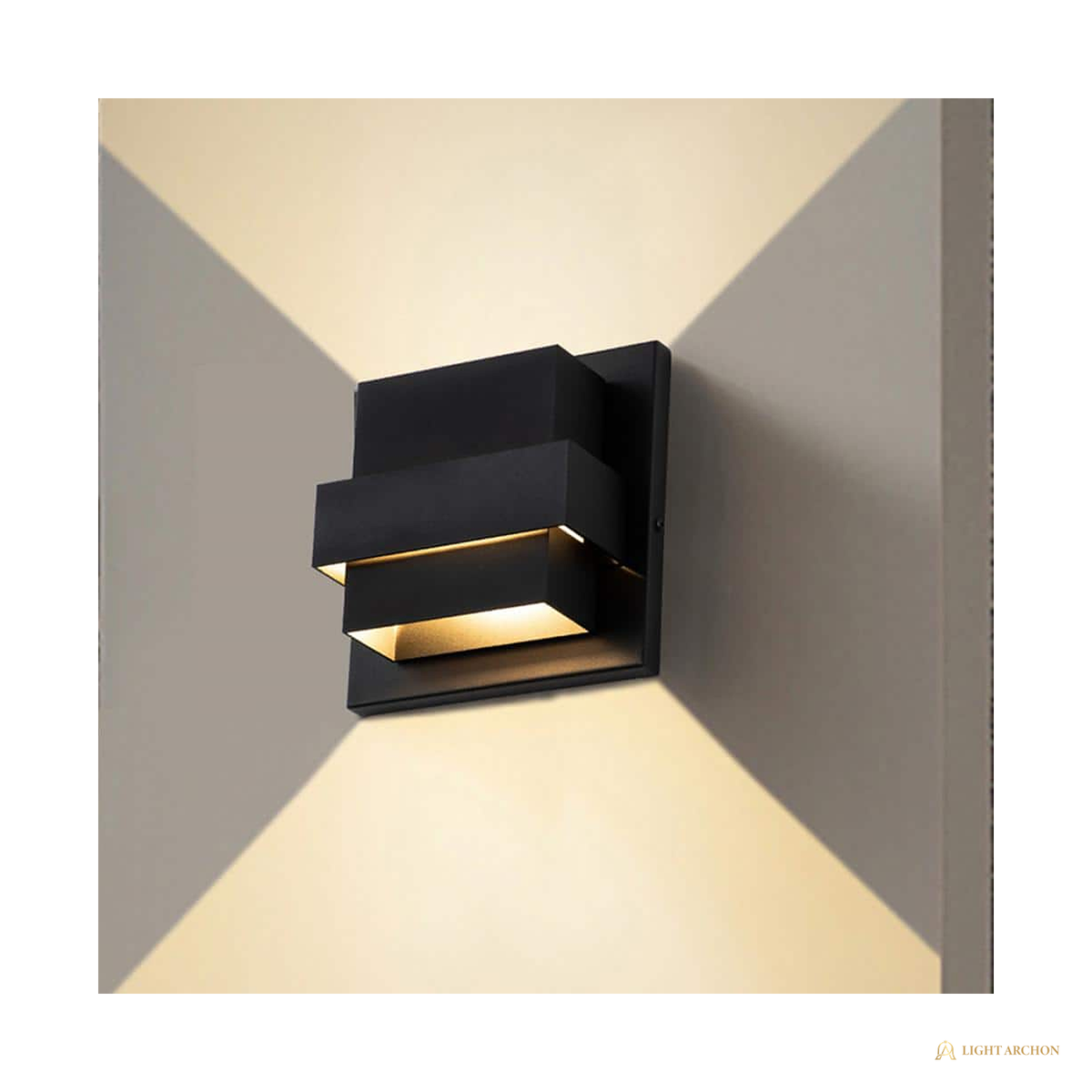

The Light Archon Bastion is a 7 in. square wall light in die-cast aluminum that throws light two ways at once: a wash up the wall and a pool below, from two integrated LED boards totaling 8.5 watts and 800 lumens at 3000K warm white. The stacked, stepped matte black body reads as architectural hardware rather than a decorative sconce, which is exactly why specifiers run it in pairs and rows.

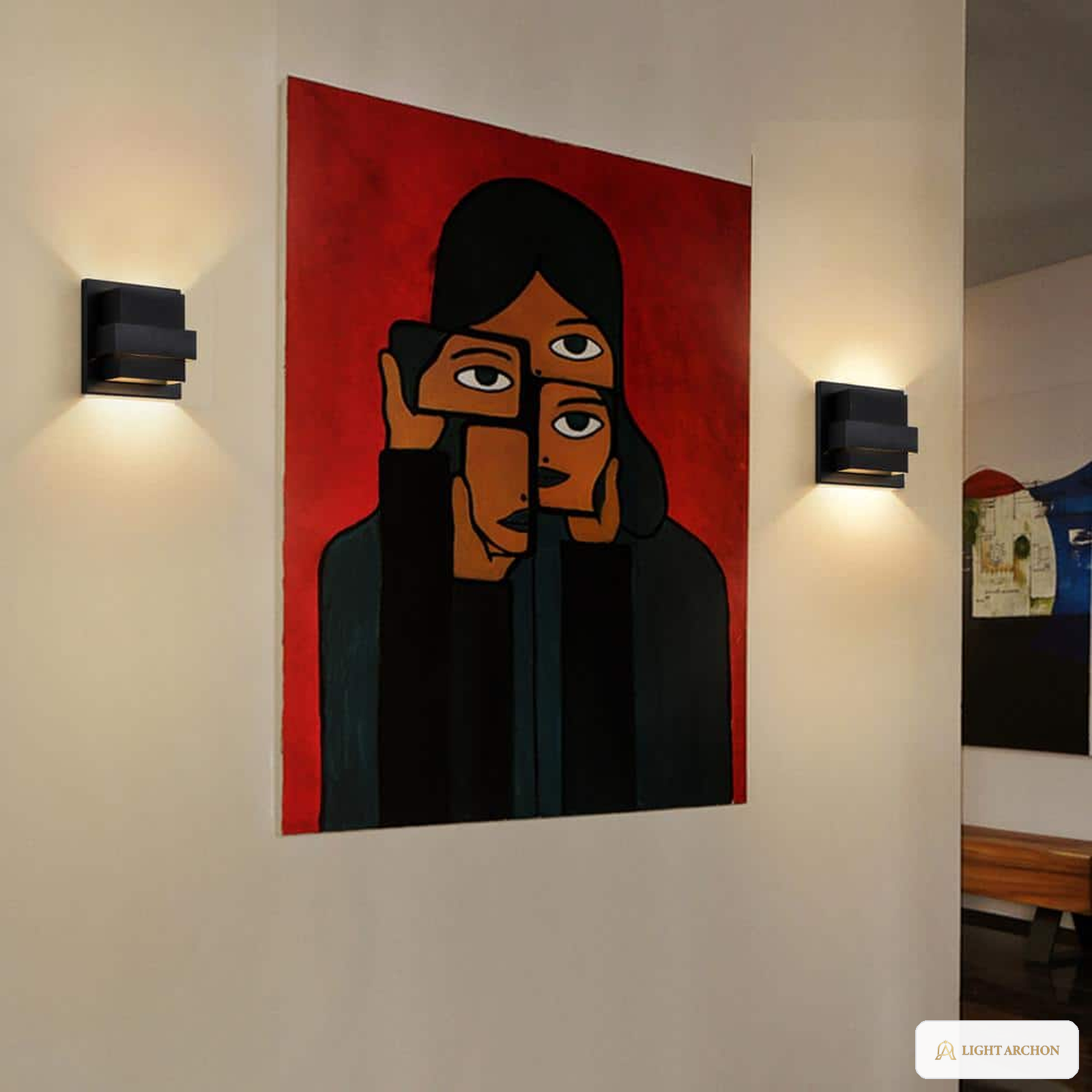

Repetition is the Bastion's strength: march it down a corridor, flank an entry, or rhythm a stair wall and the up-down glow builds a pattern the eye follows. The die-cast body is rust resistant and damp rated, so covered exterior entries and humid interior halls are both in play. There are no lamps to stock; the LED boards are integrated and the whole unit projects just 3 in. off the wall on a 7 in. square backplate that centers on a standard wall J-box in either orientation. Dimmer compatibility is confirmed at quote review rather than assumed. For quantity runs, submit the count on a quote list and a Light Archon specifier prices the row as one line with matched lead times.

Highlights

• Up and down output from one compact wall unit
• 800 lumens total at 3000K warm white from 8.5 watts
• Die-cast aluminum body in matte black, rust resistant

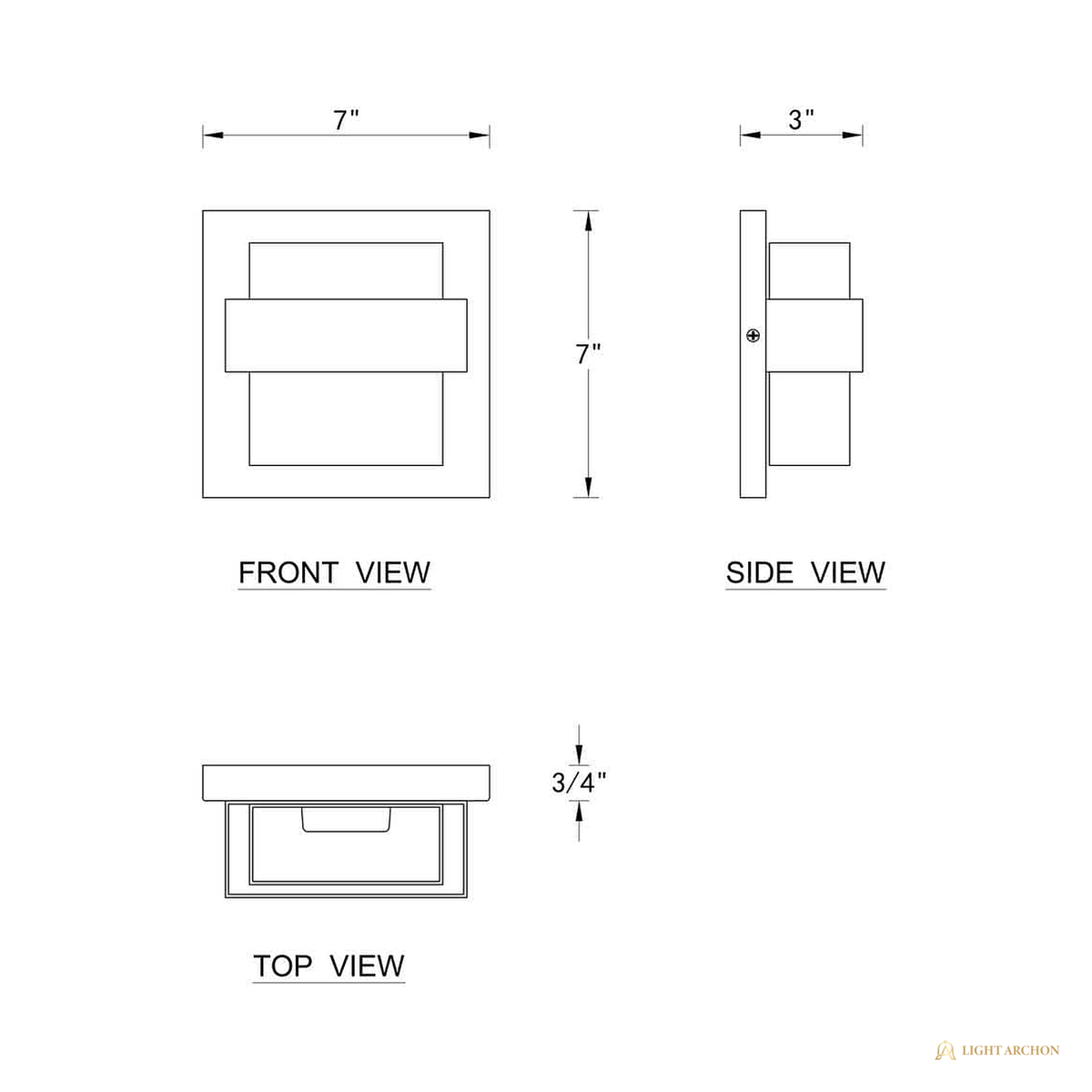

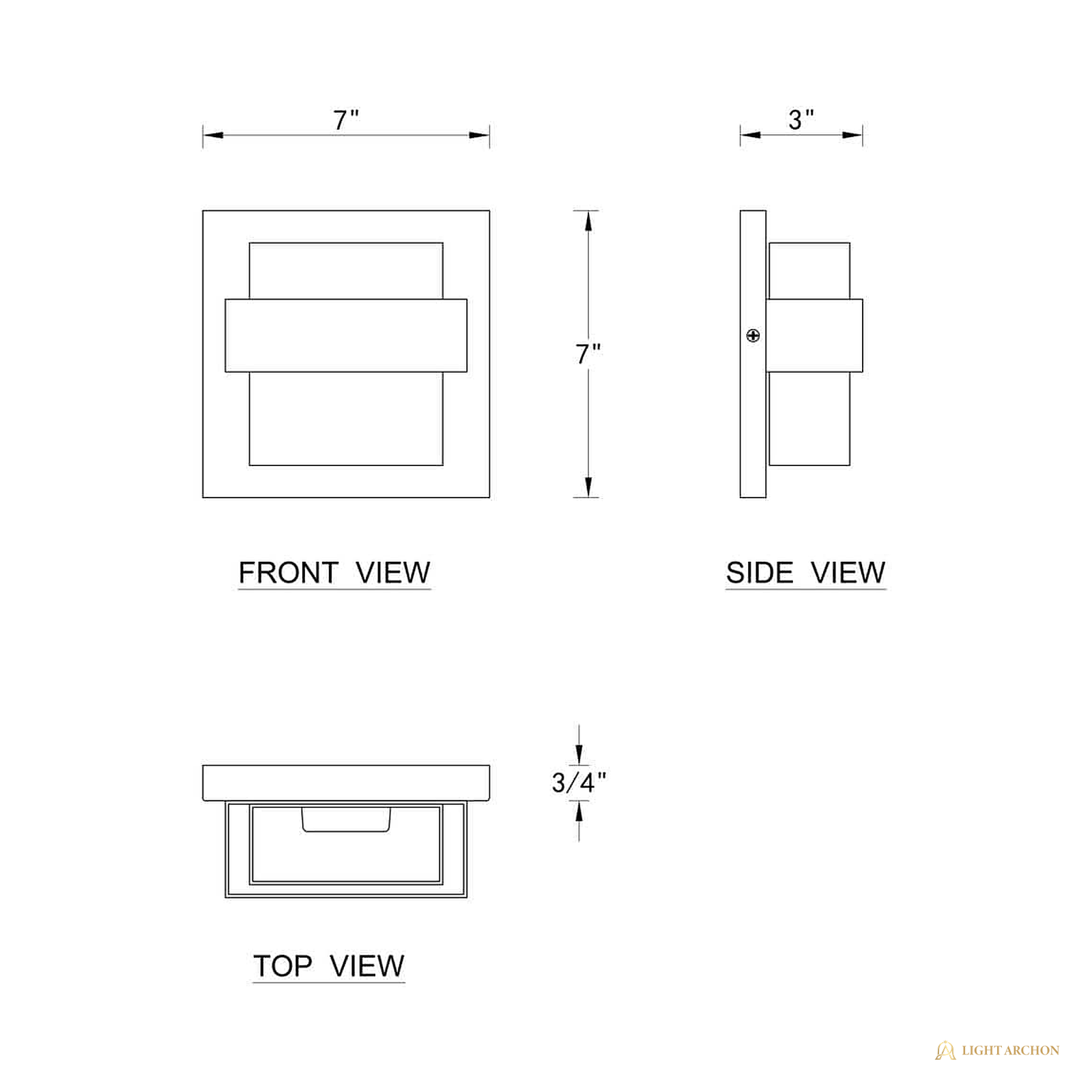

• Compact 7 x 7 in. face with a 3 in. projection
• 7 in. square backplate centers on a standard wall J-box
• Damp rated for covered entries and humid halls
• Integrated LED, no lamps to stock or replace
• Designed for pairs and repeated runs

Specification Table

Included Components

• LED wall light with integrated boards
• Square backplate and mounting hardware
• Installation instructions

Installation Notes

• Hardwired to a 120V circuit; de-power at the panel before work
• Centers on a standard wall J-box; the 7 in. plate covers either box orientation
• Set faces plumb so the up and down washes track the wall line
• Damp rated: covered exterior entries and humid interiors are supported
• For rows, snap a level line first; matched heights make the pattern

Warranty and Support

• Limited platform warranty confirmed on the quote sheet
• Quote-first program: quantity runs priced as one line at review

Frequently Asked Questions

What box does the Bastion mount on?
A standard wall J-box. The 7 in. square backplate centers on the box in either orientation and the body projects only 3 in. off the wall.

Can it go outside?

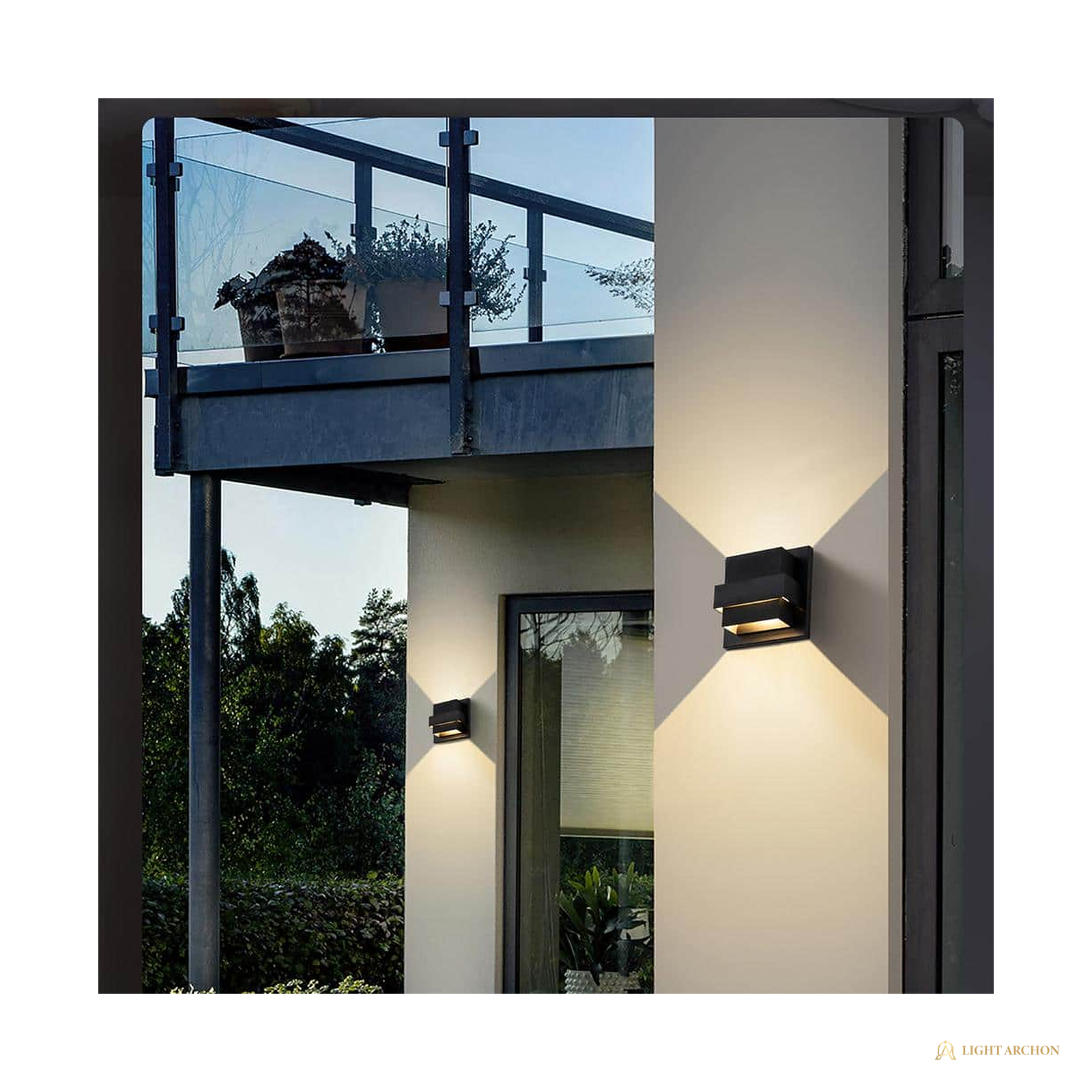

It is damp rated, so covered exterior walls such as porches and entry alcoves are supported. It is not rated for direct rain exposure.

Is the light warm or cool?
Fixed 3000K warm white, 800 lumens total split between the up and down apertures.

Can it dim?
Dimmer behavior is not published for this platform, so Light Archon confirms compatibility at quote review before you commit a control plan.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
