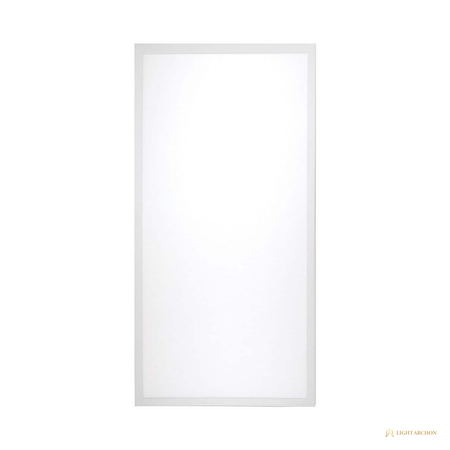

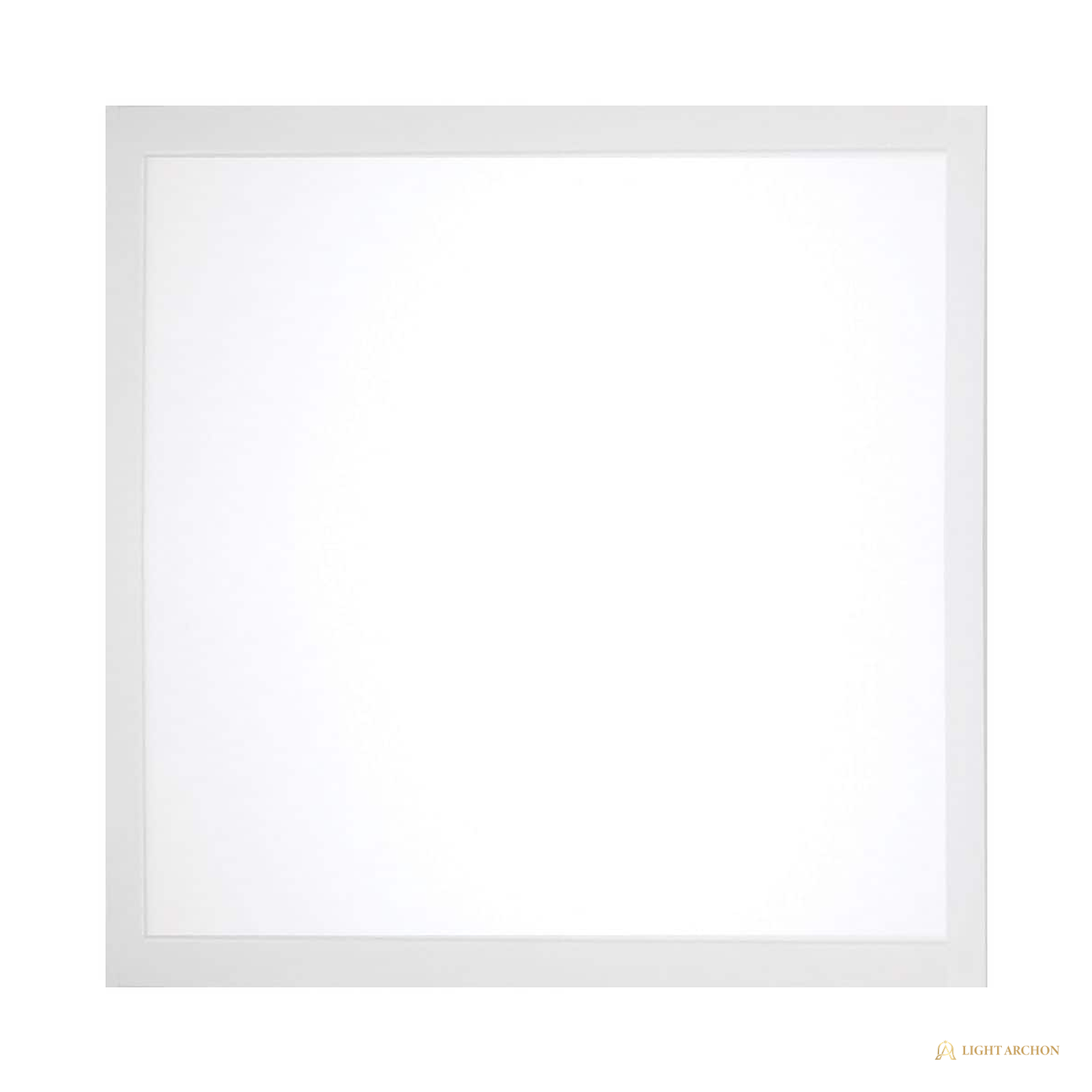

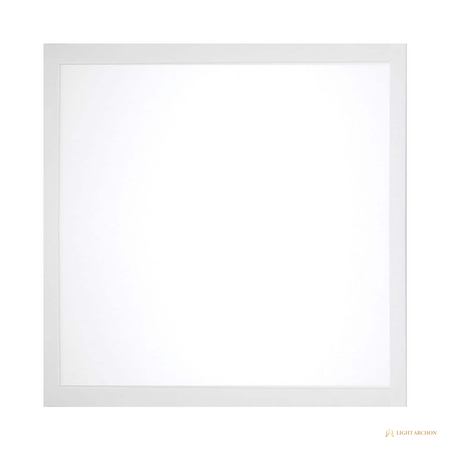

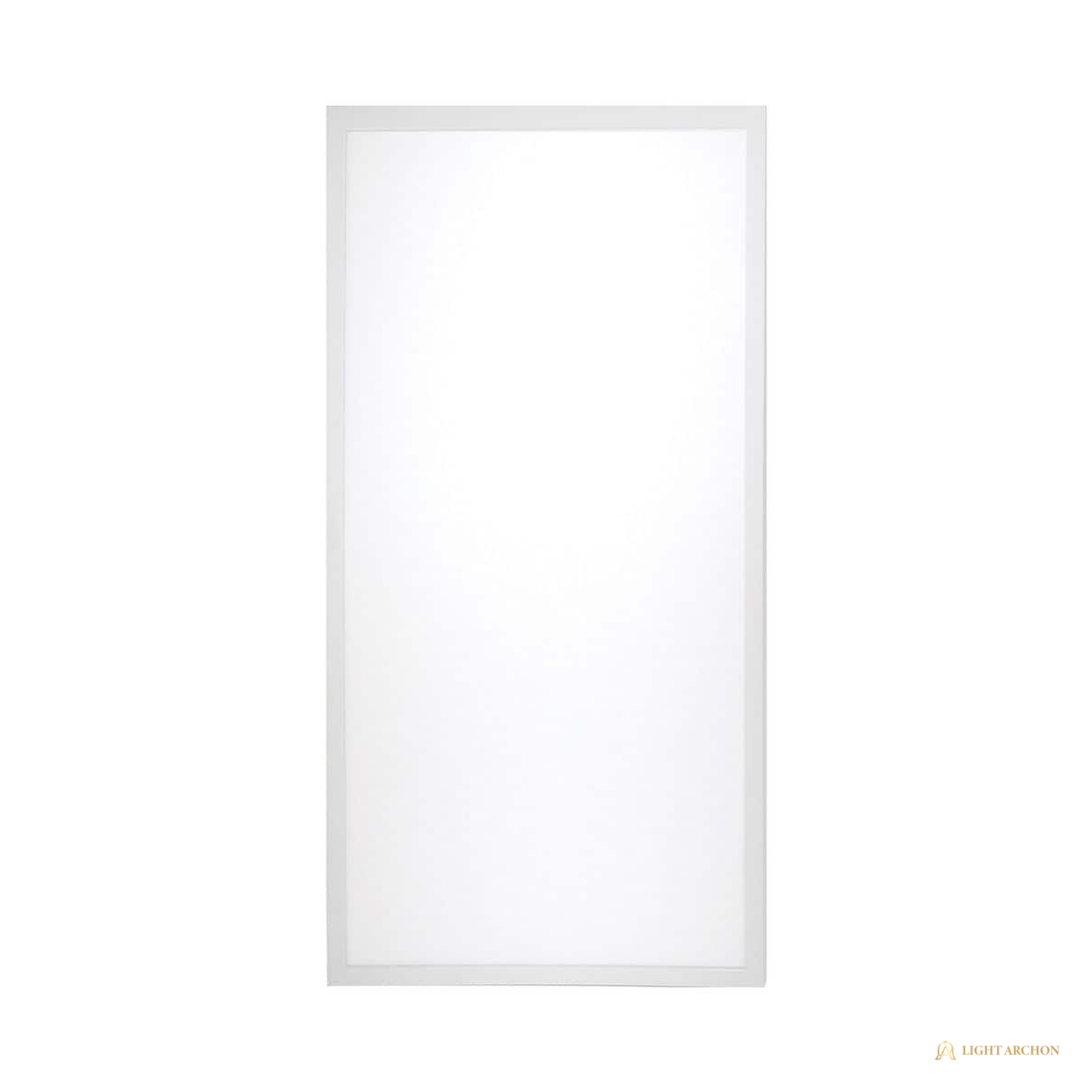

Light Archon Boreal LED Backlit Flat Panel, Selectable Wattage and CCT, 120-277V

Light Archon Boreal is a backlit LED flat panel for grid ceilings, with wattage selectable on the fixture and three color temperatures locking at 3500K, 4000K, or 5000K. The 2 ft. x 4 ft. size selects 30, 40, or 50 watts and lists 5750 lumens at the top setting; the 2 ft. x 2 ft. size selects 20, 30, or 40 watts. Backlit LED placement spreads a flicker-free, even face without edge shadows. Quote-first record: sizes, counts, and settings are confirmed at quote review.

Boreal lays into standard recessed T-grid ceilings and runs on 120-277V service with 0-10V dimming, so office, garage, and warehouse circuits land without driver swaps. Backlit technology per source documentation drives the diffuser from behind rather than the edge, holding even luminance across the face at a 1.5 in. housing depth. The platform is IC rated, damp rated, cETLus and FCC certified, DLC listed per source documentation for utility rebate programs, and rated 50,000 average hours per source documentation under a 5 year warranty. Single panels and 2-packs cover both sizes. Color accuracy runs 80 CRI typical and is confirmed at quote review.

Highlights

• Selectable wattage on the fixture: 30, 40, or 50 W (2x4) and 20, 30, or 40 W (2x2)
• 5750 listed lumens at the 2x4 top setting
• Selectable color temperature: 3500K, 4000K, or 5000K
• Backlit LED face for even, flicker-free luminance per source documentation
• 120-277V service with 0-10V dimming
• Recessed T-grid lay-in at a 1.5 in. housing depth
• IC rated, damp rated; cETLus and FCC certified
• DLC listed per source documentation; 5 year warranty

Specification Table

Included Components

• LED backlit flat panel per carton quantity
• Diffuser lens installed
• Mounting hardware
• Installation instructions

Installation Notes

• Shut power at the breaker and verify with a tester before any work above the grid.

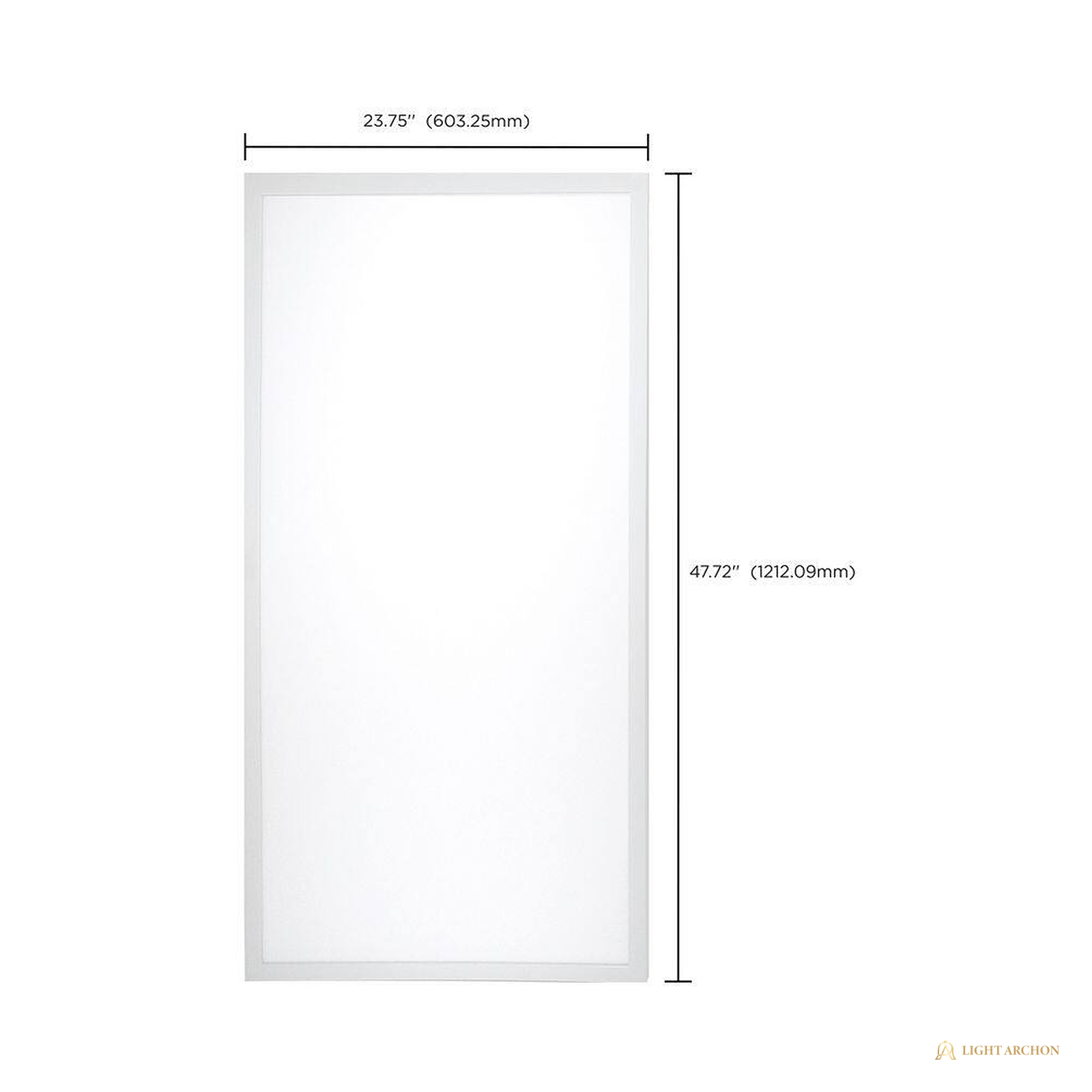

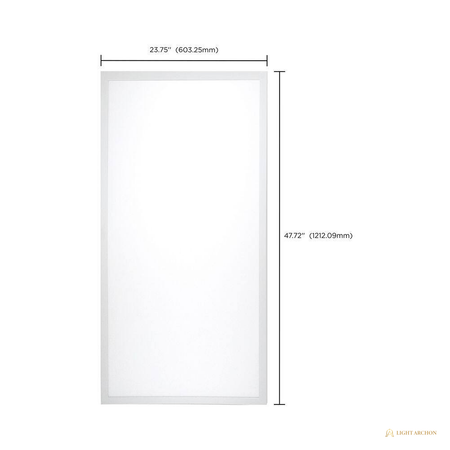

• Lay the panel into the T-grid opening sized to the panel: 2 ft. x 2 ft. or 2 ft. x 4 ft.
• Set the wattage and color temperature selectors before closing the ceiling.
• Land the 0-10V control pair on a compatible dimmer for dimmed circuits; verify the control system at quote review.
• Surface or suspended arrangements use accessory kits, confirmed at quote review.

Warranty and Support

• 5 year warranty
• 50,000 hour average rated life per source documentation
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

What ceiling does it mount in?
Standard recessed T-grid: the panel lays into a 2 ft. x 2 ft. or 2 ft. x 4 ft. opening to match the size ordered. Surface and suspended mounting run through accessory kits, confirmed at quote review.

What does backlit mean against other panels?
The LED board sits behind the diffuser and fires forward, per source documentation, which holds even luminance across the face and avoids the perimeter shadowing that thin side-fired panels can show.

How do the wattage settings work?

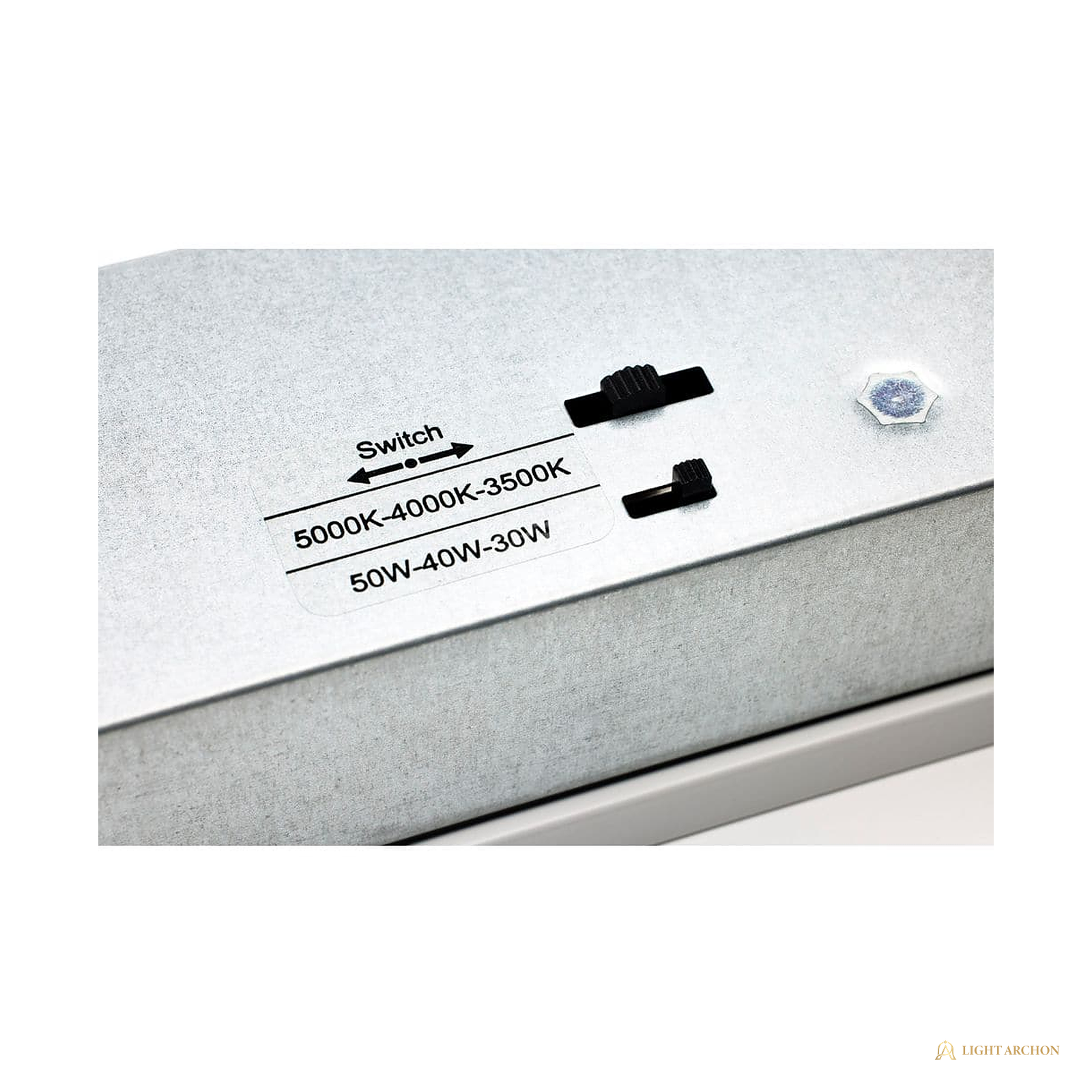

A selector on the driver locks 30, 40, or 50 watts on the 2x4 size, or 20, 30, or 40 watts on the 2x2, letting one SKU hit different light levels and energy targets per zone.

Does it qualify for utility rebates?
The platform is DLC listed per source documentation, which most utility rebate programs require; confirm your program's list revision at quote review.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
