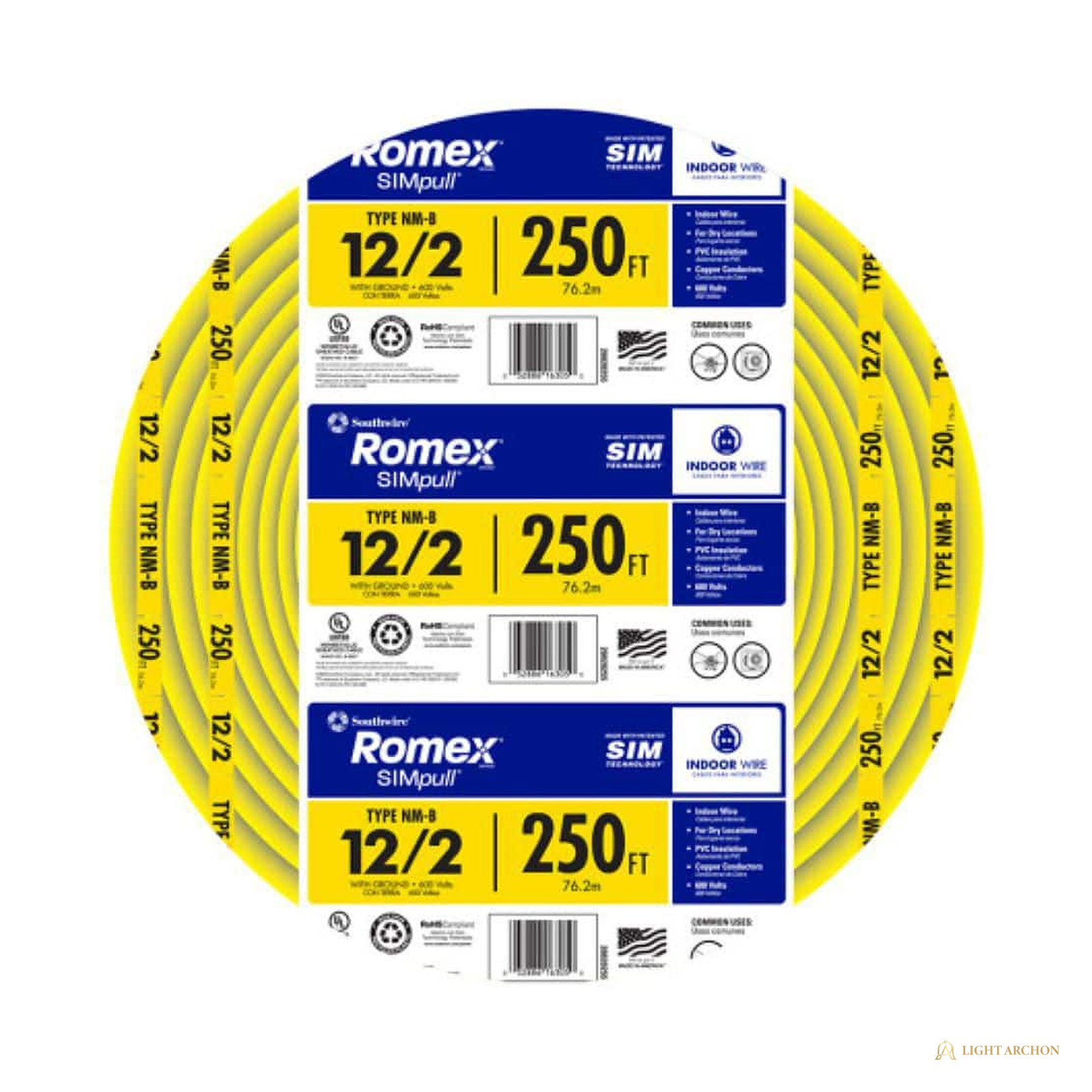

Light Archon BranchLine 12/2 Copper NM-B Cable with Ground

Light Archon BranchLine 12/2 copper NM-B cable carries the 20A branch circuits that do most of the work in a house: kitchen small-appliance runs, bath and garage receptacles, and general power. Every run ships as a continuous factory length with a yellow 600V jacket, two 12 AWG solid annealed copper conductors, and a bare copper equipment ground.

The yellow jacket follows the trade color code for 12 AWG, so inspectors and service crews read the circuit class at a glance. The slick outer surface pulls easily through drilled studs and plates, and production jacket print carries standard size and type text only. The listed maximum is 20A for this 12 AWG construction, which pairs with 20A overcurrent protection. Submit a quote list with mixed coil lengths and our supply desk confirms run counts and breaker matching at quote review.

Highlights

• 12/2 with ground construction: two solid copper conductors plus bare copper equipment ground
• Rated 600V with a durable PVC jacket and easy-pull outer surface
• 20A listed maximum ampacity for 12 AWG copper branch circuits

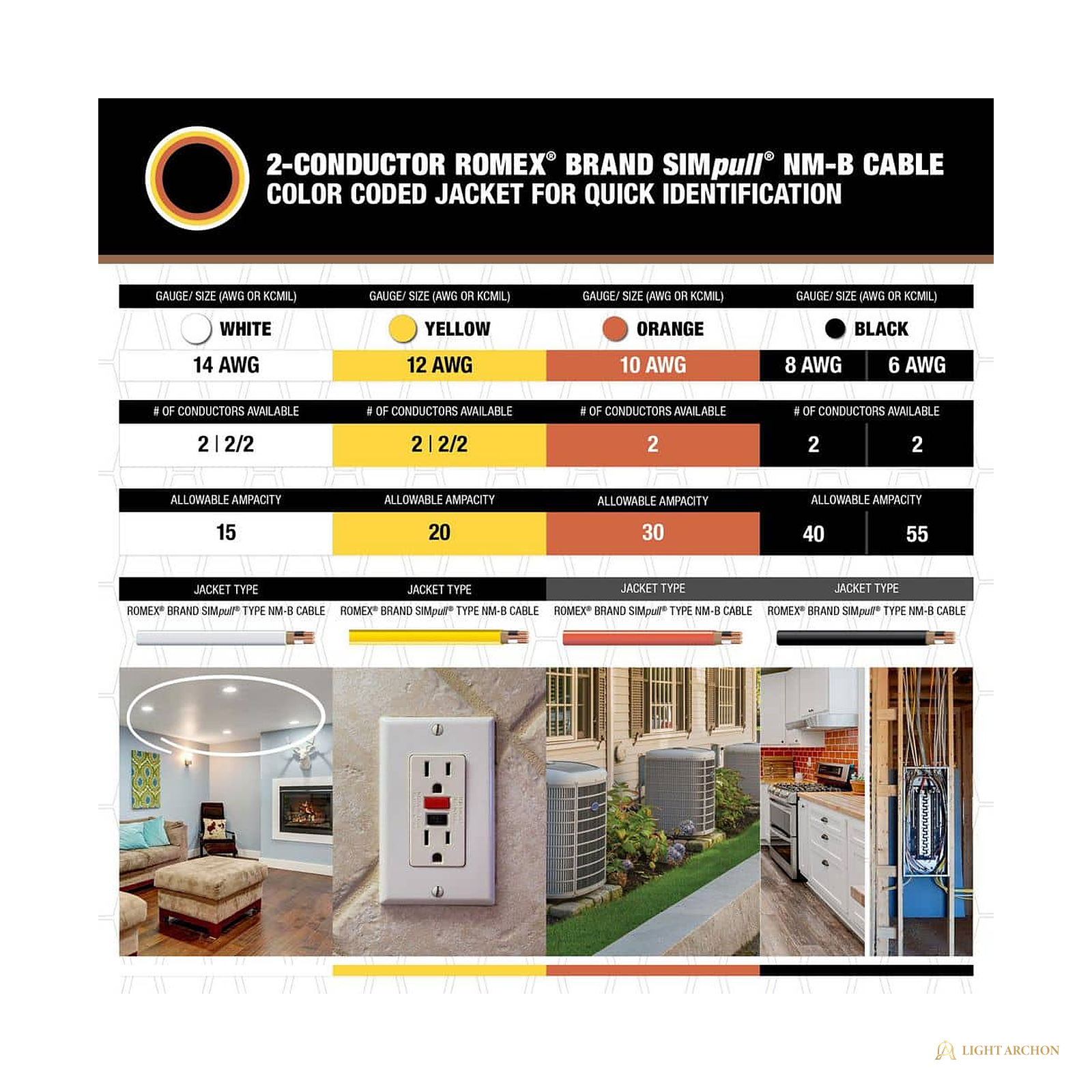

• Yellow jacket follows the standard 12 AWG trade color code
• UL listed per the published listing
• Factory runs from 15 ft to 1000 ft to match takeoff counts
• Dry interior use across residential and light commercial work
• Quote-first trade supply: no public prices, one submittal covers the whole job

Specification Table

Included Components

• Continuous factory run in the selected length
• Factory-sealed coil wrap or spool per length

Installation Notes

• Pair 12 AWG copper with 20A overcurrent protection on branch circuits per NEC.
• Count conductors, clamps, and devices toward box fill per NEC when loading device boxes.
• Support and secure cable runs at NEC spacing intervals and protect runs from nail strikes with steel plates where required.
• NM-B is limited to dry interior locations; quote conductors listed for wet locations where the route demands it.
• Final circuit counts, run lengths, and breaker matchups are confirmed at quote review.

Warranty and Support

• Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
• Submittal sheets and takeoff review support are available from our electrical supply desk.

Frequently Asked Questions

What circuits is this gauge rated for?
12 AWG copper NM-B pairs with 20A overcurrent protection, which suits kitchen small-appliance circuits, bath receptacles, and general 20A power. The listed maximum for this construction is 20A.

What lengths can I quote?
Factory runs of 15, 25, 50, 100, 250, and 1000 ft. Mixed lengths on one quote list are fine, and the desk can consolidate runs to cut waste.

Can this cable run outdoors or underground?
No. NM-B is listed for dry interior locations. For wet locations or burial, quote THHN conductors in conduit or a UF class cable at review.

Do you carry the two-circuit 12/2/2 construction?
Yes, as a quote-on-request item. Note the run count on your list and the desk prices the four-conductor construction separately.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
